Large CO2 Laser Cutter & Engraver – (1300 × 1300mm)
$15,550.00

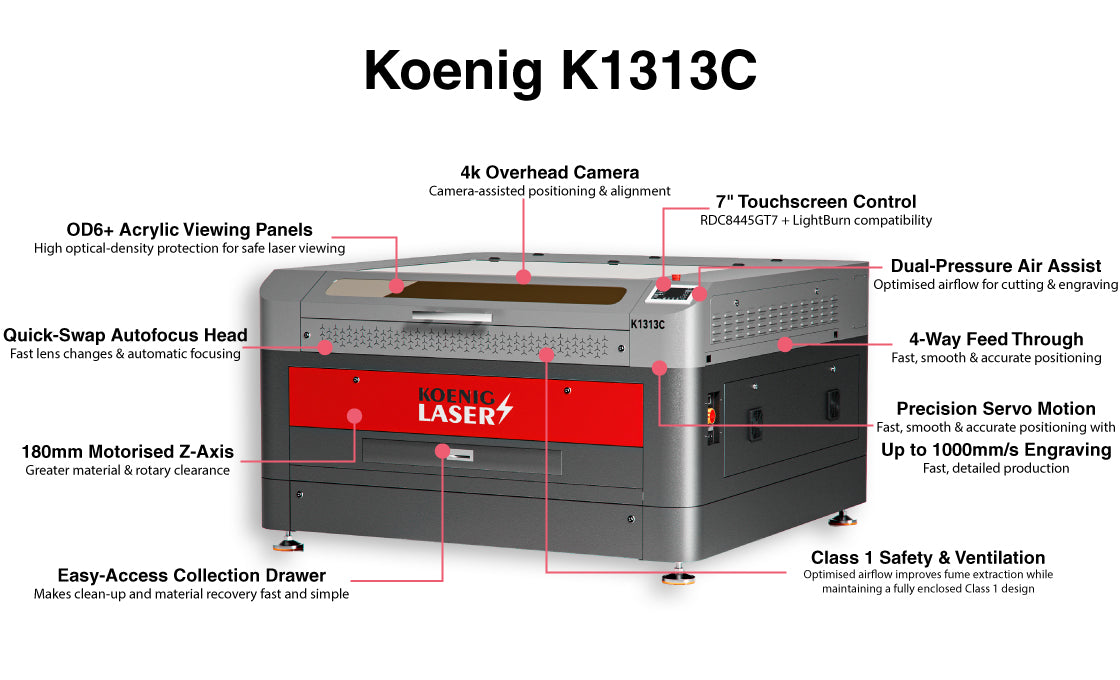

*ex GSTThe new generation of large-format Koenig CO2 laser technology. The K1313C combines greater working capacity with the latest K-Series technology, including faster servo-driven motion, increased rigidity, intelligent autofocus, quick-change optics and camera-assisted control for demanding production environments. Featuring a substantial 1300 × 1300mm working area and 100W, 150W or 280W CO2 laser power options, it provides the space and power required for larger projects, efficient material nesting and batch production across acrylic, MDF, plywood, timber, leather, rubber, textiles and other compatible non-metal materials.
The K1313C combines a lightweight autofocus laser head, quick-change lens system and dual servo-driven motion with an integrated 4K camera, touchscreen controller and LightBurn compatibility. Dual high/low-pressure air assist, 180mm Z-axis movement and rotary compatibility provide even greater flexibility across cutting, engraving and cylindrical applications.
Built around a heavy-duty industrial chassis with a fully enclosed Class 1 design, the K1313C is the flagship enclosed Koenig K-Series CO2 laser cutter, designed for Australian manufacturers, sign makers and production businesses requiring greater cutting and engraving capacity without compromising precision, versatility or ease of operation.
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Laser Power | 100, 150 or 280W |
| Cutting Area | 1300 × 1300mm |
| Z Axis | 180mm travel – motorised up-down table |
| Laser Type | RECI CO₂ Glass Tube 10.6μm – up to 10,000 hour life |
| Table Type | Knife bed table included (optional honeycomb table available) |
| Motor Type | Yakotec Precision Servo Motor |
| Camera | Built-in HD 4K overhead camera – covers front 1300 × 900mm of bed |
| Camera Alignment | LightBurn camera alignment and digital bed overlay |
| Ventilation | 750W centrifugal exhaust blower and extraction hosing provided |
| Cooling Type | S&A CW5200 refrigerating water chiller included |
| Engraving Speed | Up to 1200mm/s |
| Cutting Speed | Up to 300mm/s |
| Min. Engraving Size | 1.0mm × 1.0mm |
| Locating Accuracy | ≤ ±0.01mm |
| Controller | Ruida RDC8445GT7 touchscreen controller |
| Software | RDWorks and LightBurn – licence included, including print registration mark alignment using LightBurn Print & Cut |
| Computer Compatibility | Windows, Mac OS or Linux with LightBurn |
| Graphic Format Supported | DXF, DWG, AI, PDF, DST, PLT, BMP, JPG, PNG, SVG and other supported formats |
| Machine File Memory | 256MB internal memory |
| Power Supply | 230V 50Hz 10amp – Standard single phase |
| Options | Honeycomb table, rotary attachment, air filtration and high-powered compressor |
| Machine Footprint | 1900(W) × 1900(D) × 1150(H)mm |
| Machine Weight | 550kg |
| Package Dimensions | 2020(W) × 2020(D) × 1280(H)mm |
| Gross Weight (in Packaging) | 600kg |
Large CO2 Laser Cutter & Engraver – (1300 × 1300mm)
$17,105.00
We are committed to delivering your products to your premises as safely as possible. Our service delivers Australia-wide and is dedicated to meeting a variety of shipping needs.
Shipping is calculated based on your location and the weight of the item/s you have chosen to purchase.
Shipping is calculated at checkout, machines are shipped by standard feight. In regards to larger Fiber lasers a member of the Koenig Machinery Service team will contact you to arrange shipping logistics.
Laser Materials
Standard Click and Collect:
We can have your orders processed for next day pick up.
Express Click and Collect:
If ordered before llam, we will have your materials ready that day for pickup.
Opt for click and collect at checkout.
Co2 Laser Machine Warranty
All Co2 Machines come with a standard 1 year warranty as required by our local Australian Consumer Protection Law.
Co2 Machine Warranty – 1 year – excluding consumables.
Co2 Laser Tube Warranty – 9 months.
*40watt tubes and below – 6 months
*Yongli Tubes – 1 year
Fiber Laser Machine Warranty
All Fiber Laser Machines come with a standard 1 year warranty as required by our local Australian Consumer
Protection Law.
Fiber Machine Warranty – 1 year – excluding consumables.
Fiber Power Source Warranty – 2 years
After sales warranty of Laser Machines
Call out service Co2 and fiber lasers – included for the first year given there is a machine fault.
Service fees will be charged at an hourly service rate if there is a user fault. Depending on location and
machine type, shipping back to the nearest Koenig office for service and repair might be used as it can be
more efficient and cost effective.
Phone and email technical support as deemed reasonable is free and included for the life of your machine.
NOTE: The warranty does not include consumable parts, such as mirrors, lenses belts, gas
fitting, nozzles and bearings.
Extended Warranties
Koenig as a policy does not offer extended warranties on machines, we see extended warranties such as on parts, excluding labour as exploitative to the end user and we prefer to be honest and fair in regards to service costs and service related parts. Extended warranties are profitable for companies but we see them as junk insurance to exploit the buyer ergo the customer.
If your is faulty or damaged upon arrival please contact us directly. We will either organise a refund or ship you a replacement.
If it’s determined that the material was damaged on your behalf, you will not qualify for a refund or replacement.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
We accept payments with:
Visa, MasterCard, American Express, Paypal, and more.
At Koenig machinery we pride ourselves on the quality of our after sales and service support. We offer ongoing free phone call and email support for the life of your machine.
Our aim is to arm you with as much information and support to ensure you feel comfortable in using your machine to its productive capacity. Leaving you only with creative, design and business required to ensure your own success.
We have several finance options that we can offer and we are happy to work with your existing financial brokers. Give us a call today for more information and pricing options. Finance on larger machines is a great option for tax and cash flow benefits. Speak to a finance broker or your accountant to see what terms you can achieve and what makes sense for your machine and business plan.
We at Koenig Machinery are hesitant to offer the buy now pay later finance options for materials due to the inherent debt trap it has the potential to create for small or start up businesses.
Set up and training does depend on your machine type and location. Depending on your own skill set and
ability to absorb our training material we have several options for you.
You can have one of our highly trained technicians to install your machine at your premises Australia wide.
However, if you’re rural and want to look at setting up the machine yourself, we have videos and guides to assist
you with the installation process.
