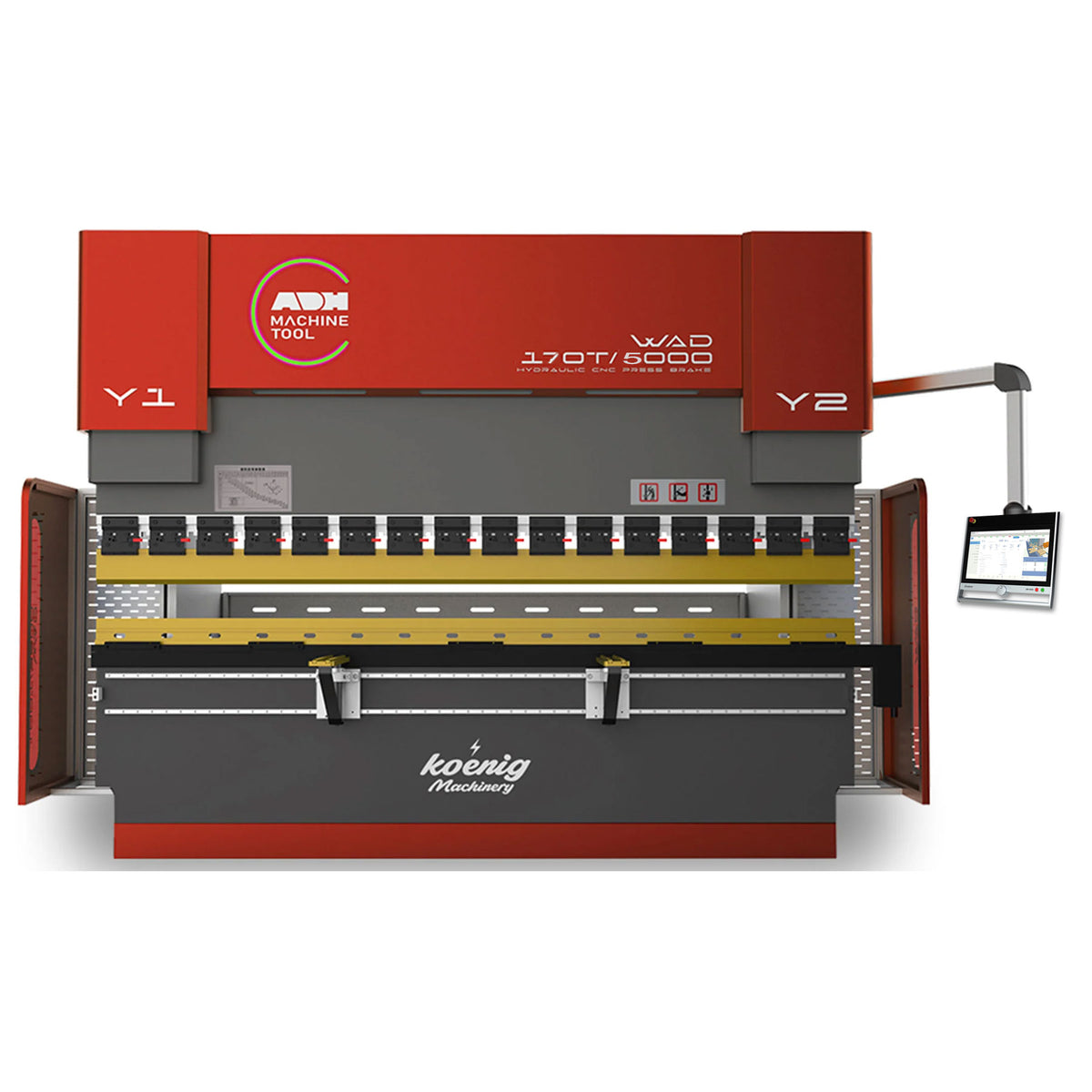

WAD-170-800T/5000-AU CNC Press Brake
$139,900.00

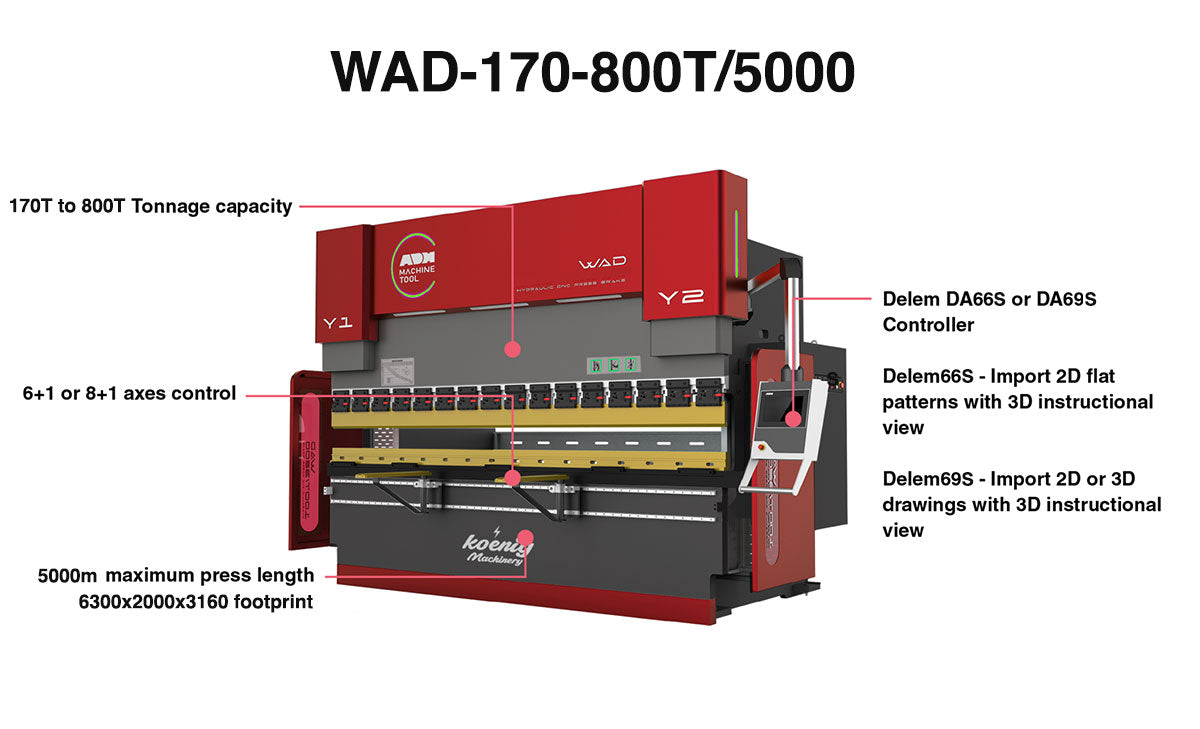

*ex GSTOur NEW 5000mm CNC Press Brake is available in a wide range of tonnage options, from 170T right through to 800T capacity, making it suitable for everything from heavy-duty fabrication to large-format bending applications.
As standard, our CNC press brakes are supplied with 6+1 axis control, pairing perfectly with the advanced Delem DA-66S or Delem DA-69S controllers. The DA-66S controller allows you to import 2D DXF flat pattern drawings or create bend profiles directly within the Delem software, with full 3D preview and automatic bend sequence recognition.
Upgrading to the DA-69S enables the import of 3D CAD files with feature and sequence recognition, along with full 3D design capability directly within the DA-69S software.
Note: For tonnage requirements above 300T, please contact us for configuration and pricing.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
Technical Parameters
| Technical Parameters | Unit | Specification | |
|---|---|---|---|
| Bending Force | kN | 110T, 135T, 170T, 220T, 250T, 300T, 400T, 600T, 800T | |
| Max. Bending Length | mm | 5000 | |
| Throat Depth | mm | 450 | |
| Stroke | mm | 200 | |
| Opening Height | mm | 480 | |
| Fast Speed | mm/s | 160 | |
| Working Speed | mm/s | 11.5 | |
| Return Speed | mm/s | 135 | |
| Machine Tool Accuracy | Slider Repeat Accuracy | mm | ≤ ±0.03 |
| Slider Positioning Accuracy | mm | ≤ ±0.03 | |
| Back Gauge Repeat Accuracy | mm | ≤ ±0.05 | |
| Workpiece Straightness Error | mm/m | 0.5 | |
| Bend Angle Error | ° | ≤ ±0.5 | |
| Grating Ruler Resolution | mm | 0.005 | |
| Hydraulic Oil Standard | #46 / 68 Anti-wear Hydraulic Oil | ||
| Oil Tank | L | 260 | |
| Main Motor | kW | 15 (170T), 18.5 (220T), 22 (250–300T), 30 (400T), 45 (600T), 60 (800T) | |
| Total Machine Power | kW | From 15.1kW (110T 6+1 axes) to 59.1kW (800T 8+1 axes) | |
| Weight | Ton | 13–15 | |
| Dimensions | L × W × H mm |
110T – 5000×1800×2350 135T – 5000×1800×2450 170T – 5000×2000×2540 220T – 5000×2200×2540 250T – 5000×2000×2700 300T – 5000×2300×3100 |
|
| Power Supply |
3-phase 415V, 50Hz, 20–60A connection (12.7–51A consumption depending on model) |
||
Standard Components
| Component | Specification |
|---|---|
| Controller | Delem DA66T (DA69T available) – Netherlands |
| Back Gauge Axis |
6+1: Y1, Y2, X, R, Z1, Z2 + V-crowning 8+1 available: Y1, Y2, X1, X2, R1, R2, Z1, Z2 + V-crowning |
| Hydraulic Valve | HAWE – Germany |
| Hydraulic Gear Pump | HAWE – Germany |
| Grating Ruler | Givi – Italy |
| Main Motor | Estun / Innovance – China |
| Electrical Components | Schneider – France |
| Crowning | Automatic Crowning – China |
| Ball Screw & Linear Guide | PMI / PYM – Taiwan |
| Servo Motor & Drive | Estun – China |
| Tubing Connector | JS / EMB – Germany |
| Clamps | ADH Quick Clamp |
| Pedal Switch | Movable Roller Type – China |
| Front Protection | Left & Right Guard – China |
| Rear Protection | Fully Enclosed Rear Guard – China |
| Light Curtain (Included) | LHTECH – China |
| DSP Front Laser Safety (Optional) | DSP – Italy |
