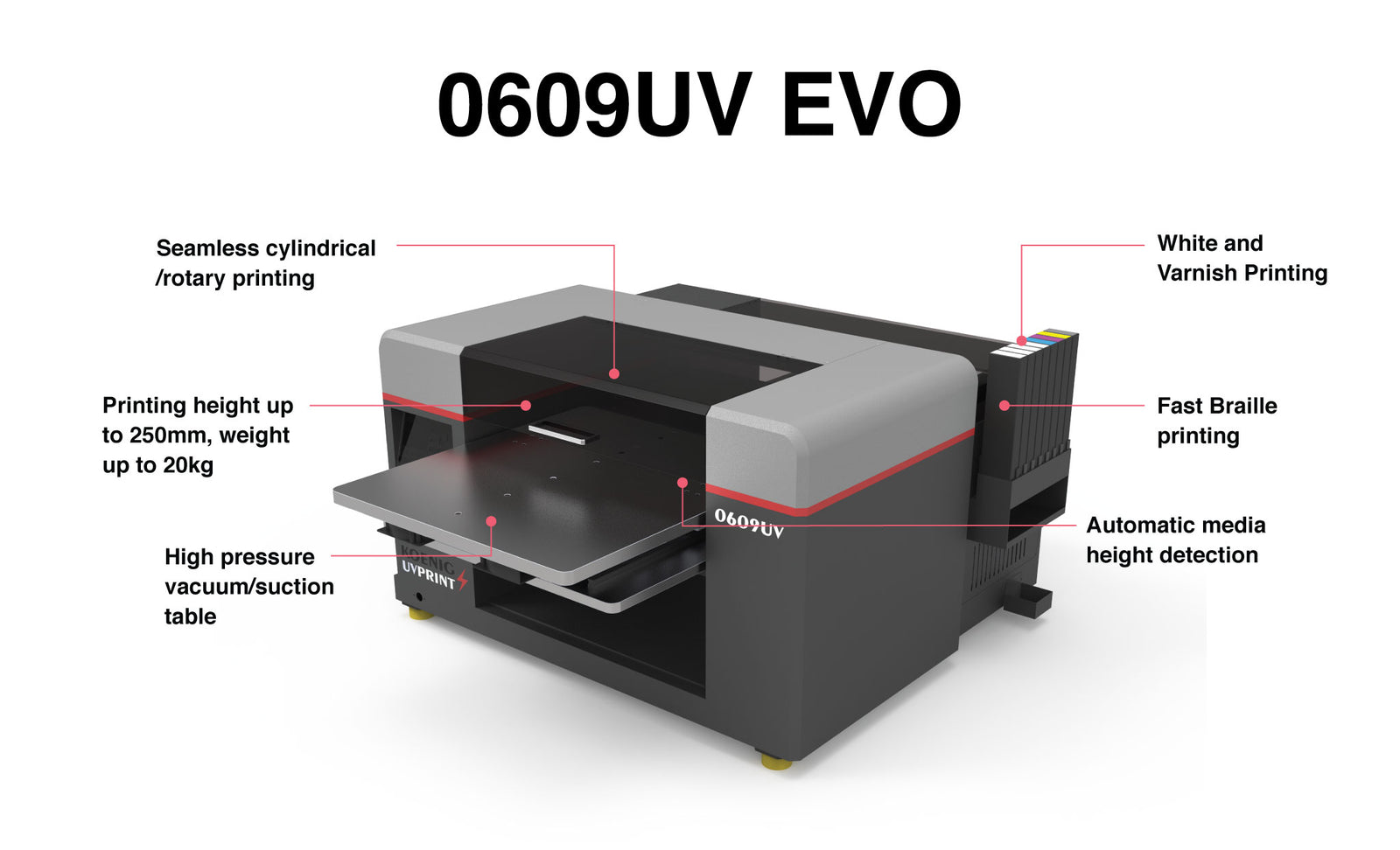

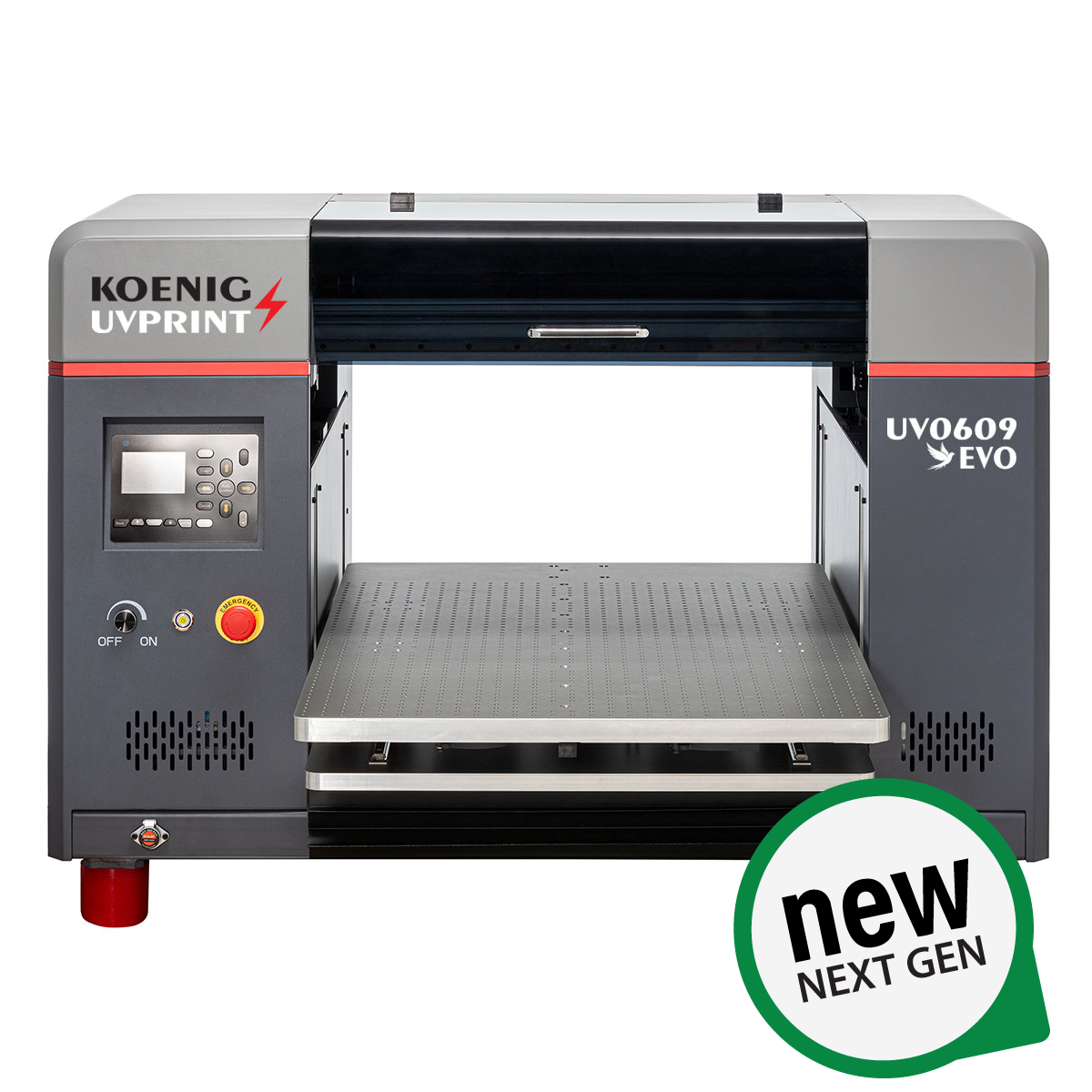

Koenig 0609UV EVO - With New Enhanced Freebird Engine
$36,000.00
*ex GSTEVO: Next-Gen. Smarter. Faster.
Print Without Limits. Experience the evolution of UV printing with the Koenig 0609UV EVO—built for makers and manufacturers ready for the next step in precision, speed, and creative freedom. Designed to outperform, the 0609UV EVO prints on almost anything—wood, acrylic, metal, glass, leather, and more—with sharper detail, richer colour, and faster turnaround.
Powered by the FREEBIRD Print Engine, it delivers next-level productivity, reliability, and finish quality for signage, promotional products, personalisation, and industrial applications. With the Koenig 0609UV EVO, you’re not just upgrading your workflow—you’re stepping into a new era of UV printing, where performance meets limitless possibility.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Printhead type | Epson 3200(8) Printer Head |
| Ink Colours | CMYKWWWW, CMYKWWVV |
| Ink Type | Eco-DTSAT3 UV LED Ink Note: If printing on Glass, Metal, Plastic, Ceramics etc, priming is recommended |
| Maximum Printing area | 600*900mm |
| Estimated print time | 10 minutes for Full 60x90cm Print @ 720x1800 DPI for KCMY bidirectional print mode |
| Printing medium | Plastic (acrylic, PP, PE, PVC, ABS, Acetal etc), Glass, Metal, wood/MDF, leather and man-made leather, hard fabric, ceramics, card and thick paper stock etc. |
| Ink System | 230ml vertical ink cartridge assembly |
| Heating System | LED UV Air Cooled curing system |
| Material thickness | 0-250mm |
| Weight of Material capacity | 20kg total load |

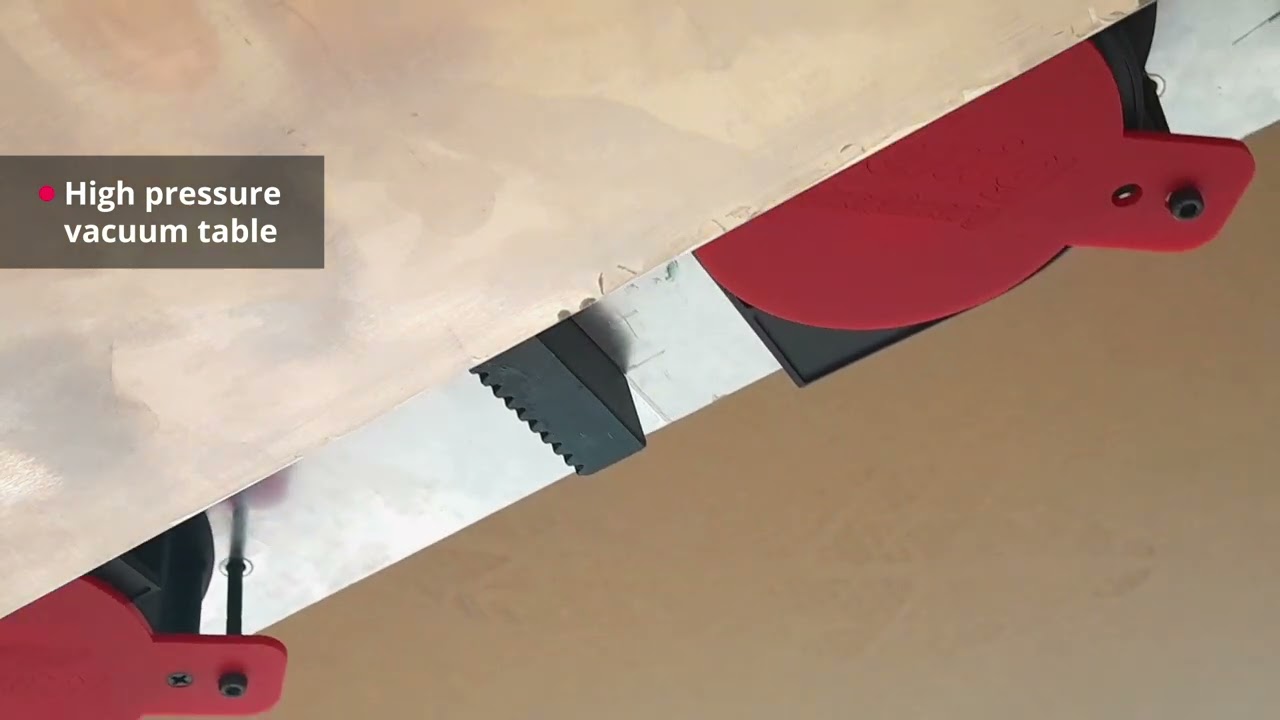

| Table type | Aluminium high- pressure vacuum/suction table |
| Software | Koenig Workstation & Koenig RIP V9.0 (Maintop derivative software) |
| Computer compatibility | PC- WINDOWS 7 /10 64Bit operating system Processor - i5 or higher, 2.50GHZ or higher, 8GB or higher |
| Graphic Format Supported | BMP, JPG, PNG, JEPG, TIFF etc |
| Power Supply | 230V 50Hz 10amp– Standard single phase |
| Noise level | <80dBa (high noise level with vacuum table on) |
| Operating environment | 10-25◦C, 35-70% Humidity |
| Machine base footprint | 1430mm x 1260mm x 825mnm |
| Machine weight | 220kg |
| Package Dimensions | 1480 x 1300 x980 mm |
| Gross weight (in packaging) | 270kg |
