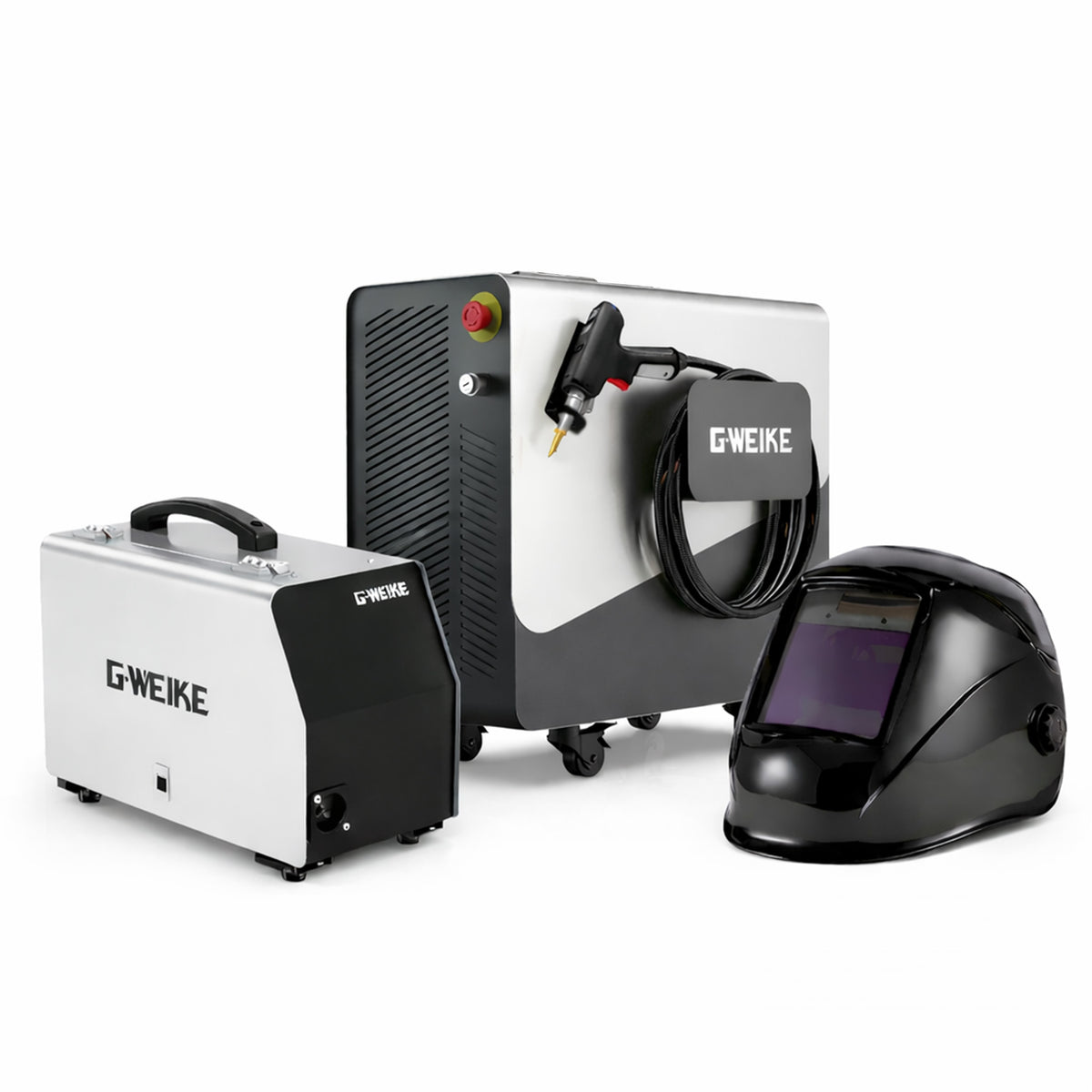

LCW-A (3 in 1 Welding Machine)
Whether you’re running a fabrication shop, doing on‑site repairs, or pushing out custom builds from your workshop — the M1 Air‑Cooled 3‑in‑1 Welding Machine is built to get the job done. This isn’t a one‑trick pony: it’s a serious all‑rounder designed to weld multiple metal types, tackle different welding methods, and perform reliably day after day.
- Welding / Cleaning / Thin-plate cutting
- 30-Second Quick Mode Switching
- 5 Times faster than TIG Welding
- 2mm to 5mm Welding Compatibility
-
Continuous / Spot / Pulse Welding
Handheld design, mobile and easy to maneuver
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Laser Power | 800W, 1200W |
| Laser Wavelength | 1080nm |
| Fiber Length | Standard 5m |
| Welding Speed Range | 0~120 mm/s |
| Cooling | Air cooled |
| Working Environment Temperature Range | 10-40 °C 10-70% humidity |
| Welding Thickness Recommendations | 0.5-3mm |
| Working Voltage | 800W = 230V 50Hz 15Amp 1200W = 230V 50Hz 20Amp |
| Laser Source | KPL/MAX |
| Laser Head | Au3tech |
| Cleaning Head Type | Single pendulum vibration |
| Cleaning Width | 0-80mm |
| Focal Length | 150mm for Welding & Cutting, 600mm for Cleaning |
| Wire Feed | Single wire |
| Machine Dimensions | 620*300*550mm (wire feeder 560*356*235mm) |
| Gross Weight | 800W=46kw, 1200W=50kg, 1500W=55kg (wire feeder=17kg) |
