GWEIKE M2 Ultra - 4-in-1 CNC Fiber Laser Cutting & Welding Machine | Koenig Direct
Starting From
$17,950.00

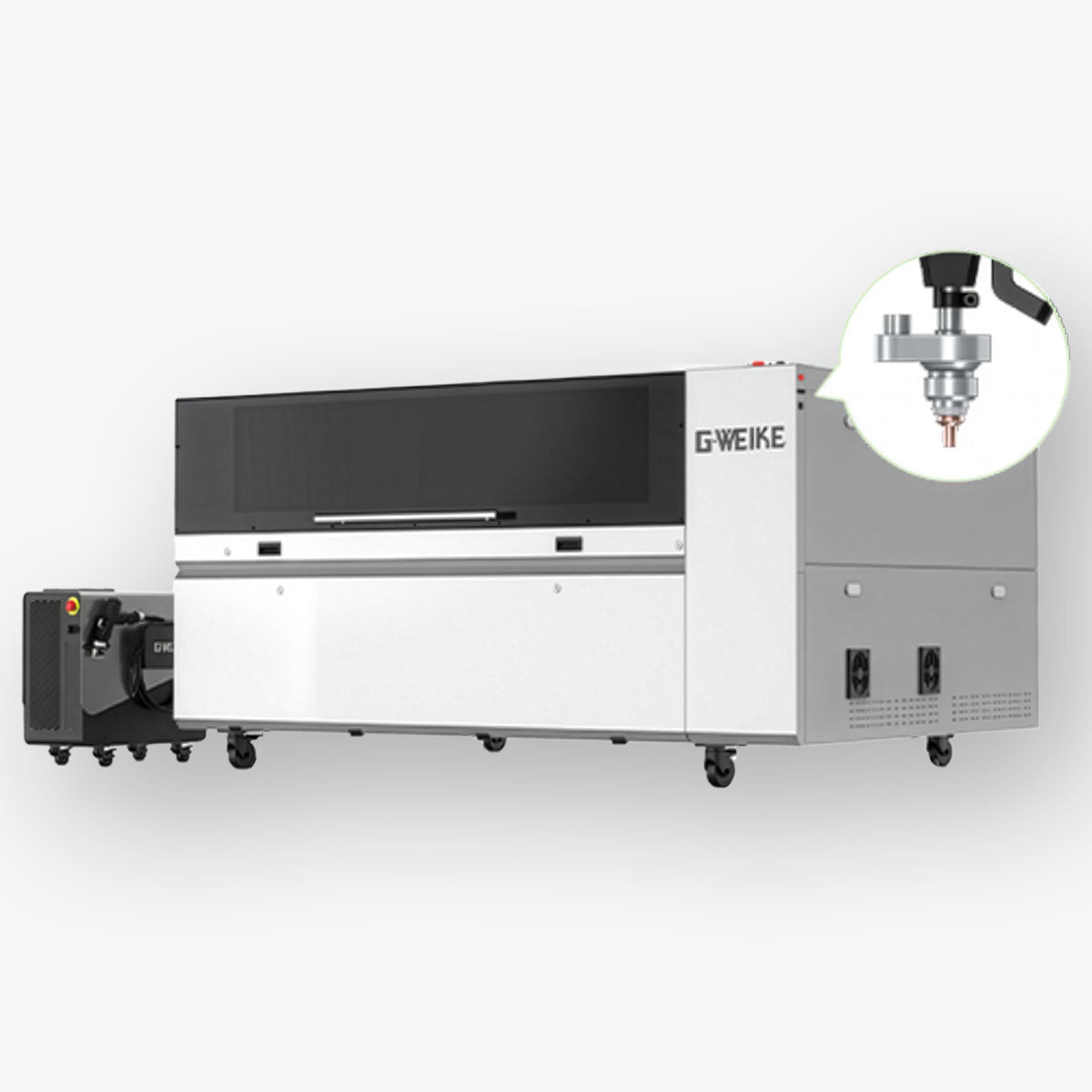

*ex GSTGWEIKE M2 Ultra is a compact industrial 4-in-1 fiber laser built for workshops wanting professional metal cutting, welding and cleaning capabilities without the footprint of a traditional industrial machine.
SELF-INSTALL PACKAGE
Koenig Direct
Ideal for experienced users who are comfortable with self-installation and managing technical support remotely.
1200W Fiber Laser
Industrial-grade performance
10mm Cutting
Cuts mild steel with ease
0.2–5mm Welding
Steel, aluminium & stainless steel
1380 × 920mm Bed
Compact CNC working area
4-in-1 Functionality
Cut, weld, clean & fabricate
Remote Support
Manufacturer-backed assistance
Select your machine package
Choose your M2 or M3 package, then compare support options or customise for quote.
Need help?
Talk to an expert
|
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Fiber Laser Power | Base & Max model: 800W / Pro & Ultra: 1200W |
| Safety Class | Class 1 enclosure for CNC cutting, Class 4 as handheld welding/cleaning/hand cutting unit NOTE: For Educational set up, this machine should be used for CNC function only |
| Cutting Area | Base & Pro model = 600 x 300mm Max & Ultra model = 1300 x 900mm |
| Laser Head Type | Au3tec manual focusing head |
| Cooling Type | Air cooled Fiber source |
| Moving Speed | X-axis = 800mm/s, Y-axis = 500mm/s |
| Acceleration | 0.8G |
| Laser Output Control | 0-100% set by software |
| Drive Method | Leadshine servo driver with high precision belt drive |
| Positioning Accuracy | ±0.05 mm |
| Re-positioning Accuracy | ±0.03 mm |
| Minimum Line Width | 0.1mm |
| Controlling Software | Au3tec software and control system, including nesting, edge seeking and automatic crash Protection, fly-cutting etc, import DXF created by any design or CAD software |
| Power Supply | Machine: 800W = 1x10A + 1x20A 230V/50Hz 1200W = 1x10A + 1x25A 230V/50Hz |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) |
| Gas Connection | O2 (mild steel and copper cutting) Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 15DHY-15B or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature 20-40C, Humidity 5-95% (No Condensate Water) |
| Options | Honeycomb table, air filtration, rotary |
| Machine Footprint | Base & Pro = 1400*795*950mm CNC machine, 355*610*620mm welding unit Max & Ultra = 2185*1780*1100mm CNC machine, 355*610*620mm welding unit |
| Weight | Base & Pro = 250kg Max & Ultra = 750kg |
GWEIKE M2 Ultra - 4-in-1 CNC Fiber Laser Cutting & Welding Machine | Koenig Direct
$19,745.00
We are committed to delivering your products to your premises as safely as possible. Our service delivers Australia-wide and is dedicated to meeting a variety of shipping needs.
Shipping is calculated based on your location and the weight of the item/s you have chosen to purchase.
Shipping is calculated at checkout, machines are shipped by standard feight. In regards to larger Fiber lasers a member of the Koenig Machinery Service team will contact you to arrange shipping logistics.
Laser Materials
Standard Click and Collect:
We can have your orders processed for next day pick up.
Express Click and Collect:
If ordered before llam, we will have your materials ready that day for pickup.
Opt for click and collect at checkout.
Co2 Laser Machine Warranty
All Co2 Machines come with a standard 1 year warranty as required by our local Australian Consumer Protection Law.
Co2 Machine Warranty – 1 year – excluding consumables.
Co2 Laser Tube Warranty – 9 months.
*40watt tubes and below – 6 months
*Yongli Tubes – 1 year
Fiber Laser Machine Warranty
All Fiber Laser Machines come with a standard 1 year warranty as required by our local Australian Consumer
Protection Law.
Fiber Machine Warranty – 1 year – excluding consumables.
Fiber Power Source Warranty – 2 years
After sales warranty of Laser Machines
Call out service Co2 and fiber lasers – included for the first year given there is a machine fault.
Service fees will be charged at an hourly service rate if there is a user fault. Depending on location and
machine type, shipping back to the nearest Koenig office for service and repair might be used as it can be
more efficient and cost effective.
Phone and email technical support as deemed reasonable is free and included for the life of your machine.
NOTE: The warranty does not include consumable parts, such as mirrors, lenses belts, gas
fitting, nozzles and bearings.
Extended Warranties
Koenig as a policy does not offer extended warranties on machines, we see extended warranties such as on parts, excluding labour as exploitative to the end user and we prefer to be honest and fair in regards to service costs and service related parts. Extended warranties are profitable for companies but we see them as junk insurance to exploit the buyer ergo the customer.
If your is faulty or damaged upon arrival please contact us directly. We will either organise a refund or ship you a replacement.
If it’s determined that the material was damaged on your behalf, you will not qualify for a refund or replacement.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
We accept payments with:
Visa, MasterCard, American Express, Paypal, and more.
At Koenig machinery we pride ourselves on the quality of our after sales and service support. We offer ongoing free phone call and email support for the life of your machine.
Our aim is to arm you with as much information and support to ensure you feel comfortable in using your machine to its productive capacity. Leaving you only with creative, design and business required to ensure your own success.
We have several finance options that we can offer and we are happy to work with your existing financial brokers. Give us a call today for more information and pricing options. Finance on larger machines is a great option for tax and cash flow benefits. Speak to a finance broker or your accountant to see what terms you can achieve and what makes sense for your machine and business plan.
We at Koenig Machinery are hesitant to offer the buy now pay later finance options for materials due to the inherent debt trap it has the potential to create for small or start up businesses.
Set up and training does depend on your machine type and location. Depending on your own skill set and
ability to absorb our training material we have several options for you.
You can have one of our highly trained technicians to install your machine at your premises Australia wide.
However, if you’re rural and want to look at setting up the machine yourself, we have videos and guides to assist
you with the installation process.
