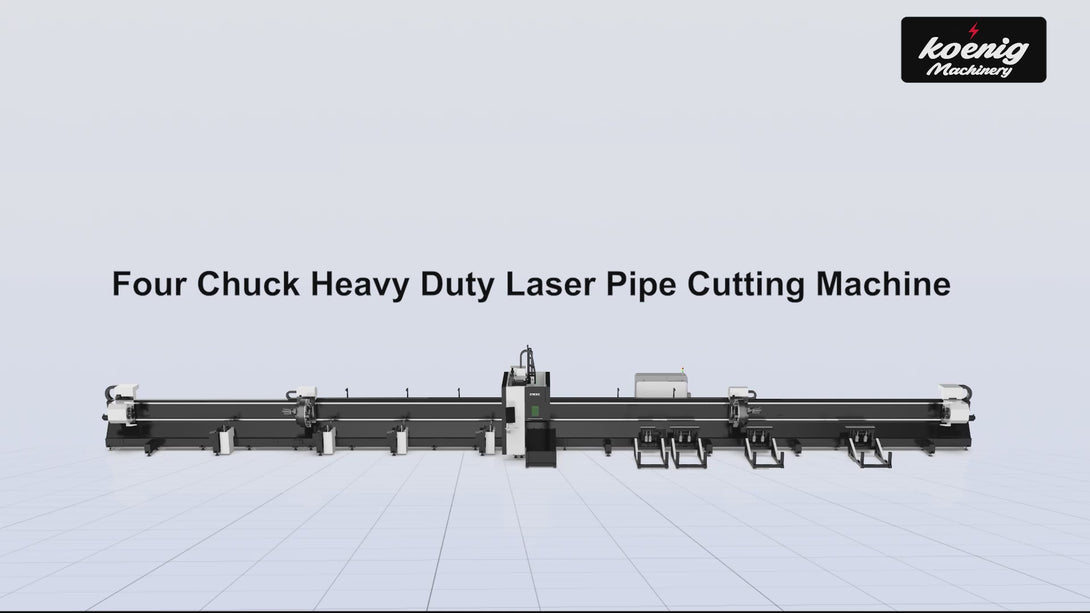

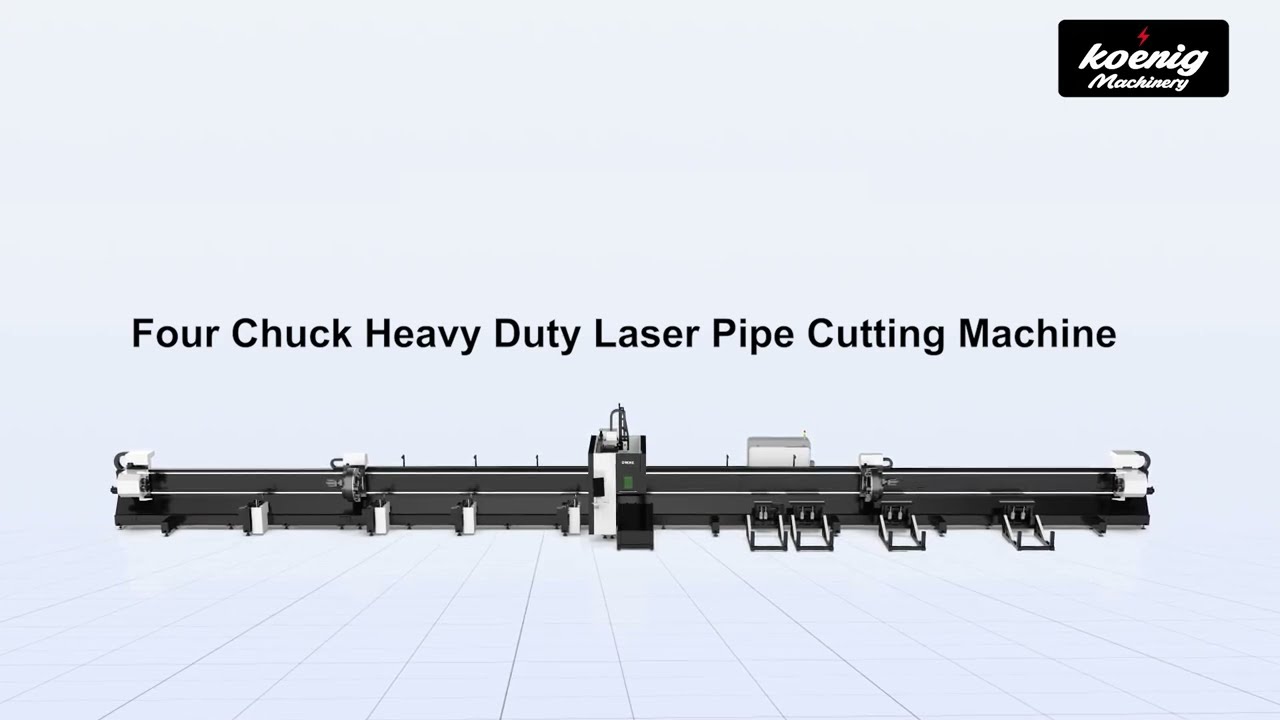

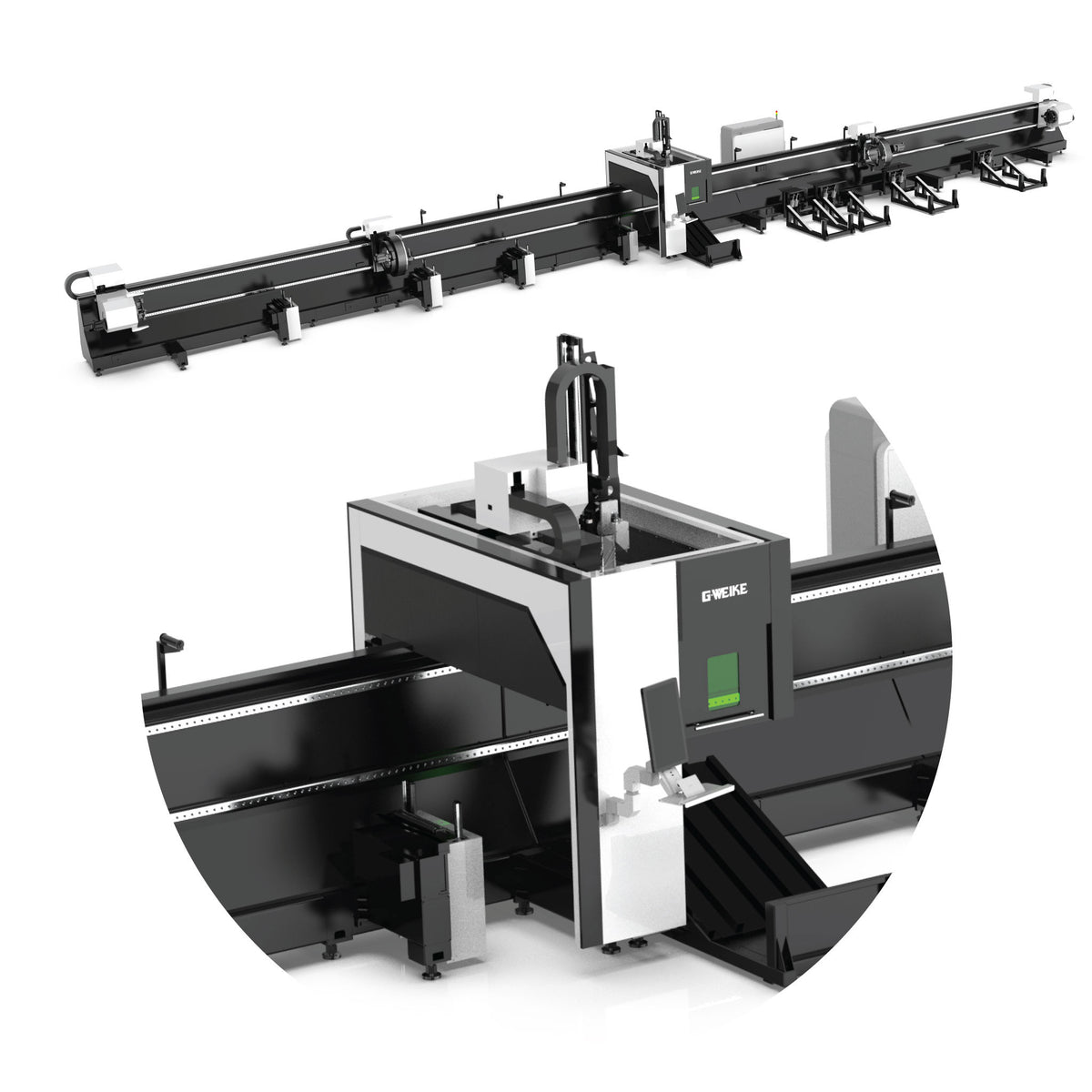

Extra Heavy Tube Cutter Fiber Laser - 4 Chuck (400 Series Tube Fiber)
$549,500.00
*ex GSTCNC Tube Fiber Laser Cutter – Extra Heavy Duty
Industrial-grade tube laser built for large structural profiles and heavy-wall materials. Multi-chuck system supports long, heavy tubes with zero waste cutting and maximum stability.

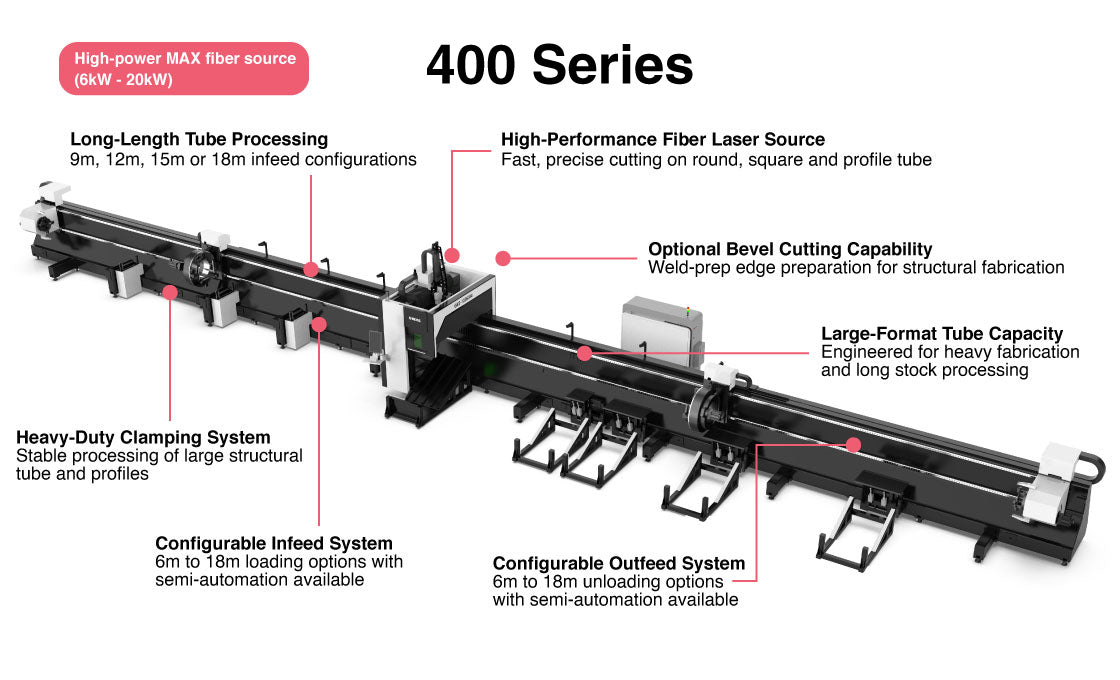

Key Features:
- Cuts large round, square & structural tube
- 4-chuck system for heavy-duty stability
- Zero tailing for maximum material yield
- TubePro software with 3D nesting
- Available from 6kW up to 30kW laser power
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Laser Power | 6kW, 12kW, 20kW and 30kW |
| Tube Length | 400S-6, up to 6.5m tube length 400S-9, up to 9.5m tube length 400S-12, up to 12.5m tube length |
| Minimum Waste Stock Length | ZERO mm |
| Clamp Diameter | 360: 30-350mm standard | 520: 40-500mm Standard |
| Tube Weight capacity | 360: 1200kg | 520: 2000kg |
| Outfeed Table | 4off 1m Offload tables with Servo control and 4x receiving cradles |
| Machine Size | 360S-12, L16800mm x W7800mm x H3600mm 520S-12, L19800mm x W7800mm x H3600mm |
| Machine Options | Infeed Semi Automated Loading of placed stock (6.5-12.5m) Outfeed Semi Automated Unloading of parts (6.5-12.5m) |
| Laser Source Type | MAX, Raycus |
| Laser Head Type | BOCI BLT-4T Series Optional – BOCI BLT-5H Series Bevel cutting Head |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Chuck Speed | Rotational: 360 chuck is 60rpm | 520 chuck is 18rpm Linear: 360 chuck is 60mpm | 520 chuck is 60mpm NB. Speeds are affected by loaded weight |
| Acceleration | 0.5G |
| Laser Output Control | 0-100% set by software |
| Drive Method | TBI ball screen drive, Yaskawa servo motor control with Hiwin guide rails |
| Positioning Accuracy | 0.05mm/m |
| Re-Positioning Accuracy | 0.05mm |
| Minimum Line Width | 0.1mm |
| Controlling Software | Common 2D and 3D CAD programs, Lantek ERP and more |
| Graphic Format Supported | 3D: IGS, SAT, JHB 2D: DXF |
| Compatible Software | Illustrator, Photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Color Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit. |
| Power Supply | Machine: 6kW = 415V 50Hz 63A 20kW = 415V 50Hz 130A 12kW = 415V 50Hz 100A 30kW = 415V 50Hz 200A |
| Gas Regulation | Software controlled electronic Low Pressure O2 regulator (for fine adjustment at LP) And high pressure N2 and Compressed air electronic regulator (HP cutting) |
| Gas Specification | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 20DHY-20Bar COMPRESSOR OPTION |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
