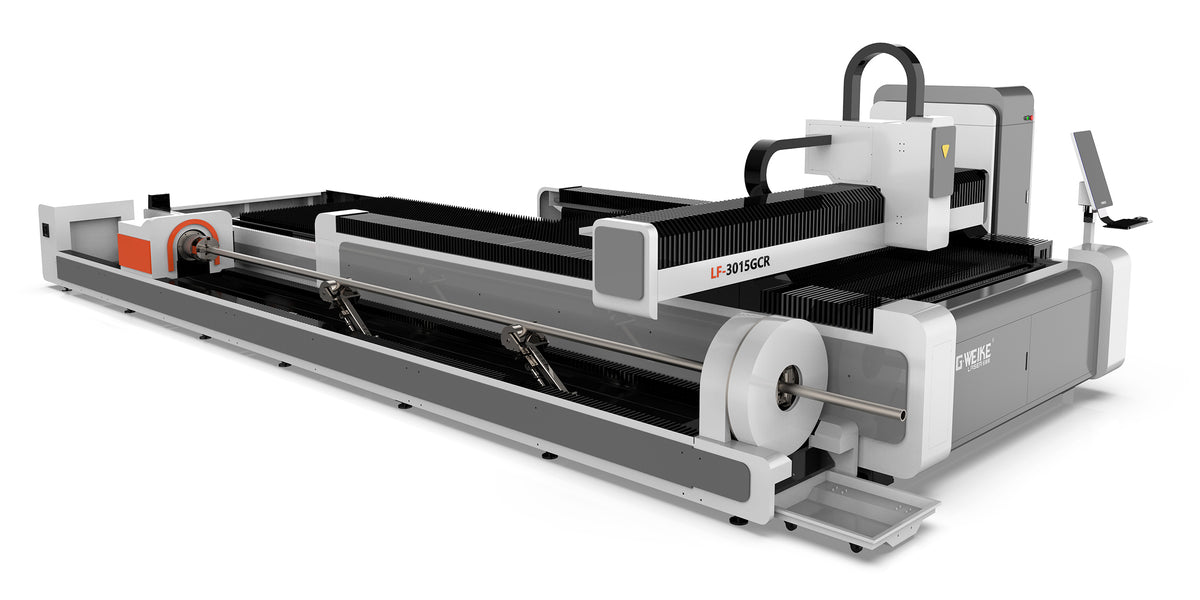

Gweike LF3015GCR – Tube and Sheet Fiber Machine
$149,000.00

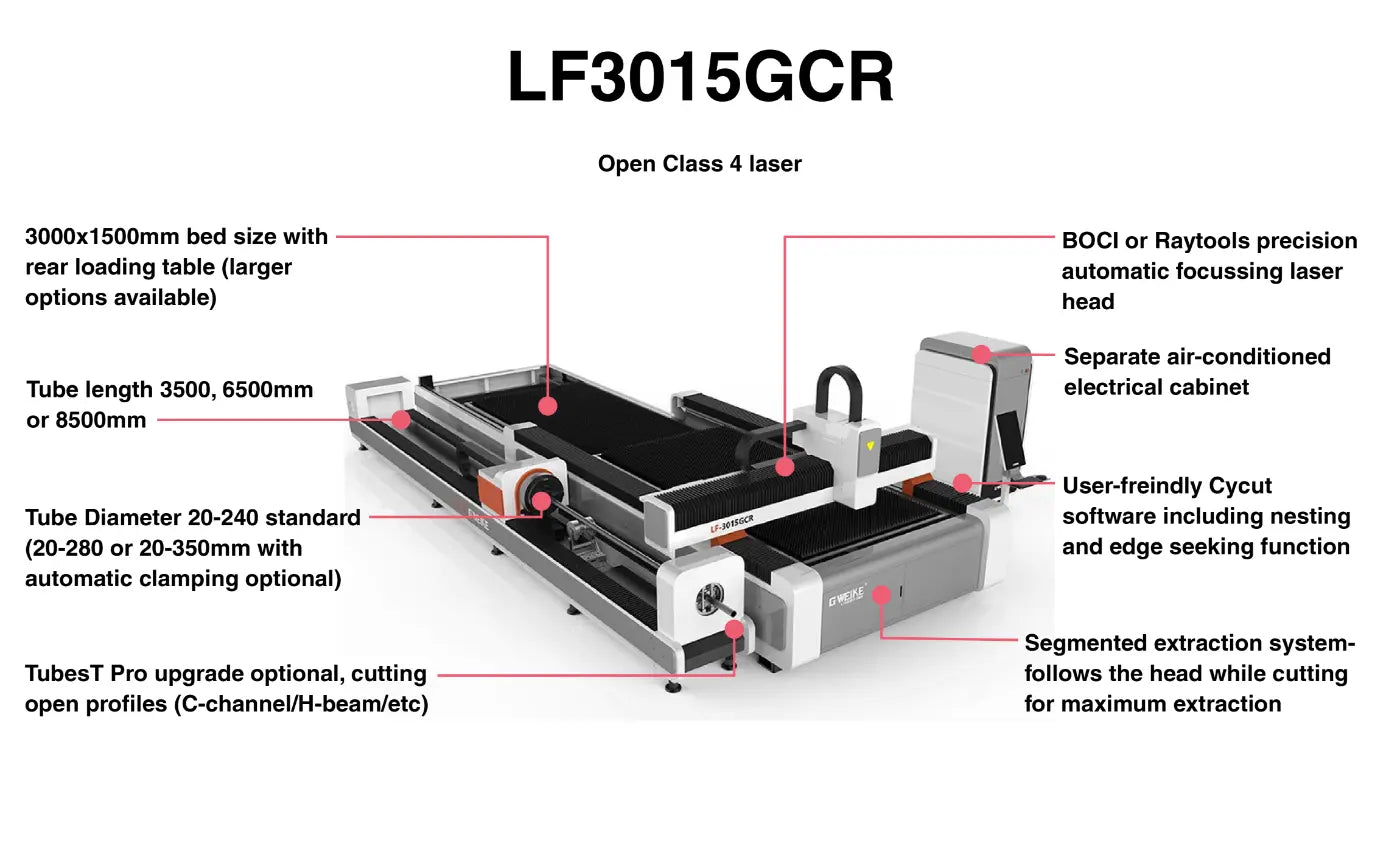

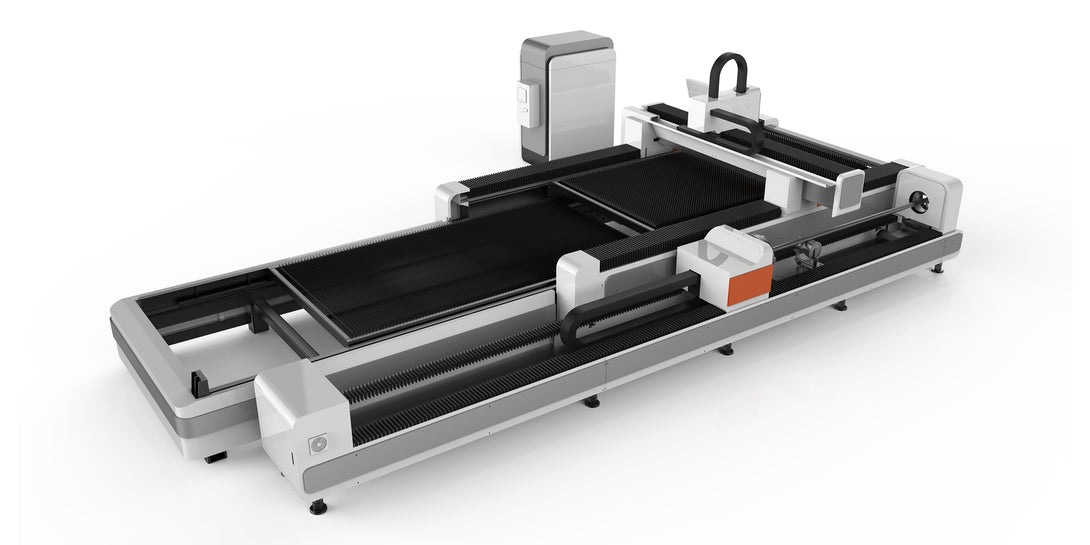

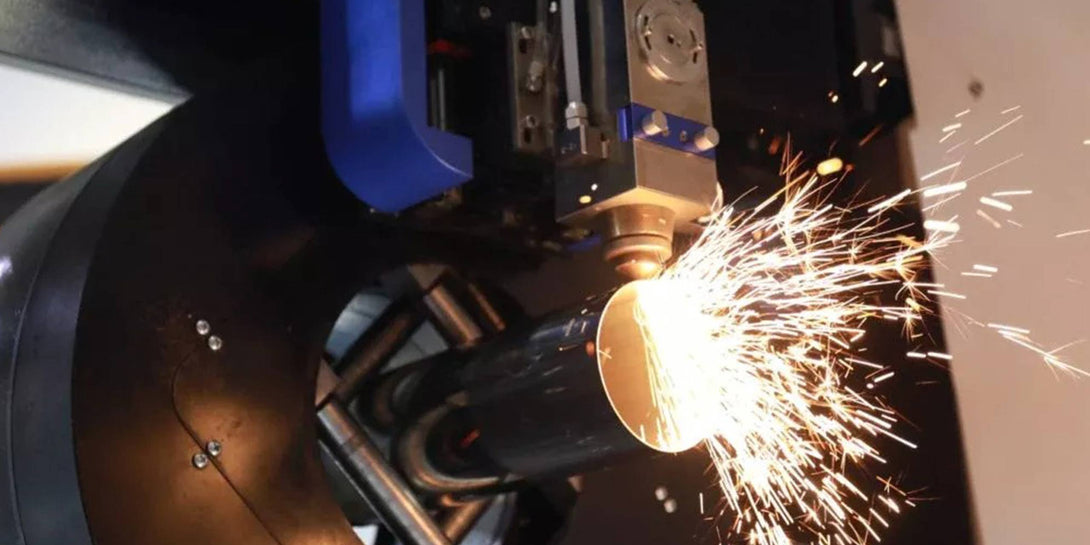

*ex GSTThe LF3015GCR is our production combination sheet and tube cutting machine in open format class 4 laser, with rear loading table. Open up the possibilities for all your future fabrication projects. Cut round/Square/RHS standard closed profile tube with the basic TubesT Lite software, or upgrade to the TubesT Pro to cutting open profiles (C-channel/H-beam/Angle/Custom profiles shapes, draw detailed cuts and designs etc. Chuck options from 20-350mm diameter, tube length options up to 8m. When cutting sheet you can load onto the rear table without disrupting cutting on the front table to optimise your production output.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 1.5kW / 2kW / 3kW / 6kW |
| Bed size | 3000 x 1500mm (also available in 4000x1500mm, 4000x2000mm, 6000x2000mm) |
| Tube Length | 3m Standard (6m or 8m available) |
| Clamp Diameter | 20-240mm standard (20-280mm Chuck or 20-360mm chuck upgrade available) |
| Machine Size | 8450*3500*1700mm |
| Laser source type | MAX, Raycus or IPG |
| Laser Head Type | Automatic focussing laser head 1.5-2kW = Raytools BM111 3kW = BOCI BLT421 6kW = BOCI BLT441 |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Moving Speed | 120m/min |
| Acceleration | 1.0G |
| Laser Output Control | 0-100% set by software |
| Drive method | YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive |
| Positioning Accuracy | 0.02 mm |
| Re-positioning accuracy | 0.02mm |
| Minimum line width | 0.1mm |
| Controlling Software | Cypcut Control System 2000E – sheet cutting, TubesT lite (standard) or TubesT Pro upgrade - tube |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water cooling unit |
| Power Supply | Machine: 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 63amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
