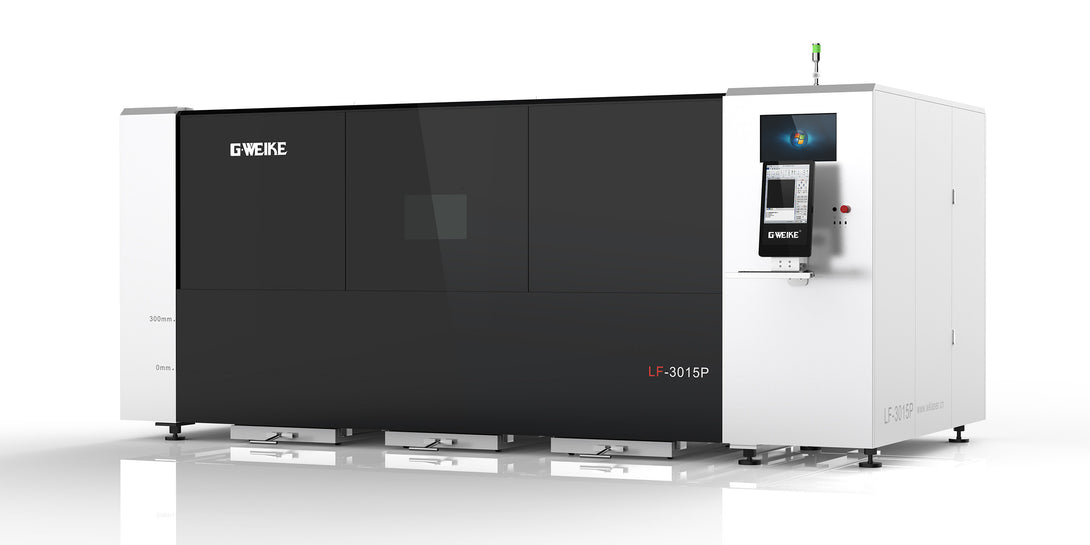

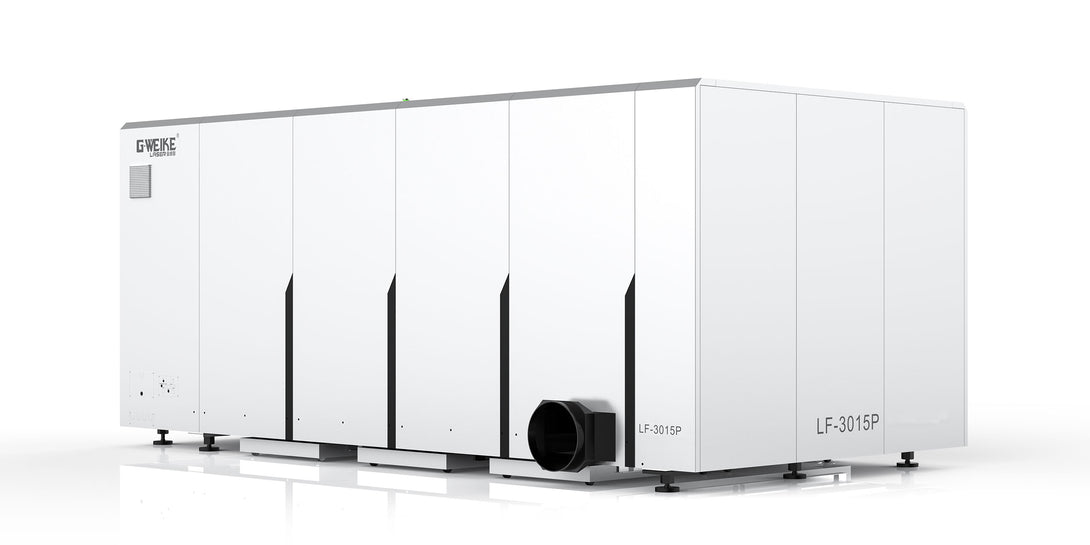

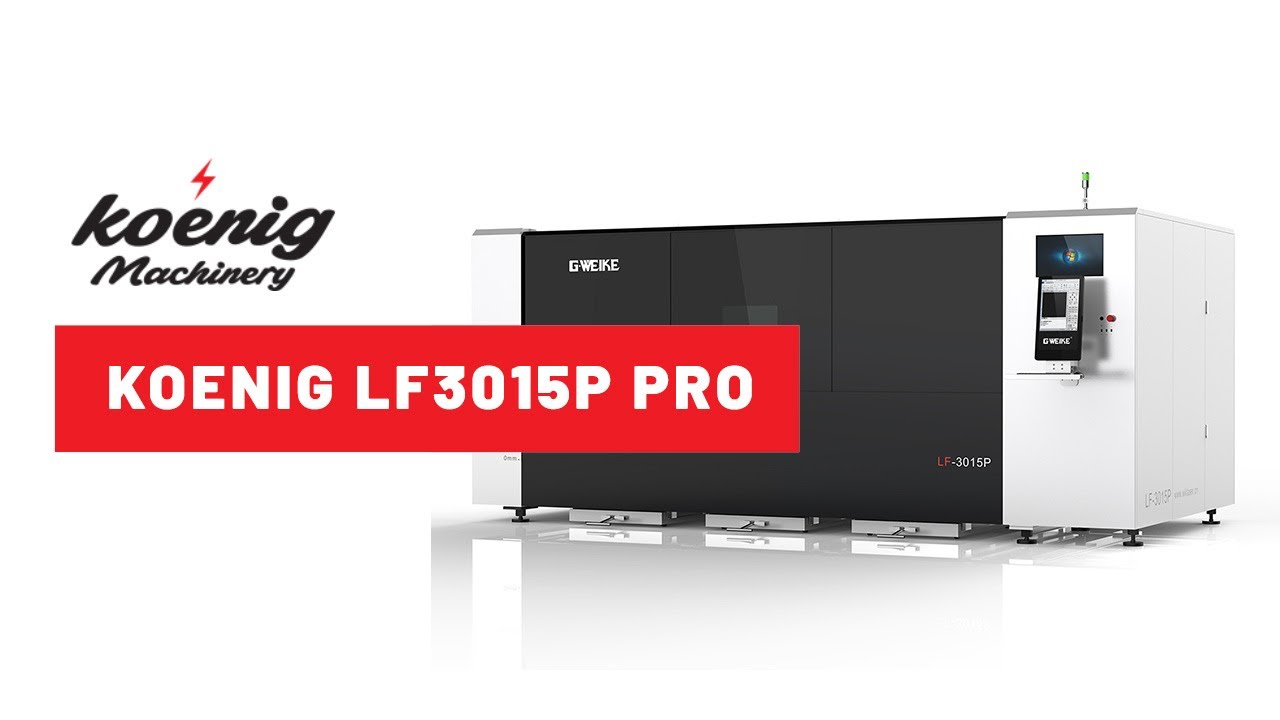

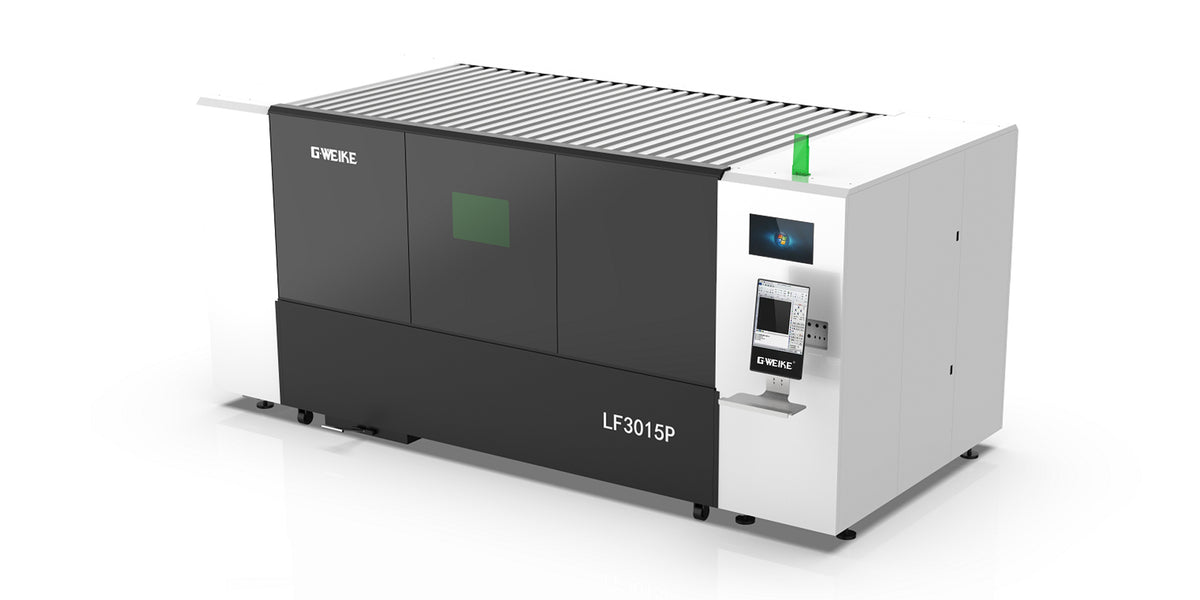

Gweike LF3015P Pro - Enclosed Single Slide-out Table
$84,900.00

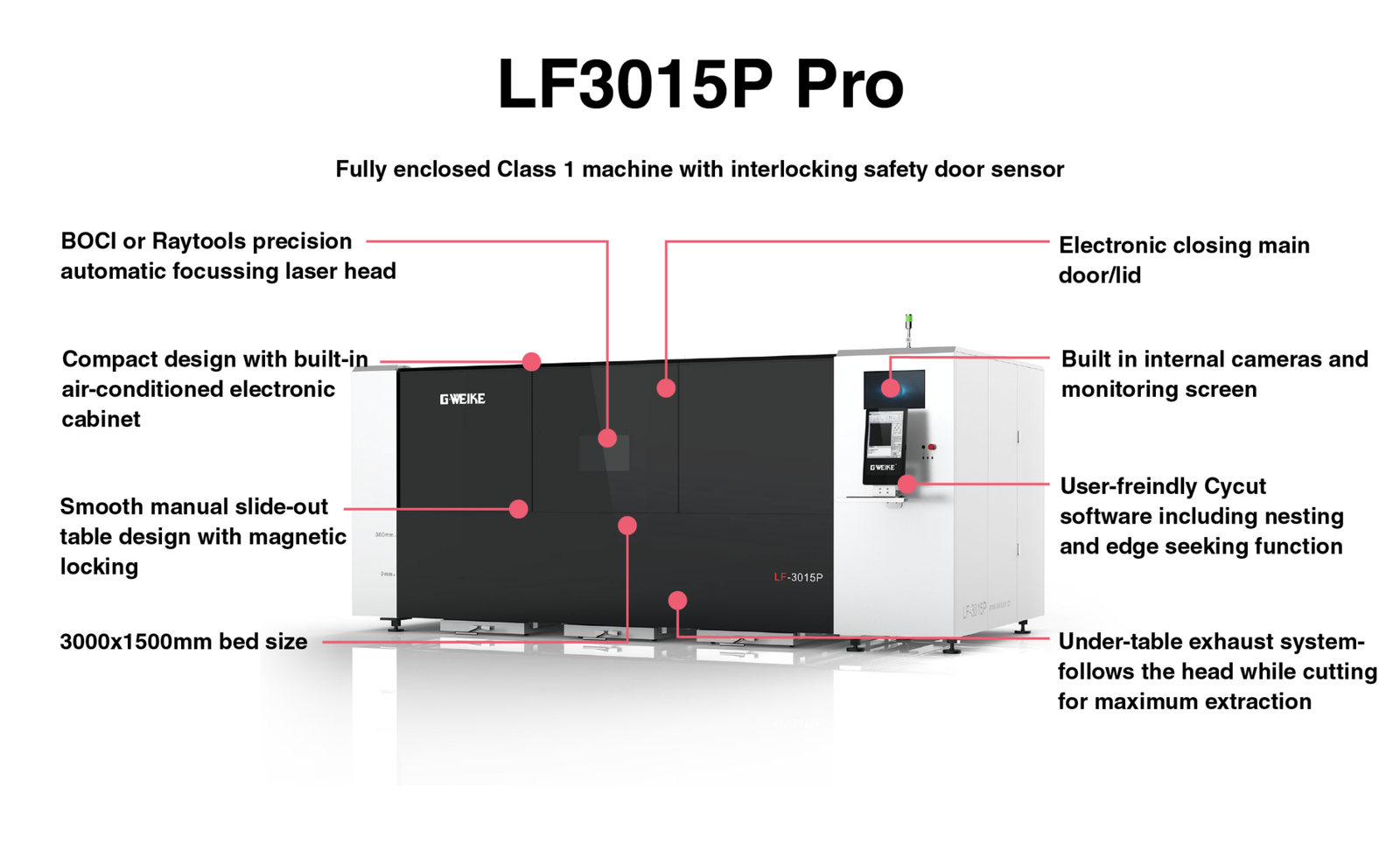

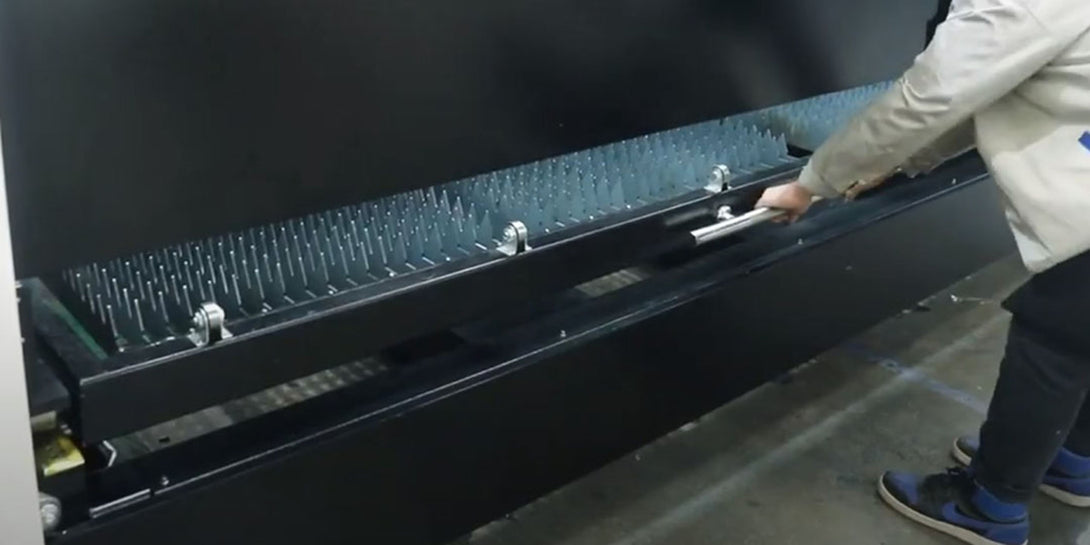

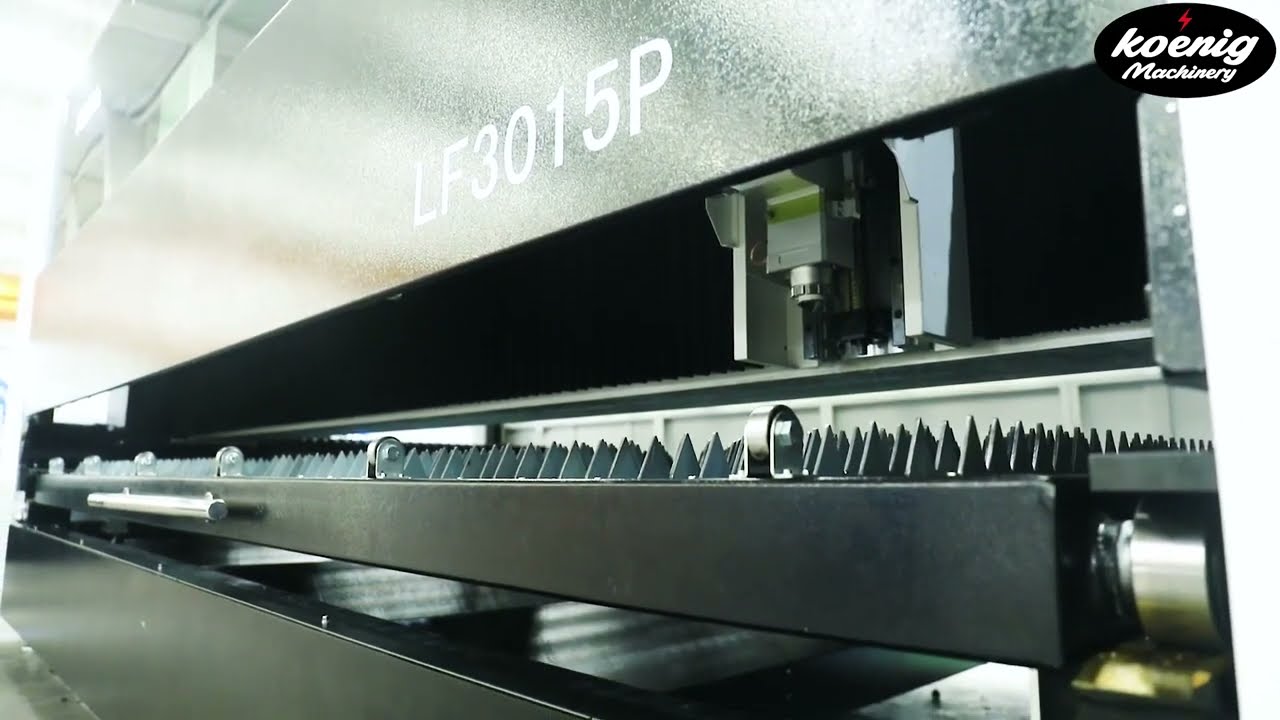

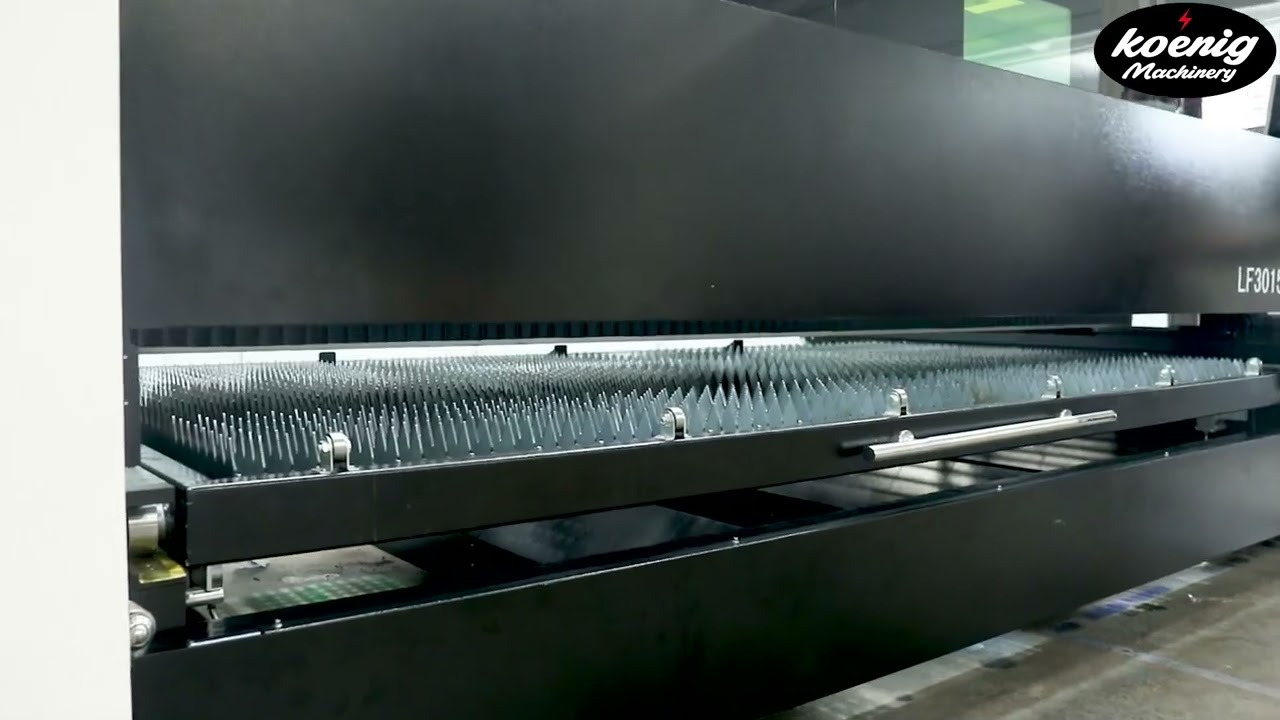

*ex GSTThe LF3015P Pro is our new 3000x1500mm bed size machine, with slide-out table. This innovative design allows for a fully enclosed large-formal bed size with minimal footprint in your factory floor. With slide out table, this machine can be easily loaded by overhead crane, jib-crane, forklift or by hand. The sliding table magnetically locks into place, with electronic closing access door for the ultimate safety enclosure.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 1.5kW / 2kW / 3kW / 4kW / 6kW |
| Bed size | 3000 x 1500mm |
| Machine Size | 4700*3330*2415mm |
| Laser source type | MAX, Raycus or IPG |
| Laser Head Type | Automatic focussing laser head 1-2kW = Raytools BM111 3kW = BOCI BLT421 6kW = BOCI BLT442 |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Moving Speed | 80m/min |
| Acceleration | 1.0G |
| Laser Output Control | 0-100% set by software |
| Drive method | YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive |
| Positioning Accuracy | 0.03 mm |
| Re-positioning accuracy | 0.02mm |
| Minimum line width | 0.1mm |
| Controlling Software | Cypcut Control System 2000E, including nesting, edge seeking and automatic crash protection |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit |
| Power Supply | Machine: 1kW = 415V 50Hz 20amp 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 63amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
[table id=35 convert_line_breaks=false /]
