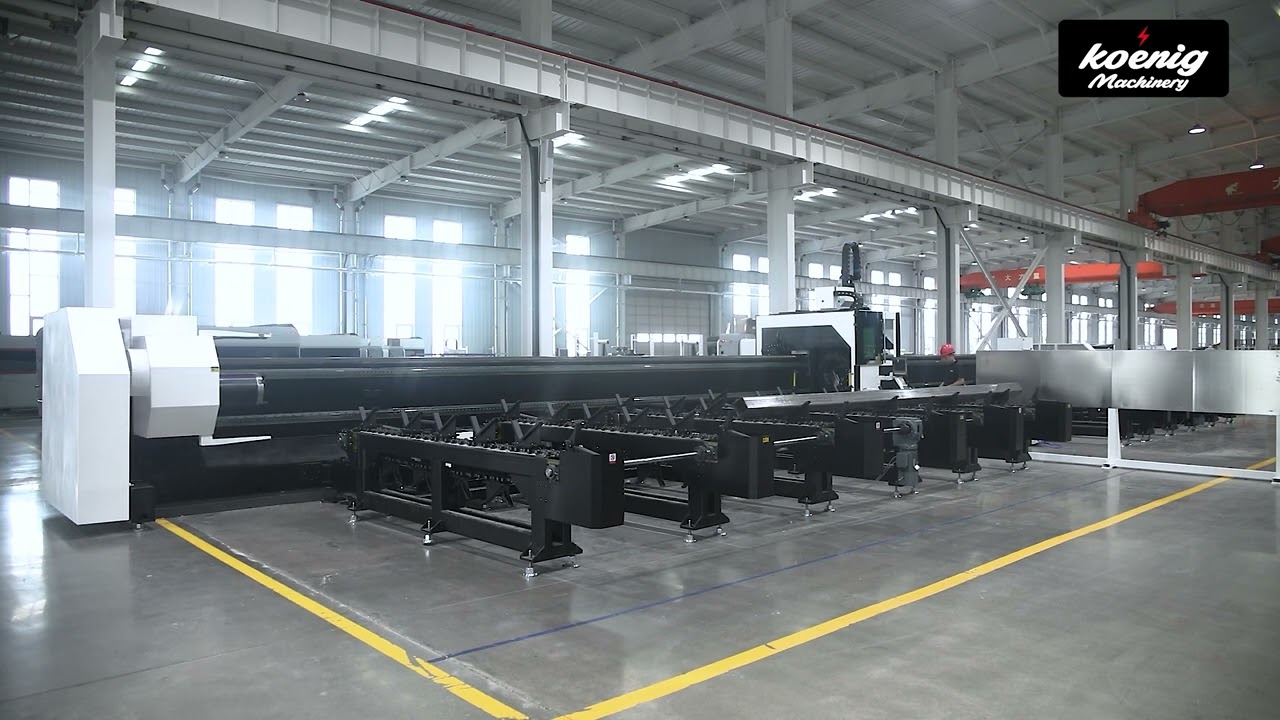

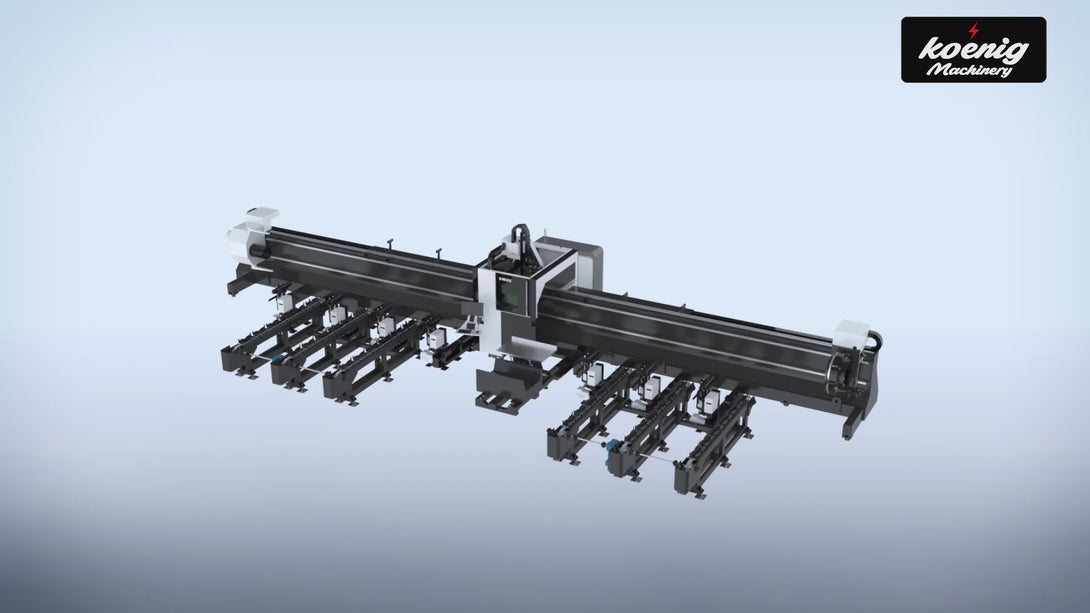

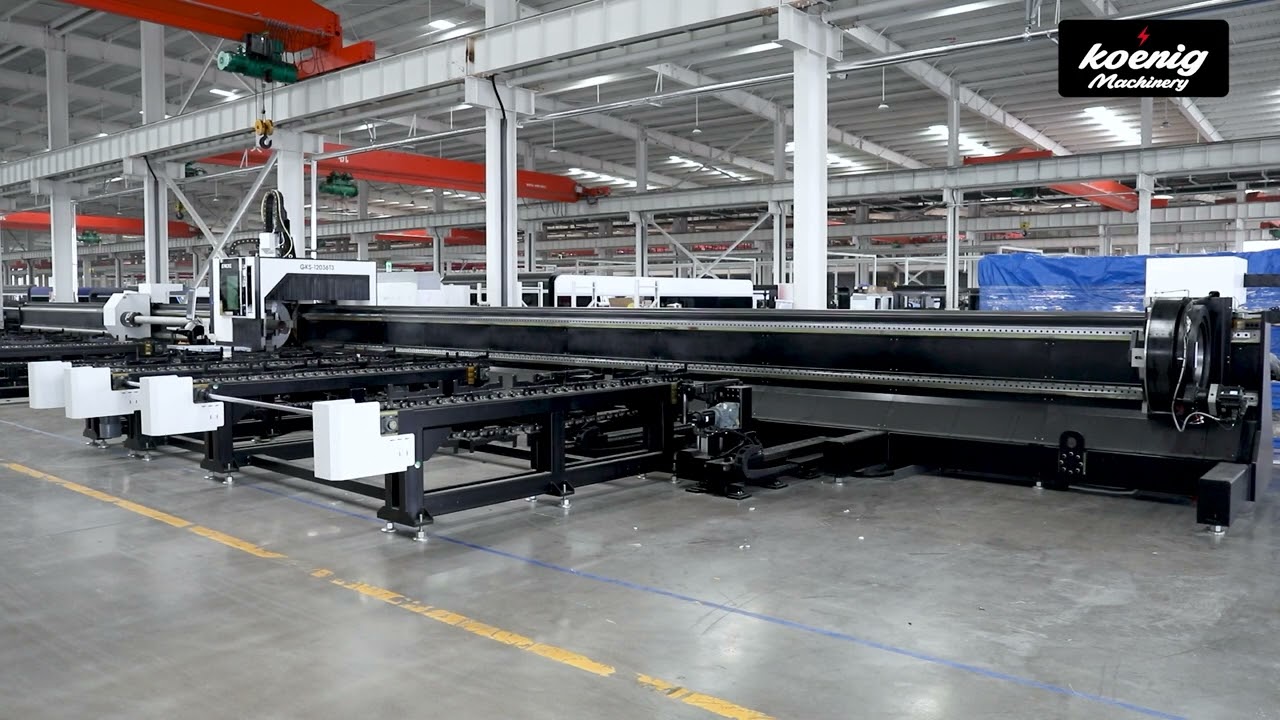

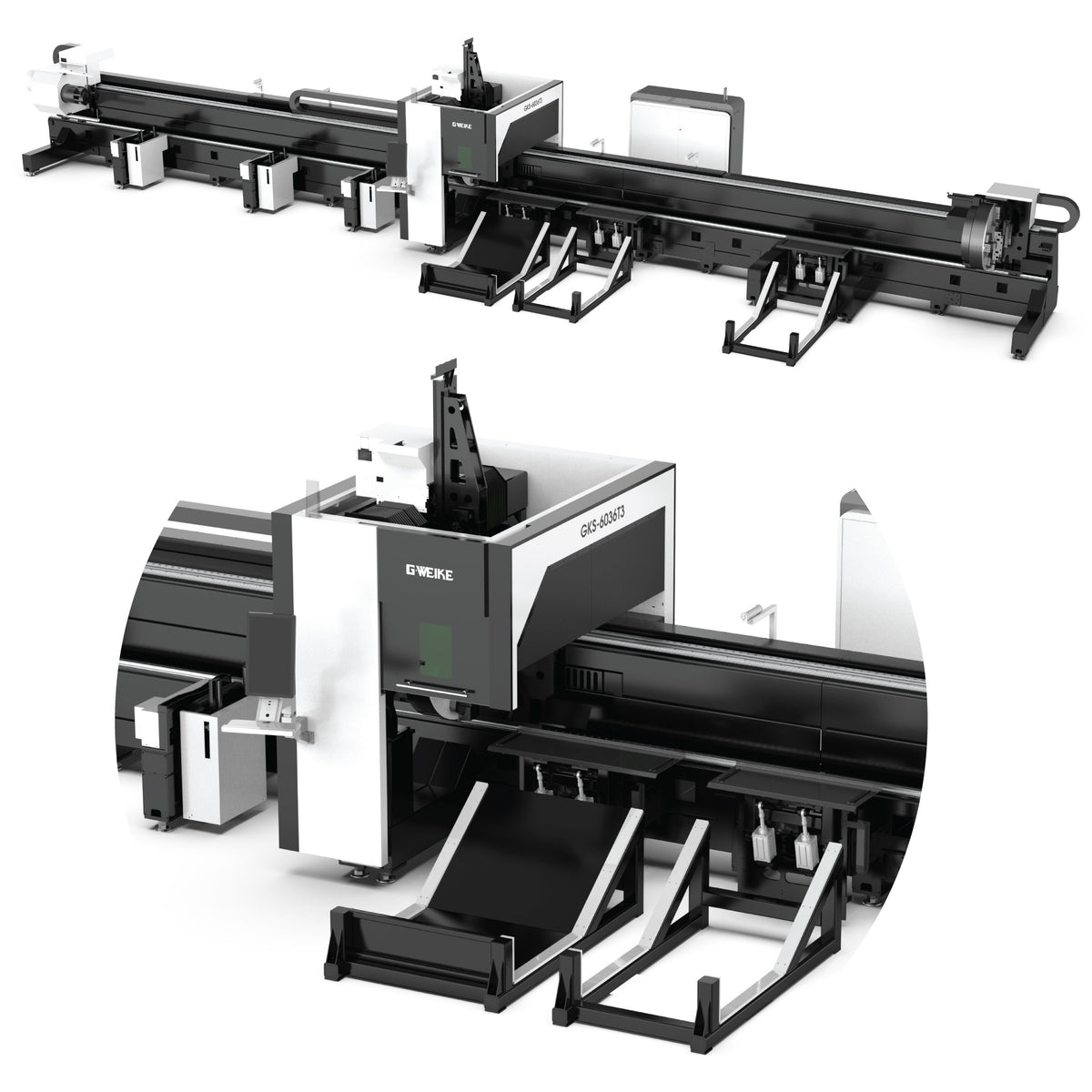

Heavy Tube Fiber Laser - 3 Chuck (300 Series Tube Fiber)
$305,000.00
*ex GSTCNC Tube Fiber Laser Cutter – Heavy Duty
High-performance tube laser with 3-chuck system for stable cutting of longer and heavier tubes. Designed for production environments requiring accuracy, speed and minimal material waste.

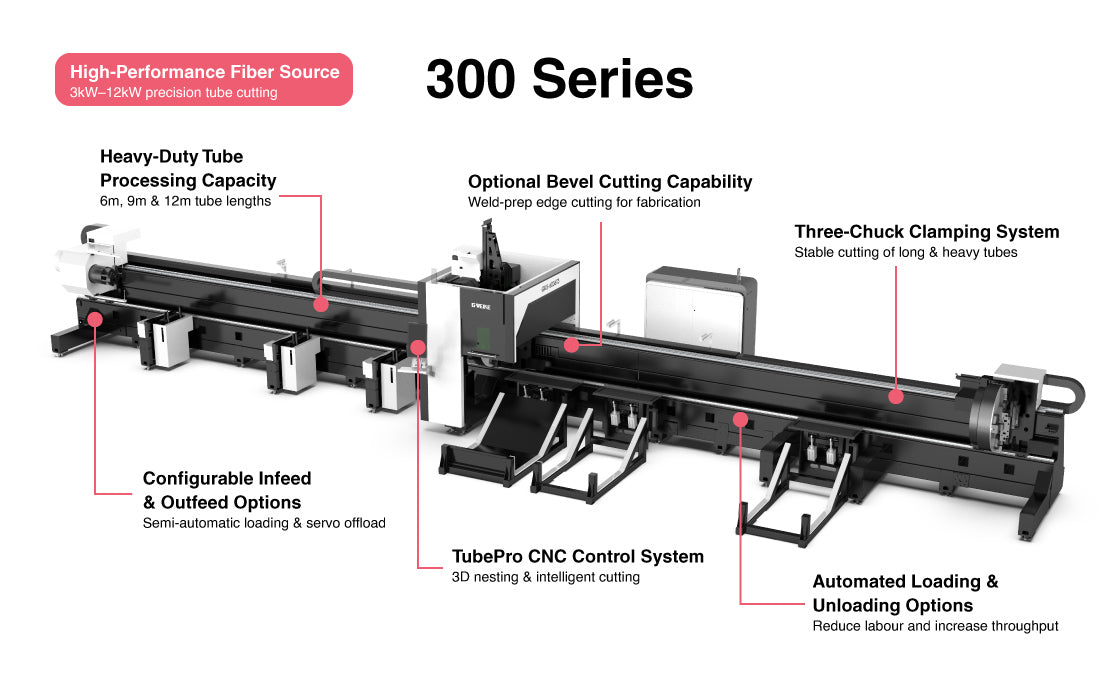

Key Features:
- Price includes 3kW laser power, 6m infeed and 6m outfeed

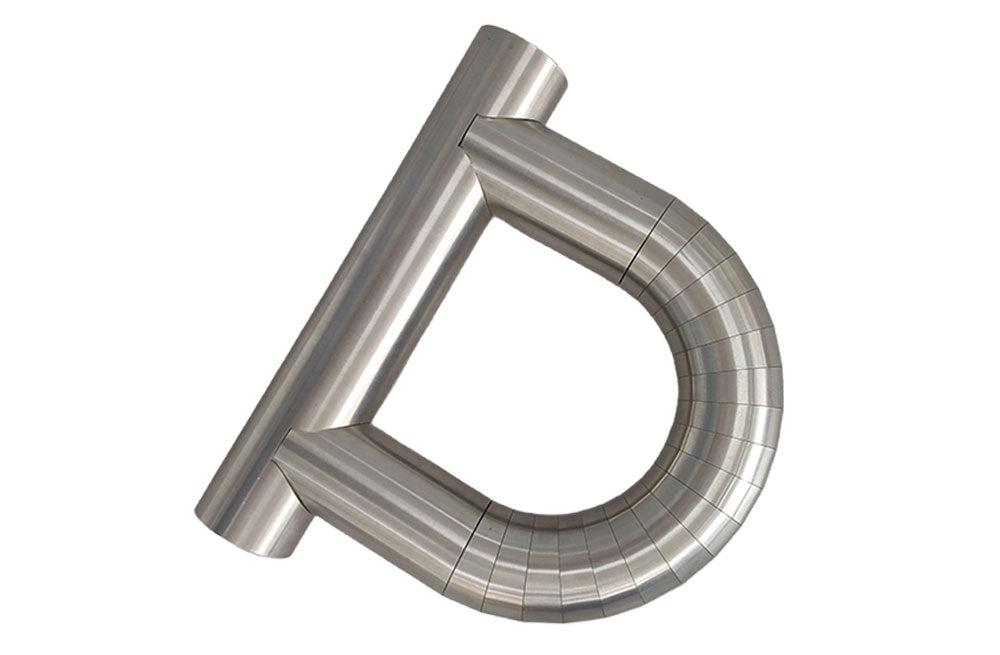

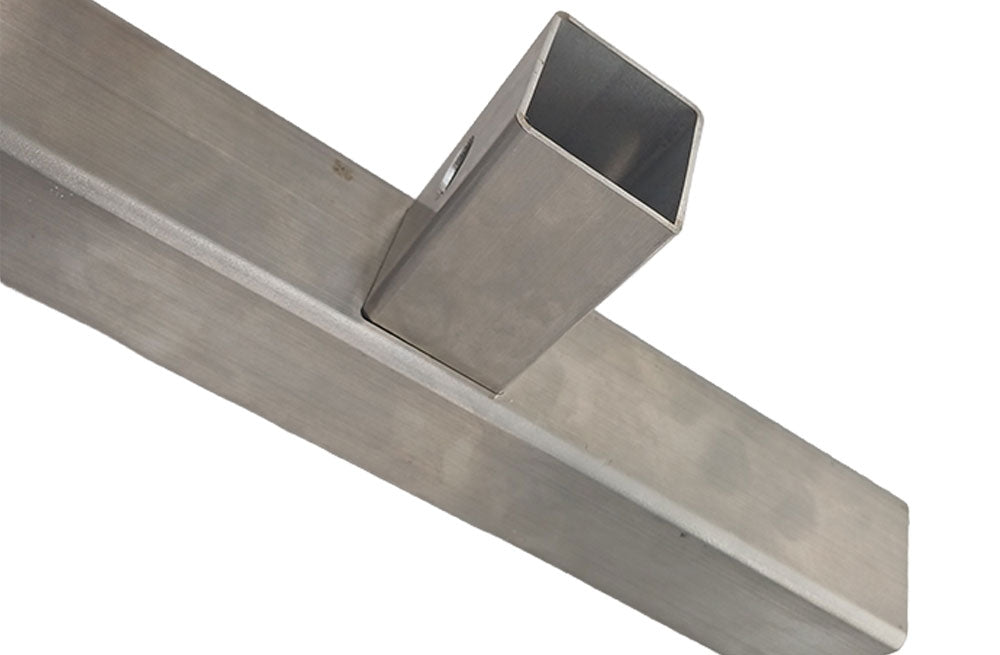

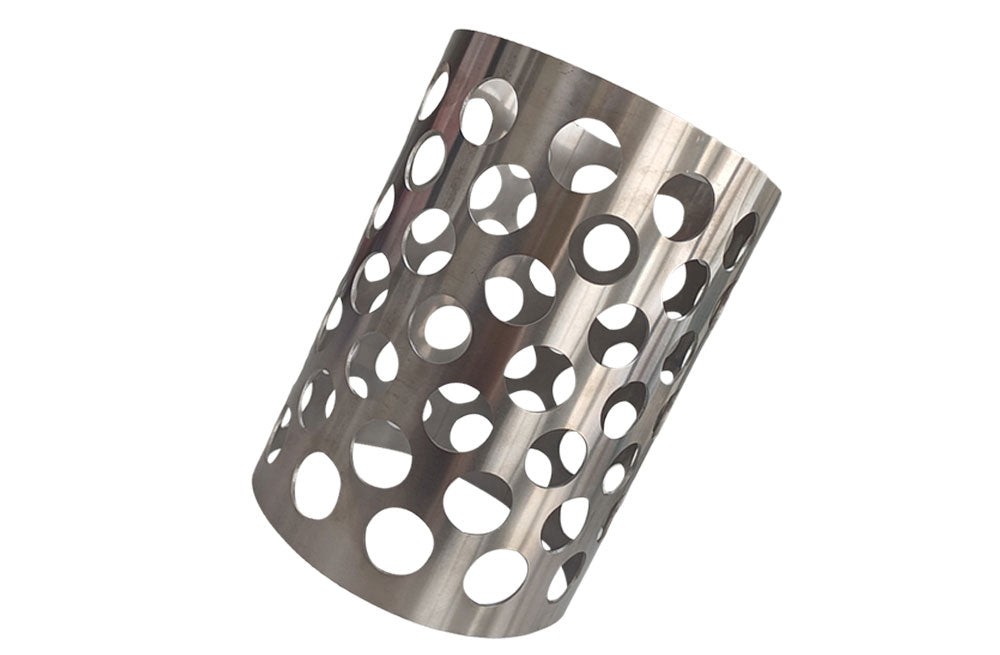

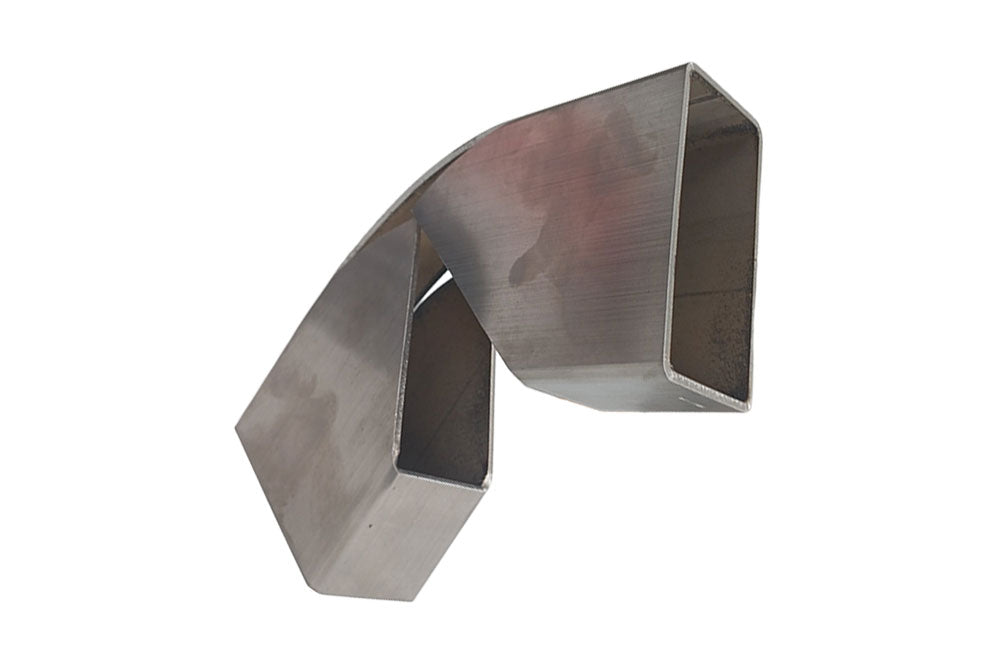

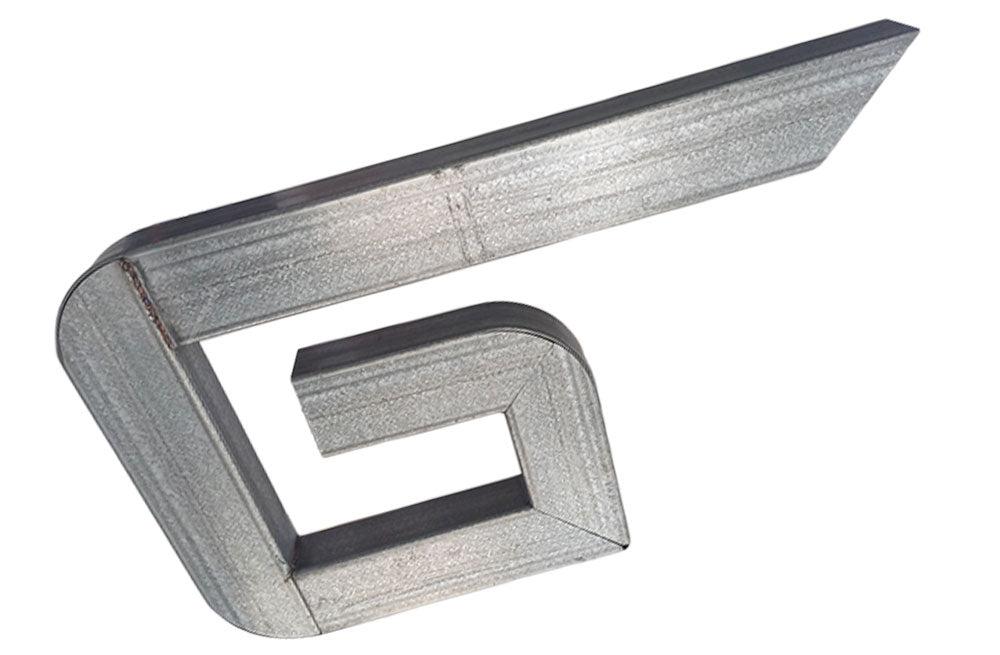

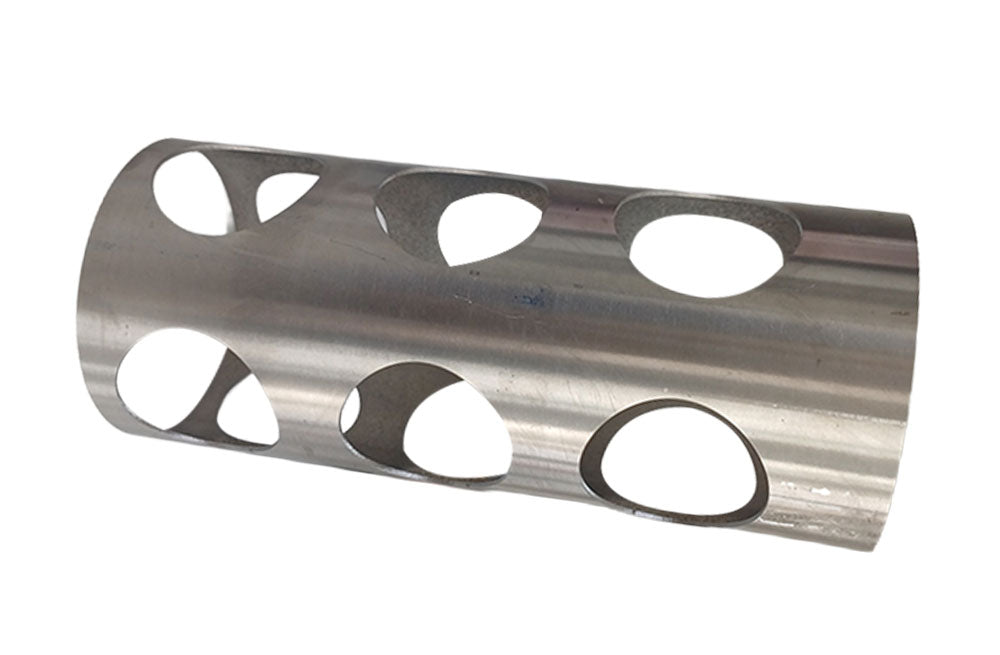

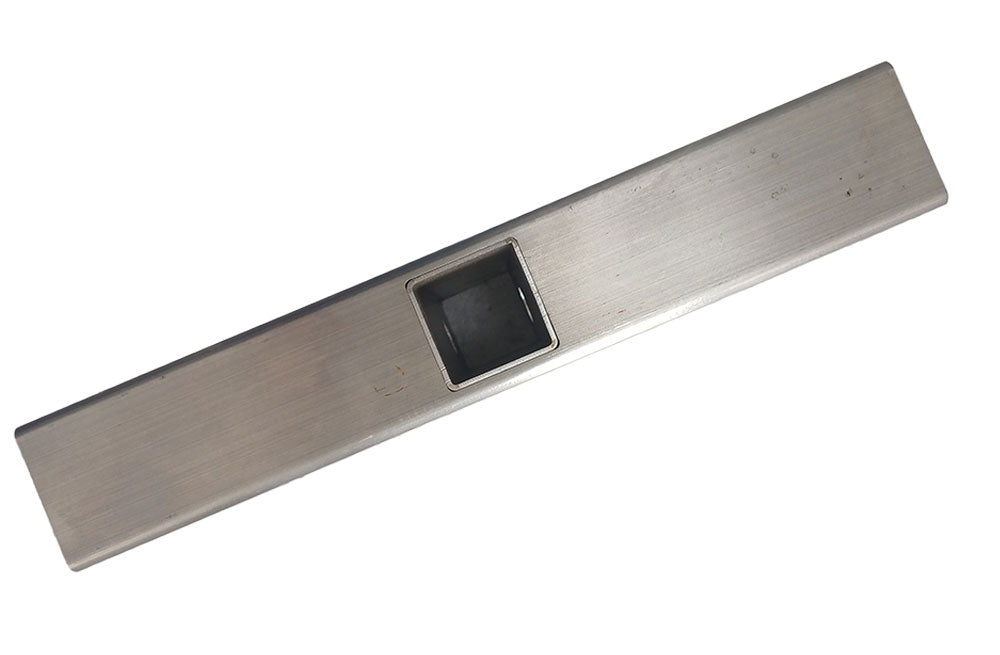

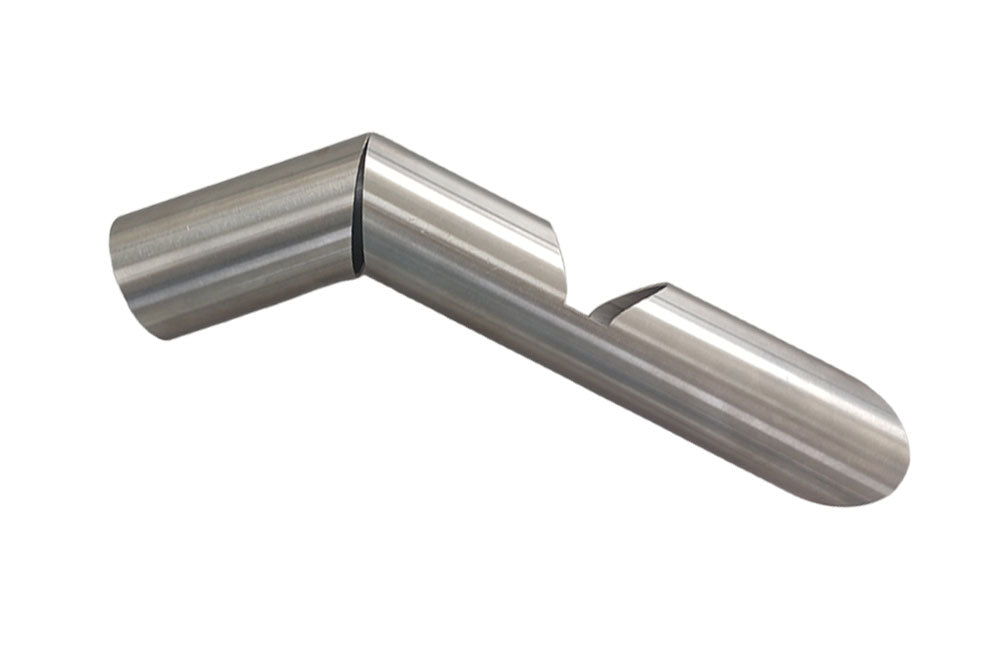

- Cuts round, square & structural tube

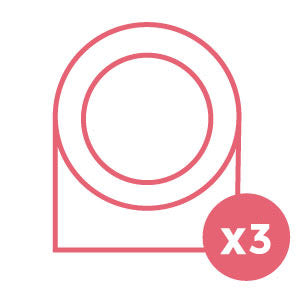

- 3-chuck system for long tube stability
- Zero tailing = less waste
- TubePro software with 3D nesting
- 3kW, 6kW & 12kW options
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Laser Power | 3kW, 6kW and 12kW |
| Tube Length | 300S-6, up to 6.5m tube length 300S-9, up to 9.5m tube length 300S-12, up to 12.5m tube length |
| Minimum Waste Stock Length | ZERO mm |
| Clamp Diameter | 240: 20-240mm standard | 280: 20-280mm standard | 360: 30-350mm standard |
| Tube Weight Capacity | 240: 400kg | 280: 800kg | 360: 1200kg |
| Outfeed Table | 30ft 1m offload tables with servo control Optional: Offload cradles |
| Machine Size | 300S-6, L16800mm x W7800mm x H3600mm 300S-9, L19800mm x W7800mm x H3600mm 300S-12, L22800mm x W7800mm x H3600mm |

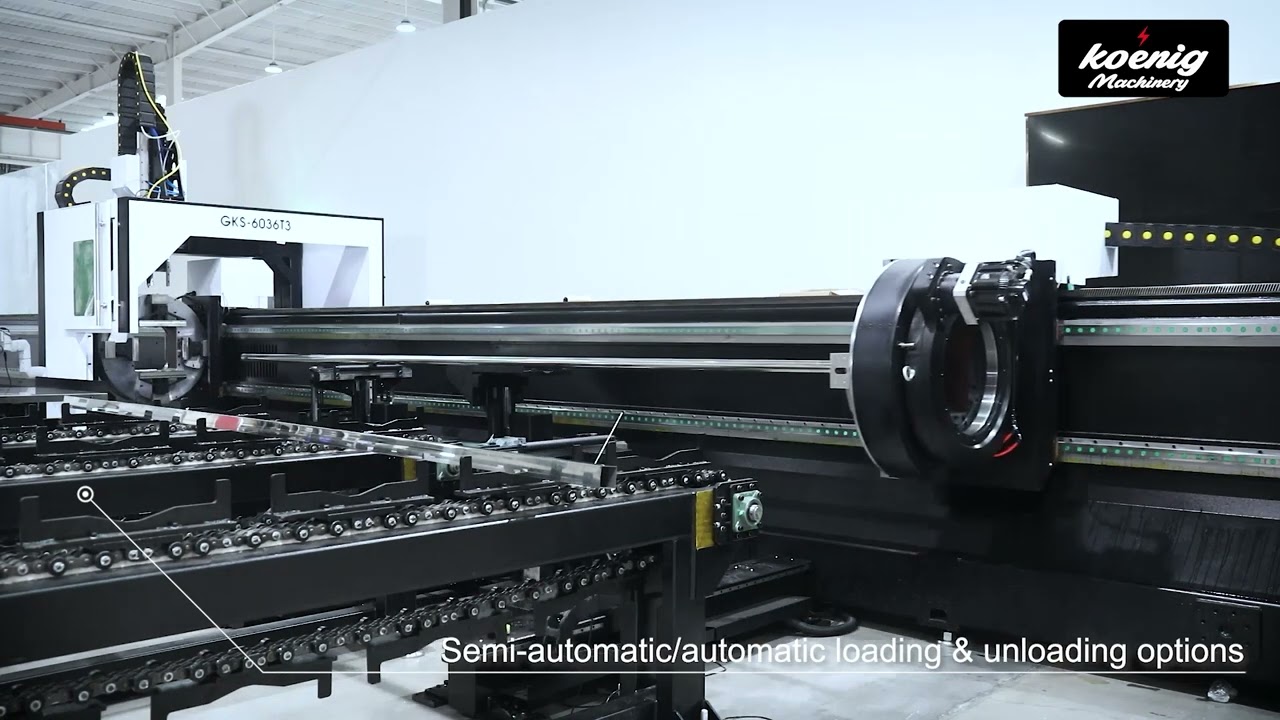

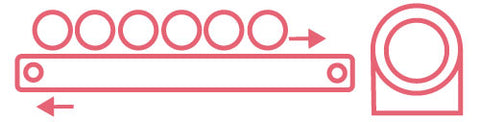

| Machine Options | Infeed semi-automated loading of placed stock (4.5-12.5m) Outfeed semi-automated unloading of parts (4.5-12.5m) |
| Laser Source Type | MAX, Raycus |
| Laser Head Type | BOCI BLT-4 Series Optional: BOCI BLT-5H Series bevel cutting head |
| Cooling Type | Industrial water cooling – S&A water chiller |
| Chuck Speed | Rotational: 240 & 280 chuck is 100rpm | 360 chuck is 60rpm Linear: 240 & 280 chuck is 100m/min | 360 chuck is 60m/min NB. Speeds are affected by loaded weight |
| Acceleration | 240 & 280 chuck is 1G | 360 chuck is 0.5G |
| Laser Output Control | 0-100% set by software |
| Drive Method | TBI ball screw drive, Yaskawa servo motor control with Hiwin guide rails |
| Positioning Accuracy | 0.05mm/m |
| Re-Positioning Accuracy | 0.03mm |
| Minimum Line Width | 0.1mm |
| Controlling Software | TubePro Control software with TubesT for 3D tube design, import and nesting |
| Graphic Format Supported | 3D: IGS, SAT, JHB 2D: DXF |
| Compatible Software | Common 2D and 3D CAD programs, Lantek ERP and more |
| Color Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust fan, industrial water-cooling unit |
| Power Supply | Machine: 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 63amp 12kW = 415V 50Hz 100amp |
| Gas Regulation | Software controlled electronic low pressure O2 regulator (for fine adjustment at LP) and high pressure N2 and compressed air electronic regulator (HP cutting) |
| Gas Specification | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (stainless, aluminium, brass and thin mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (stainless, aluminium, brass and thin mild steel cutting) See our 20DHy-20Bar compressor option |
| Working Environment | Temperature: 0-45C, Humidity 5-95% (No Condensate Water) |
