WAD-50T/1600-AU CNC Press Brake
$81,500.00

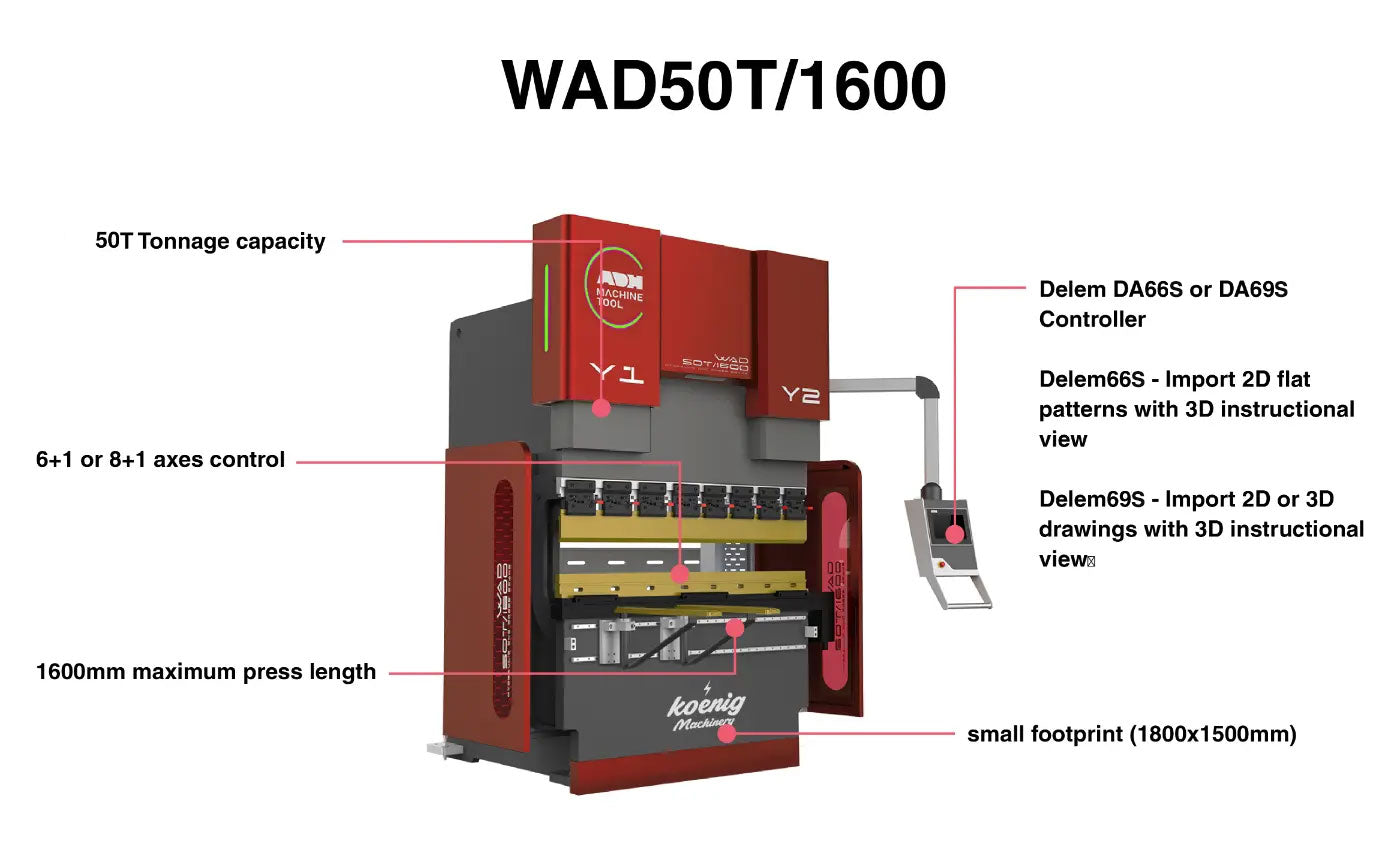

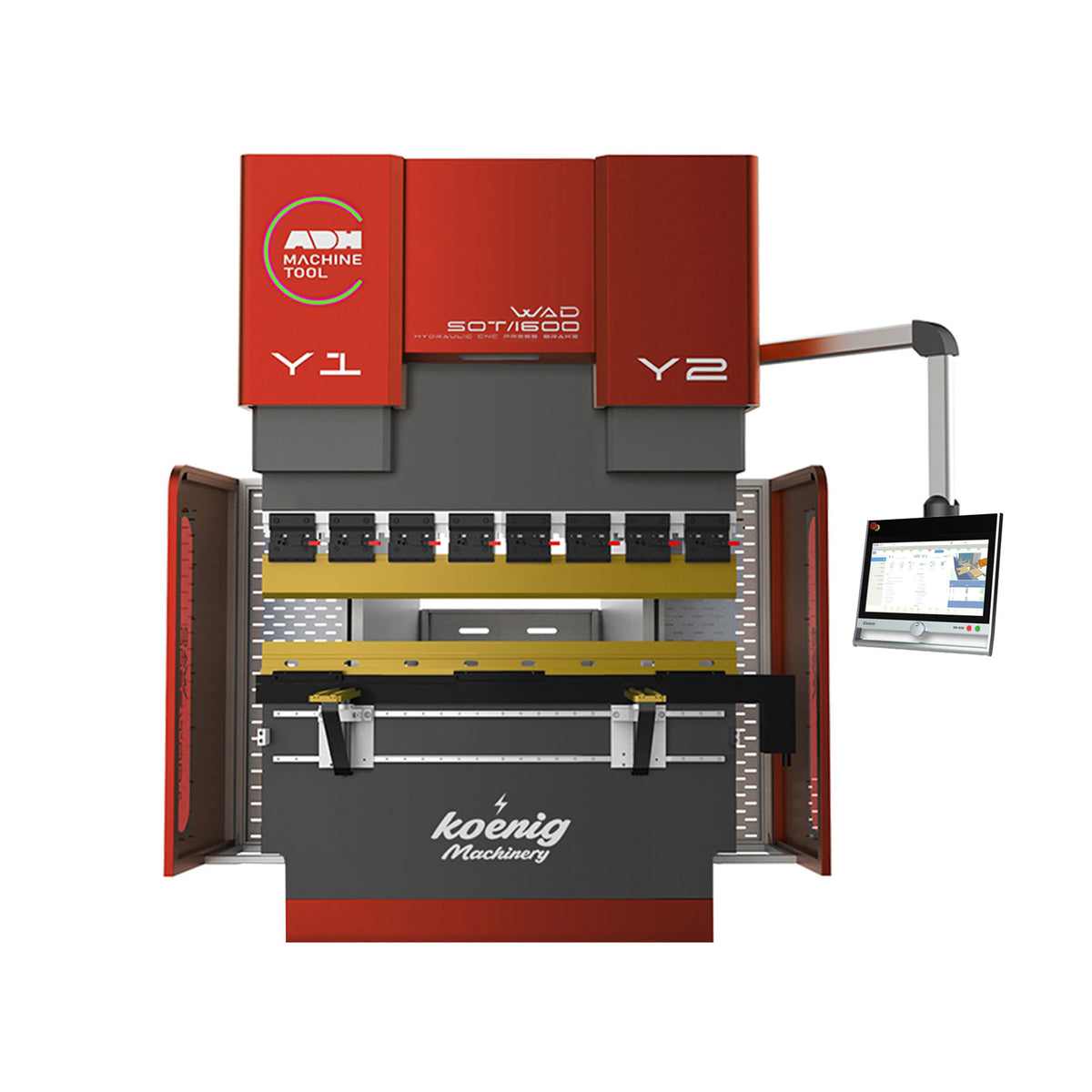

*ex GSTOur NEW 1600 mm ADH CNC Press Brake (50T) is designed for precision bending and reliable performance in a compact footprint. As standard, this model is supplied in a 1600 mm bending width and features 6+1 axis CNC control, pairing seamlessly with the advanced Delem DA-66S or DA-69S controller.
The Delem DA-66S allows operators to import 2D DXF flat patterns or create bend profiles directly within the control, with full 3D preview and automatic bend sequence recognition. For more advanced applications, the Delem DA-69S adds support for 3D CAD file imports, feature and sequence recognition, and full 3D part design directly within the controller.
*A 1300 mm width version is also available upon request.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Unit | Specification | |
|---|---|---|---|
| Bending Force | kN | 50T | |
| Max. Bending Length | mm | 1600 (Also available in 1300mm) | |
| Throat Depth | mm | 130 | |
| Stroke | mm | 160 | |
| Opening Height | mm | 460 | |
| Fast Speed | mm/s | 500 | |
| Working Speed | mm/s | 13 | |
| Return Speed | mm/s | 160 | |
| Axis Specifications | X-Axis Stroke | mm | 500 |
| X-Axis Speed | mm/s | 350 | |
| R-Axis Stroke / Speed | mm / mm/s | 200 / 200 | |
| Column Distance | mm | 1120 | |
| Oil Tank | L | 150 | |
| Main Motor | kW | 8.4 | |
| Weight | Ton | 3.7 | |
| Dimensions | L×W×H mm | 1750 × 1500 × 2330 | |
Brochure
Koenig Machinery Hydraulic WAD 50T 1600 AU
