WADG-12T/600-AU CNC Electric Press Brake
$26,950.00

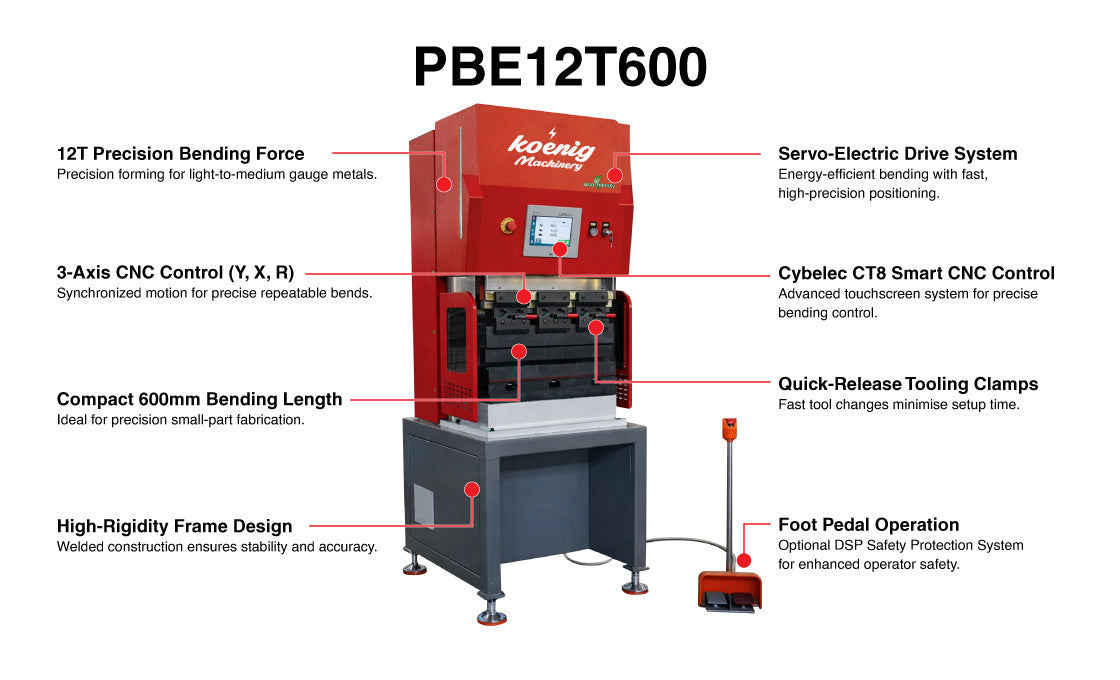

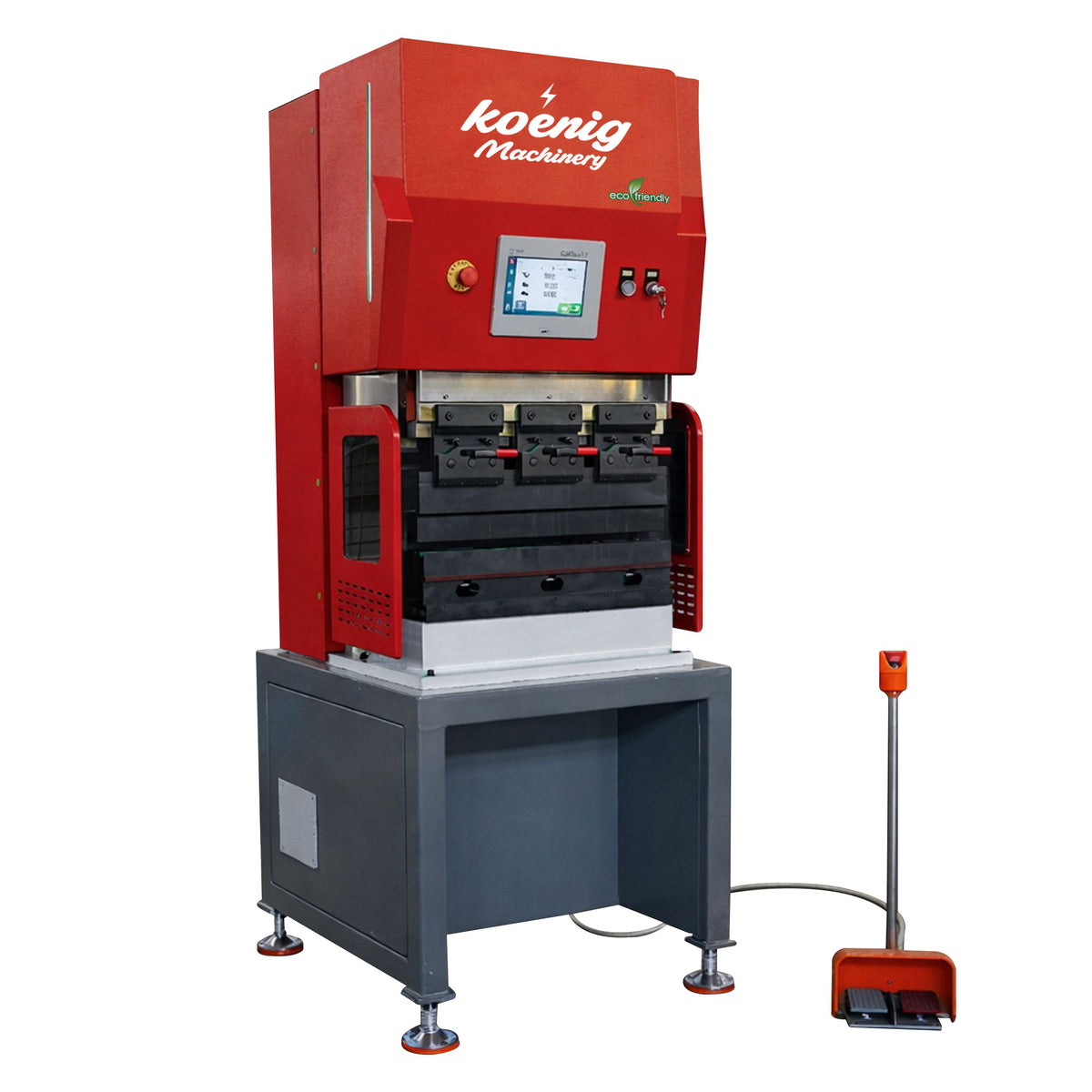

*ex GSTVersatile CNC electric press brake with increased capacity for light fabrication and job shop work. The 12T model delivers accurate, repeatable bends using a servo-electric system. Equipped with Cybelec CT8 control for Y, X and R axis backgauge positioning, plus manual side adjustment of the two backstops.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
|---|---|
| Bending Force | 12T |
| Bending Length | 600 mm |
| Approaching Speed | 180 mm/s |
| Working Speed | 0.15 – 30 mm/s |
| Return Speed | 180 mm/s |
| X-Axis Stroke | 200 mm |
| X-Axis Speed | 400 mm/s |
| R-Axis Stroke | 80 mm |
| R-Axis Speed | 200 mm/s |
| Distance Between Columns | 590 mm |
| Throat Depth | 200 mm |
| Stroke | 150 mm |
| Open Height | 420 mm |
| Main Motor | 8 kW |
| Machine Weight | 2.5 Ton |
| Overall Dimensions | 750 × 750 × 1830 mm |
| Components | Brand / Details |
| Main Servo Motor | Italy Physis |
| Rear Stopper Linear Guide | HIWIN |
| Rear Stopper Ball Screw | HIWIN |
| Heavy Duty Ball Screw | Germany IF |
| Electrical Components | Schneider |
| Bearing | Japan NACHI |
| CNC System | Cybelec |
| Timing Belt | Italy MACO |
| Equipment Working Environment | Parameters |
| Power Requirements | Three-phase four-wire system, 380V, 50Hz |
| Maximum Temperature | 40°C |
| Minimum Temperature | -5°C |
| Relative Humidity | 55–85% |
| Machine Noise Measurement | LPA ≤82 dB(A), LWA ≤94 dB(A) |
| Machine Standards | GB 17120-2012 / GB/T 34376-2017 / Q/320585 DTM 01-2017 |
