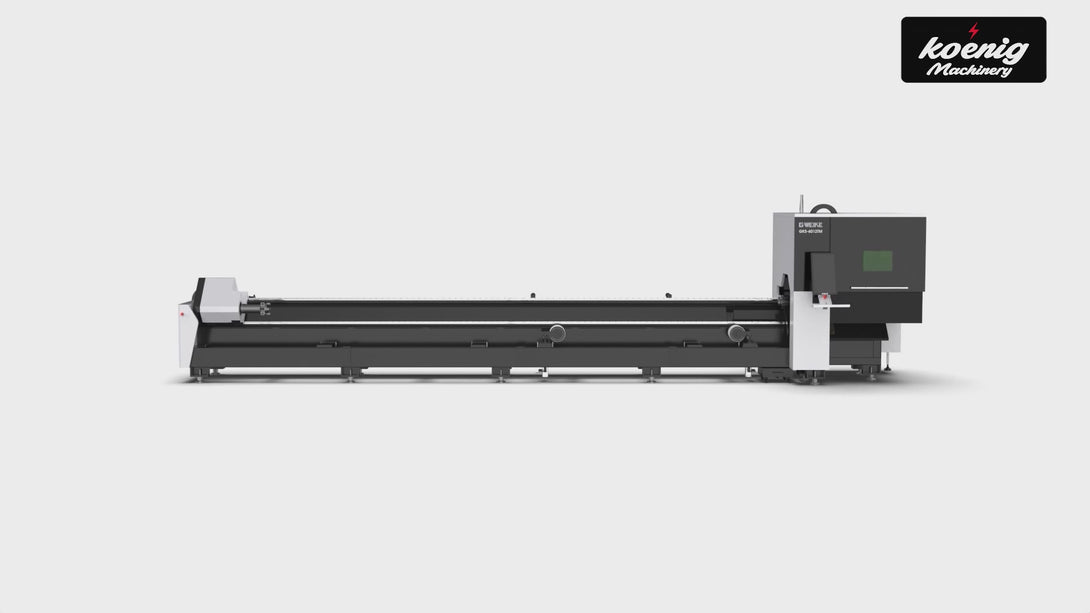

Light Tube Cutter Fiber Laser - 2 Chuck (100 Series Tube Fiber)
$84,050.00
*ex GSTCNC Tube Fiber Laser Cutter – Light Duty
Compact CNC tube laser for precise cutting of steel, aluminium and stainless tube. Ideal for smaller profiles and entry-level production, with reduced tailing and efficient material use.

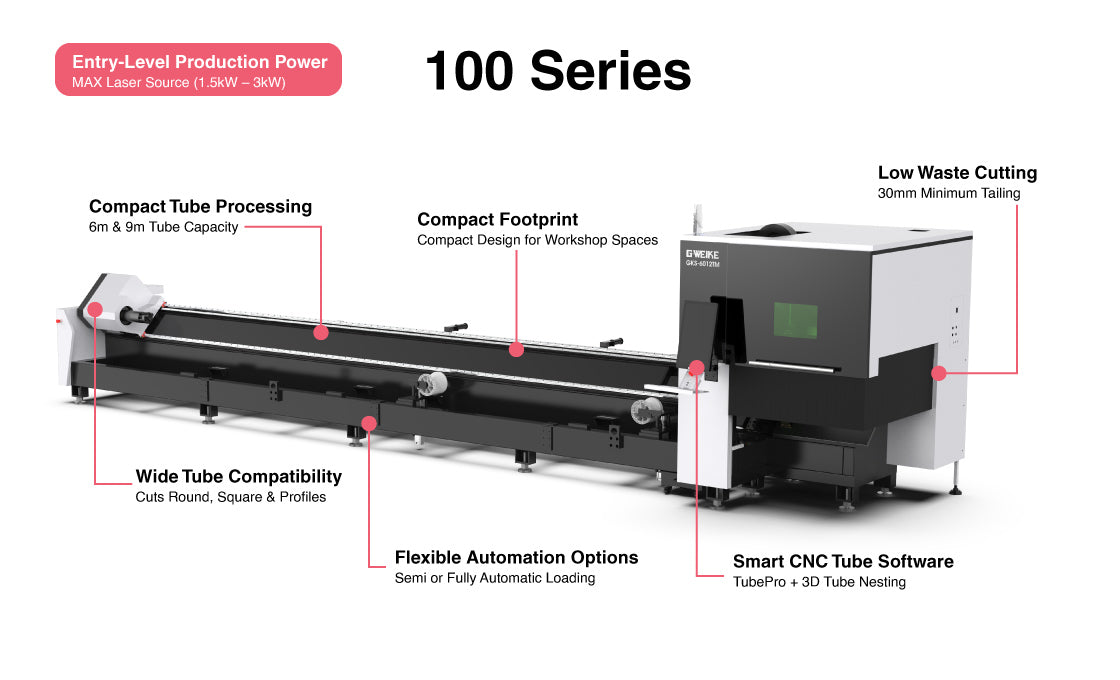

Key Features:
- Cuts round, square & light structural tube
- 2-chuck system for stable processing
- Reduced tailing for less waste
- TubePro software with 3D nesting
- 1.5kW & 3kW options
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Laser Power | 1.5kW, 3kW |
| Tube Length | 100S-6, up to 6.5m tube length 100S-9, up to 9.5m tube length |
| Minimum Waste Stock Length | 30mm – back chuck clamping only. Optional: Precision chuck - ZERO waste (≤D80mm and ~L600mm) & Higher duty |
| Clamp Diameter | 120: 10-120mm standard | 160: 10-160mm standard (Min is 20mm w/infeed) |
| Tube Weight capacity | 80kg |
| Outfeed Table | Sloped ~1m fixed outfeed table Optional: 2m Offload table with Variable diameter wheel configuration |
| Machine Size | 100S-6, 9550mm*2500mm *2380mm 100S-9, 12550mm*2500mm *2380mm |
| Machine Options | Infeed Semi Automated Loading - Automated loading of placed stock (4.5-9.5m) Infeed Fully Automated Feeding - Automated feeding of bundled stock (4.5-9.5m) |
| Laser Source Type | MAX, Raycus or IPG |
| Laser Head Type | BOCI BLT 3 Series Automatic focusing laser head with “3D” fine tip |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Chuck Speed | Rotational: 200rpm | Linear: 120meters pm (Speeds affected by loaded weight) |
| Acceleration | 1G |
| Laser Output Control | 0-100% set by software |
| Drive Method | TBI ball screen drive, Yaskawa servo motor control with Hiwin guide rails |
| Positioning Accuracy | 0.05mm/m |
| Re-Positioning Accuracy | 0.03mm |
| Minimum Line Width | 0.1mm |
| Controlling Software | TubePro Control software with TubesT for 3D Tube design, import and nesting TubePro (Cypcut) and TubesT Lite (Optional upgrade to TubesT) |
| Graphic Format Supported | 3D: IGS, SAT, JHB 2D: DXF |
| Compatible Software | Common 2D and 3D CAD programs, Lantek ERP and more |
| Color Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit. |
| Power Supply | Machine: 1.5kW = 415V 50Hz 32amp 3kW = 415V 50Hz 50amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas Specification | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 20DHY-20Bar COMPRESSOR OPTION |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
