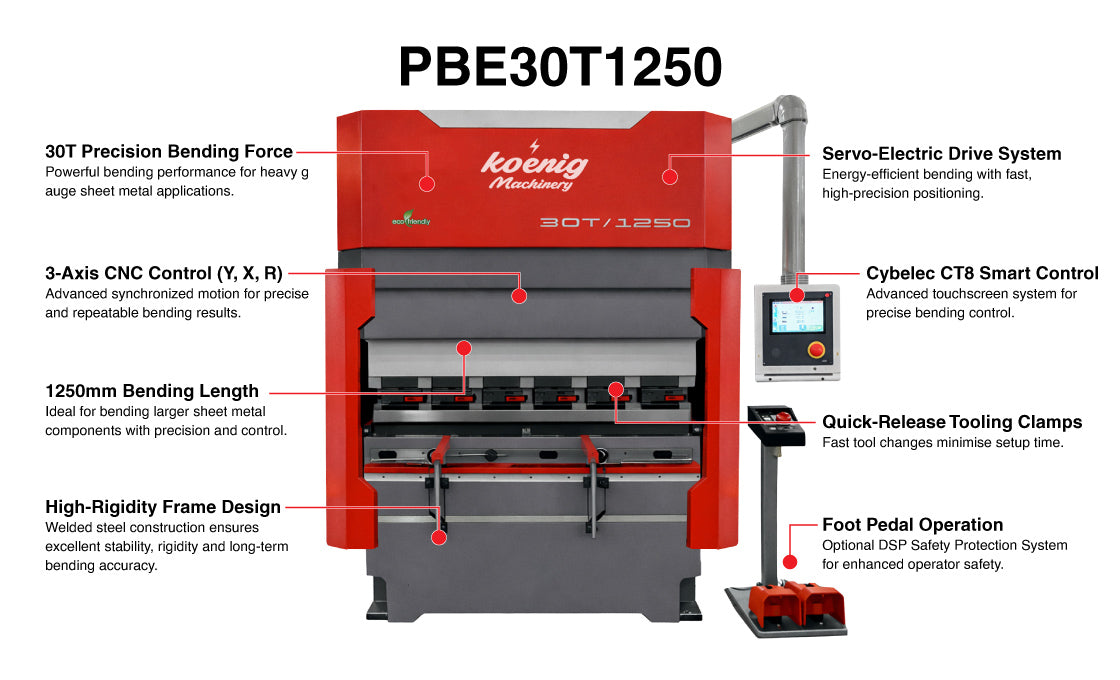

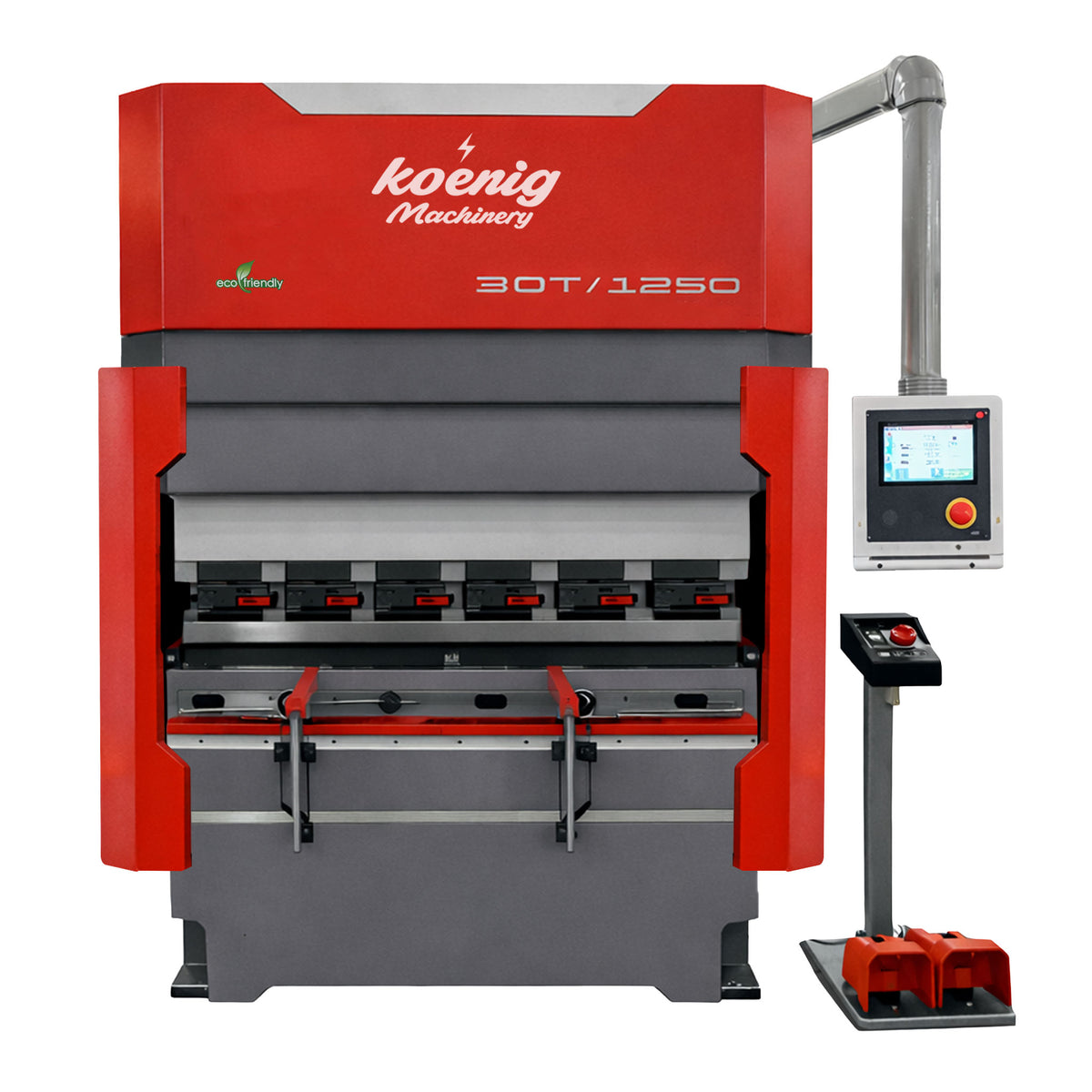

WADG-30T/1250-AU CNC Electric Press Brake
$46,950.00
*ex GSTHigh-capacity CNC electric press brake for larger parts and increased throughput. The 30T model provides precision bending across a 1250mm working width using a servo-electric system. Includes Cybelec CT8 control for Y, X and R axis backgauge positioning, with manual side adjustment of the two backstops.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
|---|---|
| Bending Force | 30T |
| Bending Length | 1250 mm |
| Approaching Speed | 250 mm/s |
| Working Speed | 0.15 – 30 mm/s |
| Return Speed | 250 mm/s |
| X-Axis Stroke | 400 mm |
| X-Axis Speed | 500 mm/s |
| R-Axis Stroke | 150 mm |
| R-Axis Speed | 200 mm/s |
| Distance Between Columns | 900 mm |
| Throat Depth | 250 mm |
| Stroke | 150 mm |
| Open Height | 420 mm |
| Main Motor | 20 kW |
| Machine Weight | 4.3 Ton |
| Overall Dimensions | 1460 × 1660 × 2470 mm |
| Components | Brand / Details |
| Main Servo Motor | EASY CAT |
| Rear Stopper Linear Guide | HIWIN |
| Rear Stopper Ball Screw | HIWIN |
| Heavy Duty Ball Screw | Germany IF |
| Electrical Components | Schneider |
| Bearing | Japan NACHI |
| CNC System | Cybelec |
| Timing Belt | Italy MACO |
| Equipment Working Environment | Parameters |
| Power Requirements | Three-phase four-wire system, 380V, 50Hz |
| Maximum Temperature | 40°C |
| Minimum Temperature | -5°C |
| Relative Humidity | 55–85% |
| Machine Noise Measurement | LPA ≤82 dB(A), LWA ≤94 dB(A) |
| Machine Standards | GB 17120-2012 / GB/T 34376-2017 / Q/320585 DTM 01-2017 |
