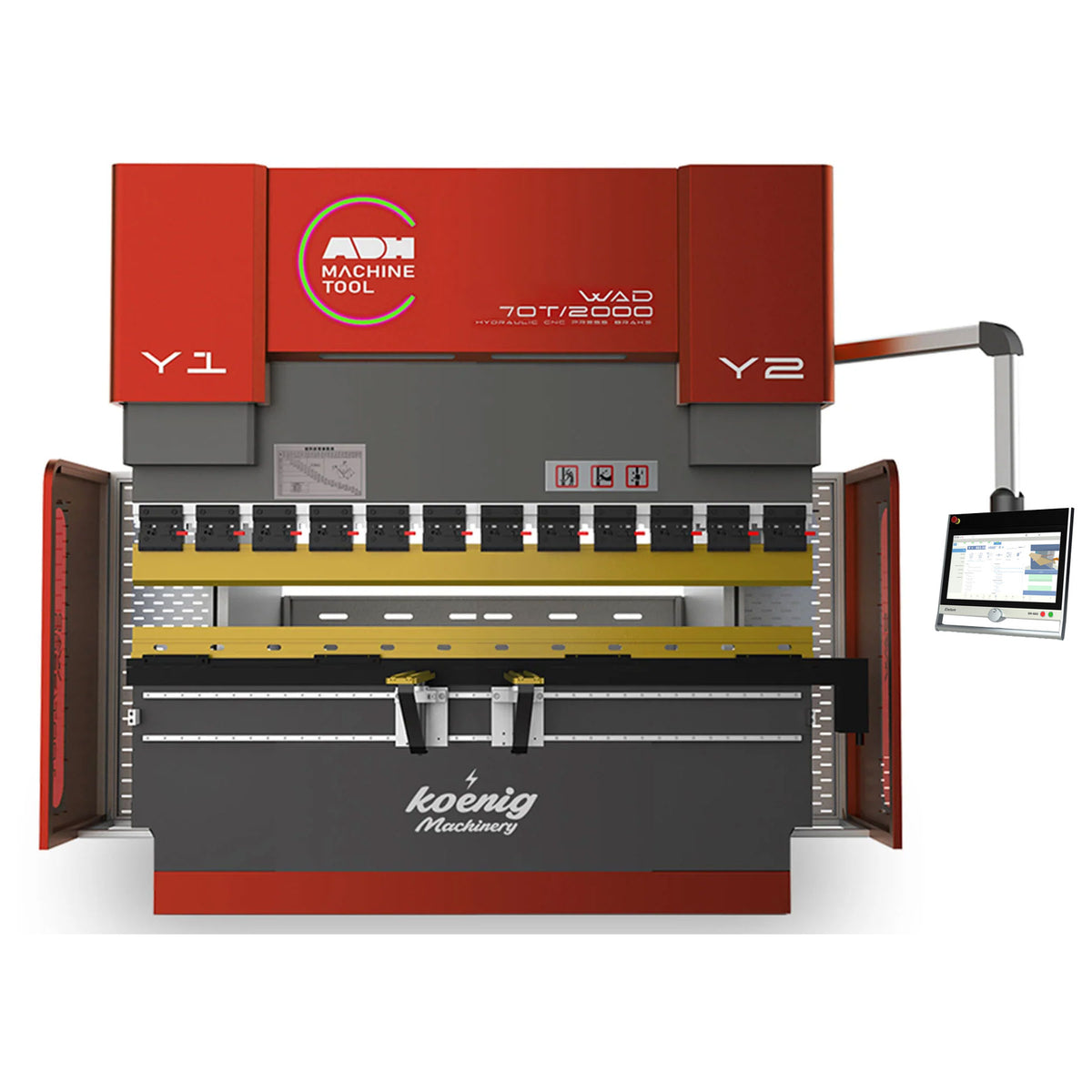

WAD-70T/2000-AU CNC Press Brake
$83,500.00

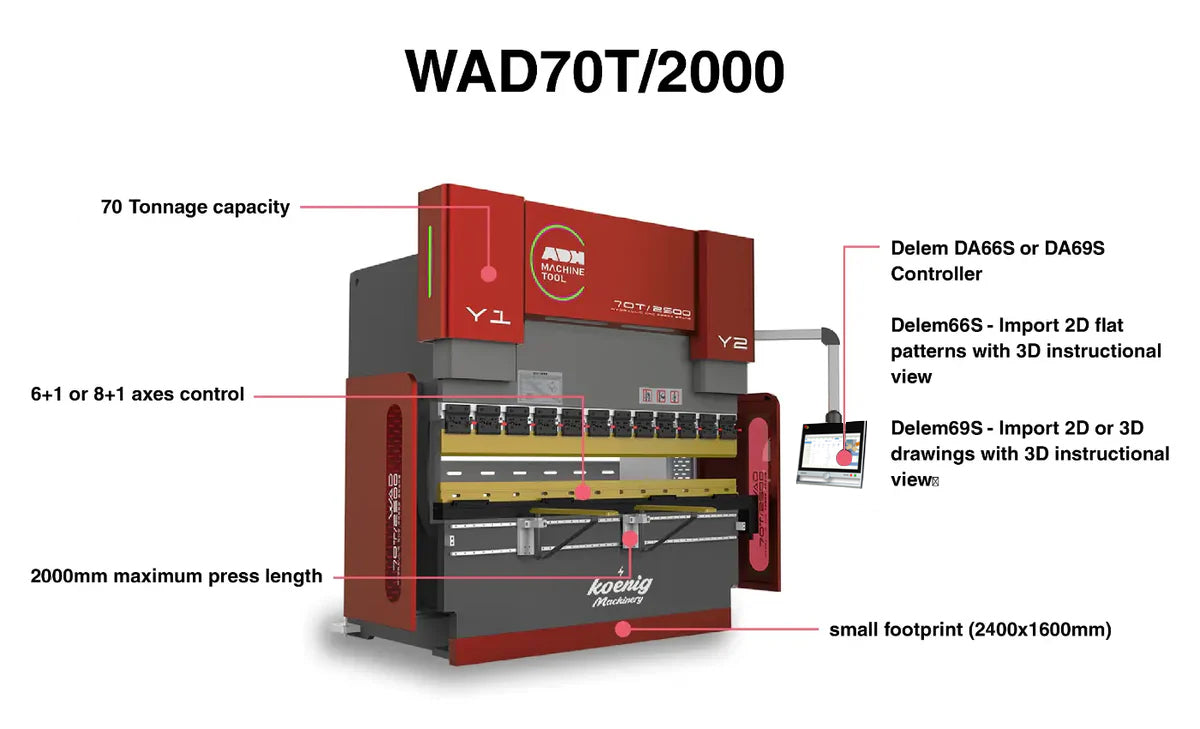

*ex GSTOur NEW 2000mm Brake Press WAD70T/2000-AU with 70T capacity. As standard our CNC press brakes are supplied with 6+1 axes control partnering perfectly with the advanced Delem 66S or Delem 69S controller. The 66S Delem controller will allow you to import 2D dxf flat pattern drawing or draw the bend profile simply within the Delem software. Preview your work in 3D with automatic bend sequence recognition. Upgrade to the Delem 69S to allow importing of 3D CAD files, with feature and sequence recognition, as well as 3D design capability within the 69S software.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Unit | Specification | |
|---|---|---|---|
| Bending Force | kN | 70T | |
| Max. Bending Length | mm | 2000 | |
| Throat Depth | mm | 300 | |
| Stroke | mm | 150 | |
| Opening Height | mm | 460 | |
| Fast Speed | mm/s | 220 | |
| Working Speed | mm/s | 13 | |
| Return Speed | mm/s | 160 | |
| Axis Specifications | X-Axis Stroke | mm | 500 |
| X-Axis Speed | mm/s | 350 | |
| R-Axis Stroke / Speed | mm / mm/s | 200 / 200 | |
| Column Distance | mm | 1600 | |
| Oil Tank | L | 130 | |
| Main Motor | kW | 8.4 | |
| Weight | Ton | 4.6 | |
| Dimensions | L×W×H mm | 2400 × 1600 × 2400 | |
Brochure
