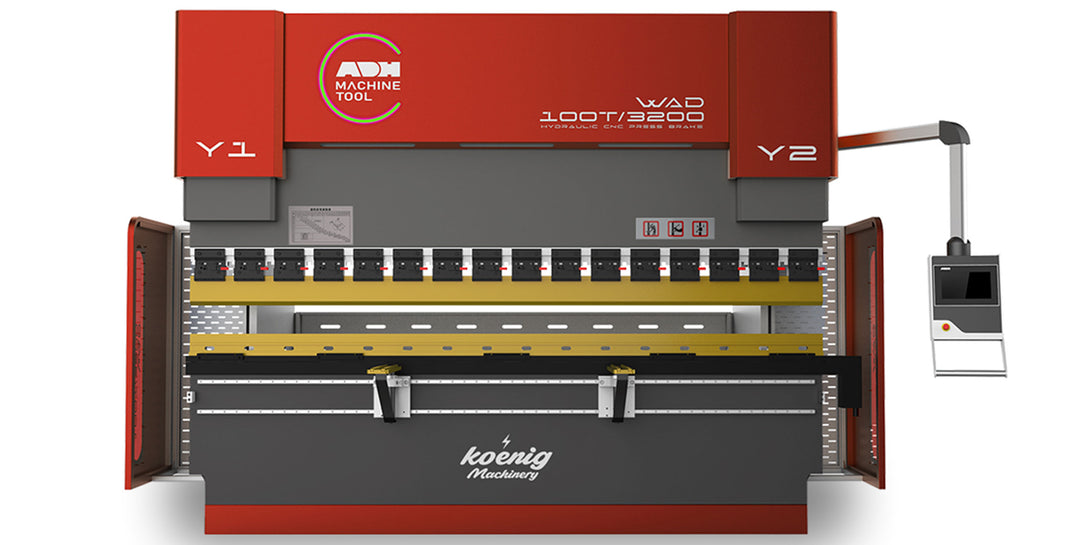

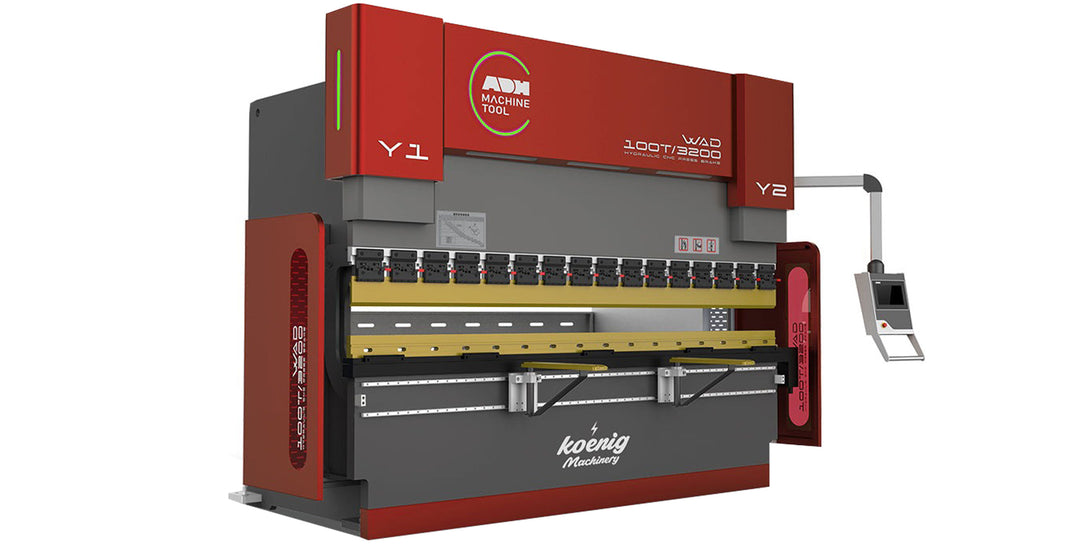

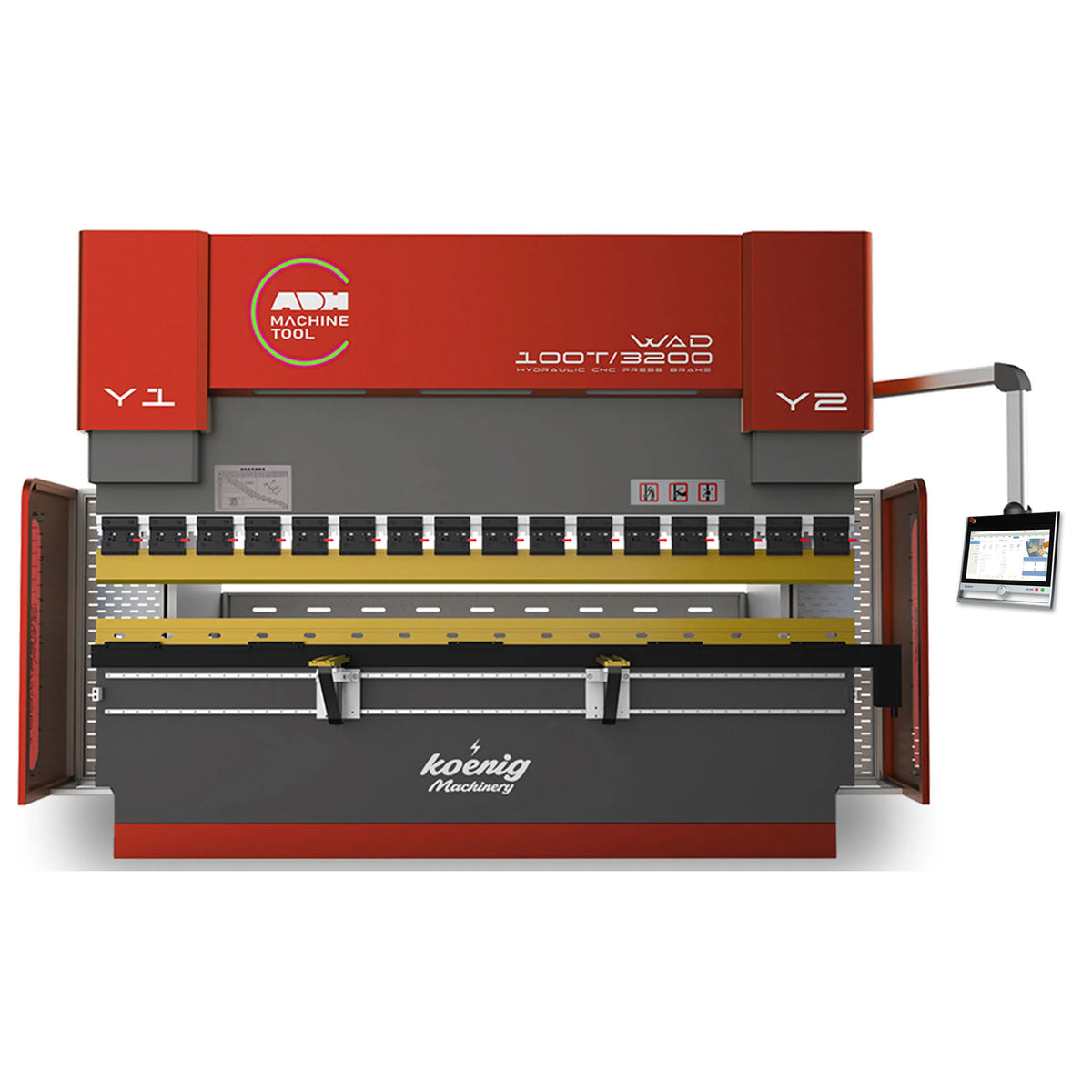

WAD-110-800T/3200-AU CNC Press Brake
$99,950.00

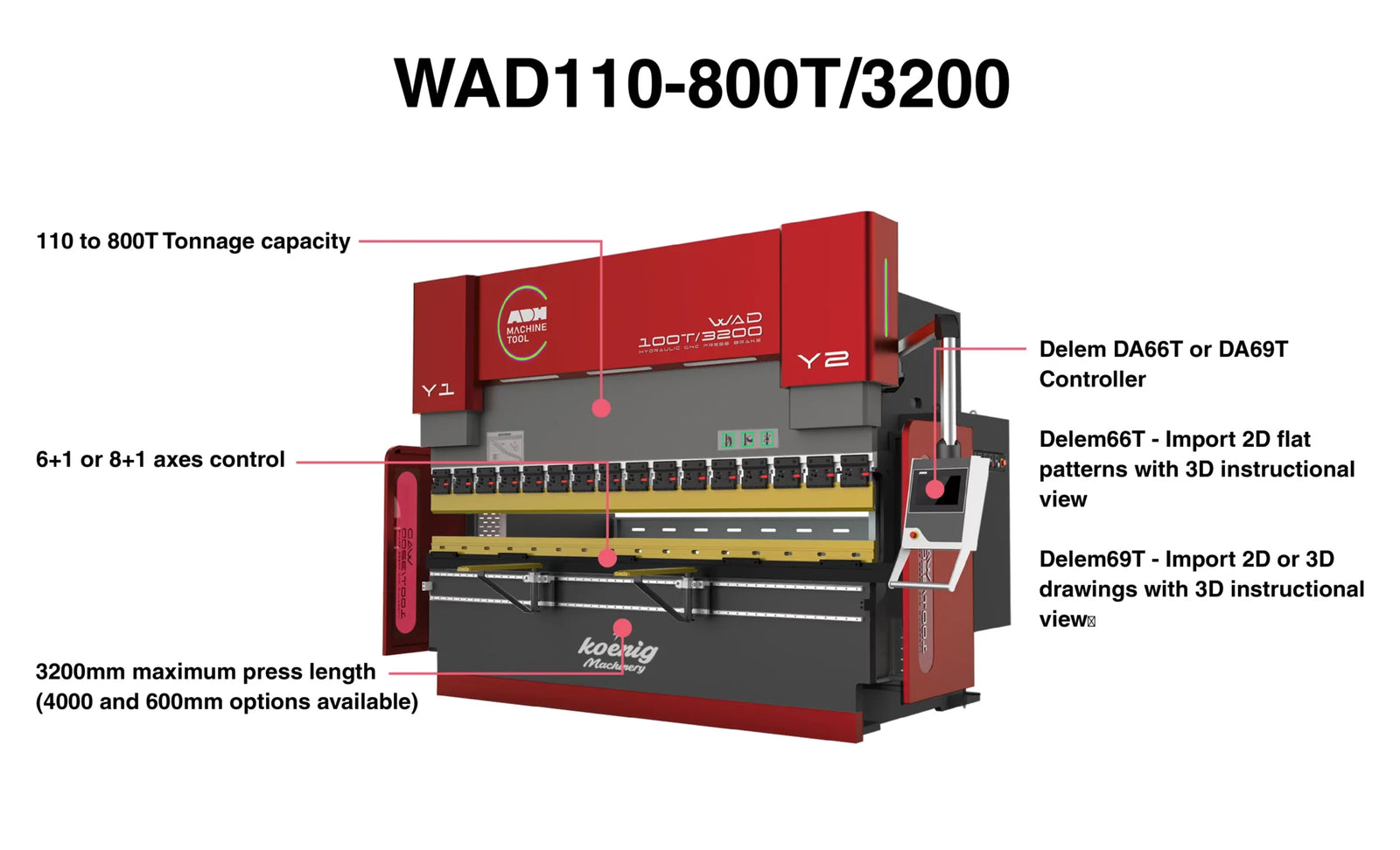

*ex GSTOur NEW 3200mm Brake Press comes in various Tonnage options, from 110T all the way up to 800T capacity. As standard our CNC press brakes are supplied with 6+1 axes control partnering perfectly with the advanced Delem 66S or Delem 69S controller. The 66S Delem controller will allow you to import 2D dxf flat pattern drawing or draw the bend profile simply within the Delem software. Preview your work in 3D with automatic bend sequence recognition. Upgrade to the Delem 69S to allow importing of 3D CAD files, with feature and sequence recognition, as well as 3D design capability within the 69S software.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | UNIT | Specification | |
| Bending Force | kN | 110T- 1100kN, 135T- 1350kN, 170T-1700kN, 220T-2200kN, 250T-2500kN, 300T-3000kN, 400T-4000kN, 600T-6000kN, 800T-8000kN | |
| Max. Bending Length | mm | 3200 | |
| Throat depth | mm | 450 | |
| Stroke | mm | 200 | |
| Opening height | mm | 480 | |
| Fast Speed | mm/s | 160 | |
| Working Speed | mm | 11.5 | |
| Return Speed | mm | 135 | |
| Machine tool Accuracy | Slider Repeat Accuracy | mm | ≤±0.03 |
| Slider Positioning Accuracy | mm | ≤±0.03 | |
| Repeat position accuracy of back gauge | mm | ≤±0.05 | |
| Workpiece Straightness error | mm/m | 0.5 | |
| Bend angle error | ◦ | ＜±0.5 | |
| Grating ruler Resolution | mm | 0.005 | |
| Hydraulic Oil Standard | #46/68 Anti-wear hydraulic oil | ||
| Oil Tank | L | 260 | |
| Main Motor | kW | 11(110-135T), 15(170T), 18.5(220T), 22(250-300T), 30(400T), 45(600T), 60(800T) | |
| Total Machine Power | kW | From 15.1kW (110T 6+1axes) to 59.1kW (800T 8+1axes) | |
| Weight | Ton | 12-14 | |
| Dimensions | LxWxH mm | 110T - 3400*1800*2350, 135T - 3400*1800*2450, 170T - 3400*2000*2540 220T - 3400*2200*2540, 250T - 3400*2000*2700, 300T - 3400*2300*3100 | |
| Power supply | 3-phase 415V, 50Hz, 20-60Amp connection (12.7-51Amp consumption depending on model) | ||
Standard Components
| Component | Model |
| Controller | Delem DA66T (DA69T available) – From Delem Netherlands |
| Back-gauge Axis | 6+1 = Y1, Y2, X, R, Z1, Z2 +V-crowning (8+1 available = Y1, Y2, X1, X1, R1, R6, Z1, Z2 + V-crowning) |
| Hydraulic Valve | HAWE from Germany |
| Hydraulic Gear Pump | HAWE from Germany |
| Grating Ruler | Givi from Italy |
| Main Motor | Estun/Innovance from China |
| Electrical Components | Schneider from France |
| Crowning | Automatic Crowning from China |
| Ball Screw and Linear Guide | PMI/PYM from Taiwan |
| Servo Motor & Servo Drive | Estun from China |
| Tubing Connector | JS/EMB from Germany |
| Clamps | ADH quick clamp |
| Pedal Switch | Movable roller type from China |
| Front Protection | Left and right guard from China |
| Rear Protection | Fully enclosed rear guard from China |
| Light curtain (included) | LHTECH China |
| DSP front user laser safety (option) | DSP from Italy |
