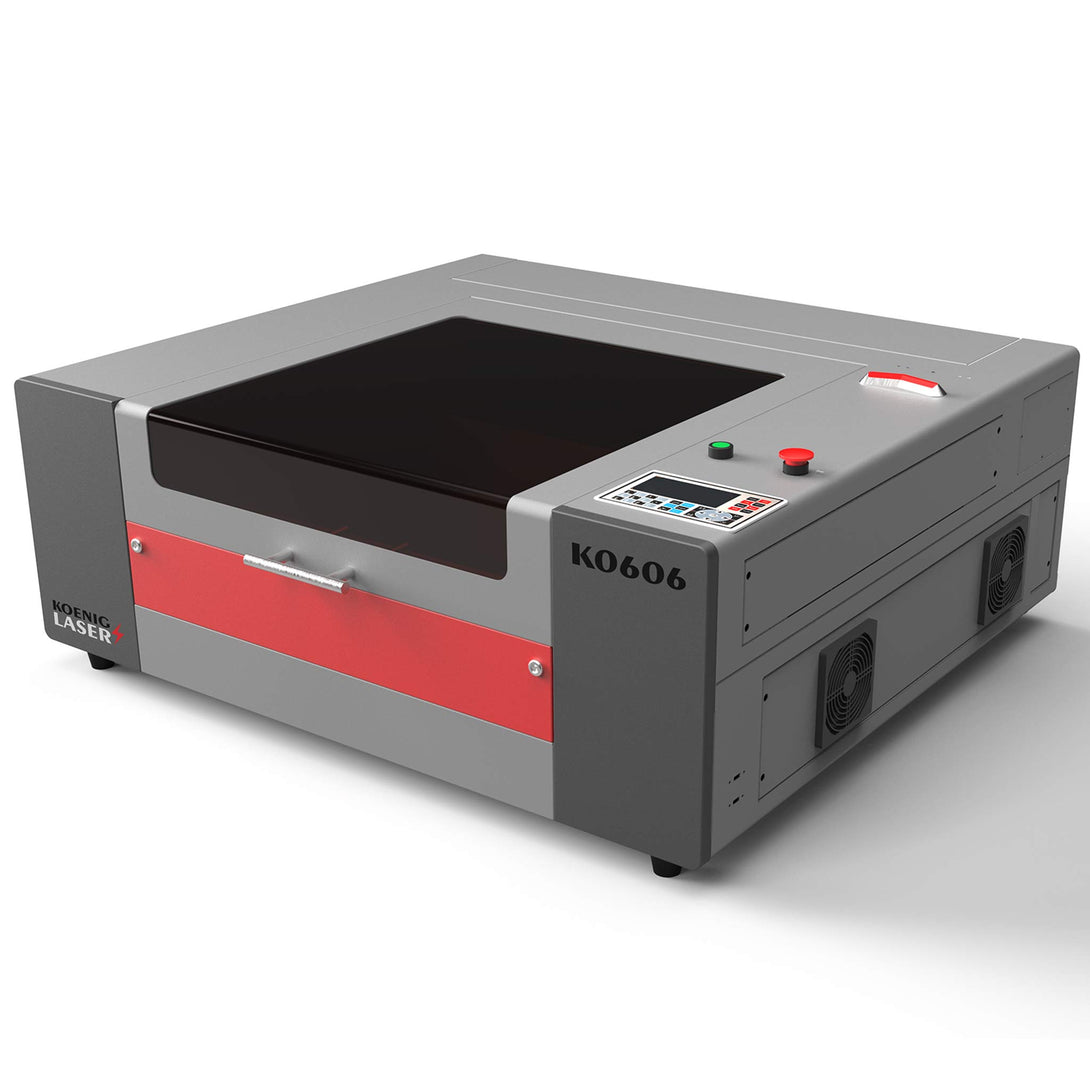

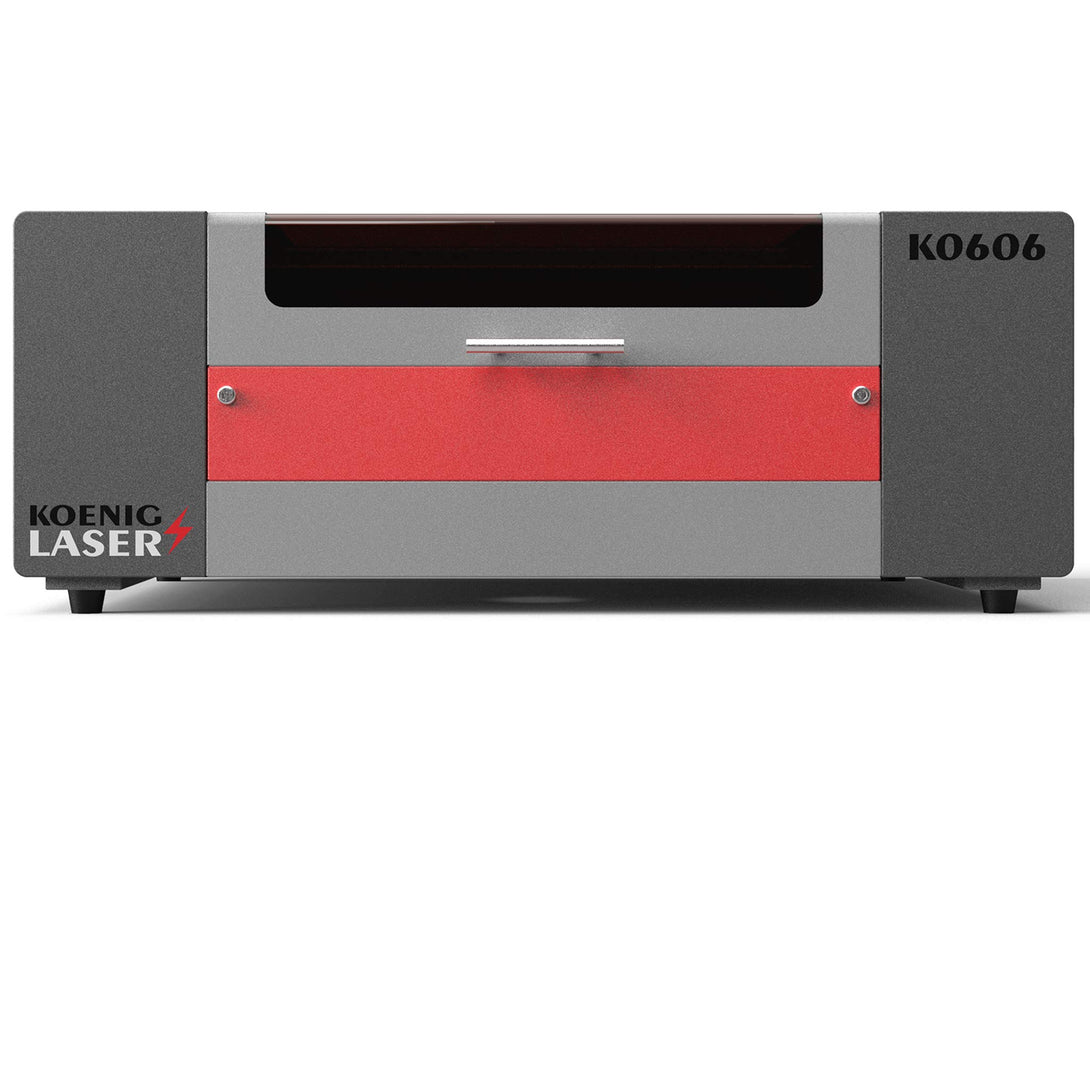

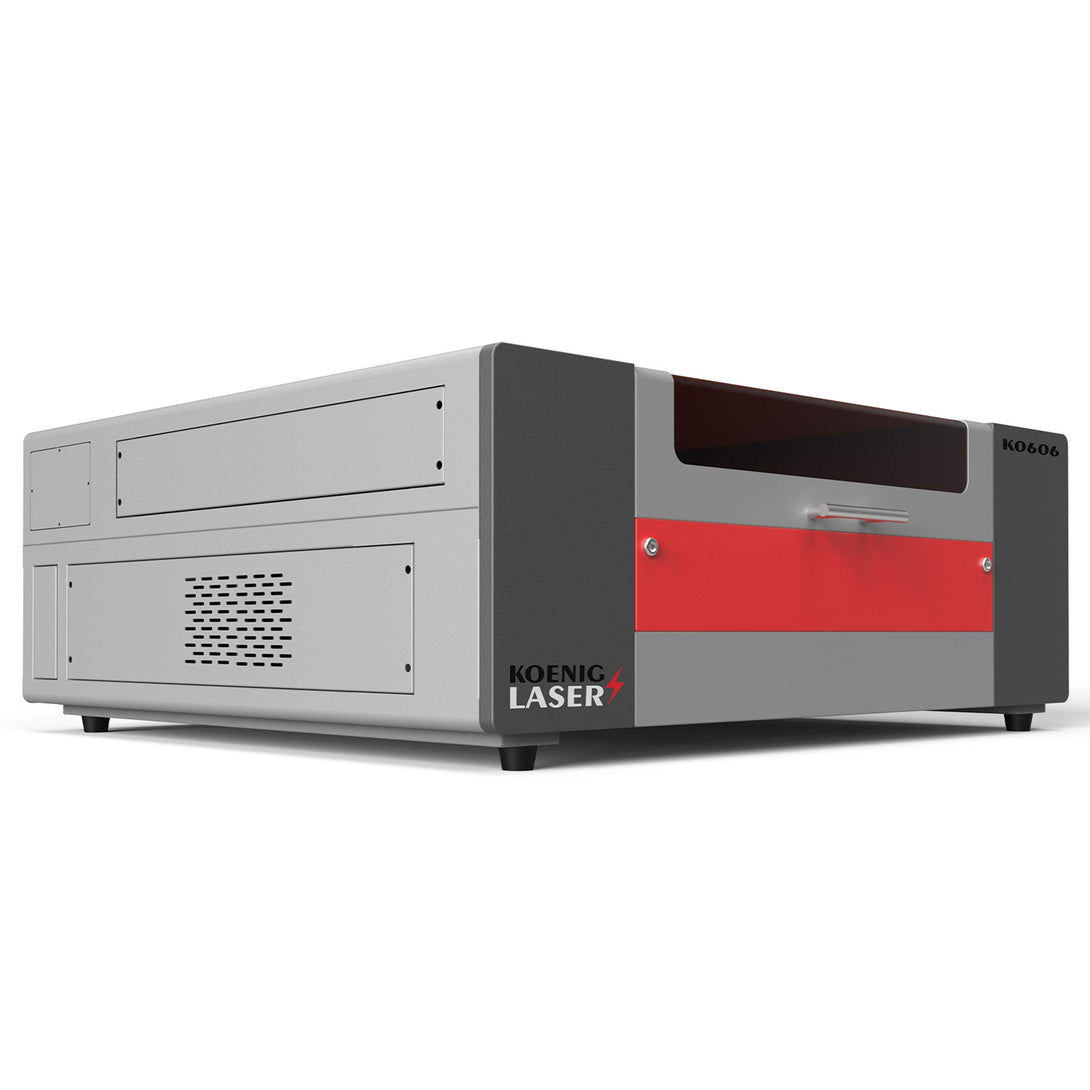

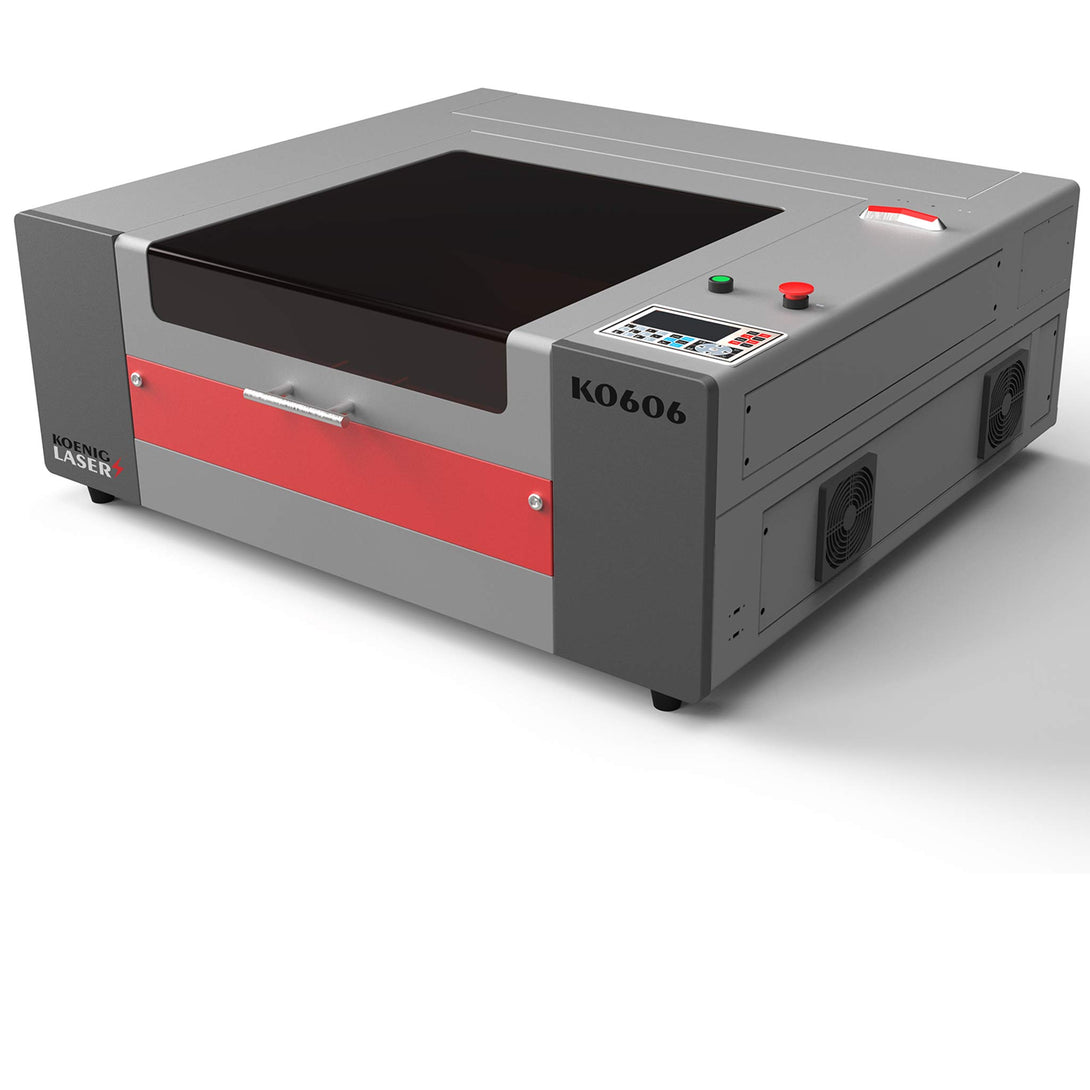

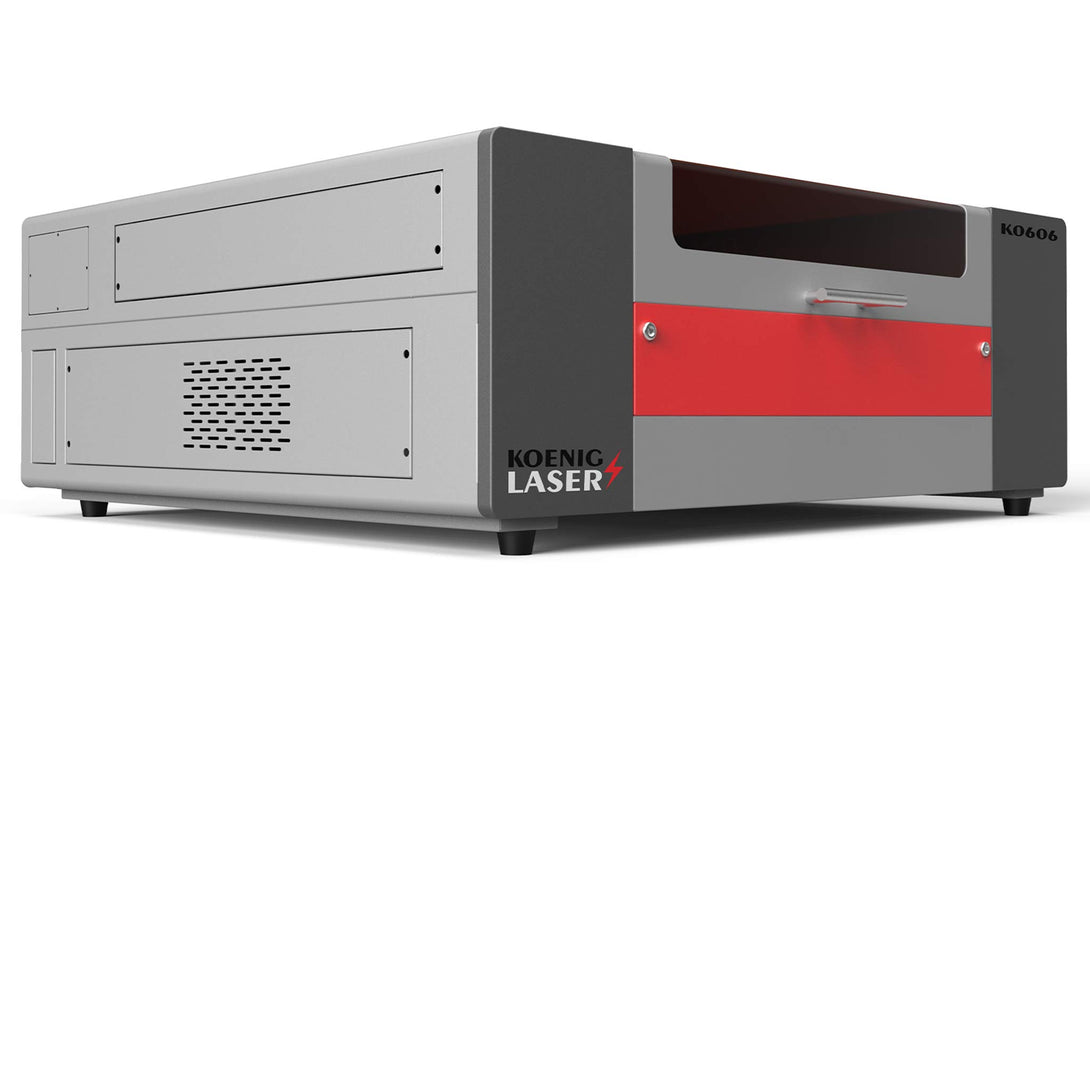

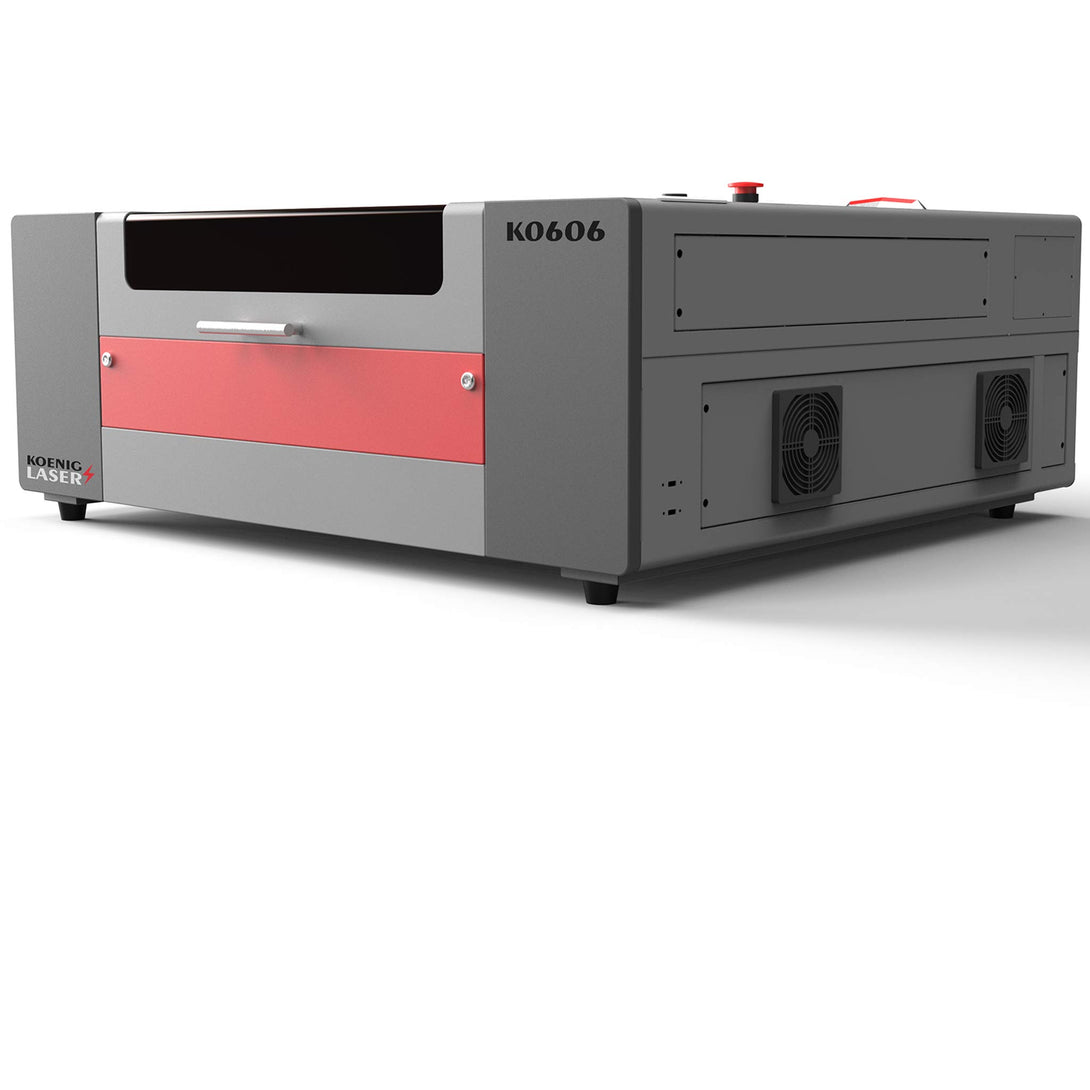

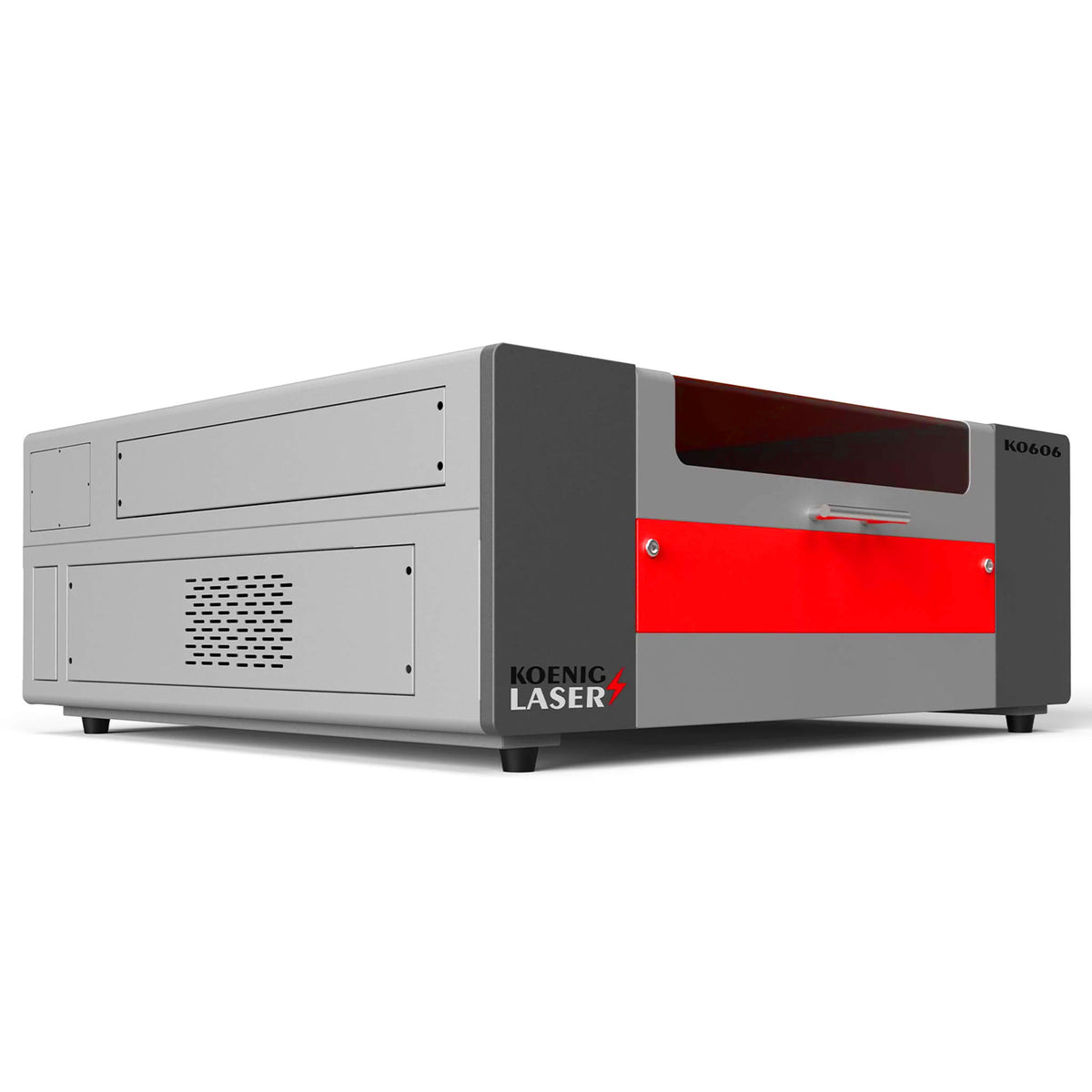

(60 x 60cm) Desktop High-Speed CO2 Laser Engraver - 60W
$9,800.00
*ex GSTThe Koenig K0606 RAPID is a high-speed CO₂ laser engraver and cutter designed for businesses that need greater production capacity without sacrificing valuable workshop space. Small footprint. Serious engraving performance. Combining a 600 × 600mm working area, 60W CO₂ laser and engraving speeds up to 1900mm/s, it delivers fast, accurate and repeatable production for industrial labels, Traffolyte, signage, trophies, personalised products and more.
Factory assembled, calibrated and ready to go, the K0606 makes professional CO₂ laser engraving simple — just add water, connect your extraction and start producing. A full-bed overhead camera, autofocus, motorised Z-axis and dual-pressure air assist streamline everyday workflows, while the larger square-format bed provides greater batch and nesting capacity with the versatility to cut and engrave acrylic, timber, plastics, engraving laminates and other compatible materials.

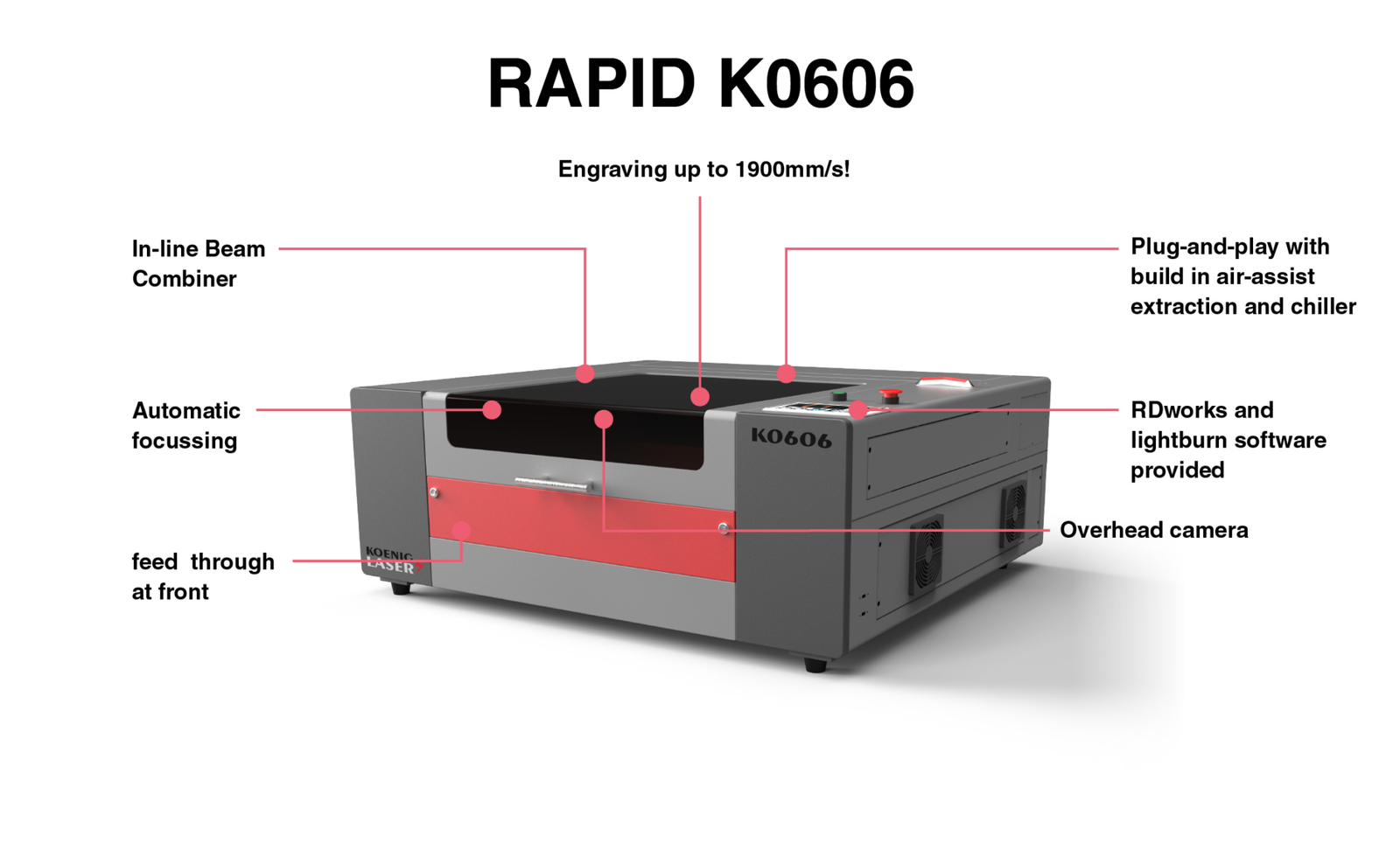

Key Features
- 600 × 600mm working area
- 60W CO₂ laser power
- Up to 1900mm/s high-speed engraving
- ≤ ±0.01mm precision locating accuracy
- Small footprint with serious engraving performance
- Out-of-the-box ready – factory assembled & calibrated
- Easy to set up & operate – just add water and start producing
- Full-bed overhead camera for easy artwork positioning
- Autofocus + 120mm motorised Z-axis
- Dual-Pressure Air Assist – optimised airflow for engraving & cutting.
- Built-in S&A water cooling
- Integrated extraction system
- LightBurn & RDWorks compatible

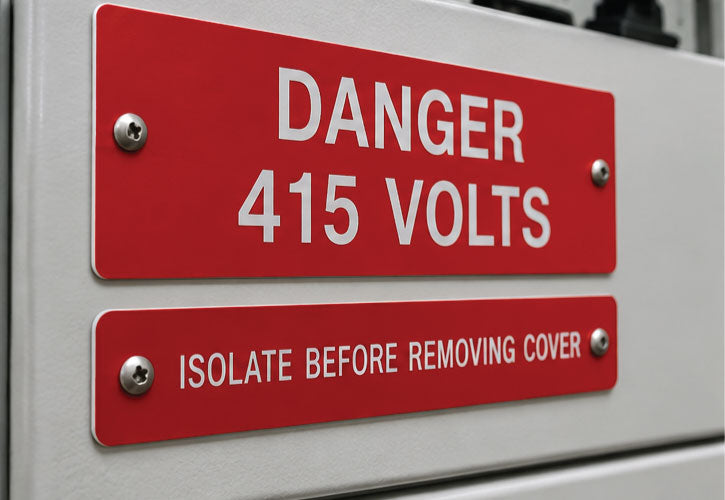

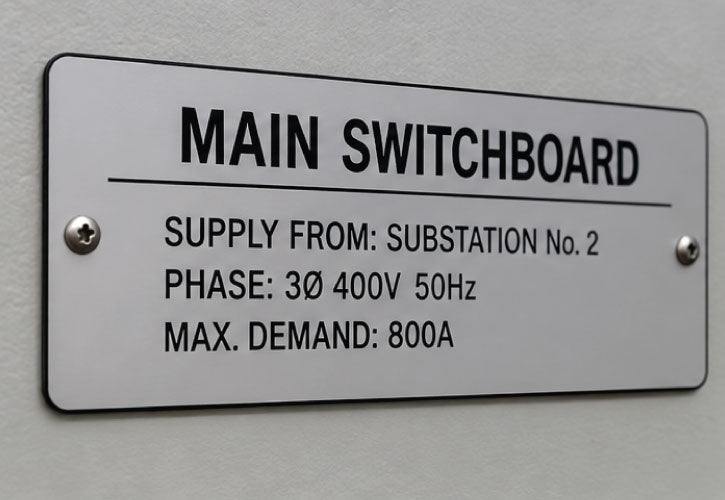

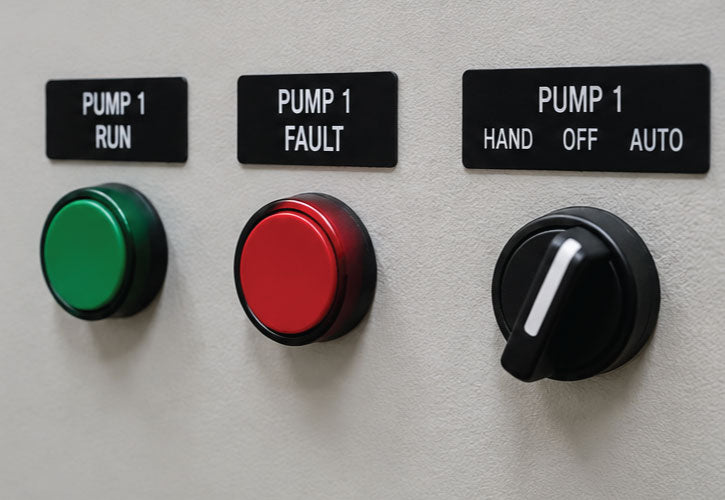

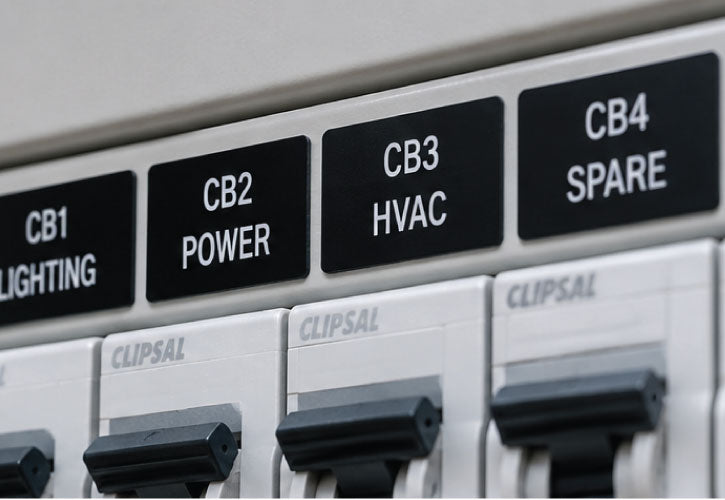

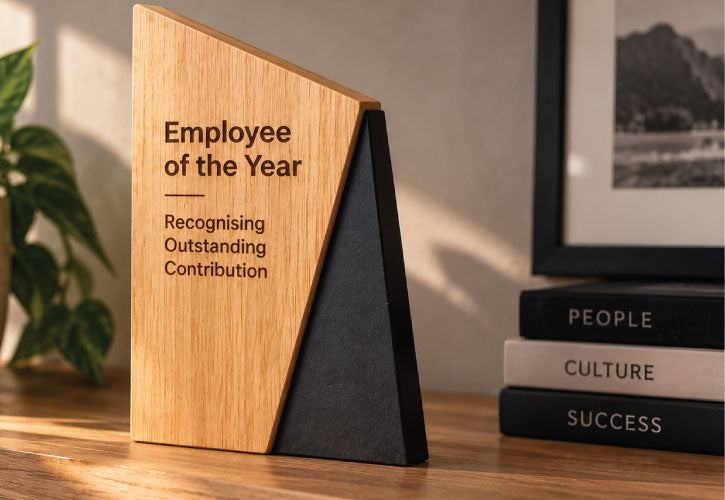

Ideal for Traffolyte, engraving laminates, industrial labels, identification plates, acrylic, signage, trophies, timber, plastics and repeat batch production
Explore CO₂ Lasers by Bed Size
Choose a working area to view the available CO₂ laser model.
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Laser Power | 60W |
| Cutting Area | 600*600mm |
| Z Axis | 120mm travel - motorised up-down table |
| Laser Type | CO2 Glass Tube 10.6μm – up to 6,000 hour life |
| Table Type | Knife blade table |
| Motor Type | High speed precision stepper motor |
| Camera | 120degree overhead camera – 8Mb |
| Ventilation | Built in extraction fan with 2m ducting provided |
| Air Assist | Built in air assist compressor + dual Rapid Air Assist control |
| Cooling Type | Built-in S&A CW3000 water-cooling unit |
| Engraving Speed | Up to 1900mm/s! |
| Cutting Speed | Up to 300mm/s |
| Min. Engraving Size | 1.0mm*1.0mm |
| Locating Accuracy | ≤+0.01mm |
| Controlling Software | DSP Control System |
| Software | RDworks and Lightburn – licenses included (camera preview + manual registration mark alignment) |
| Computer Compatibility | Windows, Mac OS, or Linux (32 or 64-bit) |
| Graphic Format Supported | DXF DWG AI PDF DST PLT BMP JPG PNG etc |
| Machine File Memory | 128MB internal memory (up to 100 files) |
| Power Supply | 230V 50Hz 10amp – Standard single phase |
| Options | Honeycomb table, wheel or chuck rotary, air filter, table |
| Machine Footprint | 1100*1020*595mm (H) |
| Machine Weight | 140kg |
| Package Dimensions | 1260*975*760(H)mm |
| Gross Weight (in Packaging) | 160kg |
