FinishForce PRO - BR800 - Edge Rounding & Deburring
$49,000.00
*ex GSTThe Koenig FinishForce BR800 is the ideal compact solution for workshops that demand professional-grade metal finishing without compromising space or capability. Equipped with versatile LinishPro belt configurations and the advanced Pro Finish Flap Wheel 360, it performs coarse sanding, surface refinement, and controlled edge rounding in a single process. Designed for small-to-medium parts, its 800mm working width makes it perfect for precision components, brackets, and sheet-metal assemblies. Compatible with MagnaForce, VacuForce, and FlexiForce conveyor systems, the BR800 ensures stable material handling across all metals — delivering clean, consistent, and rounded results every time.
For non-ferrous materials such as aluminium, Koenig offers the FinishForce BW-Series (WetLine), purpose-built for wet wide-belt sanding.
For applications where wet sanding and edge rounding aren’t required, and precision finishing of ferrous metals is the priority, the FinishForce B-Series provides a versatile range of sizes and configurations.
For applications where wet sanding and edge rounding aren’t required, and precision finishing of ferrous metals is the priority, the FinishForce B-Series provides a versatile range of sizes and configurations.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | BR800 | BR1000 | BR1300 | BR1600 |
|---|---|---|---|---|
| Working Width | 800mm | 1000mm | 1300mm | 1600mm |
| Minimum Working Length | 300mm (or use a template/jig for smaller parts) | |||
| Maximum Conveyor Speed | 25m/min | |||
|
Machine Dimensions (L × W × H mm) Note: Dimensions shown are based on the maximum configuration (2 sanding belts 1 flap wheel & 1 scotch brite roller) and may vary depending on selected machine configuration. |
4500 × 1800 × 2250mm | 4500 × 1950 × 2250mm | 4800 × 2150 × 2500mm | 4800 × 2200 × 2500mm |
| Table Type Options | 100% Magnetic Hold-Down • 100% Vacuum Hold-Down • Hybrid (30% Magnetic / 70% Vacuum) | |||
| Abrasive Belt Grit Options | 80, 120, 180, 240, 320 | |||
| Pro Finish Flap Wheel Size | 300×300×40mm | 300×250×40mm | 300×300×40mm | 300×400×40mm |
| Flap Wheel Brush Quantity | 4 | 6 | 8 | 8 |
| SANDING CONFIGURATION SPECIFICATIONS | ||||
|

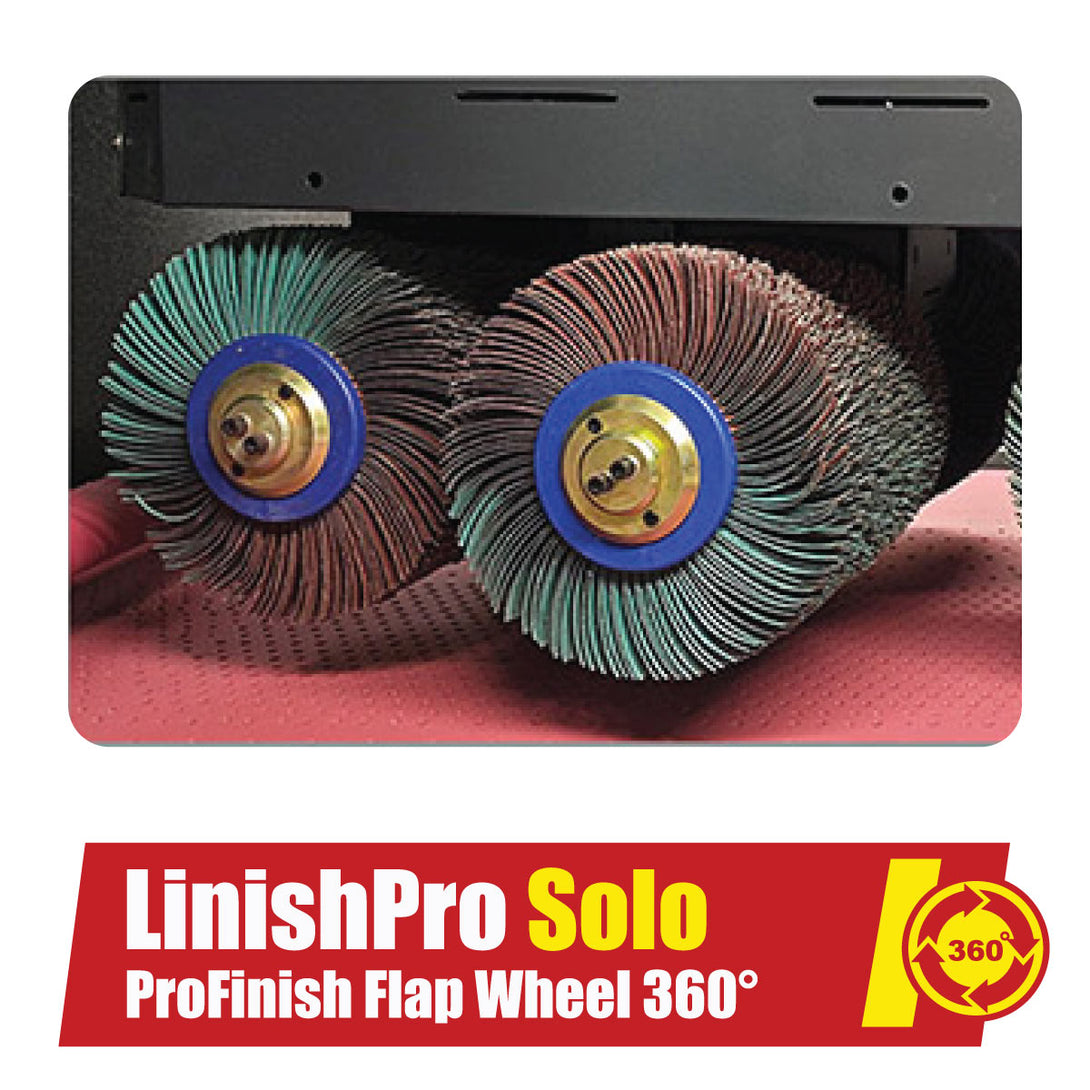

LinishPro Solo + Pro Finish Flap Wheel 360
1 sanding belt and flap wheel |
||||
| Weight (kg) | 2600 | 2800 | 4200 | 4600 |
| Power Supply | 415V 50Hz 3 Phase – 60A | 415V 50Hz 3 Phase – 65A | 415V 50Hz 3 Phase – 80A | 415V 50Hz 3 Phase – 90A |
|

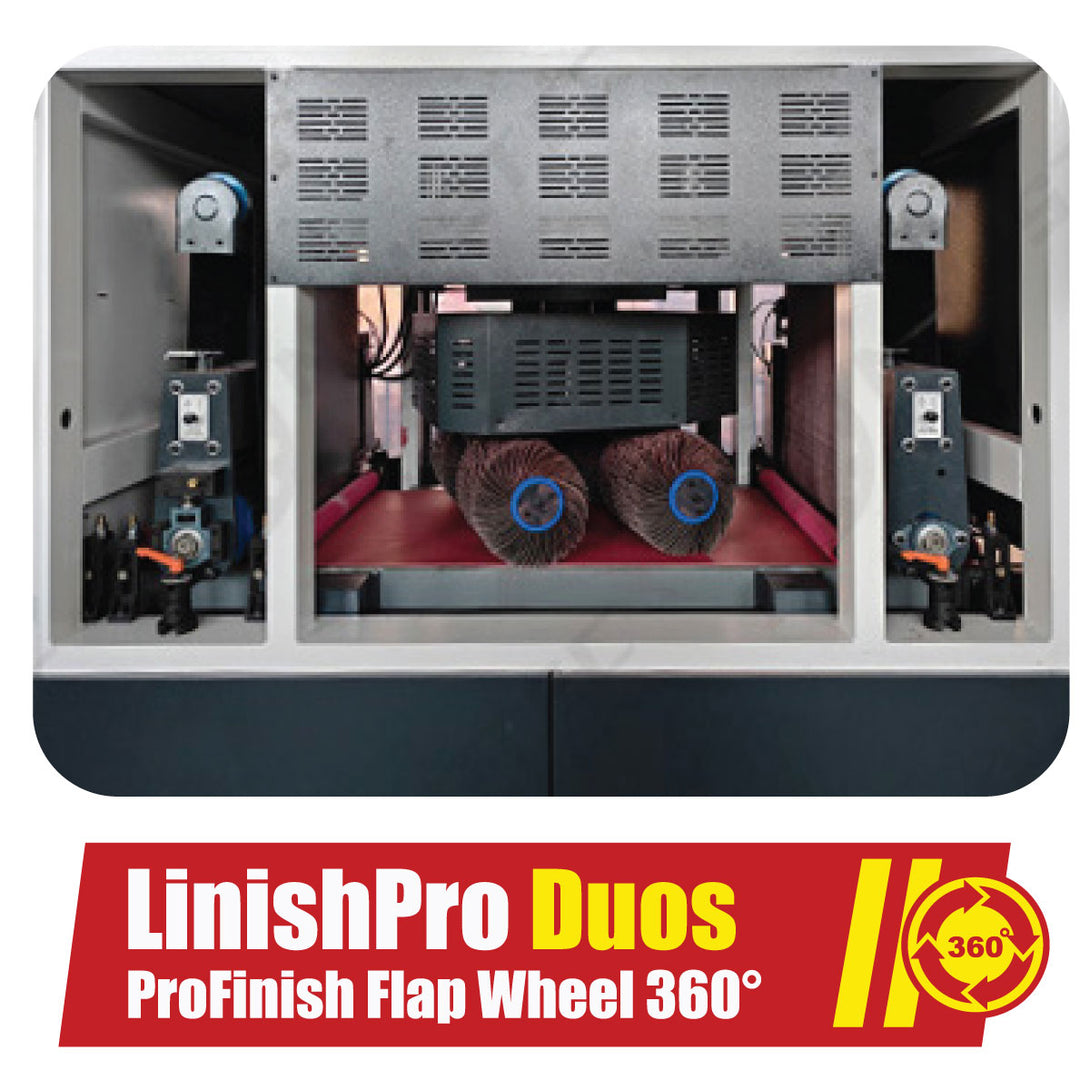

LinishPro Duos + Pro Finish Flap Wheel 360
2 sanding belts and flap wheel |
||||
| Weight (kg) | 3100 | 3300 | 4600 | 5300 |
| Power Supply | 415V 50Hz 3 Phase – 80A | 415V 50Hz 3 Phase – 85A | 415V 50Hz 3 Phase – 100A | 415V 50Hz 3 Phase – 110A |
|

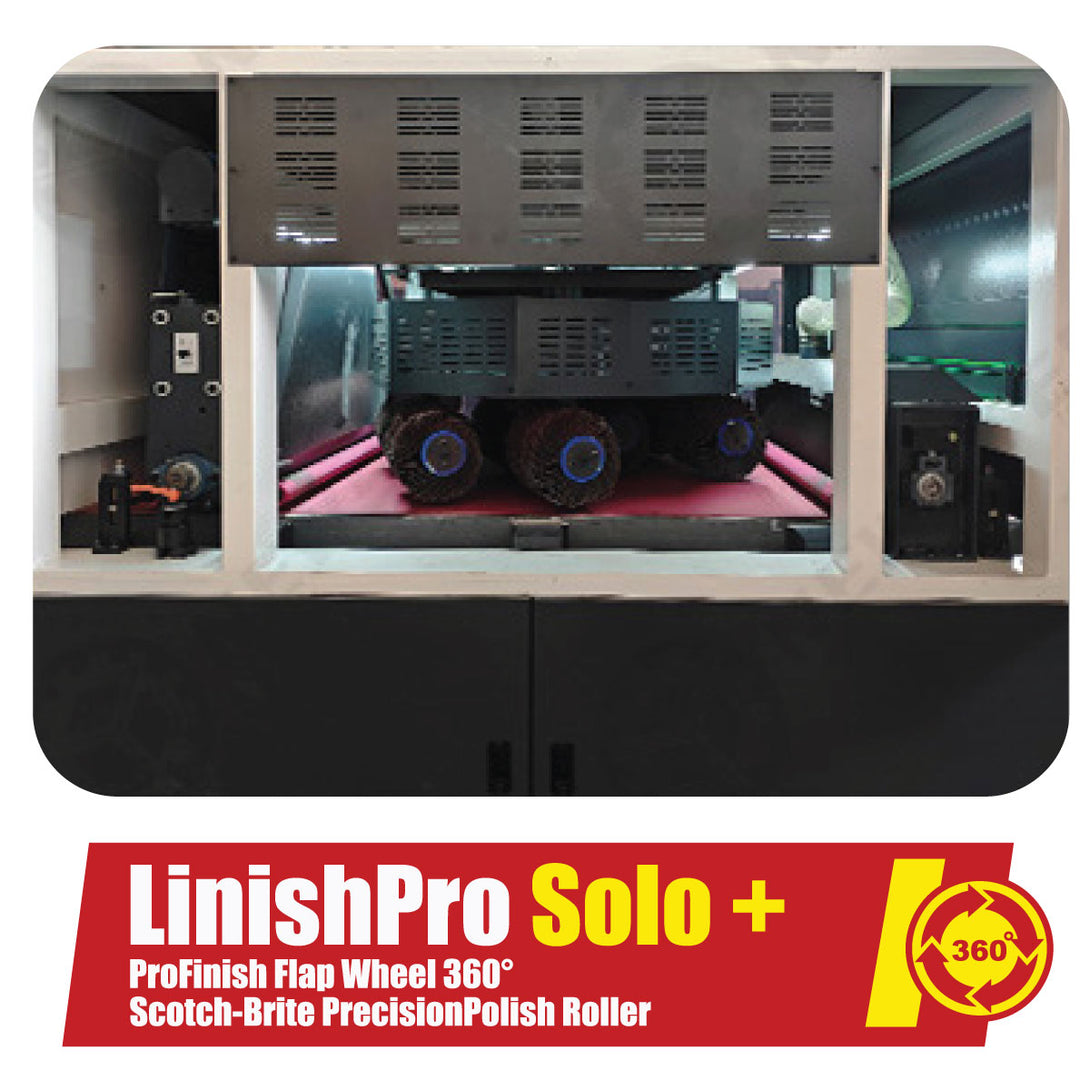

LinishPro Solo + Pro Finish Flap Wheel 360 + Scotch-Brite Precision Polish Roller
1 sanding belt, flap wheel and Scotch-Brite PrecisionPolish roller |
||||
| Weight (kg) | 3100 | 3300 | 4700 | 5200 |
| Power Supply | 415V 50Hz 3 Phase – 65A | 415V 50Hz 3 Phase – 70A | 415V 50Hz 3 Phase – 100A | 415V 50Hz 3 Phase – 110A |
|

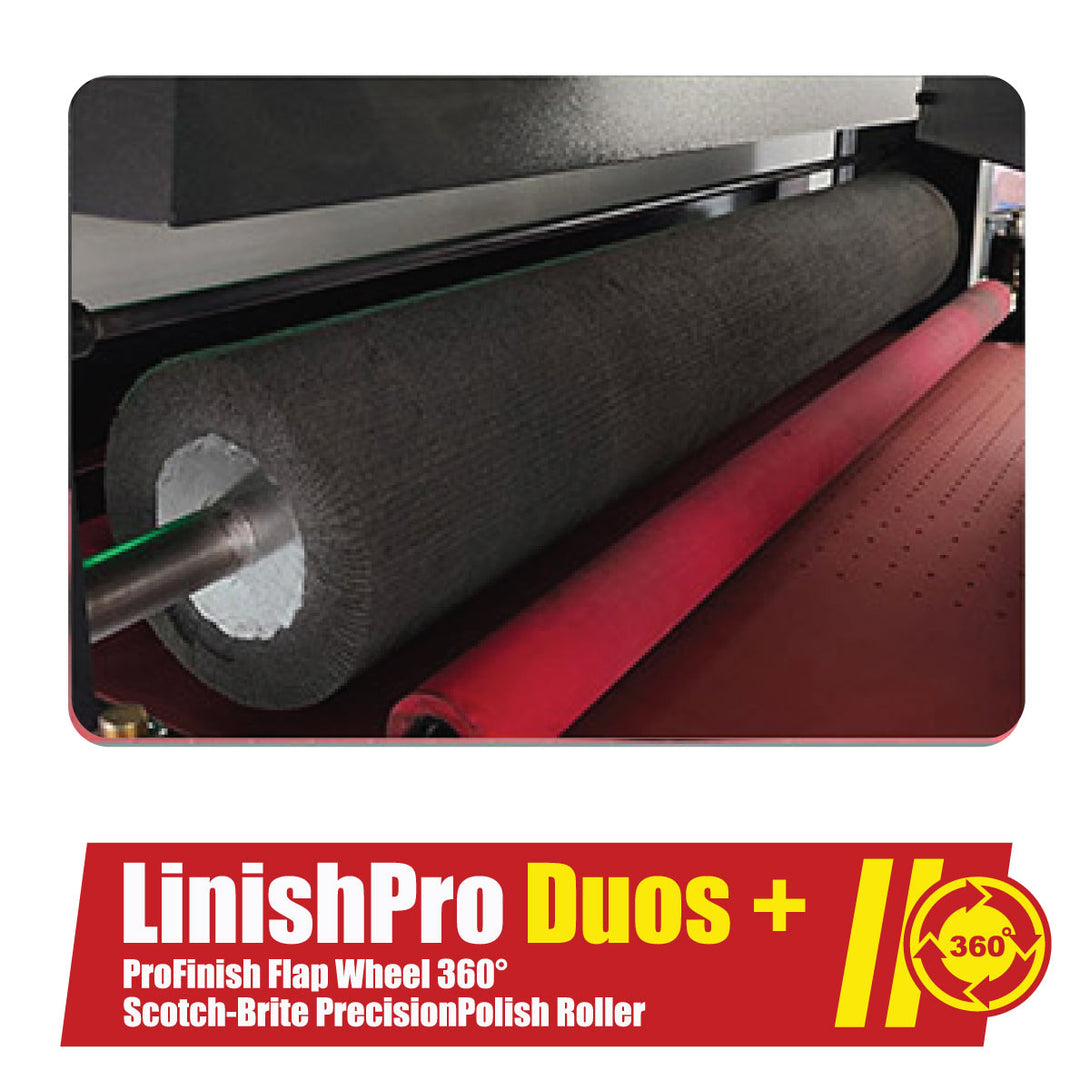

LinishPro Duos + Pro Finish Flap Wheel 360 + Scotch-Brite Precision Polish Roller
2 sanding belts, flap wheel and Scotch-Brite PrecisionPolish roller |
||||
| Weight (kg) | 3600 | 3800 | 5300 | 5900 |
| Power Supply | 415V 50Hz 3 Phase – 100A | 415V 50Hz 3 Phase – 110A | 415V 50Hz 3 Phase – 120A | 415V 50Hz 3 Phase – 160A |
| Specifications subject to change without notice. | ||||
