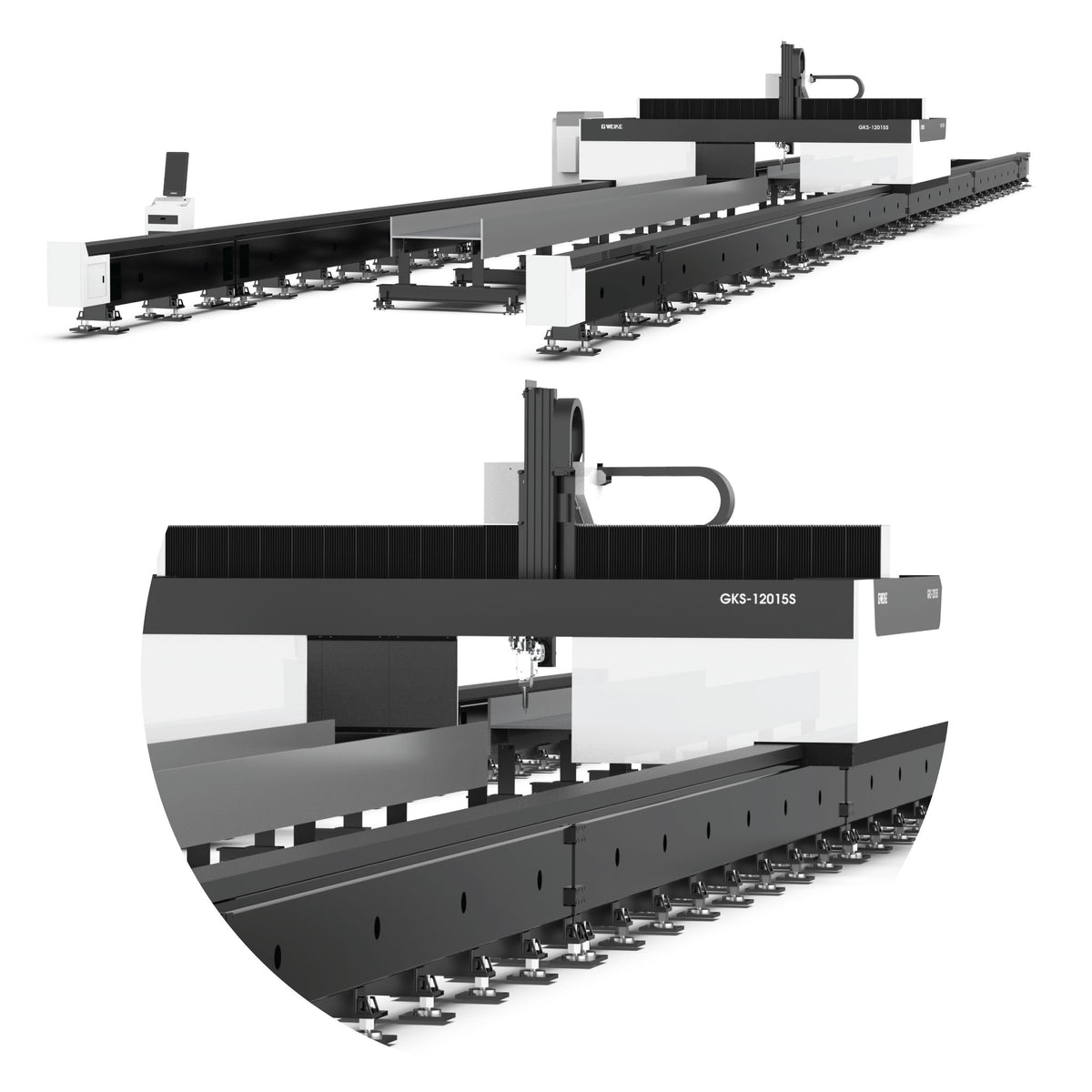

LF12012S - Heavy Beam Fiber Laser

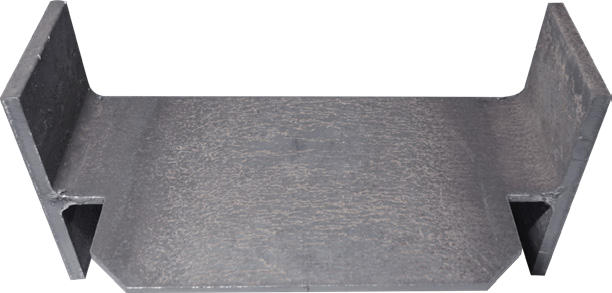

The LF12012S Heavy Beam Fiber Laser is designed for high-power processing of large structural sections, including H-beams and heavy steel profiles. Its fixed modular bed supports extremely heavy workpieces, while the BOCI 5-Axis cutting head enables cutting, marking, bolt holes and bevel processing without rotating the beam.
Native TEKLA integration, automatic nesting and contour scanning streamline production and compensate for beam deformation in real time.

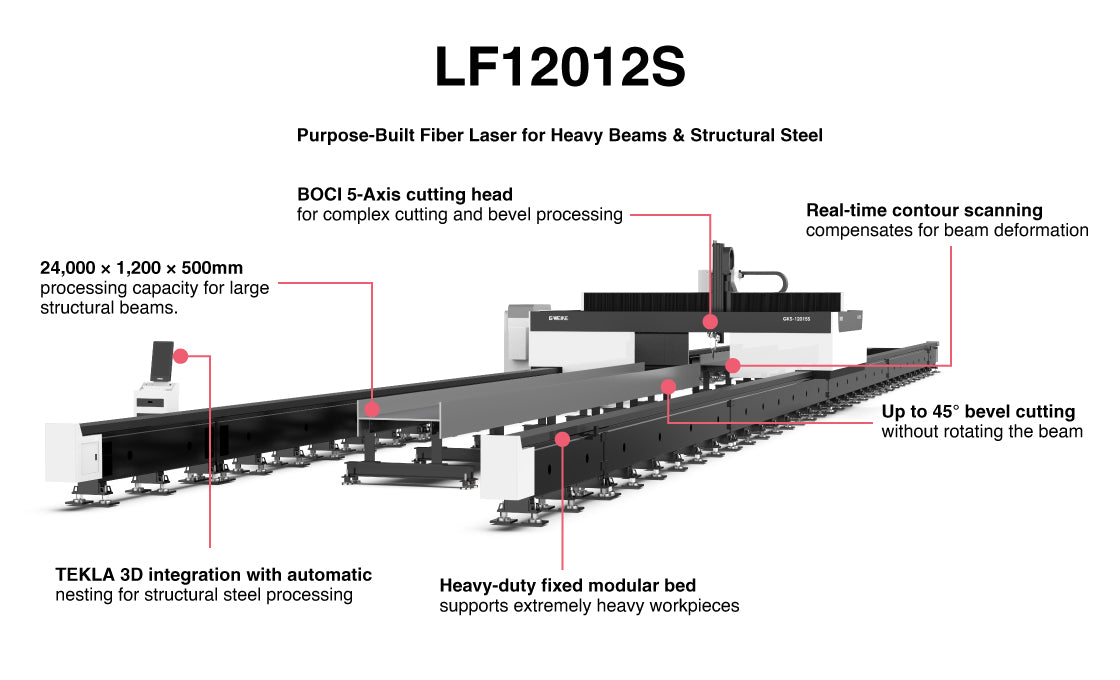

Key Features
- 24,000 × 1,200 × 500mm processing capacity
- 12kW, 20kW or 30kW MAX Fiber Laser Sources available

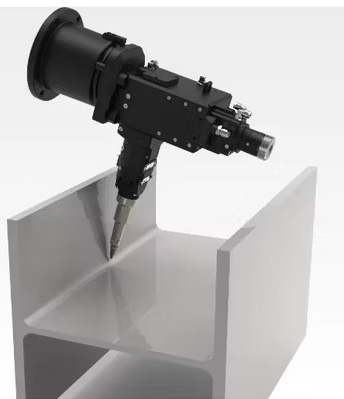

- BOCI 5-Axis bevel cutting head

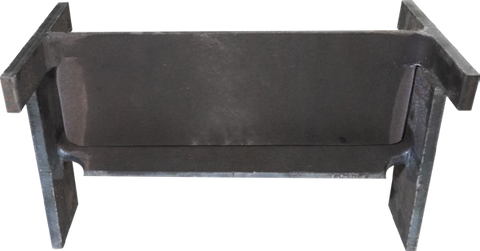

- Up to 45° bevel cutting
- TEKLA 3D integration & automatic nesting
- Real-time contour scanning

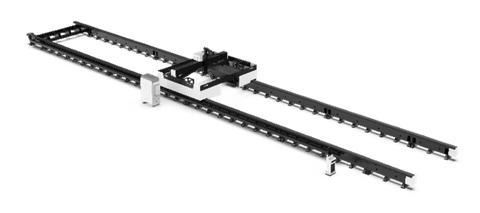

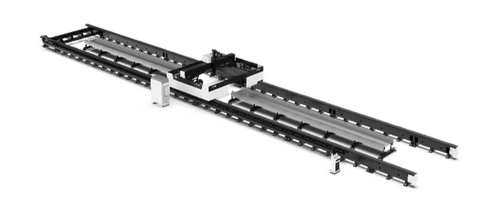

- Heavy-duty fixed modular bed
- Dual-beam pendulum processing capability
PRICE ON APPLICATION
Request Pricing
Contact our team for pricing & machine options.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Laser Power | 12kW/20kW/30kW |
| Bed Size | 24,000 x 1200 x 500 mm (other sizes available) |
| Machines Size | 32300 x 4780 x 3590 mm |
| Laser Source Type | Max |
| Laser Head | BOCI 3D Cutting head with bevel cutting |
| Cooling Type | Han-Li Industrial Water Chiller |
| Moving Speed | 50m/min |
| Acceleration | 0.5G |
| Positioning Accuracy | ±0.25mm/m |
| Re-positioning Accuracy | ±0.05mm |
| Power Supply | Machine: 12kW = 415V 50Hz 100amp 20kW = 415V 50Hz 150amp 30kW = Please discuss with your Koenig representative |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas Connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
Brochure
Koenig LF12012S heavy beam fiber laser brochure
