Gweike GWK6025SL 5-Axis Heavy Open Table Fiber
$259,000.00

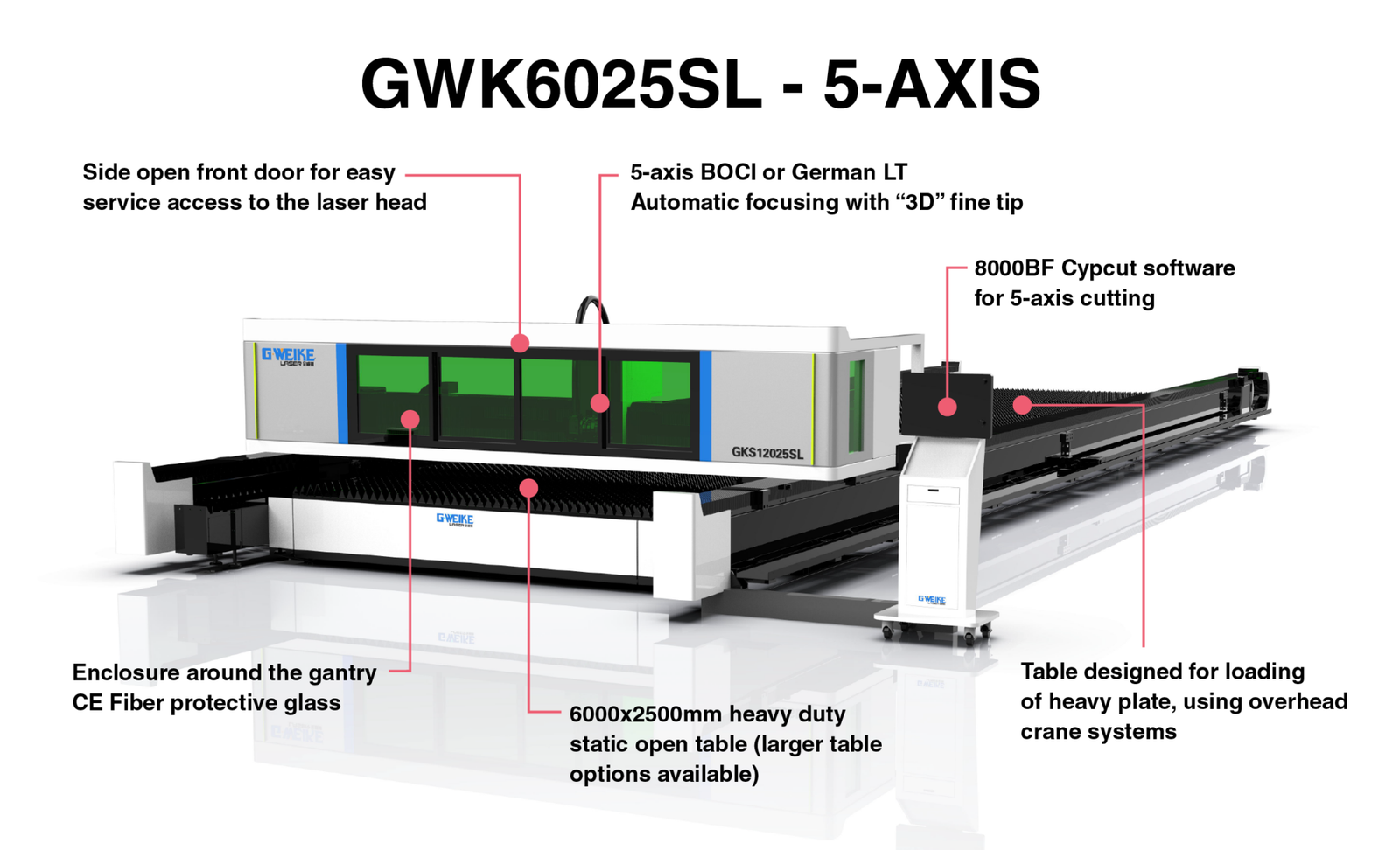

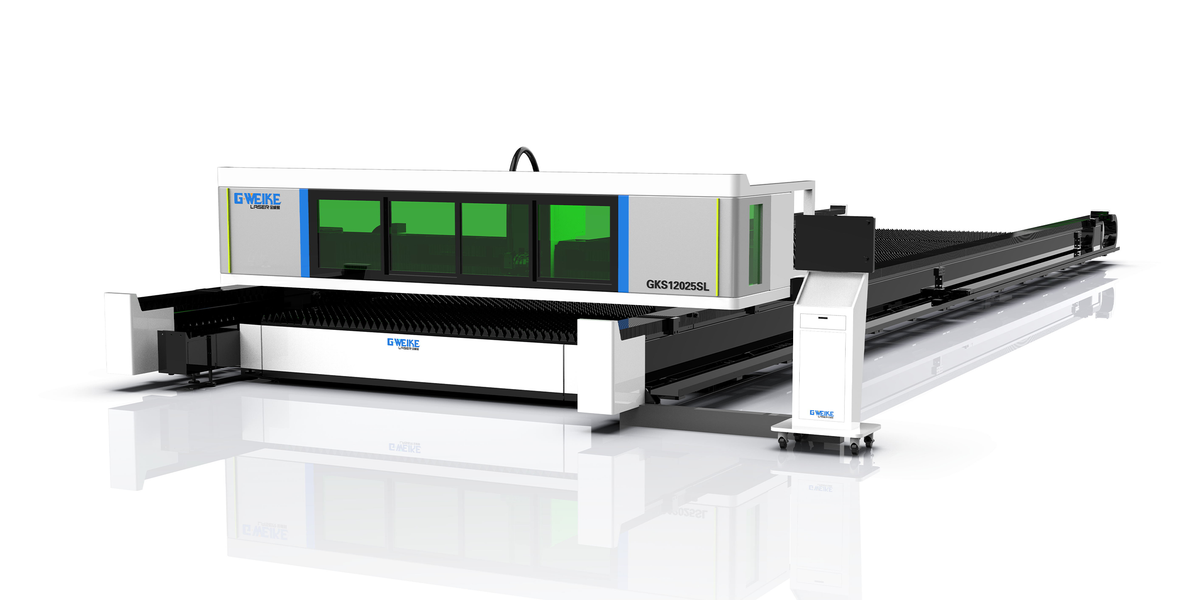

*ex GSTThe GSK6025SL is our heavy duty open table, designed for overhead gantry loading, ideal for heavy gauge steel and higher power. Paired with 5-axis laser head you will be bevel cutting, adding countersink holes and opening up the options for the best final product and welding experience.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Laser Power | 6kW/12kW/20kW/30kW |
| Bed Size | 6000x2500mm single table (6000x3200 with modular sections up to 26000x3200mm) |
| Machines Size | 14100*3350*2520mm |
| Laser Source Type | MAX, Raycus or IPG |
| Laser Head Type | Automatic focusing laser head BOCI BLT 4 or 6 Series (depending on Laser Power) 6kW = BOCI BLT 4 Series 12kW+ = BOCI BLT 6 Series 30kW = Please discuss with your Koenig representative |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Moving Speed | 80m/min |
| Acceleration | 0.5G |
| Laser Output Control | 0-100% set by software |
| Drive Method | YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive |
| Positioning Accuracy | +/- 0.05/5m |
| Re-positioning Accuracy | +/- 0.05mm |
| Minimum Line Width | 0.1mm |
| Controlling Software | 8000BF (for 5-axis laser cutting head) with Cypcut control and software |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit |
| Power Supply | Machine: 6kW = 415V 50Hz 63amp 12kW = 415V 50Hz 100amp 20kW = 415V 50Hz 150amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas Connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
