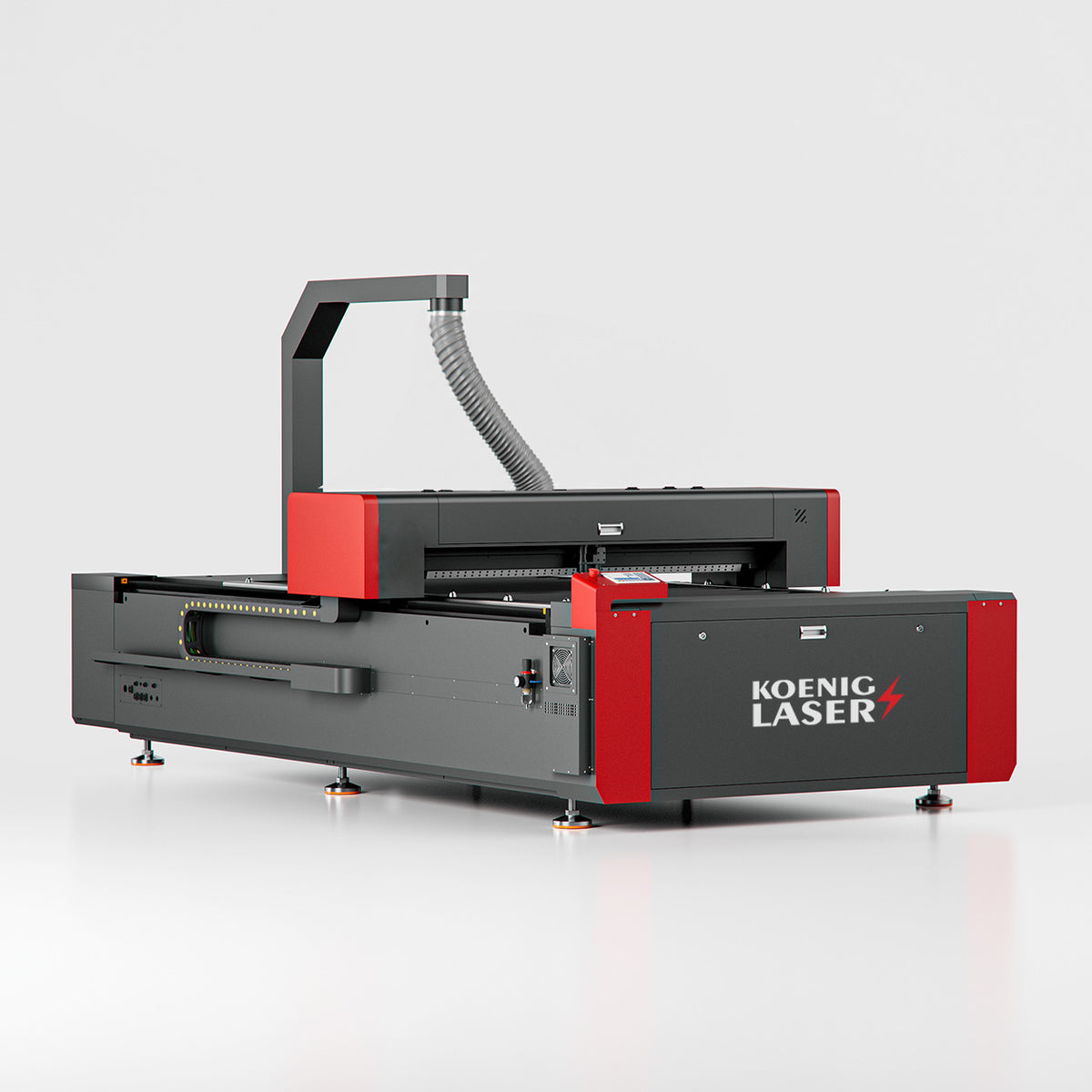

Large Format CO2 Laser Cutter (1500 × 3000mm)
$25,950.00
*ex GSTThe Koenig K1530 is a professional 1500 × 3000mm large format CO2 laser cutter and engraver engineered for businesses that require maximum sheet capacity, high-speed production and exceptional cutting accuracy. Available in 100W, 150W and 300W laser power configurations, the K1530 effortlessly cuts and engraves acrylic, Perspex®, MDF, plywood, timber, leather, rubber, cardboard, fabric and a wide range of other non-metal materials with outstanding precision. Ideal for sign manufacturers, shopfitters, industrial fabricators, educational facilities and high-volume production environments, the K1530 is a heavy-duty commercial CO2 laser cutting machine designed to maximise throughput while maintaining consistent, professional-quality results.

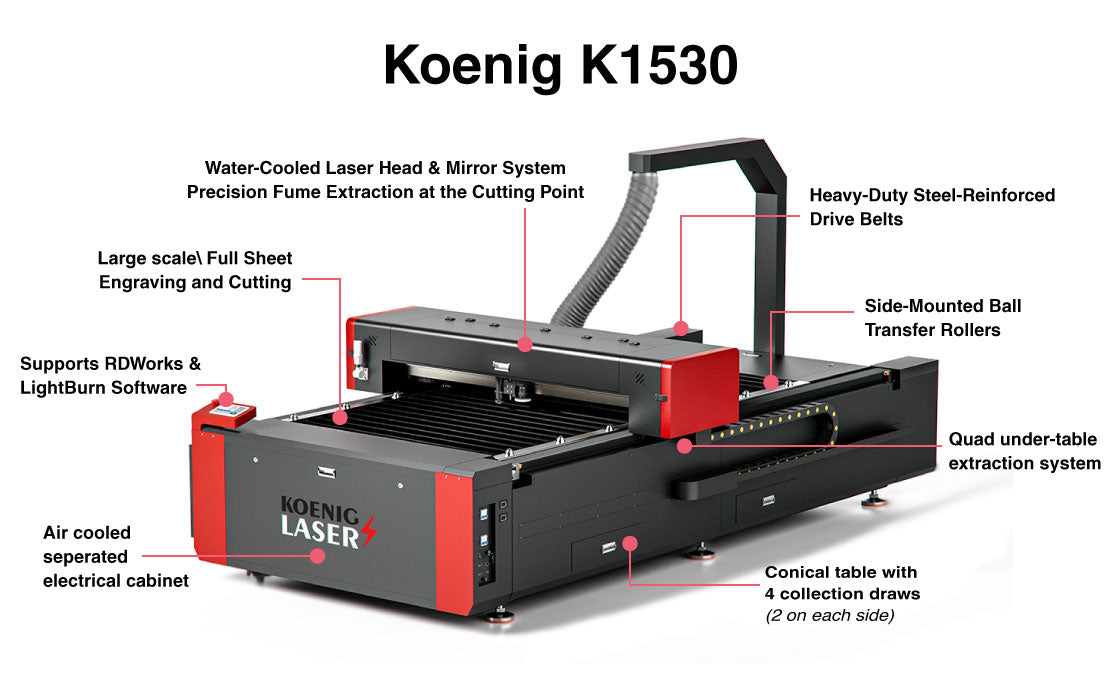

Built for continuous industrial operation, the K1530 incorporates a precision water-cooled laser head and mirror system with an industrial water chiller supplied as standard for dependable long-term performance. A dedicated Scorpion Tail laser head extraction system removes fumes directly at the cutting point, while quad under-bed extraction zones efficiently extract smoke from beneath the work area to maintain a cleaner, safer workspace. Integrated side ball transfer loading systems make handling full-size sheets effortless, while dual pull-out collection trays on both sides simplify part retrieval and waste removal. Combined with a metal-reinforced X-axis drive belt and high-precision YYC dual rack and pinion drive system, the K1530 delivers smooth, accurate motion across its expansive 1500 × 3000mm cutting area. Fully compatible with LightBurn software and backed by Australian sales, service and technical support, the K1530 is the ideal industrial laser cutter for businesses demanding reliability, precision and production efficiency.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
Technical Specifications
Large-format CO2 laser cutting and engraving system engineered for industrial production.
| Technical Parameter | Specification |
|---|---|
| Cutting Area | 1500 × 3000mm |
| Laser Power Options | 150W or 280W |
| Laser Type |
150W models: Yongli CO2 glass laser tube, 10.6μm wavelength, with a service life of up to 10,000 hours. 280W model: JOY CO2 dual glass laser tube, 10.6μm wavelength, with a service life of up to 10,000 hours. |
| Table Configuration | Static Z-axis with knife-bed cutting table included. Optional honeycomb table available. |
| Compatible Materials | Acrylic, timber, MDF, paper, PVC, rubber, ABS and other compatible non-metal materials. |
| Maximum Machining Speed | Up to 1200mm/s |
| Maximum Acceleration | 1000mm/s² |
| Positioning Accuracy | ±0.01mm |
| Minimum Engraving Size | 1.0 × 1.0mm |
| Drive System | Y-Axis: Rack and pinion X-Axis: Ball screw |
| Motor Type | Y-Axis: Servo motor X-Axis: Servo motor |
| Control System | DSP control system |
| Software | RDWorks and LightBurn compatible. Software provided. |
| Supported File Formats | DXF, DWG, AI, PDF, DST, PLT, BMP, JPG, PNG and more. |
| Computer Compatibility | Windows, macOS or Linux, 32-bit or 64-bit. |
| Machine File Memory | 128MB internal memory, supporting up to 100 files. |
| Extraction System | Three extraction fans and extraction hosing supplied, with a targeted Scorpion Tail extraction point positioned at the laser head. |
| Mirror Cooling | Water-cooled |
| Laser Head Cooling | Water-cooled |
| Industrial Chiller |
150W model: S&A CW-5300 industrial water chiller. 280W model: S&A CW-6000 industrial water chiller. |
| Air Compressor | Purchased separately or supplied by the customer. |
| Power Supply |
150W models: 230V, 50Hz, 10A standard single-phase supply. 300W model: 230V, 50Hz, 40A single-phase D-curve supply. |
| Machine Footprint | 4450 × 2300 × 1150mm |
| Machine Weight | 1300kg |
| Package Dimensions | 4450 × 2270 × 1340mm |
| Gross Packaged Weight | 1700kg |
| Unloading Method | Forklift with extension arms or crane. |
| Operating Environment | Temperature: 0–40°C Humidity: ≤80%, with no condensation. |
Specifications may vary depending on the selected laser power configuration. Electrical, extraction, access and unloading requirements should be confirmed before installation.
