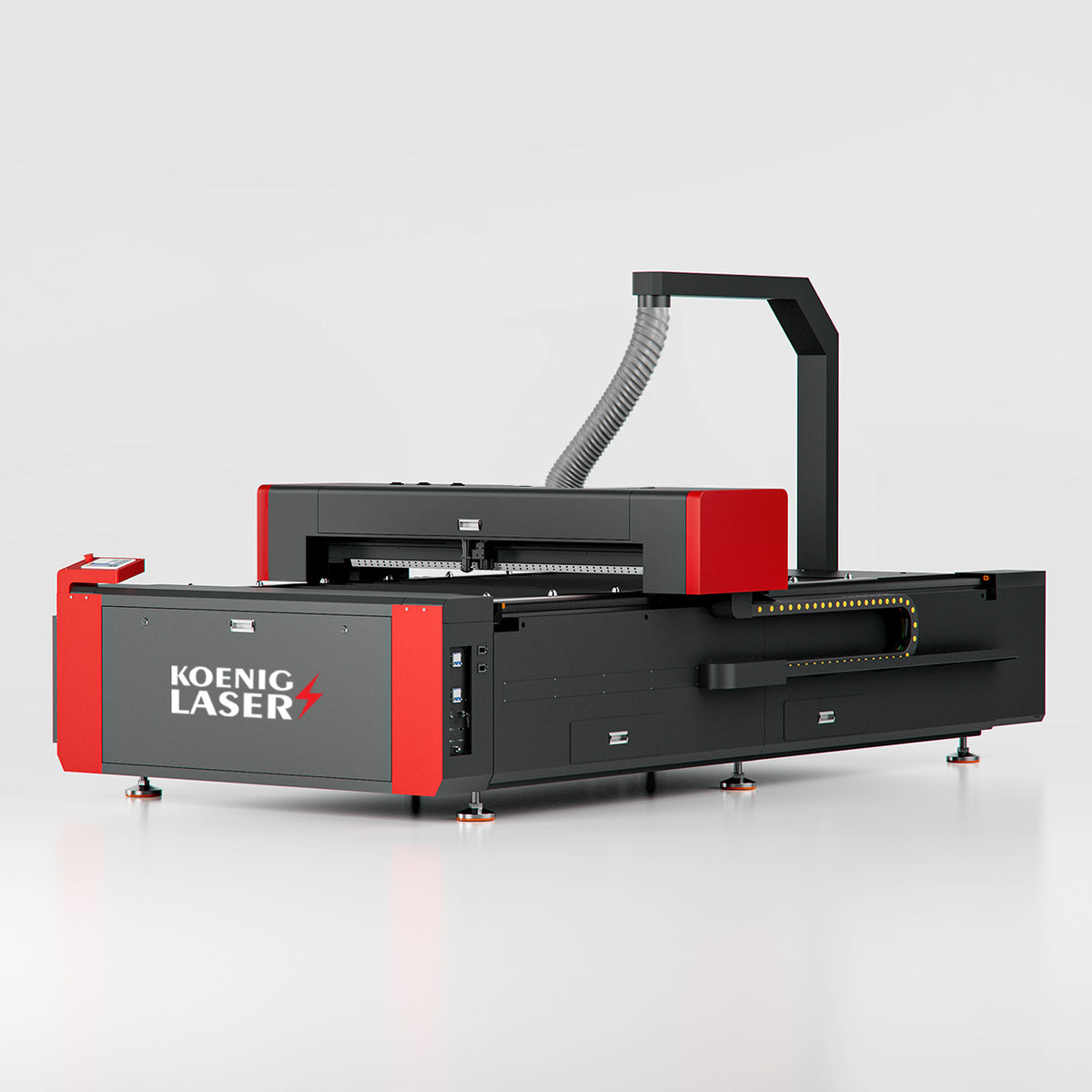

Large Format CO2 Laser Cutter (1300 × 2500mm)
$23,950.00
*ex GSTThe Koenig K1325 is a professional 1300 × 2500mm large format CO2 laser cutter and engraver designed for businesses that demand fast, accurate cutting and engraving. Available in 100W, 150W and 300W laser power options, the K1325 processes acrylic, Perspex®, MDF, plywood, timber, leather, rubber, cardboard, fabric and more with outstanding precision. Ideal for sign makers, manufacturers, schools and production workshops, it's a powerful CO2 laser cutting machine built to increase productivity while delivering consistent, professional results.

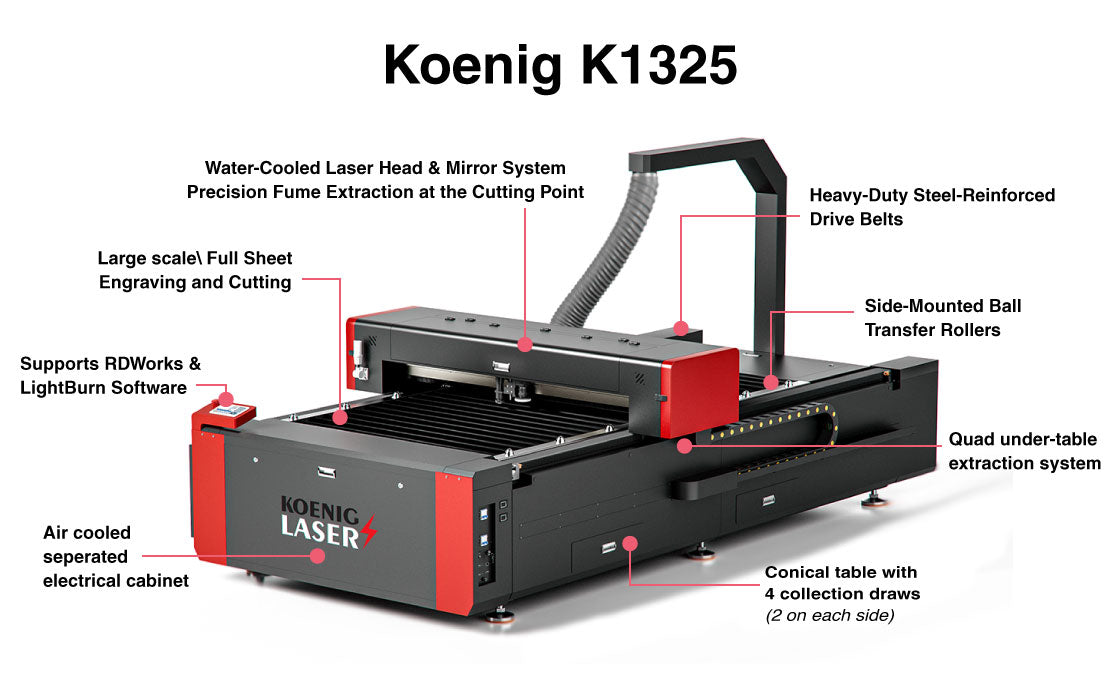

Engineered for industrial performance, the K1325 features a water-cooled laser head & mirrors with an industrial water chiller supplied as standard for reliable, continuous operation. A dedicated Scorpion Tail extraction system captures fumes directly at the laser head, while quad under-bed extraction zones efficiently remove smoke beneath the cutting area for a cleaner and safer working environment. Twin pull-out collection trays on either side of the machine simplifies waste removal or part collection, while a metal-reinforced X-axis belt and dual rack and pinion drive system deliver smooth, accurate motion across the full working area. Fully compatible with LightBurn and backed by Australian sales, service and technical support, the K1325 is built for businesses that demand dependable performance every day.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
Technical Specifications
Large-format CO2 laser cutting and engraving system engineered for industrial production.
| Technical Parameter | Specification |
|---|---|
| Cutting Area | 1300 × 2500mm |
| Laser Power Options | 100W, 150W or 280W |
| Laser Type |
150W models: Yongli CO2 glass laser tube, 10.6μm wavelength, with a service life of up to 10,000 hours. 300W model: JOY CO2 dual glass laser tube, 10.6μm wavelength, with a service life of up to 10,000 hours. |
| Table Configuration | Static Z-axis with knife-bed cutting table included. Optional honeycomb table available. |
| Compatible Materials | Acrylic, timber, MDF, paper, PVC, rubber, ABS and other compatible non-metal materials. |
| Maximum Machining Speed | Up to 1200mm/s |
| Maximum Acceleration | 1000mm/s² |
| Positioning Accuracy | ±0.01mm |
| Minimum Engraving Size | 1.0 × 1.0mm |
| Drive System | Y-Axis: Rack and pinion X-Axis: Ball screw |
| Motor Type | Y-Axis: Servo motor X-Axis: Servo motor |
| Control System | DSP control system |
| Software | RDWorks and LightBurn compatible. Software provided. |
| Supported File Formats | DXF, DWG, AI, PDF, DST, PLT, BMP, JPG, PNG and more. |
| Computer Compatibility | Windows, macOS or Linux, 32-bit or 64-bit. |
| Machine File Memory | 128MB internal memory, supporting up to 100 files. |
| Extraction System | Three extraction fans and extraction hosing supplied, with a targeted Scorpion Tail extraction point positioned at the laser head. |
| Mirror Cooling | Water-cooled |
| Laser Head Cooling | Water-cooled |
| Industrial Chiller |
100W and 150W models: S&A CW-5300 industrial water chiller. 280W model: S&A CW-6000 industrial water chiller. |
| Air Compressor | Purchased separately or supplied by the customer. |
| Power Supply |
100W and 150W models: 230V, 50Hz, 10A standard single-phase supply. 280W model: 230V, 50Hz, 40A single-phase D-curve supply. |
| Machine Footprint | 3941 × 2082 × 1200mm |
| Machine Weight | 1100kg |
| Package Dimensions | 3645 × 2150 × 1400mm |
| Gross Packaged Weight | 1400kg |
| Unloading Method | Forklift with extension arms or crane. |
| Operating Environment | Temperature: 0–40°C Humidity: ≤80%, with no condensation. |
Specifications may vary depending on the selected laser power configuration. Electrical, extraction, access and unloading requirements should be confirmed before installation.
