FinishForce - BW630 - Smooth Wet Metal Finishing

SKU: BW630
$27,300.00
*ex GST

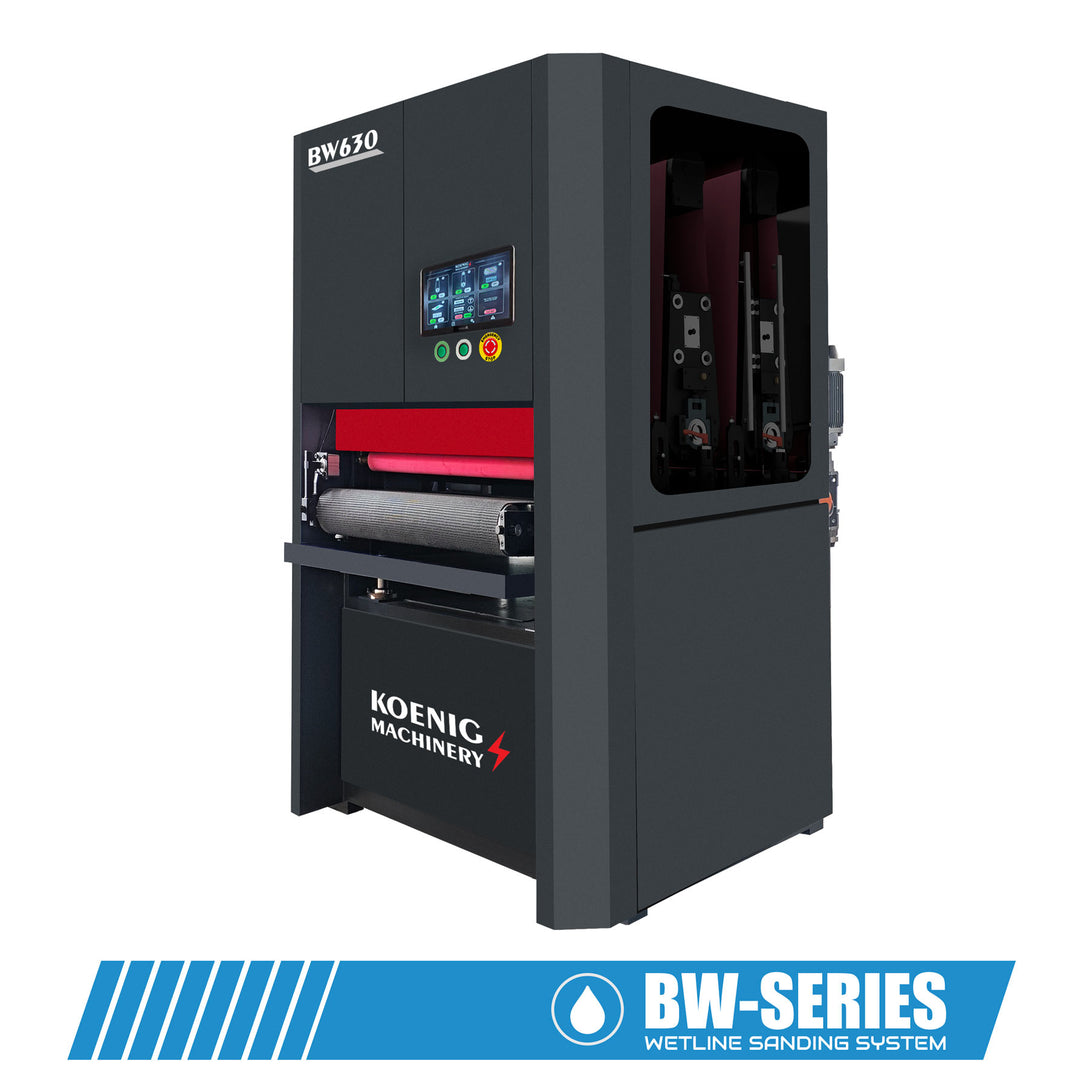

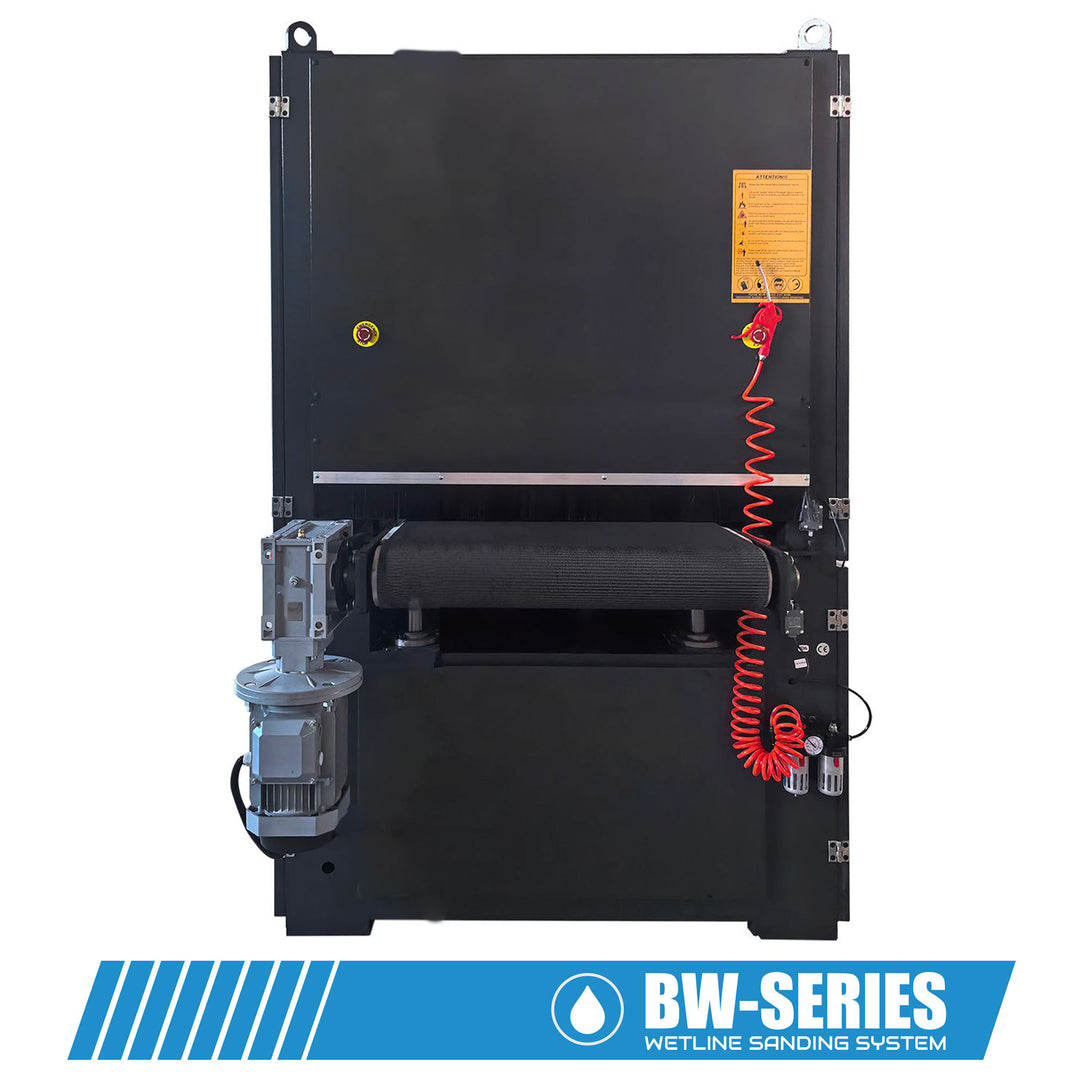

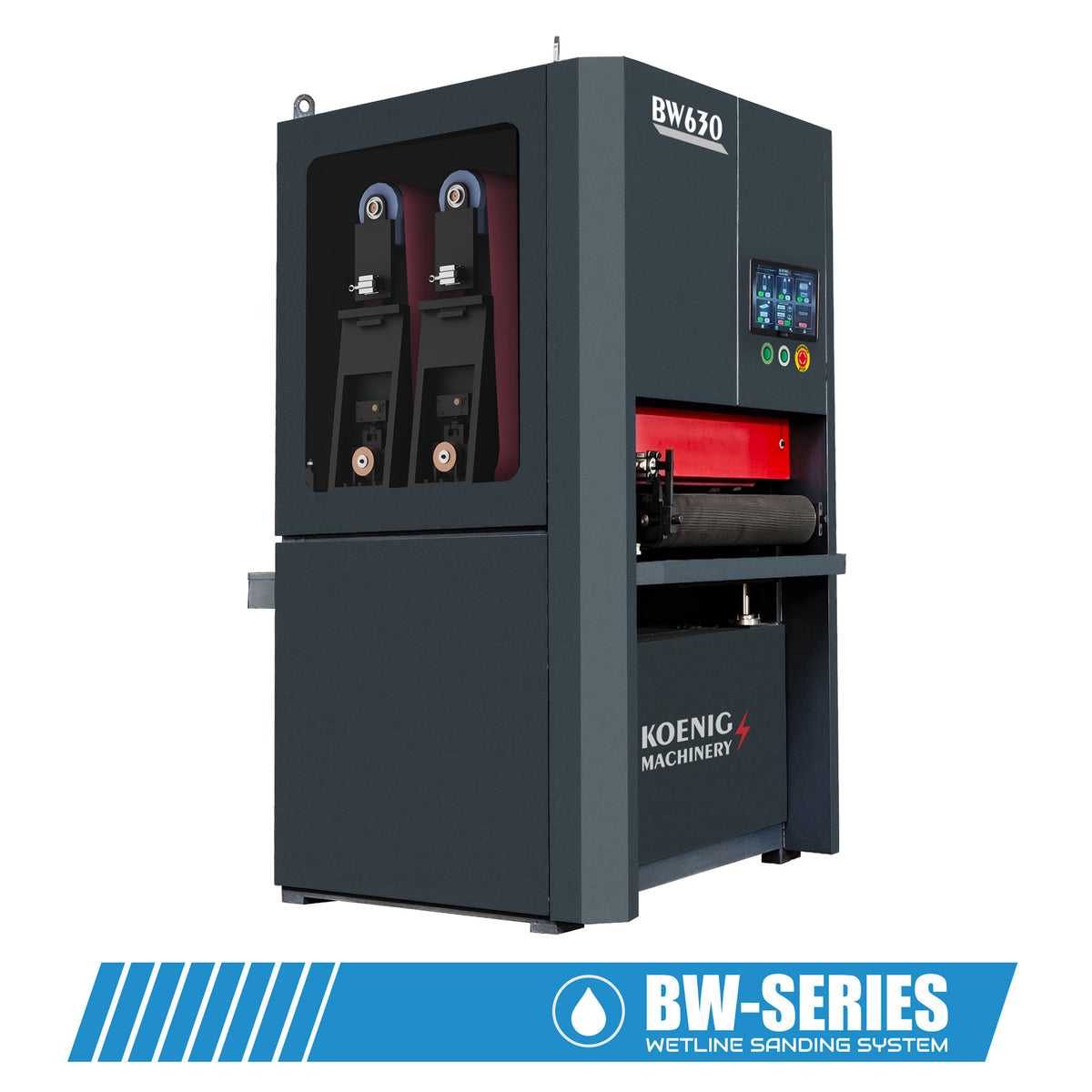

Koenig FinishForce BW-630 (WetLine) – Compact Wet Widebelt Sanding for Metal Finishing The Koenig FinishForce BW630 (WetLine) is a compact wide belt sanding and linishing machine designed for precision finishing of metals, including aluminum. With a 630 mm processing width, it’s ideal for small to medium-sized parts where consistency and surface quality matter most. This machine incorporates a water sanding frame inside the sanding chamber, enabling wet sanding of aluminum, stainless steel, magnesium alloy, copper plate, and man-made stone plates in a single pass. Unlike traditional dry sanding, the wet process reduces heat build-up, avoids dust collection requirements, and extends the lifespan of abrasives while producing smooth, high-quality finishes. The fully enclosed sanding enclosure ensures water does not spray outside, while all bearings and electrical parts are sealed and waterproof — prolonging machine life and guaranteeing safe, reliable operation. For applications where wet sanding isn’t required and precision finishing of ferrous metals is the priority, the FinishForce B-Series offers a versatile range of sizes and configurations. For workflows that also require edge rounding alongside wide belt finishing, the Koenig FinishForce PRO – BR-Series delivers consistent, high-quality results with its 360° flap brush
Customise & Get a Quote Choose your options → we’ll email you a formal quote.
Talk to an expert (03) 9037 0826

⚡ Get 10% Off Laser Materials… Forever!⚡

Automatically applied to your account with every Koenig Machine purchase. Explore our material range



Australian Based Local Support for Life

Setup & Training by Expert Local Technicians

10% Off Laser Materials for life on all Machines

10+ Years as the Aussie Laser Specialists

Specifications
Technical Parameters BW630 BW800 BW1000 BW1300 BW1600
Working Width 630mm 800mm 1000mm 1300mm 1600mm
Minimum Working Length 300mm (or use a template/jig for smaller parts)
Maximum Conveyor Speed 25m/min
Machine Dimensions (L × W × H mm)
Note: Dimensions shown are based on the maximum configuration (2 sanding belts + Scotch-Brite roller) and may vary depending on selected machine configuration. 		2270 × 1270 × 2130 2280 × 1870 × 2200 2280 × 1950 × 2200 2180 × 2150 × 2200 2180 × 2200 × 2350
Table Type 100% Magnetic

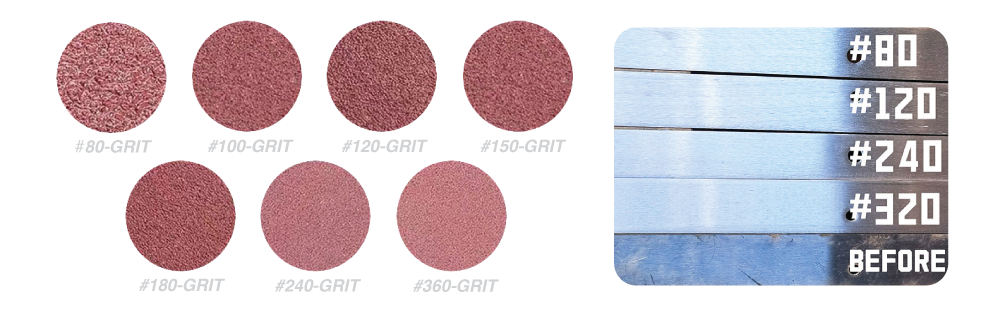

Abrasive Belt Grit Options 80, 120, 180, 240, 320
SANDING CONFIGURATION SPECIFICATIONS
LinishPro Solo+ & Scotch-Brite PrecisionPolish Roller
1 sanding belt and polish roller
Weight (kg) 1300 1700 1800 2200 3100
Power Supply 415V 50Hz 3 Phase – 20A 415V 50Hz 3 Phase – 50A 415V 50Hz 3 Phase – 50A 415V 50Hz 3 Phase – 60A 415V 50Hz 3 Phase – 90A
LinishPro Duos
2 sanding belts only – no polish roller
Weight (kg) 1350 1750 1850 2300 3200
Power Supply 415V 50Hz 3 Phase – 40A 415V 50Hz 3 Phase – 60A 415V 50Hz 3 Phase – 60A 415V 50Hz 3 Phase – 90A 415V 50Hz 3 Phase – 110A
LinishPro Duos+ & Scotch-Brite PrecisionPolish Roller
2 sanding belts and polish roller
Weight (kg) 1850 2250 2350 2800 3700
Power Supply 415V 50Hz 3 Phase – 50A 415V 50Hz 3 Phase – 80A 415V 50Hz 3 Phase – 80A 415V 50Hz 3 Phase – 110A 415V 50Hz 3 Phase – 130A
Specifications subject to change without notice.

Gallery

Brochure

Declaration of Conformity Linishing BW series 121000300060825

Download now

The Standard in Wet Widebelt Sanding & Metal Finishing

The Koenig FinishForce BW-Series (WetLine) is a new generation of widebelt sanding and linishing machines, designed to deliver precision, safety, and efficiency in professional metal finishing. Built for workshops and industrial production lines, the series offers processing widths from 630 mm up to 1600 mm, covering everything from small components to oversized panels.

At the heart of every model is an integrated Hydro Sanding Unit, enabling one-pass wet finishing for a broad range of materials. While perfectly suited for aluminum, the BW-Series is also ideal for stainless steel, magnesium alloys, copper, brass, bronze, mild/ carbon steel, and even non-metals like man-made stone, plastics, and acrylics. This versatility makes the series an essential solution for fabricators who demand consistent, high-quality finishes across diverse materials.

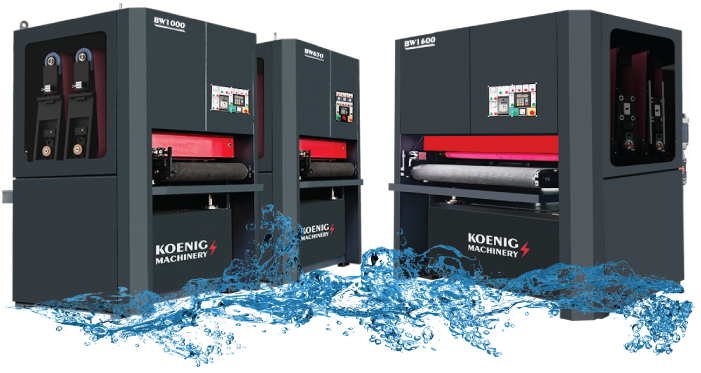

Built for Every Application

From compact workshops to heavy-duty production lines, there’s a FinishForce – WetLine Series machine built for your application.

BW630 – Compact for small to medium parts (630 mm width)
BW800 – Versatile for small to medium-large parts (800 mm width)
BW1000 – High-performance for medium to large parts (1000 mm width)
BW1300 – Heavy-duty for large panels (1300 mm width)
BW1600 – Premium capacity for extra-large components (1600 mm width)

For applications where wet sanding isn’t required and precision finishing of ferrous metals is the priority, the FinishForce B-Series offers a versatile range of sizes and configurations. For workflows that also require edge rounding alongside wide belt finishing, the Koenig FinishForce PRO – BR-Series delivers consistent, high-quality results with its 360° flap brush

Why Wet Sanding is the Industry Standard

The BW-Series uses a wet sanding process powered by its Hydro Sanding Unit, which delivers significant advantages:

- Cleaner operation – dust is absorbed into the grinding fluid, improving the workshop environment and protecting operators’ health.

- Cooler processing – heat generated during sanding is continuously carried away by the grinding fluid, keeping the workpiece in a cold state. This prevents deformation and maintains high dimensional accuracy — essential for precision applications such as metal housings for electronics.

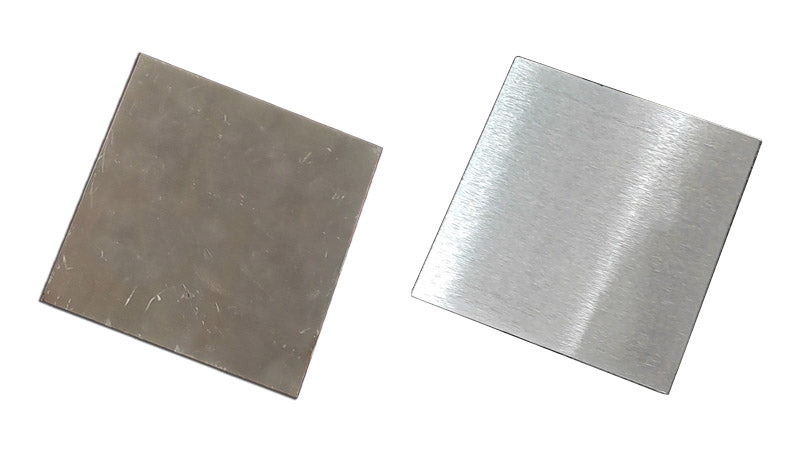

- Enhanced surface quality – consistent surface flatness and finish, improving overall product quality across metals and composites.

- Extended equipment life – waterproof bearings and electrical systems, combined with the enclosed sanding chamber, protect components and reduce maintenance

Flexible Belt Configurations

Single, Dual, or Dual-Plus-Polish — Configure Your FinishForce – Wet Line for Precision Wet Sanding and Finishes.

Every FinishForce BW-Series machine can be customized with different wet sanding and polishing setups to match your workflow and maximize performance on aluminum and other non-ferrous metals. From the LinishPro Solo — a single wet sanding belt with a Scotch-Brite polishing roller for compact, precise aluminum finishing, to the LinishPro Duos — a dual-belt system for efficient multi-stage wet sanding of aluminum sheets and components, through to the LinishPro Duos + Scotch-Brite Precision Polish Roller for a complete wet sand-and-polish solution ideal for high-quality aluminum surfaces.

GripForce – Secure Control for Wet Metal Finishing

The FinishForce BW-Series (WetLine) introduces GripForce, a conveyor system purpose-built for wet widebelt sanding and polishing. Engineered with a high-friction, water-resistant conveyor belt, GripForce ensures every workpiece — from aluminum and stainless steel to copper, magnesium alloys, and composite plates — is held firmly in place throughout the finishing process.

Designed to perform under the constant flow of wet sanding, GripForce prevents part slippage while maintaining precise feed speed and alignment. Its sealed bearings and waterproof components extend machine life and guarantee consistent performance in demanding industrial environments.

Book A Machine Demo Today!

View a machine in one of showrooms located in either Melbourne, Sydney or Queensland and have your questions answered by one of our qualified in-house technicians! Book a date and time below or feel free give us a call on (03) 9037 0826 to discuss your requirements.

Book a Linishing Machine Demo Today!

LinishPro WET Configurations for Every Finish

The trusted choice for professional wet sanding, deburring, and polishing of aluminum and non-ferrous metal surfaces — combining precision, safety, and industrial performance.
Every FinishForce BW-Series machine can be customized with different wet sanding and polishing setups to match your workflow and maximize performance on aluminum and other non-ferrous metals. From the LinishPro Solo — a single wet sanding belt with a Scotch-Brite polishing roller for compact, precise aluminum finishing, to the LinishPro Duos — a dual-belt system for efficient multi-stage wet sanding of aluminum sheets and components, through to the LinishPro Duos + Scotch-Brite Precision Polish Roller for a complete wet sand-and-polish solution ideal for high-quality aluminum surfaces.

The Solo + is a compact, all-in-one finishing solution built for smaller workshops or precision jobs where space and efficiency matter. Featuring a single linishing belt followed by an integrated Scotch-Brite polish roller, it streamlines the entire process from sanding to high-luster finishing in one pass

Workflow & Belt Setup:

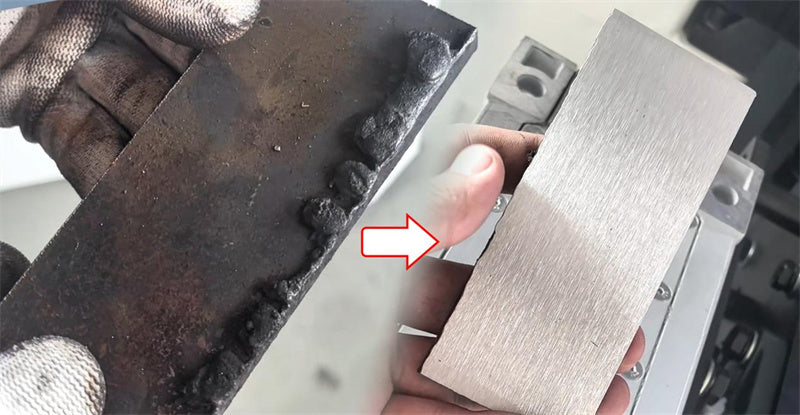

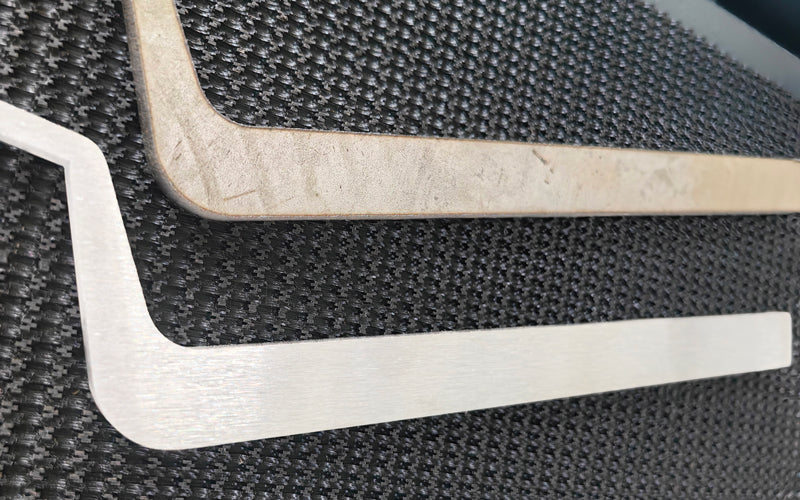

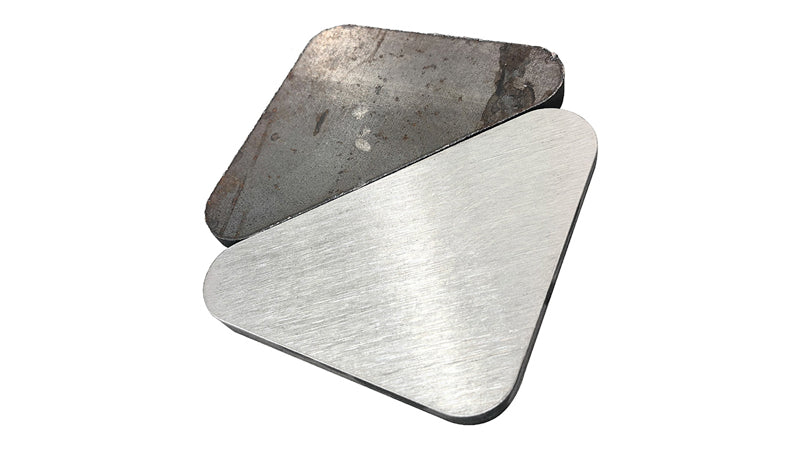

  • Linishing Belt – Coarse to Medium Grit (80–120): Removes weld seams, burrs, and surface imperfections. Adjust grit choice for heavy stock removal or lighter surface refinement.
  • Final Pass – Scotch-Brite Roller: Applies a consistent polish, producing a smooth, professional-grade finish ideal for stainless steel, and other metals.

Key Advantages

  • Single-belt setup for straightforward metal sanding
  • Built-in Scotch-Brite roller for quick, polished results
  • Compact, space-saving design
  • Ideal for workshops needing a simple yet professional finishing workflow

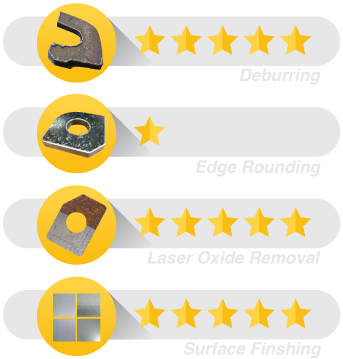

The Duos configuration is engineered for professional workshops where speed and consistency are essential. With two dedicated linishing belts, it delivers a staged workflow — rapid stock removal followed by fine surface refinement — all in one robust machine.

Workflow & Belt Setup:

  • First Belt – Coarse Grit (80): Handles heavy weld seams, burrs, and rough shaping with fast, aggressive cutting action.
  • Second Belt – Fine Grit (120–150): Refines the surface, removing scratches from the coarse pass and preparing parts for coating or assembly.

Key Advantages

  • Dual-belt design for efficient two-stage sanding
  • Coarse belt for shaping and material removal
  • Fine belt for precise finishing and scratch elimination
  • Optimized for workshops handling medium-to-high production volumes

The Duos + takes the proven two-belt system a step further by adding a Scotch-Brite polishing roller. Designed for professional metal fabricators demanding both throughput and final finish quality, it combines aggressive sanding, surface refinement, and a polished sheen — all in one machine.

Workflow & Belt Setup:

  • First Belt – Coarse (80): Quickly removes weld seams, burrs, & defects while shaping and preparing the surface.
  • Second Belt – Moderate (120): Smooths out scratches, blends edges, and leaves a uniform finish.
  • Final Stage – Scotch-Brite: Delivers a consistent, high-luster polish that enhances appearance and surface quality.

Key Advantages

  • Two linishing belts plus integrated Scotch-Brite roller
  • Coarse belt for rapid stock removal
  • Moderate belt for fine refinement
  • Polishing roller for professional-grade results

For applications where wet sanding isn’t required and precision finishing of ferrous metals is the priority, the FinishForce B-Series offers a versatile range of sizes and configurations. For workflows that also require edge rounding alongside wide belt finishing, the Koenig FinishForce PRO – BR-Series delivers consistent, high-quality results with its 360° flap brush

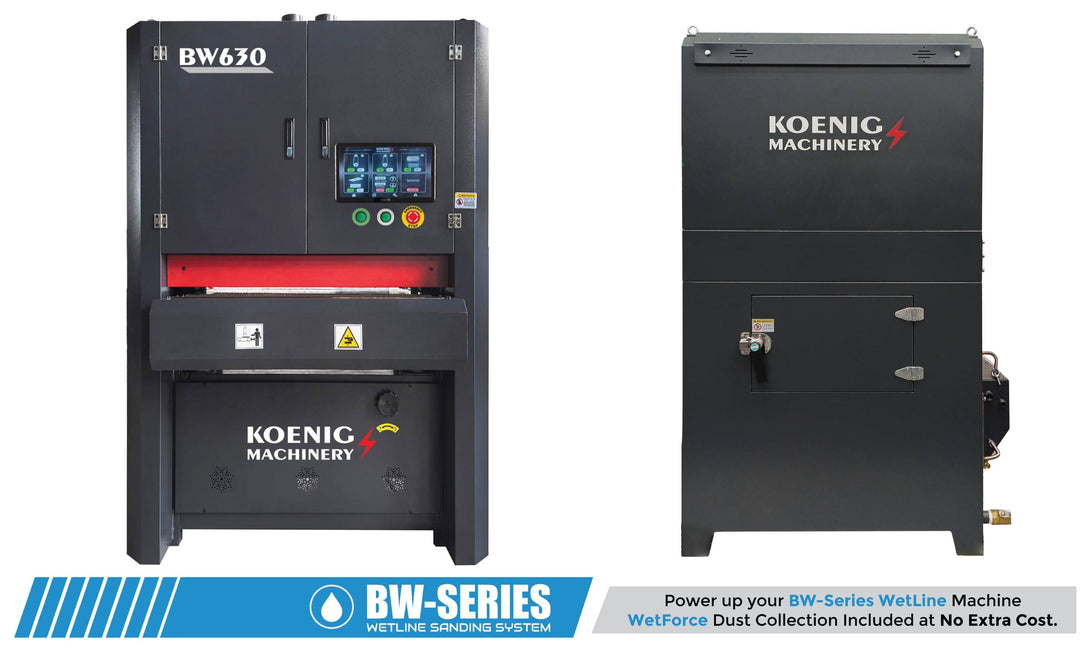

Keep Your Workshop Clean & Dust-Free

With the included 5.5kw Wet Force Extraction System:
Clean Air, Clean Results (and yes, its included in the price!)

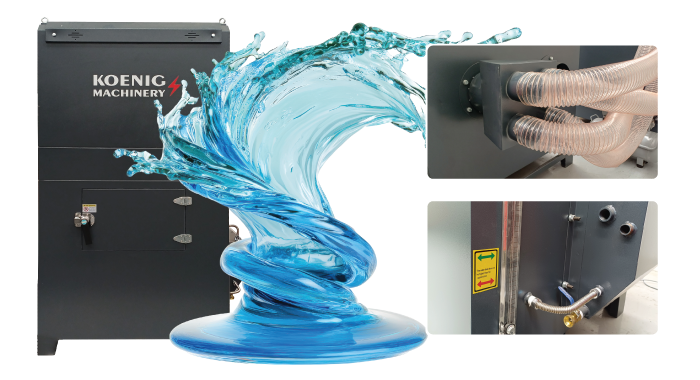

Wet Force Dust Collection System – Included Free with Your BW Series Wetline Sanding Machine

Upgrade your sanding workflow with the Wet Force Dust Collection System, designed to work seamlessly with the BW Series Wetline Sanding Machines — and it comes at no extra cost. Using water-based filtration, this system efficiently captures dust, fumes, and vapors, keeping your workspace clean and healthier.

Key Features

  • Cleaner, Healthier Workspace – Minimizes airborne dust and fumes for a safer environment.
  • Optimized Performance – Works in perfect harmony with BW Series Wetline Sanding Machines.
  • Zero Additional Cost – Included for free with every BW Series purchase, adding immediate value.
  • Low Maintenance – Water filtration reduces ongoing filter replacement costs.

Benefits

  • Powerful 5.5kW Motor – Delivers strong suction to remove dust and airborne particles during wet sanding.
  • Water-Based Filtration – Traps dust and fumes at the source, protecting operators and equipment.
  • Designed for BW Series Compatibility – Engineered to integrate perfectly with your wet sanding machine.
  • Eco-Friendly Operation – Less reliance on disposable filters, making it a sustainable choice.

Customise your machine

Let’s Configure Your Koenig FinishForce BW Series

Start with your belt setup — choose the LinishPro configuration that achieves the finish you want.

How Would You Like to Secure Your Parts?

For wet sanding, the GripForce WET-Line Conveyor System is the recommended (and only) option, ensuring consistent part hold and reliable performance.
Installation & Training
