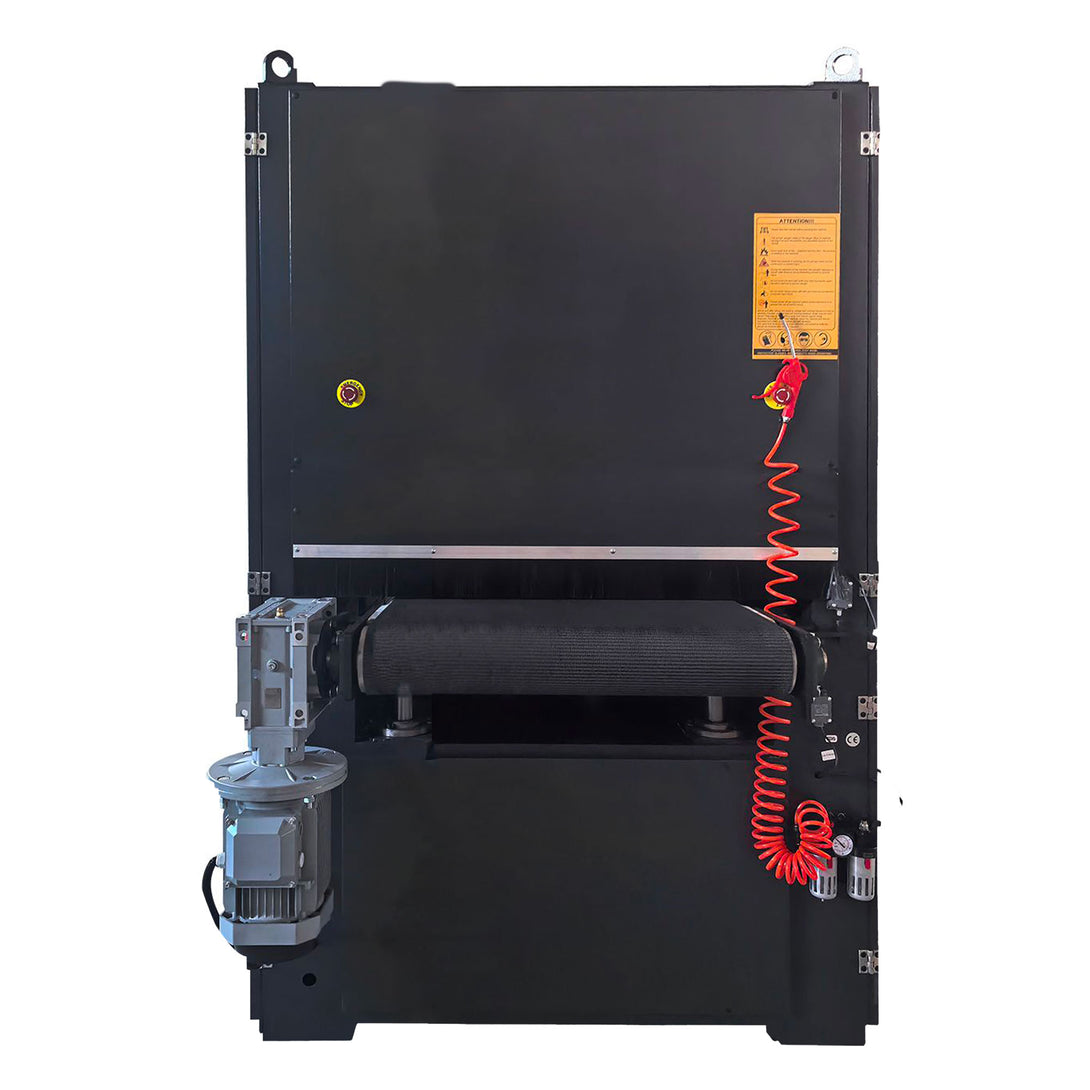

FinishForce - B630 - Fast Precision Metal Finishing
$20,650.00

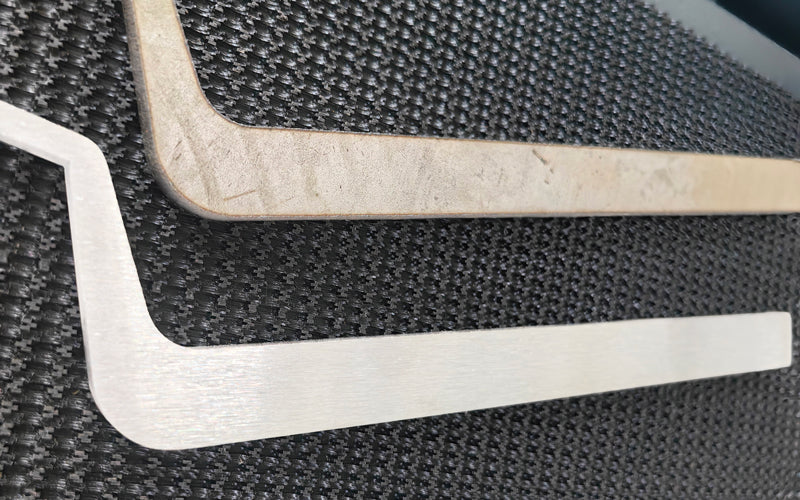

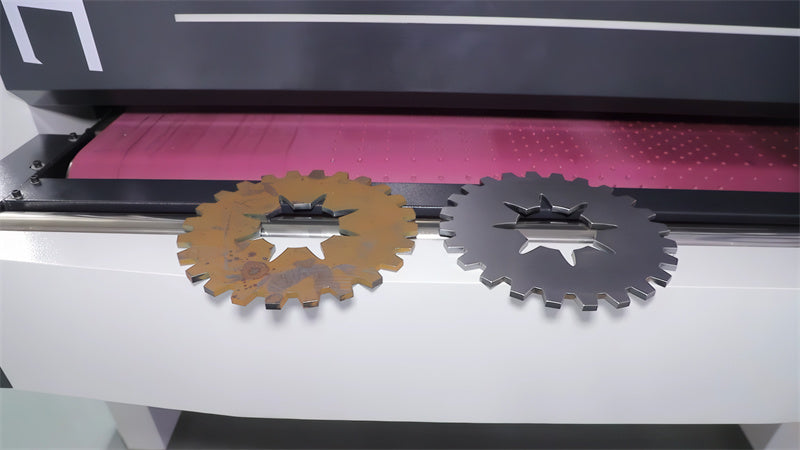

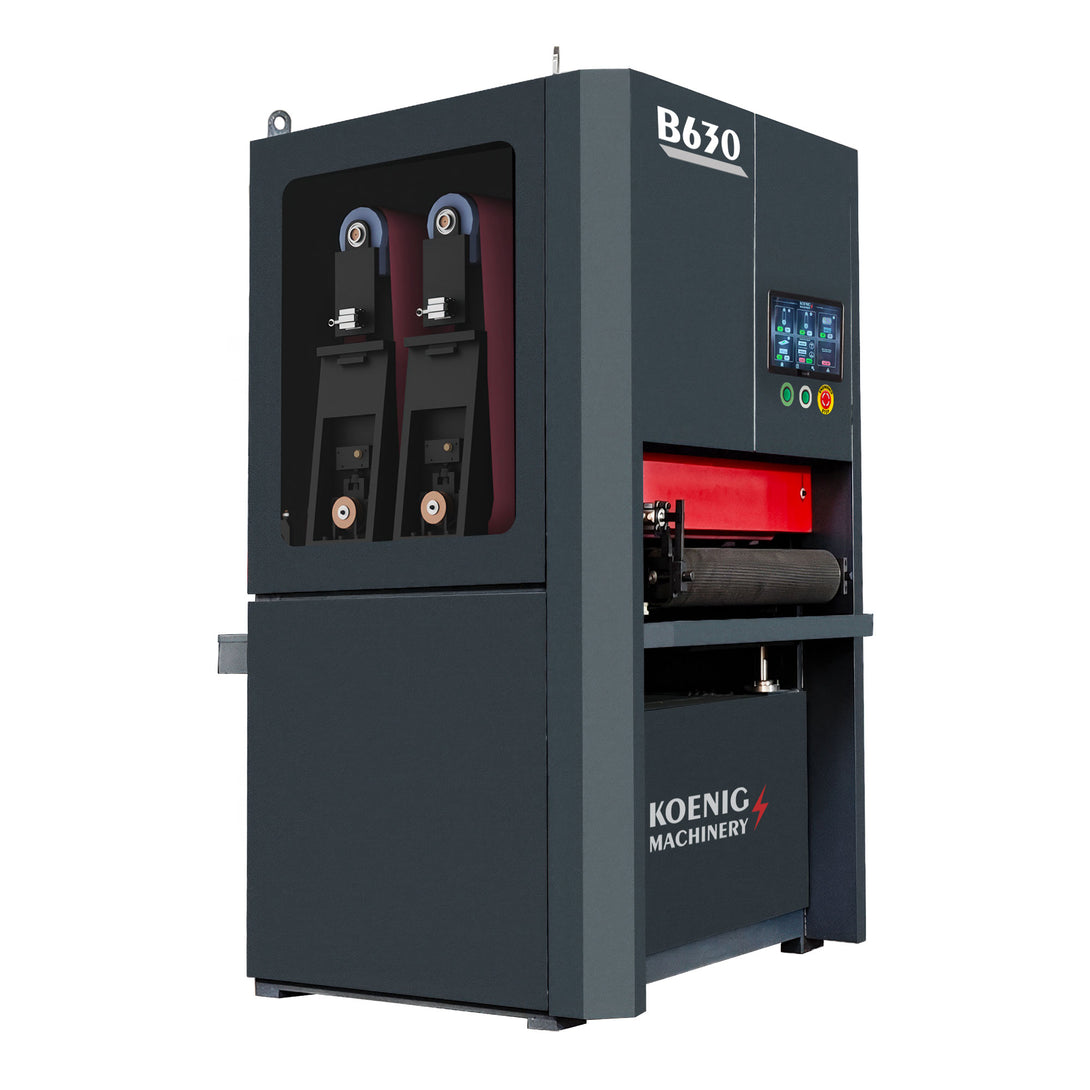

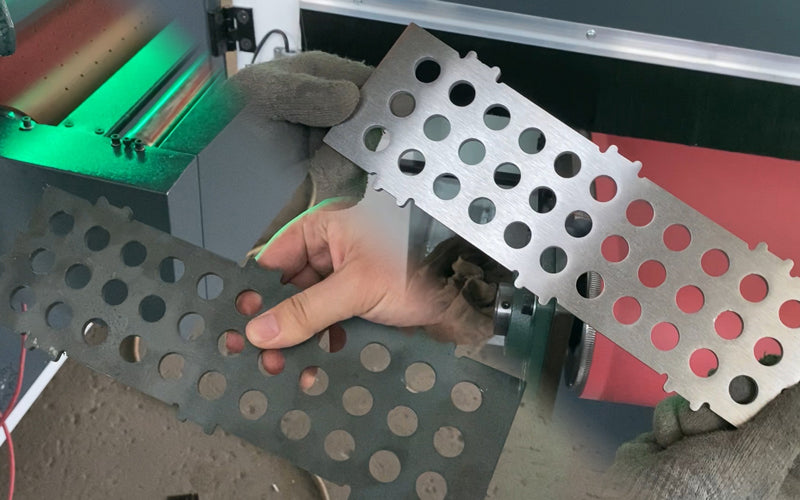

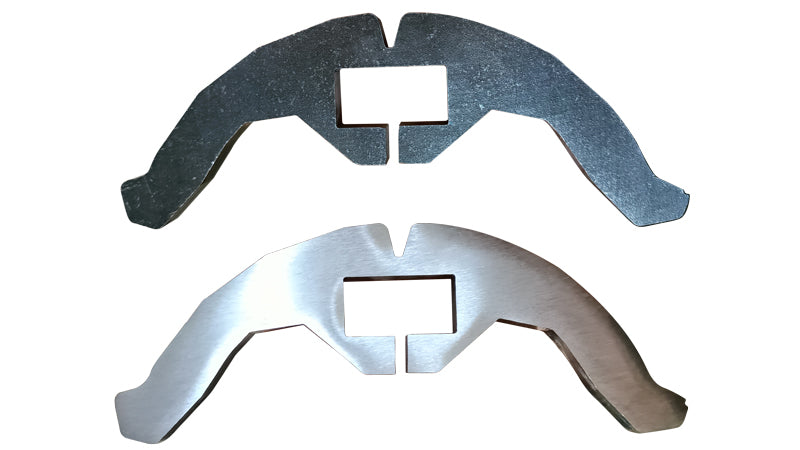

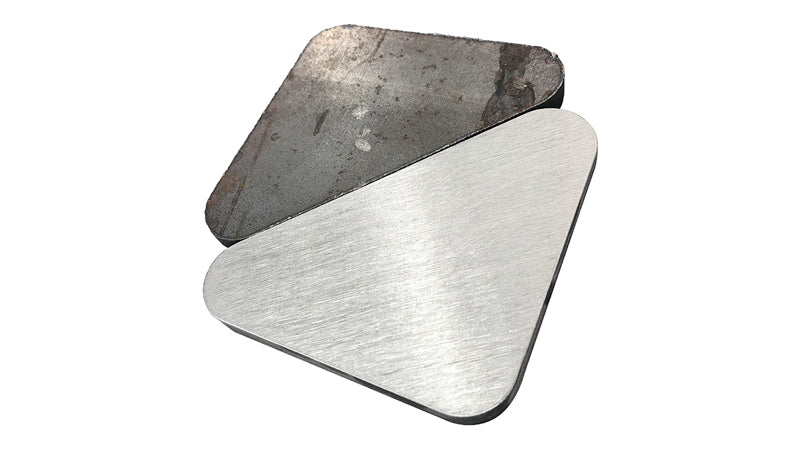

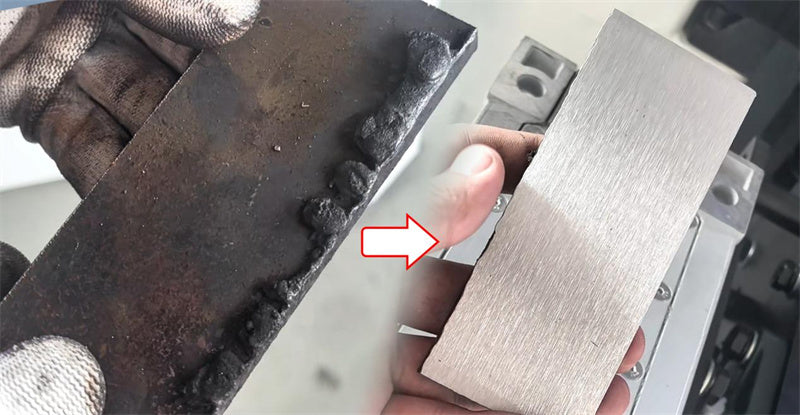

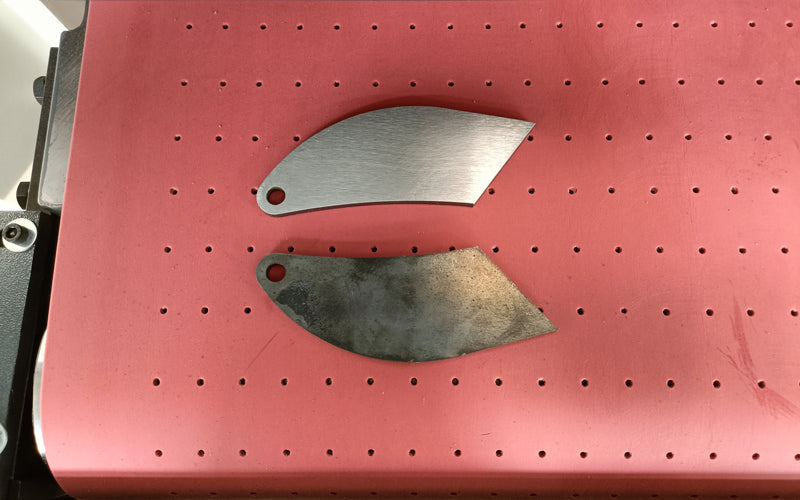

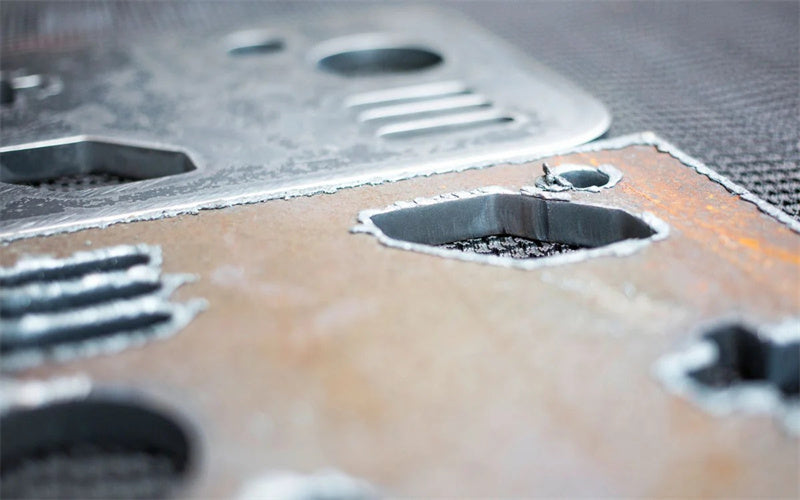

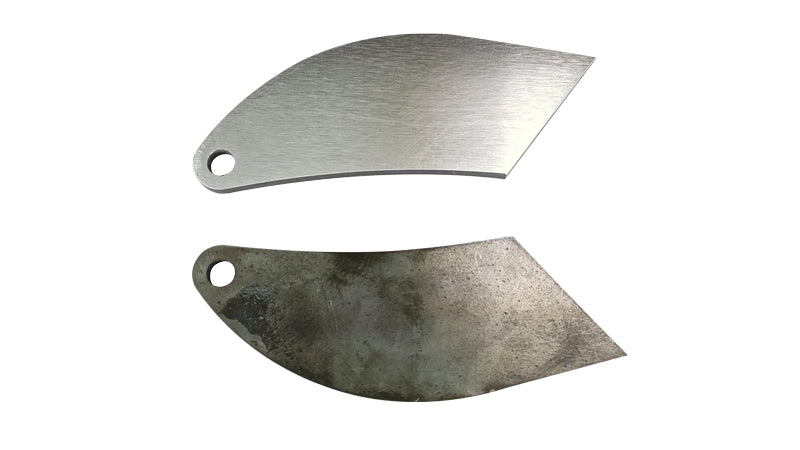

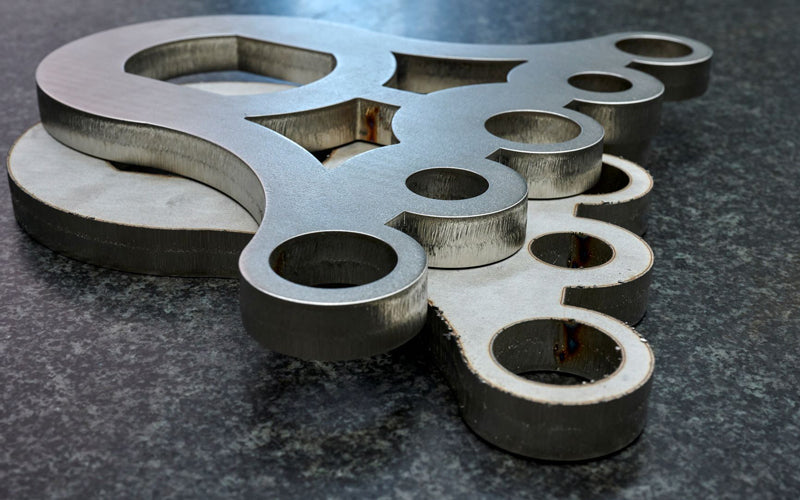

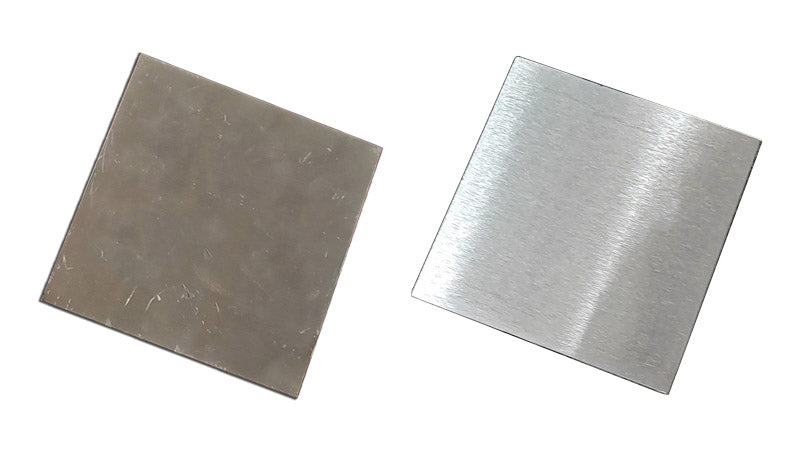

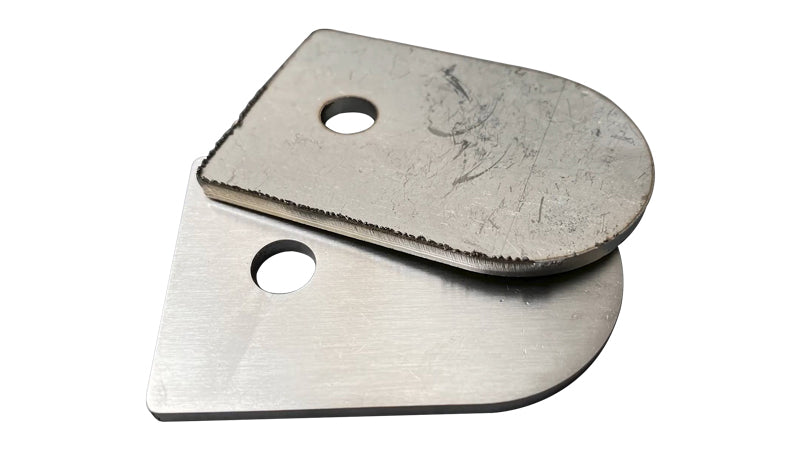

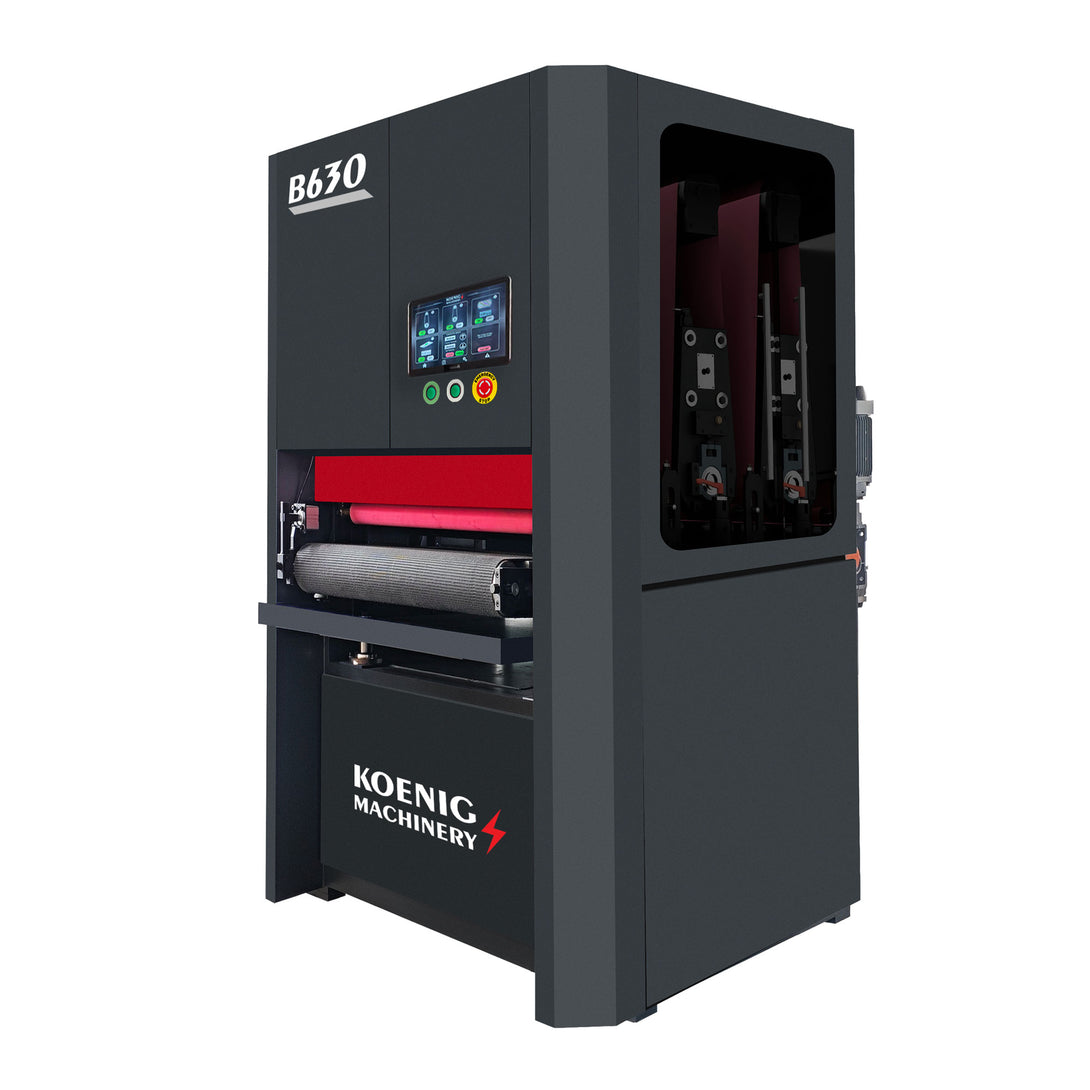

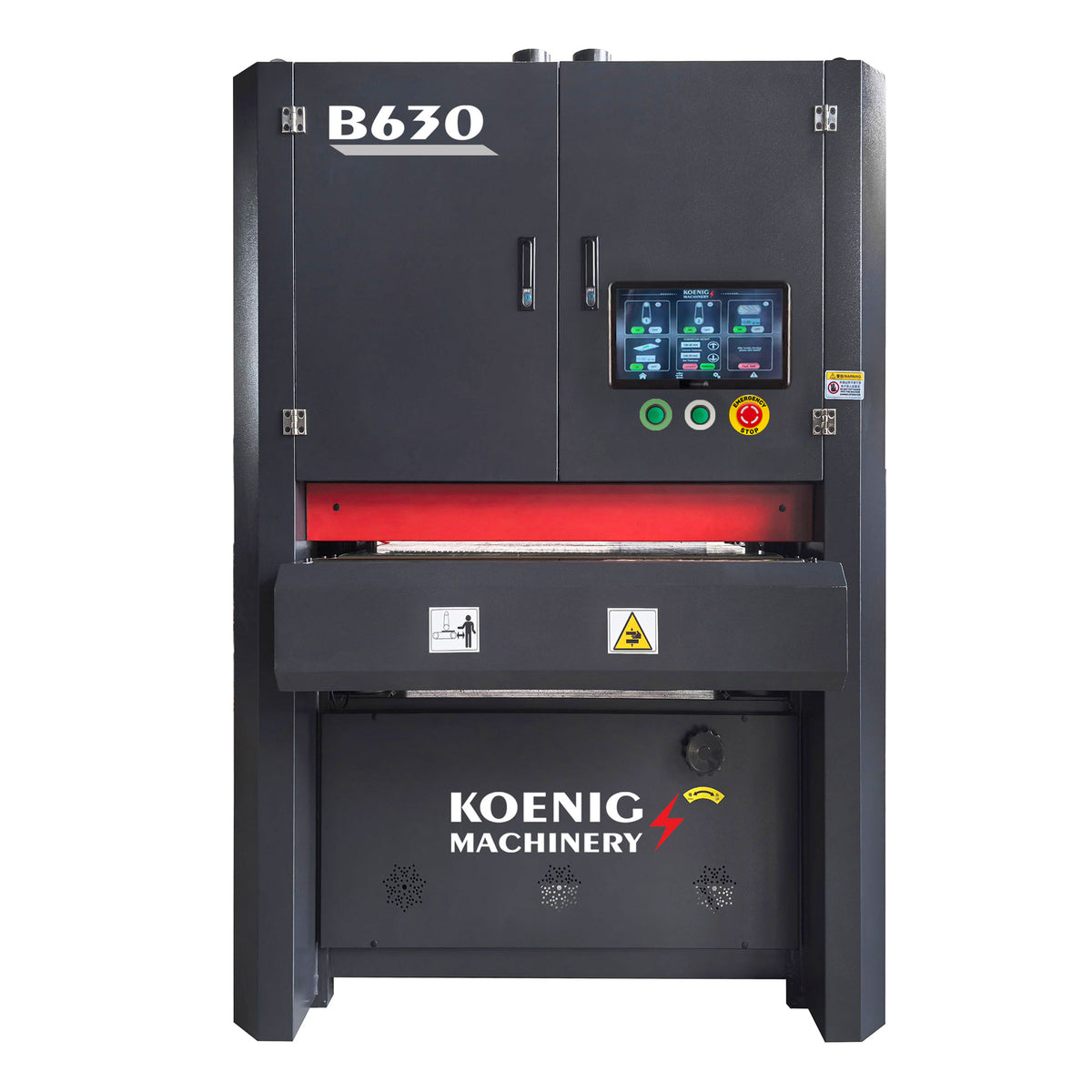

*ex GSTKoenig FinishForce B630 – Compact Precision for Small to Medium Parts The Koenig FinishForce B630 is a wide belt metal sanding and linishing machine engineered for precision finishing of ferrous metals. With a 630 mm processing width, it’s designed for small to medium-sized parts, making it a perfect solution for fabrication shops and manufacturers that need consistent, high-quality finishes on steel, stainless steel, and other materials. The B630 excels in removing burrs, weld seams, and surface imperfections while creating a refined, even finish suitable for painting, powder coating, or assembly. For smaller parts it is recommended to linish\sand the parts inside their offcut skeleton or suitable jig setup. This machine is part of Koenig Machinery’s FinishForce B-Series, a range developed to meet the growing demand for high-efficiency deburring and finishing solutions in Australia. Whether you’re tackling rough stock removal or final surface preparation, the B630 combines reliability, precision, and performance in one compact machine. For non-ferrous materials such as aluminium, Koenig also offers the FinishForce BW-Series (WetLine), designed specifically for wet wide belt sanding. And for applications requiring edge rounding in addition to wide belt finishing, explore the Koenig FinishForce PRO – BR-Series, which incorporates a 360° flap brush roller for consistent, high-quality edge rounding.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | B630 | B800 | B1000 | B1300 | B1600 |
|---|---|---|---|---|---|
| Working Width | 630mm | 800mm | 1000mm | 1300mm | 1600mm |
| Working Thickness | 0–100mm | ||||
| Minimum Working Length | 300mm (or use a template/jig for smaller parts) | ||||
| Maximum Conveyor Speed | 25m/min | ||||
| Working Environment | Temperature: 0–45°C | Humidity: 5–95% (No Condensation) | ||||
|
Machine Dimensions (L × W × H mm) Note: Dimensions shown are based on the maximum configuration (2 sanding belts + Scotch-Brite roller) and may vary depending on selected machine configuration. |
2270 × 1270 × 2130 | 2280 × 1870 × 2200 | 2280 × 1950 × 2200 | 2180 × 2150 × 2200 | 2180 × 2200 × 2350 |
| Table Type | 100% Magnetic or 100% Vacuum Hold-Down | ||||
| Abrasive Belt Grit Options | 80, 120, 180, 240, 320 | ||||
| SANDING CONFIGURATION SPECIFICATIONS | |||||
|
LinishPro Solo + Scotch-Brite Precision Polish
1 sanding belt and polish roller |
|||||
| Weight (kg) | 1000 | 1300 | 1500 | 2300 | 3100 |
| Power Supply | 415V 50Hz 3 Phase – 15A | 415V 50Hz 3 Phase – 20A | 415V 50Hz 3 Phase – 20A | 415V 50Hz 3 Phase – 25A | 415V 50Hz 3 Phase – 30A |
|
LinishPro Duos
2 sanding belts only – no polish roller |
|||||
| Weight (kg) | 1500 | 1800 | 2000 | 2800 | 3700 |
| Power Supply | 415V 50Hz 3 Phase – 25A | 415V 50Hz 3 Phase – 40A | 415V 50Hz 3 Phase – 40A | 415V 50Hz 3 Phase – 60A | 415V 50Hz 3 Phase – 80A |
|
LinishPro Duos + Scotch-Brite Precision Polish
2 sanding belts and polish roller |
|||||
| Weight (kg) | 1800 | 2200 | 2400 | 3400 | 4200 |
| Power Supply | 415V 50Hz 3 Phase – 30A | 415V 50Hz 3 Phase – 50A | 415V 50Hz 3 Phase – 50A | 415V 50Hz 3 Phase – 70A | 415V 50Hz 3 Phase – 100A |
| Specifications subject to change without notice. | |||||
