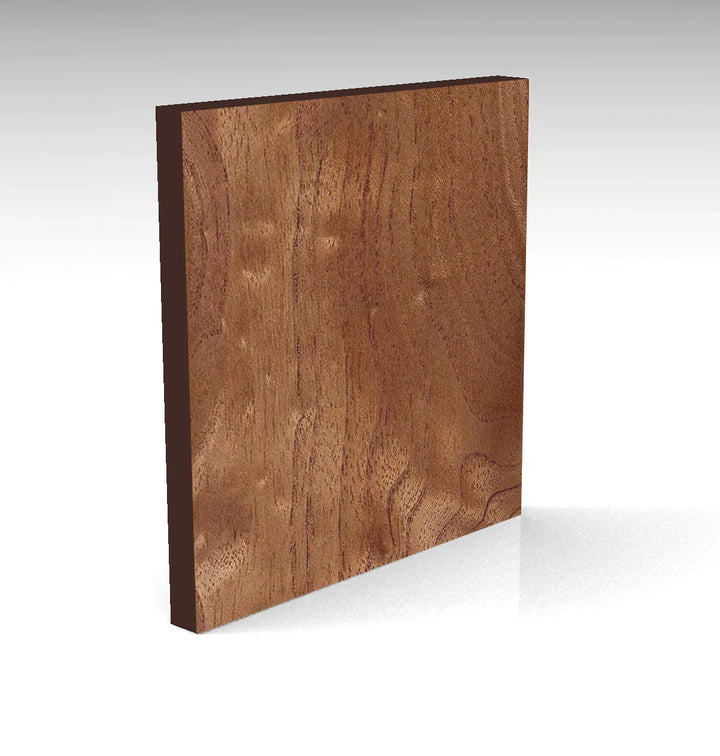

Cedar Plywood - MDF CORE
Our laser plywood has an A-B grade finish, meaning that both sides of the sheet are high quality finely sanded finish. Note that colours may vary when viewed on different monitors, For exact colour swatches you can purchase sample swatch packs. See sample swatches in the materials list.
Material structure
Our MDF laser plywood is a very popular material in our range offering structurally rigidity, for structural items and large thin signage that will not bow warp or bend. Our plywood materials are all manufactured with formaldehyde free glue adhesives.
Why use laser ply?
There are many plywoods materials available in the industry, many of which are built for construction and exterior use. These plywoods are manufactured with different types of glue and resin that may be hard to cut, increasing your cutting time, edge charring and chance of laser cutting flame. They also may be manufactured with glue containing formaldehyde. Using out laser ply, you will have a cleaner faster and safer laser cut with lighter cut edge colour.
What do we recommend?
Engrave lightly into the veneer surface for a light colour engraving, engrave through the veneer into the MDF core for a clean dark engraving.

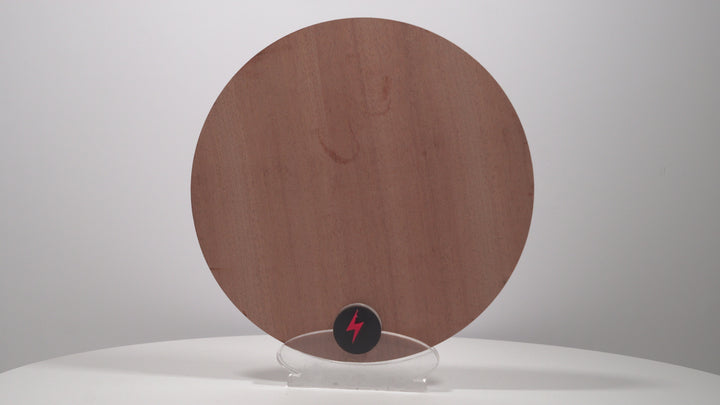

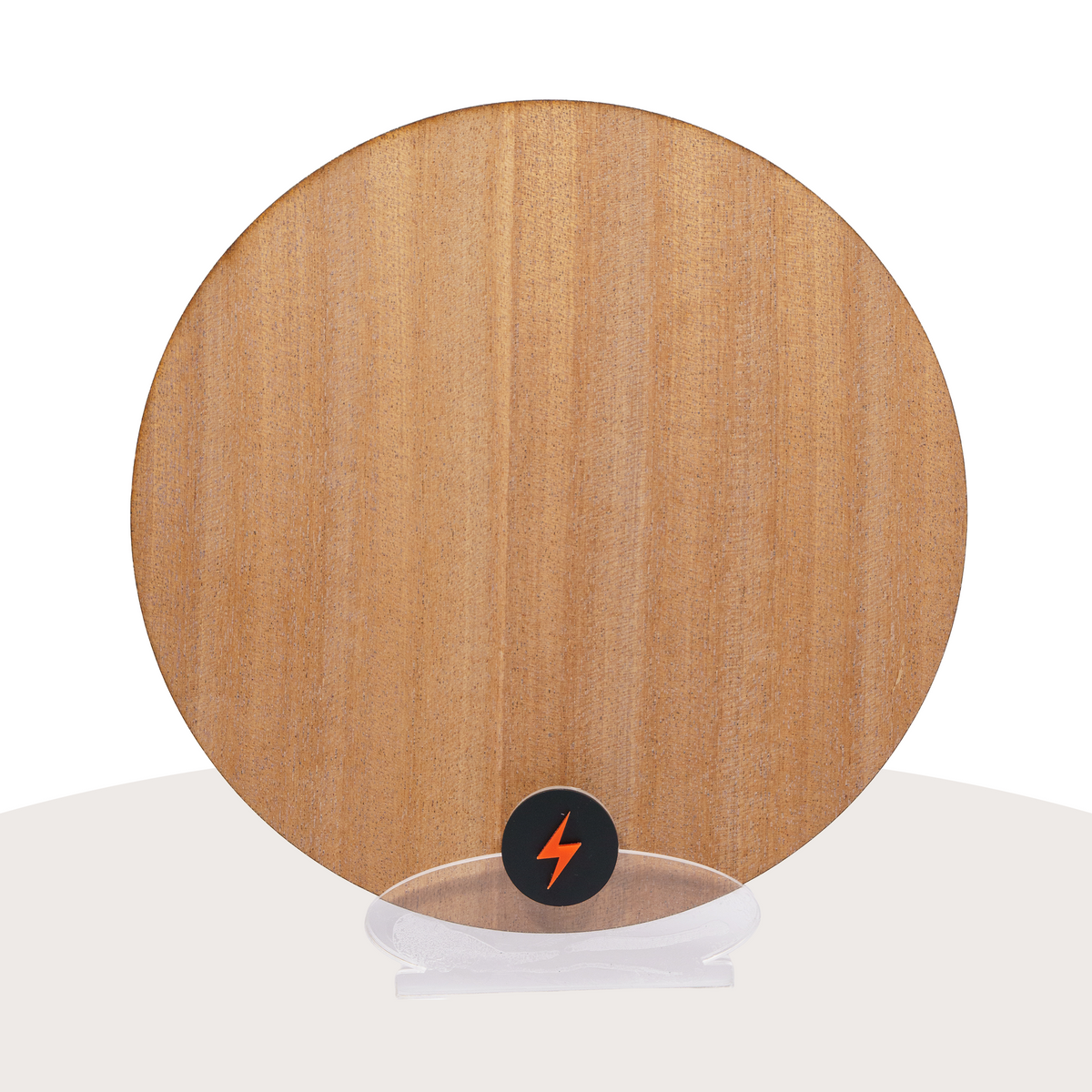

Note: The circular shape shown in product images is for illustrative purposes only. Materials are supplied as flat square/rectangular sheets according to the selected size variant.
⚠️ Important Product Information ⌄
At Koenig Machinery, we're committed to providing high-quality acrylic sheets. Please review the following information before purchasing.
Colour Accuracy Disclaimer
We take care to ensure all acrylic product images are photographed using colour-calibrated equipment and controlled lighting to provide the most accurate representation possible.
However, colours and tones may appear differently depending on the device used to view them. Variations in monitors, phones and tablets — including brightness, contrast and colour settings — can affect how colours are displayed.
Unless a viewing device has been professionally calibrated, the colour shown on screen may differ slightly from the physical material.
For colour-critical applications, we recommend purchasing a sample or swatch pack prior to ordering. Colour variation caused solely by screen display differences is not generally a reason for return or refund, subject to your rights under Australian Consumer Law.
Surface & Film Appearance
Some sheets may have minor marks, wrinkles or imperfections in the protective film or acrylic itself. Grade 2 sheets may show these more noticeably, which is reflected in their pricing.
Protective Film
Wrinkles in the protective film may sometimes cause light fogging after laser cutting. Use an appropriate acrylic-safe cleaning product.
Removing Protective Film
Film on sheets stored for extended periods may adhere more firmly. This does not normally affect the acrylic itself.
- Apply gentle heat using a hair dryer or low-temperature heat gun.
- Avoid overheating the acrylic.
- Use masking tape to lift difficult edges.
- Roll the film back over itself and peel slowly.
- Use a plastic scraper or rounded tool where necessary.
- Remove residue using a cleaner suitable for acrylic.
Storage & Care
Store acrylic sheets flat, away from heat and direct sunlight to prevent warping or damage to the protective film.
Sheet Sizes & Tolerances
Actual sheet dimensions may be slightly larger than advertised. For example, 1200 × 900 mm may measure approximately 1220 × 905 mm. The 300 × 200 mm option is cut to the specified size.
- Thickness: ±10%
- Cutting: ±5 mm
Shipping is generally more economical for smaller sheets weighing up to 22 kg.
Acrylic Sheet Weight
Weight (kg) = Width (m) × Length (m) × Thickness (mm) × 1.19
- 3 mm, 200 × 300 mm: 215 g
- 3 mm, 300 × 600 mm: 643 g
- 3 mm, 600 × 600 mm: 1.28 kg
- 3 mm, 600 × 900 mm: 1.93 kg
Cutting Safety
Always use appropriate ventilation and fume extraction when cutting acrylic.
