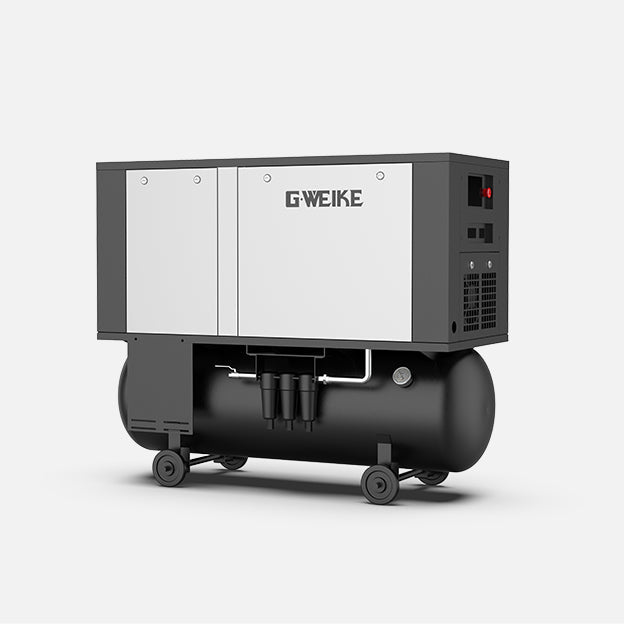

15 Bar Screw Air Compressor - Fiber Laser Optimised Air Supply

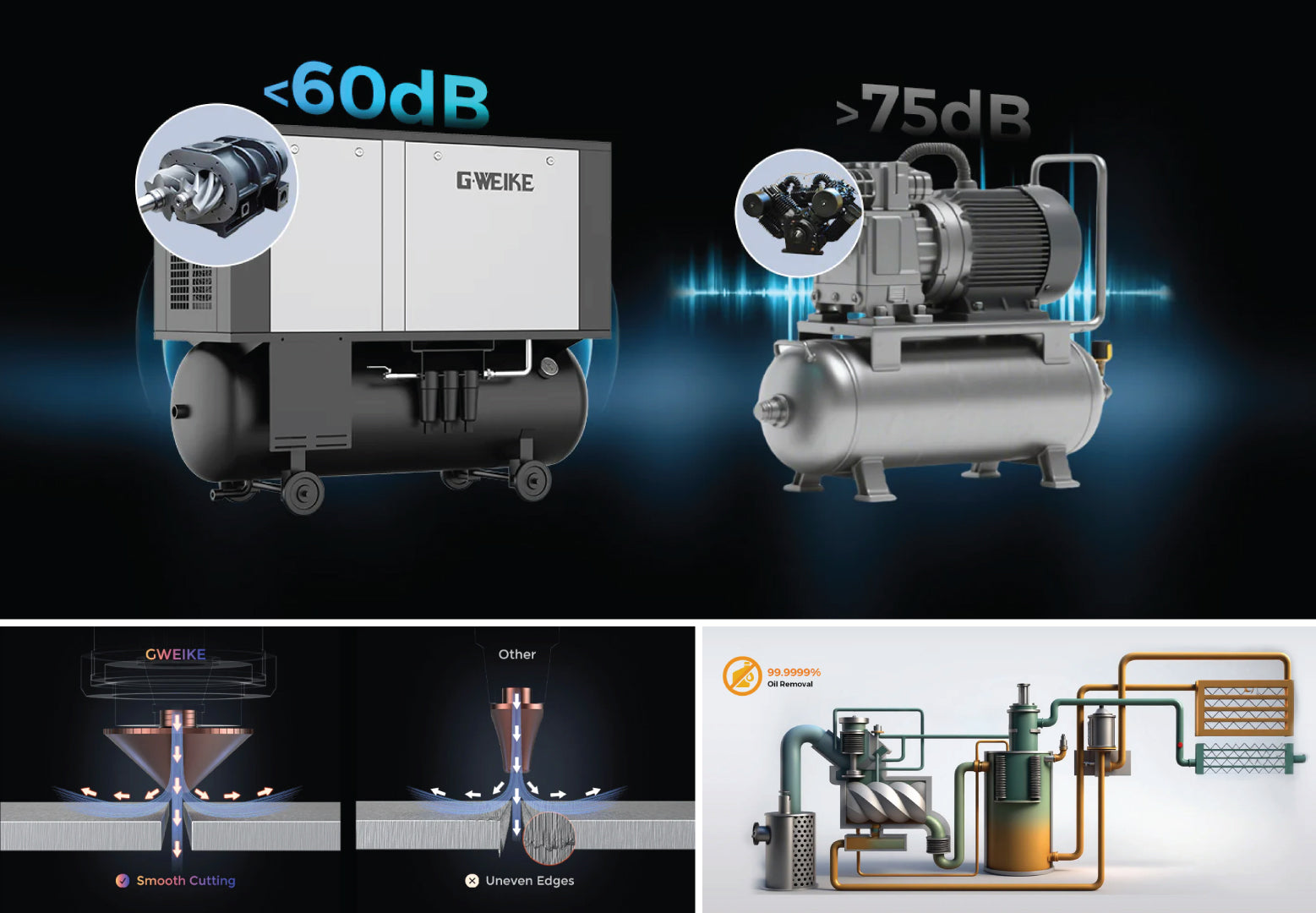

Delivering faster cutting speeds, increased material capacity and superior edge quality for demanding fiber laser applications. The powerful 15 bar high-pressure system provides exceptional penetration performance, allowing smooth cutting of thicker materials. High-pressure airflow rapidly removes molten material, reducing plate preheating time while improving carbon steel cutting speeds.
- Compressor type: Oil-free screw air compressor
- Maximum pressure: 15 bar (1.5 MPa)
- Motor power: 3 kW (4 HP)
- Air delivery: 0.25 m³/min
- Noise level: 60 dBa
- Air receiver tank: 230 L
- Air treatment: Integrated refrigerated air dryer and filtration system
- Air quality: ISO 8573-1 Class 0 oil-free compressed air
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Air Compressor Specifications | |
|---|---|
| Air Compression Method | Screw Air Compressor |
| Discharge Pressure |
Max 15 Bar Adjustable Pressure Range: 13.5 – 15 Bar |
| System Components |
Compressor Refrigerated Air Dryer Air Filter Air Storage Tank |
| Free Air Delivery (FAD) | 8.8 CFM (0.25 m³/min) |
| Air Receiver Capacity | 230L |
| Motor Power | 3kW (4HP) |
| Total Machine Power | 5kW |
| Electrical Requirements | 220V Single Phase, 50Hz / 60Hz |
| Noise Level | 60dB(A) |
| Weight | 260kg |
| VFD Inverter Start | Yes |
| Machine Dimensions | 1450 × 600 × 1200mm (L × W × H) |
| Recommended Use | Ideal for workshops with sufficient space and frequent daily operation. |
