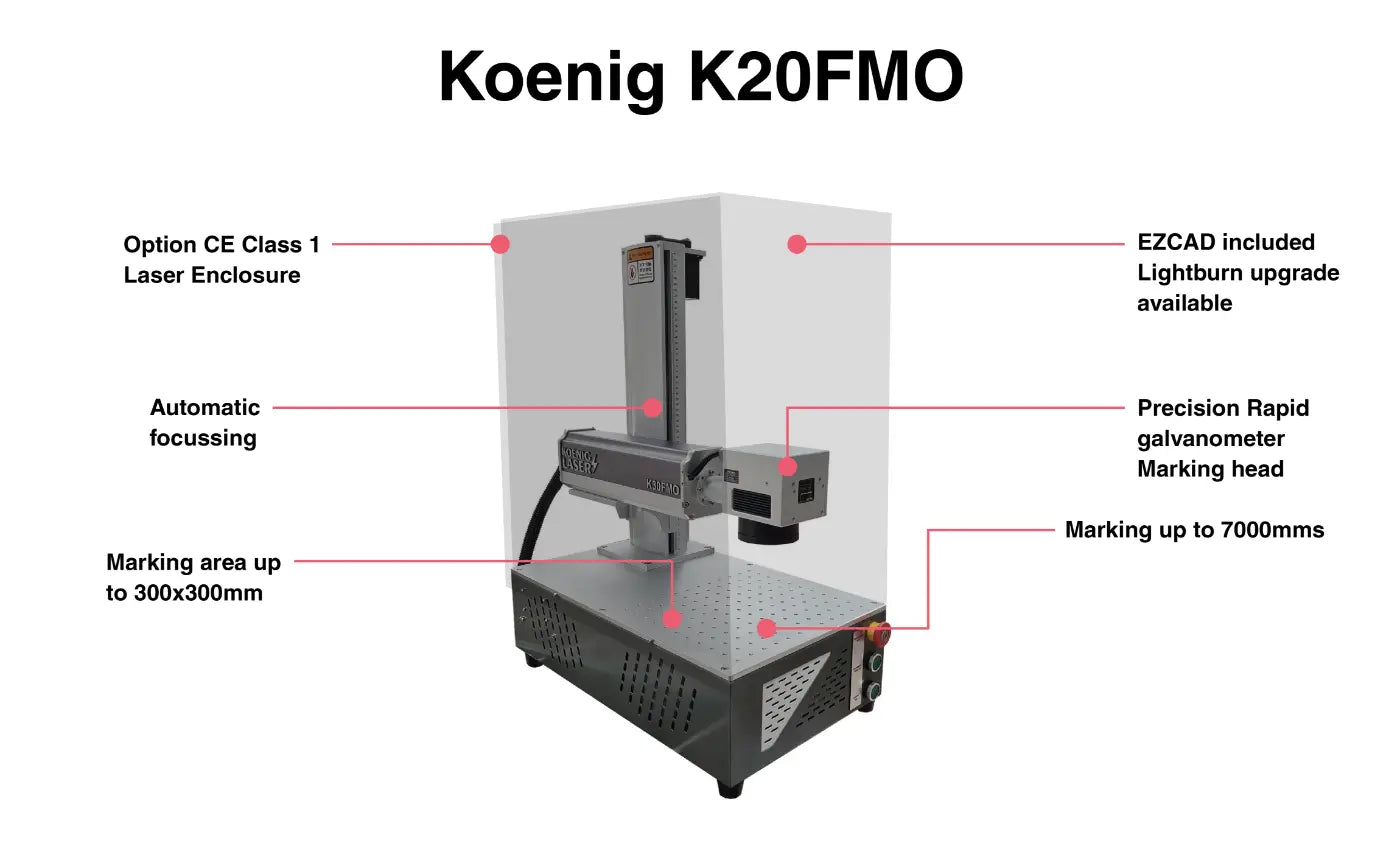

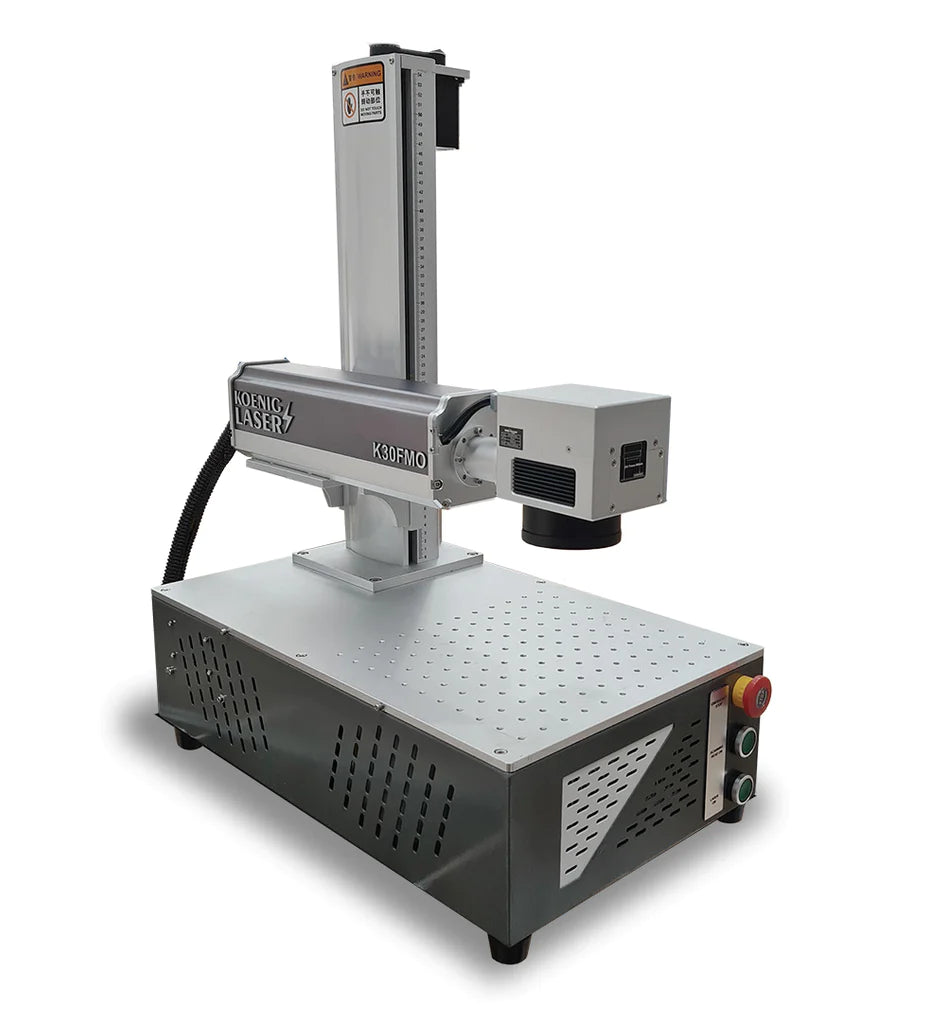

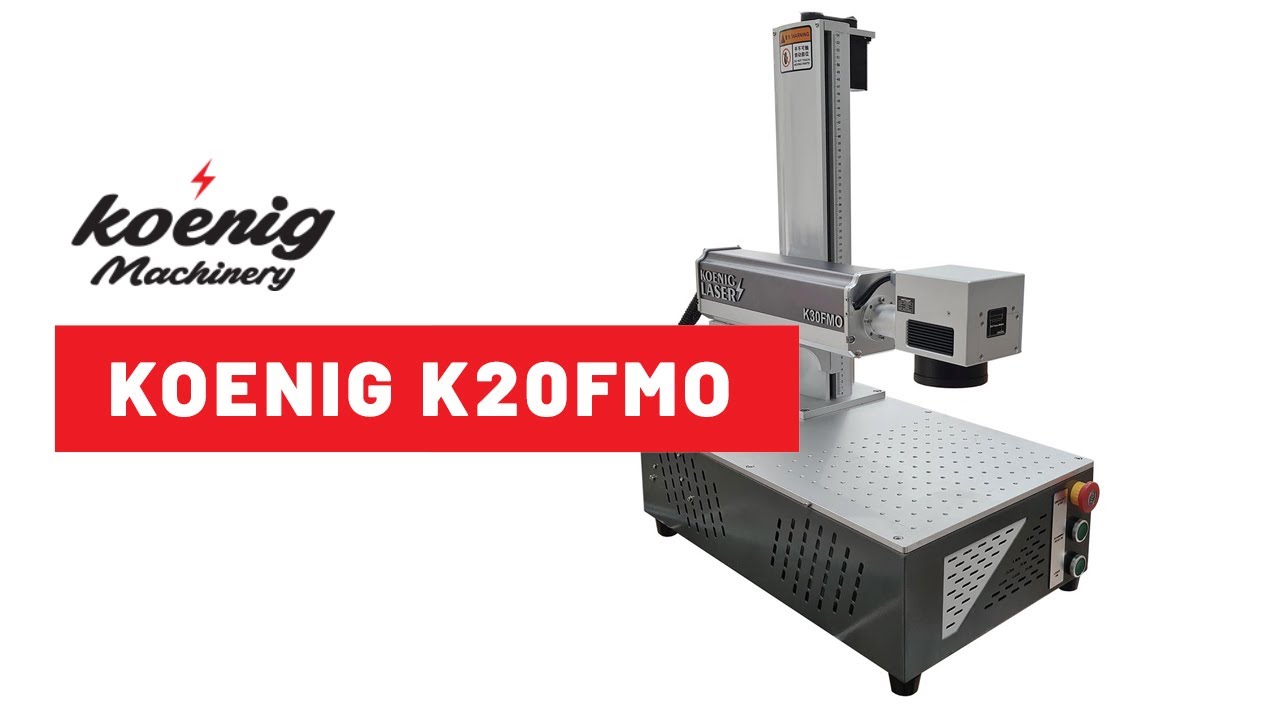

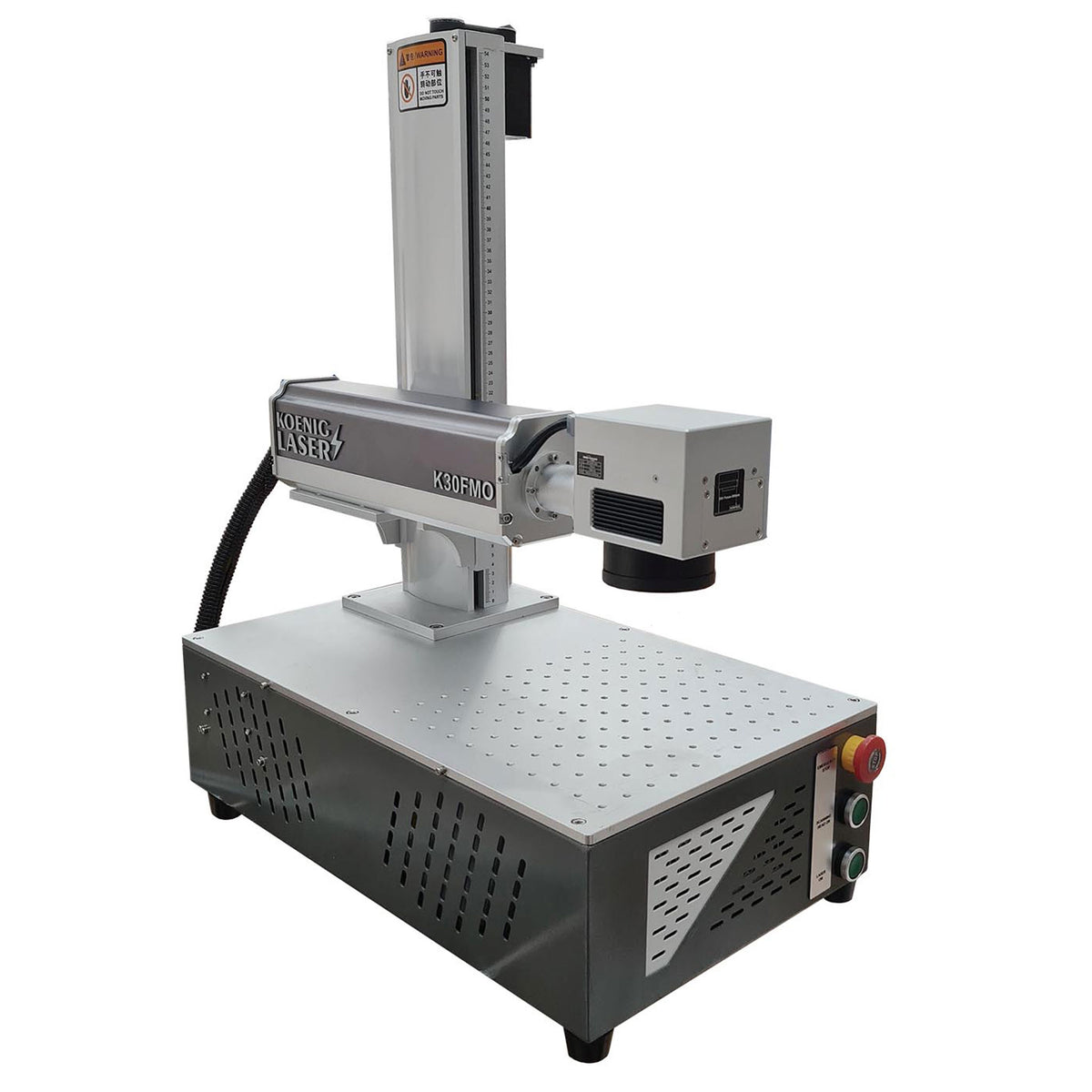

KOENIG K20FMO
$10,450.00
*ex GSTThe FMO range of Fiber Marking Machines is the ideal solution for high-quality metal marking applications. Designed for speed and precision, the system delivers clean, permanent marking on a wide range of metals without the need for expensive marking agents. Adaptable, easy to use, and quiet in operation, the machine requires minimal setup and integrates easily into both workshop and production environments.

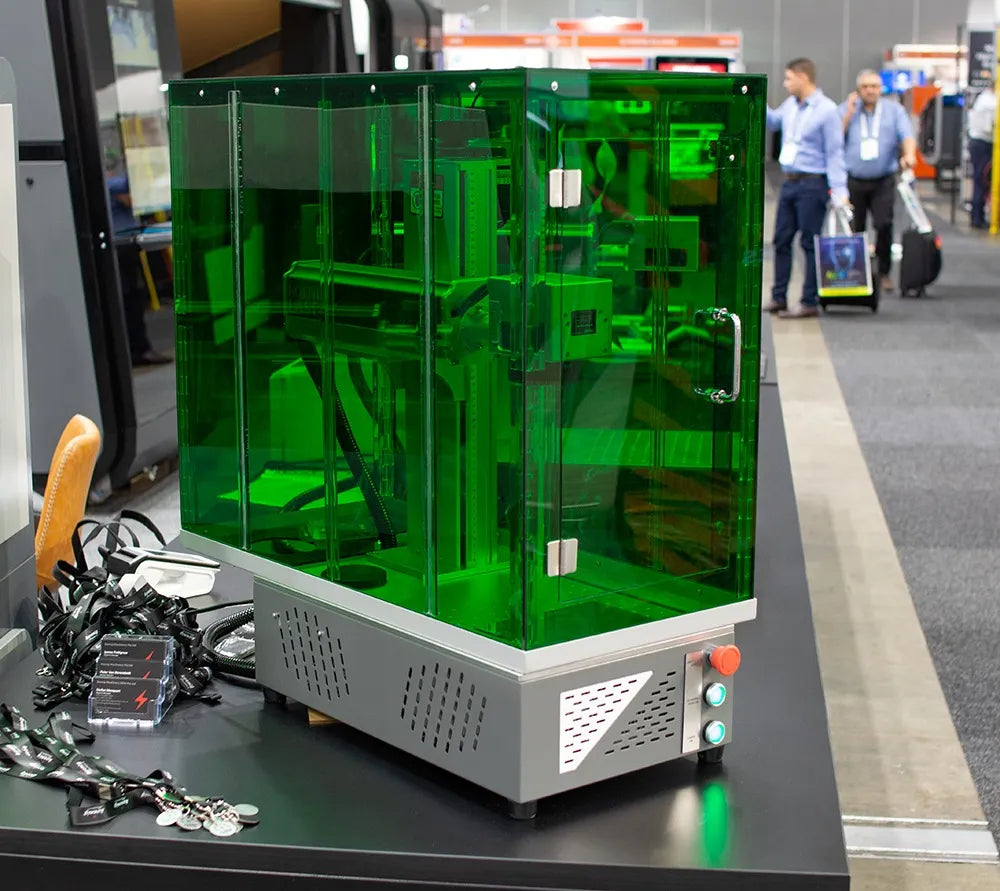

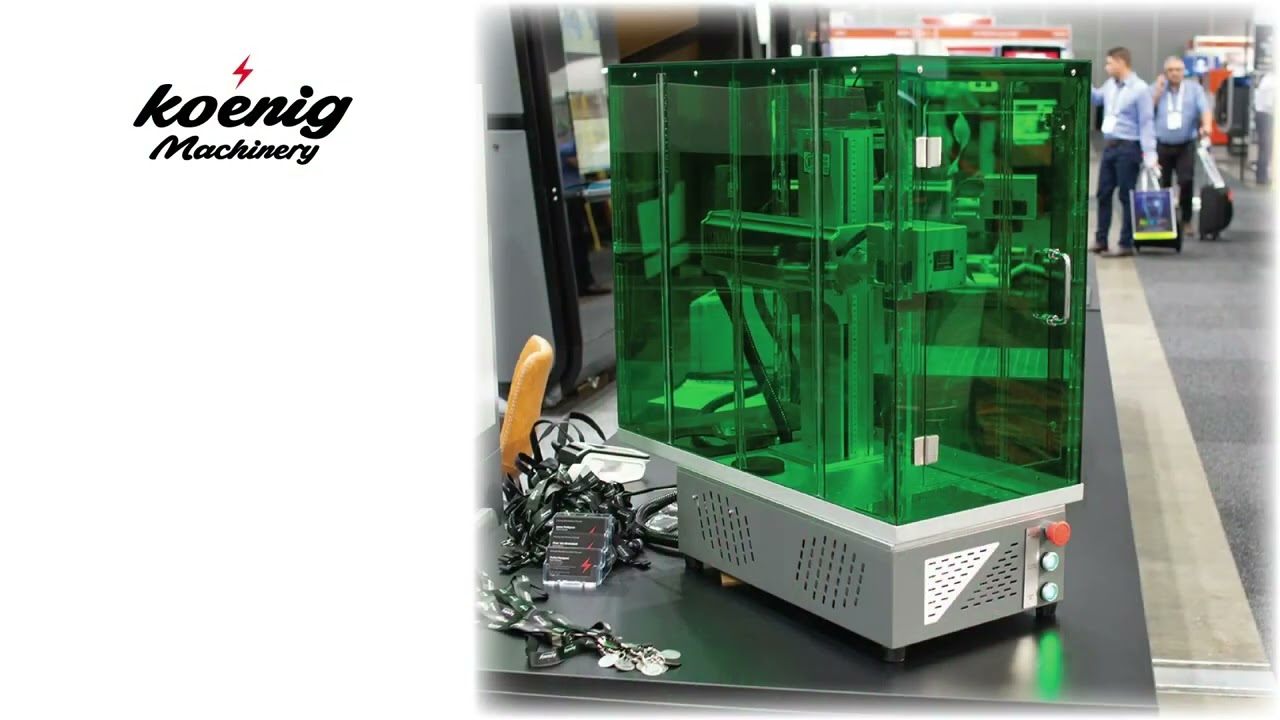

A 200 × 200mm working area comes as standard, with the option to increase to 300 × 300mm, or mount the laser to the side of the machine for marking larger or irregular-shaped parts. The machine is supplied as standard with a fully enclosed CE-rated laser safety enclosure, allowing safe operation in both office and factory environments while maintaining excellent visibility and ease of access.

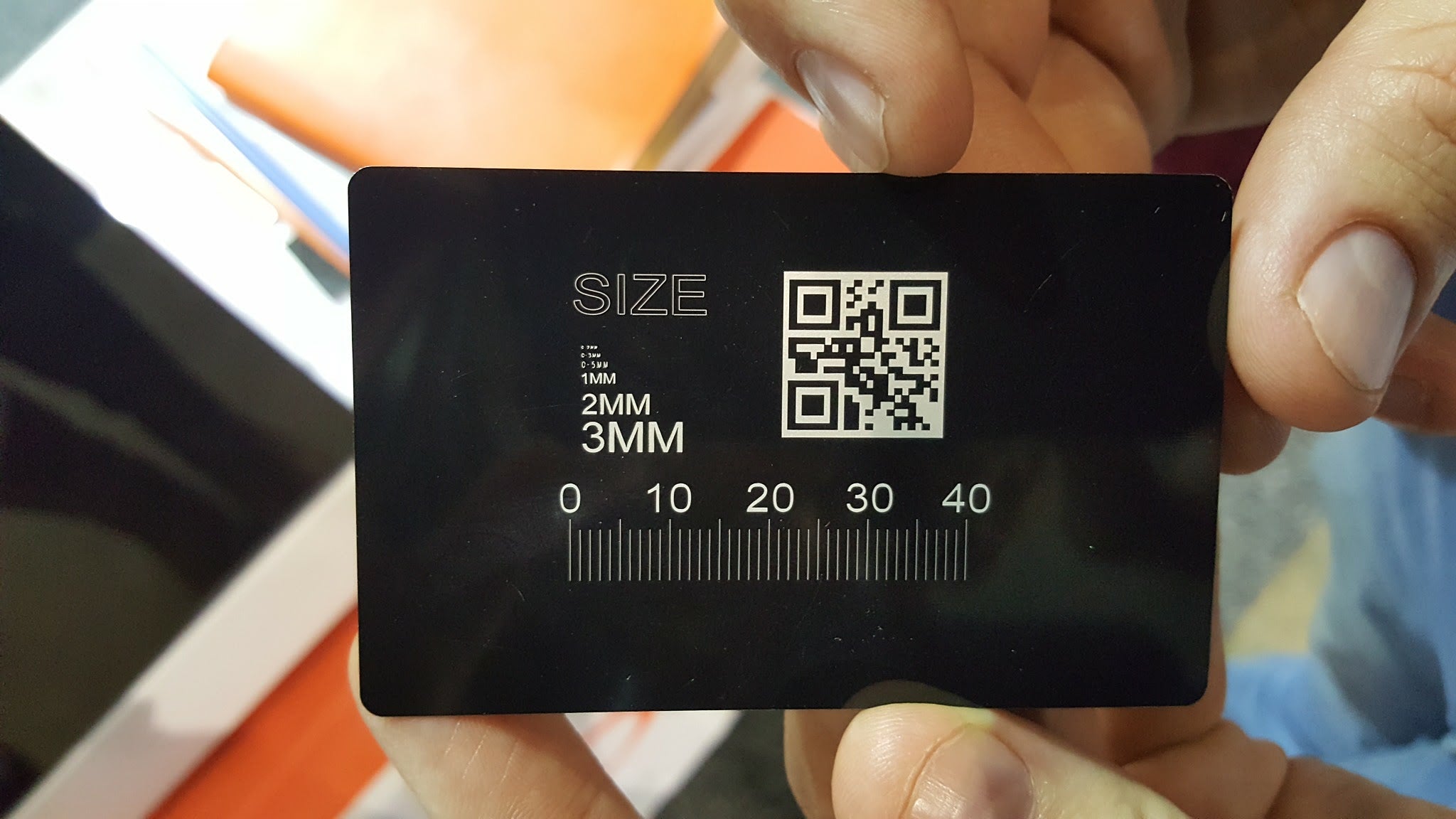

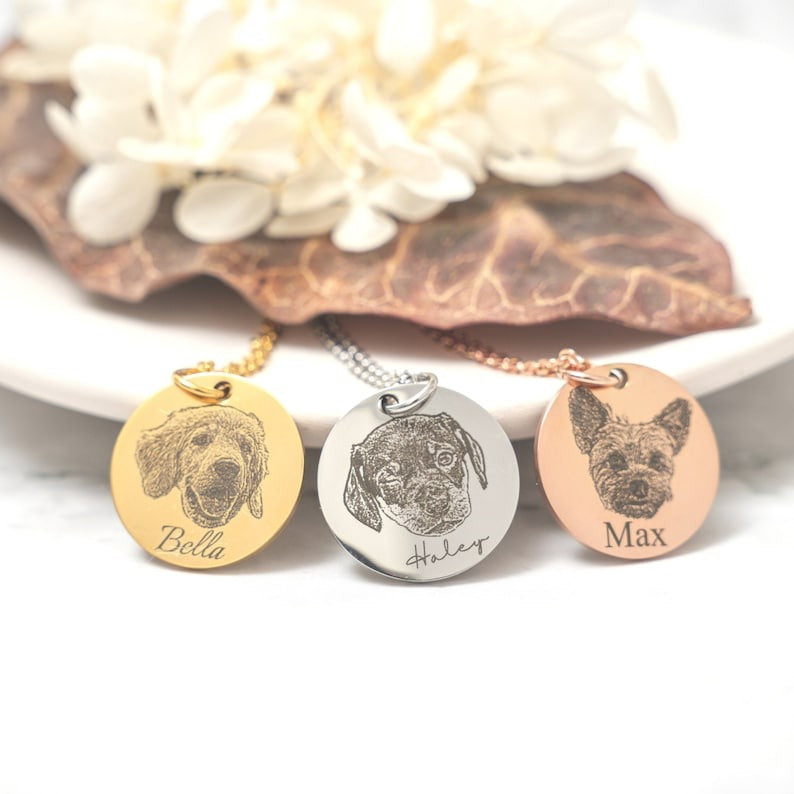

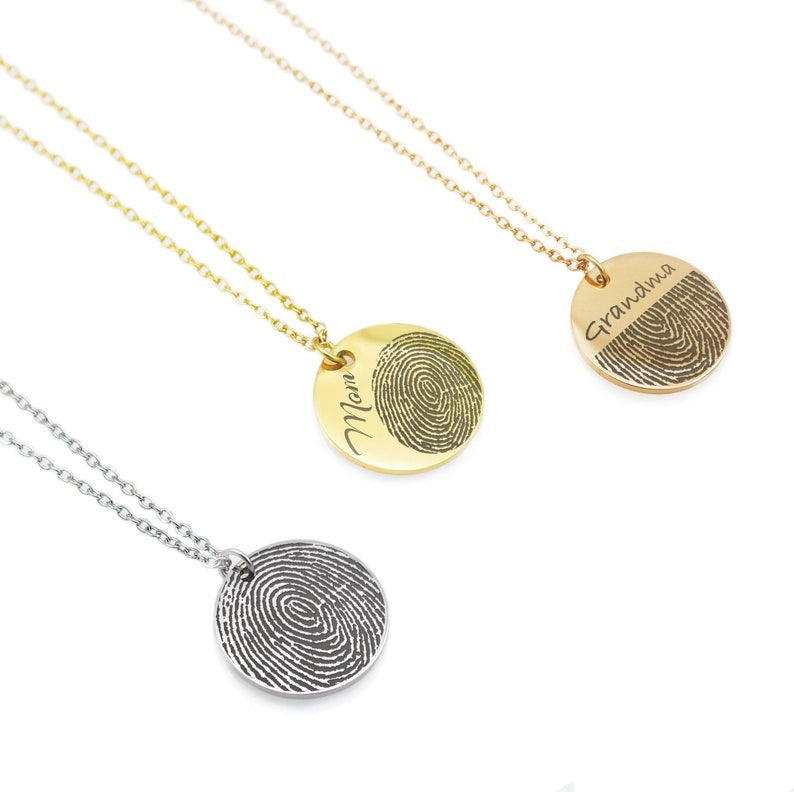

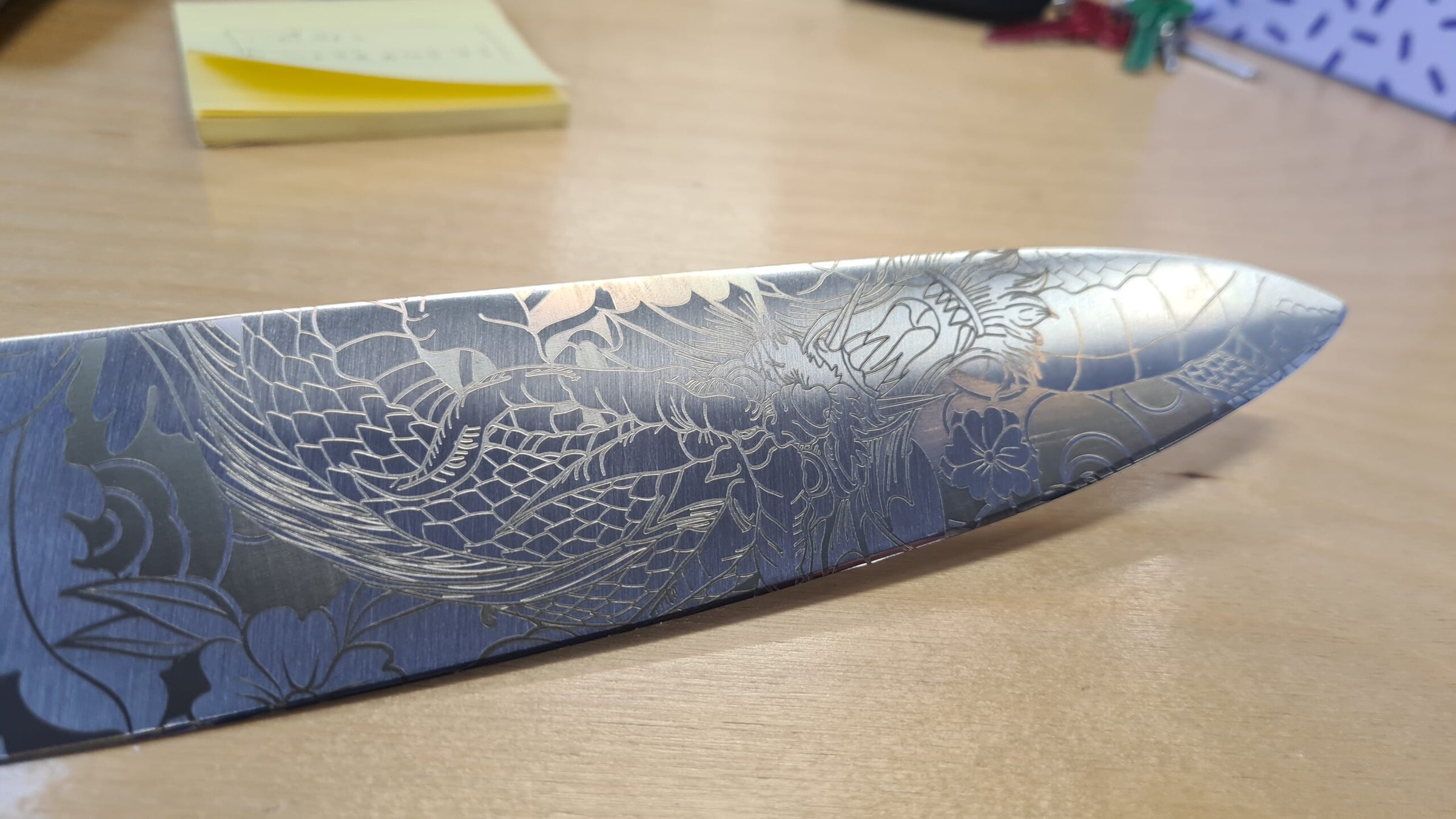

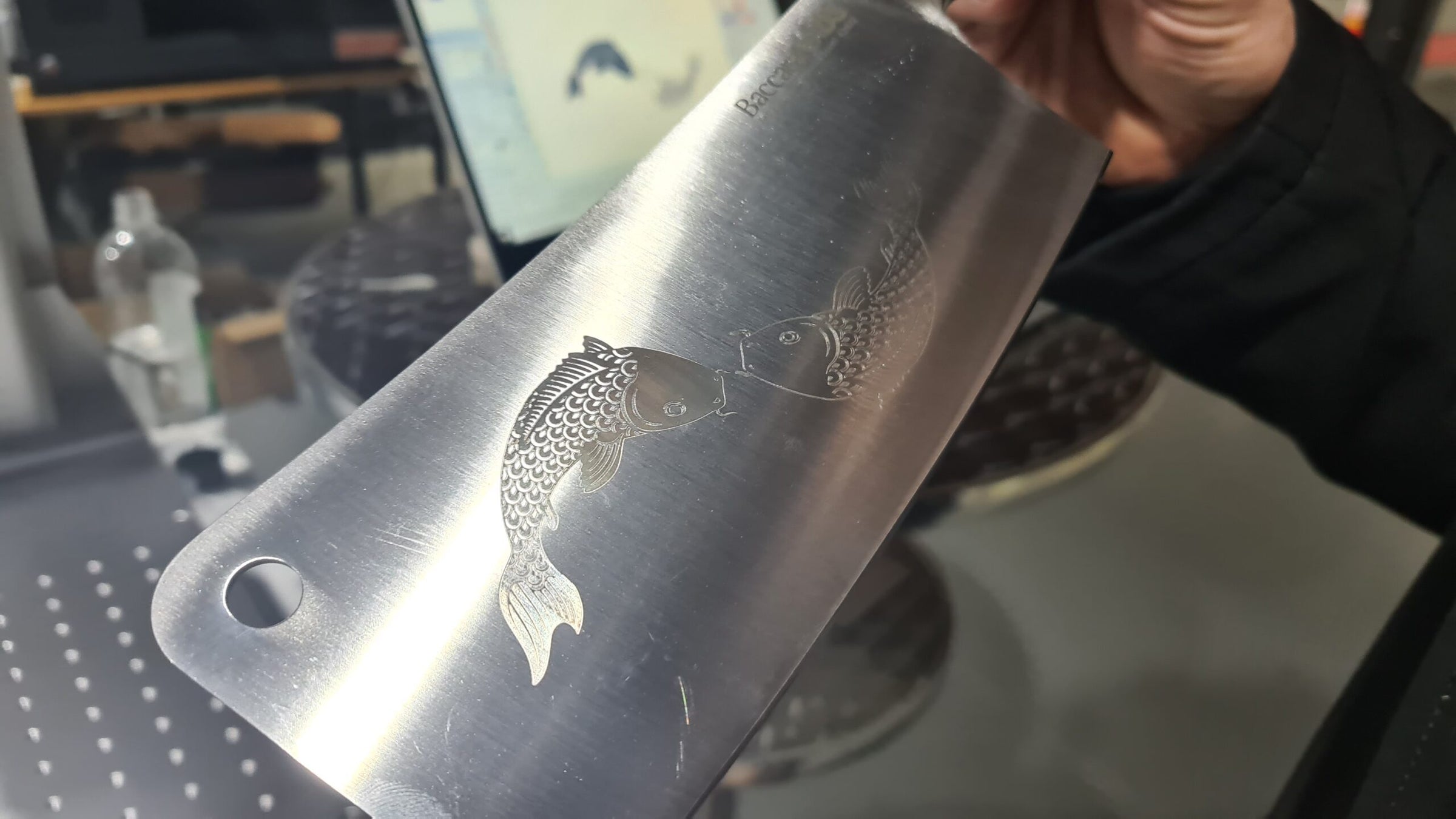

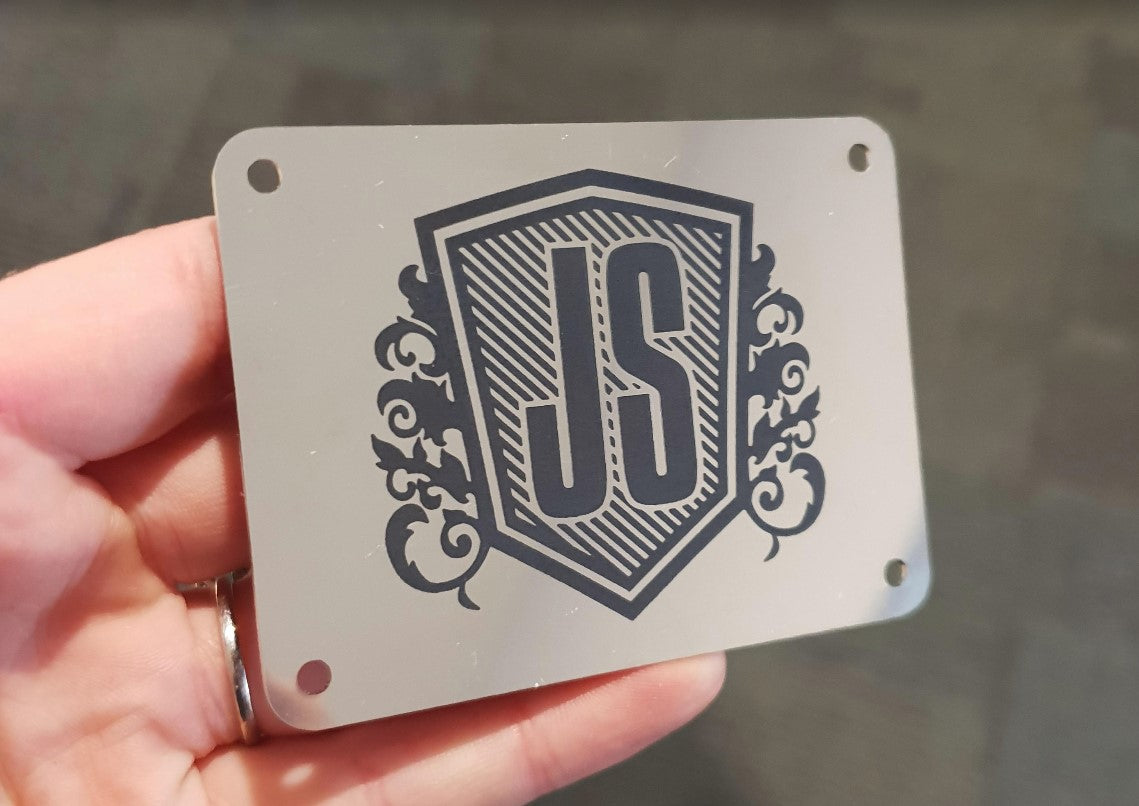

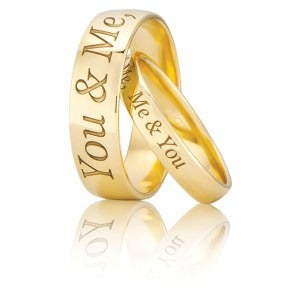

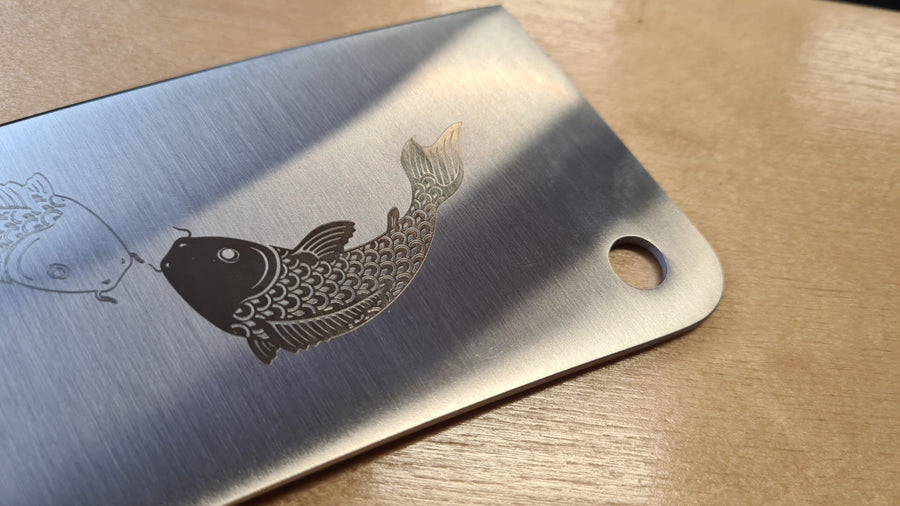

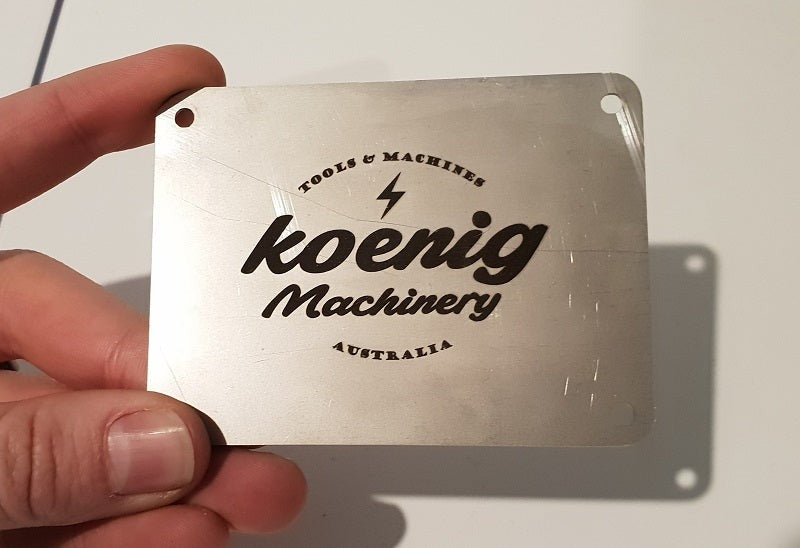

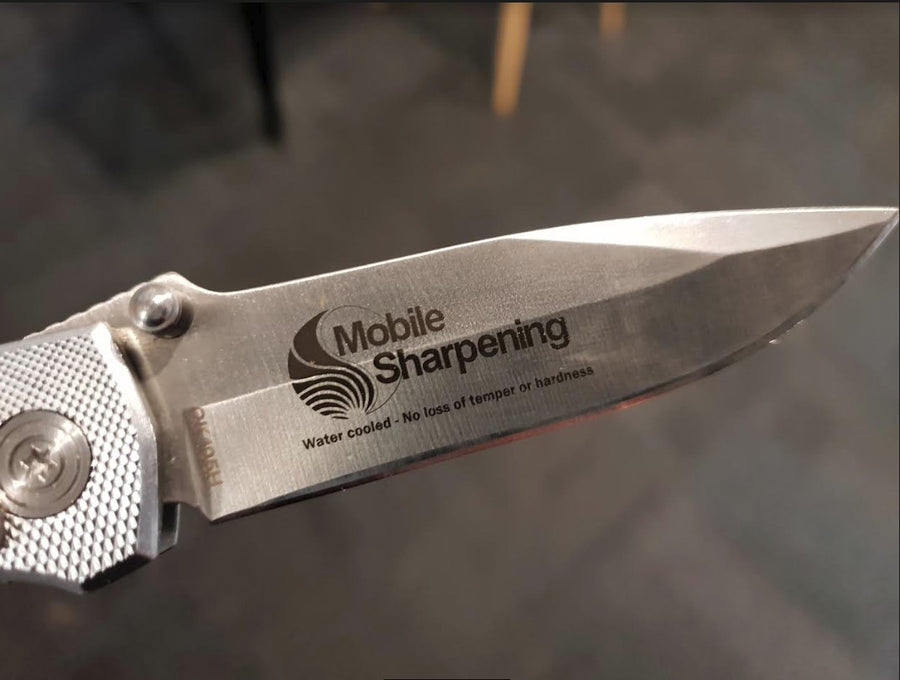

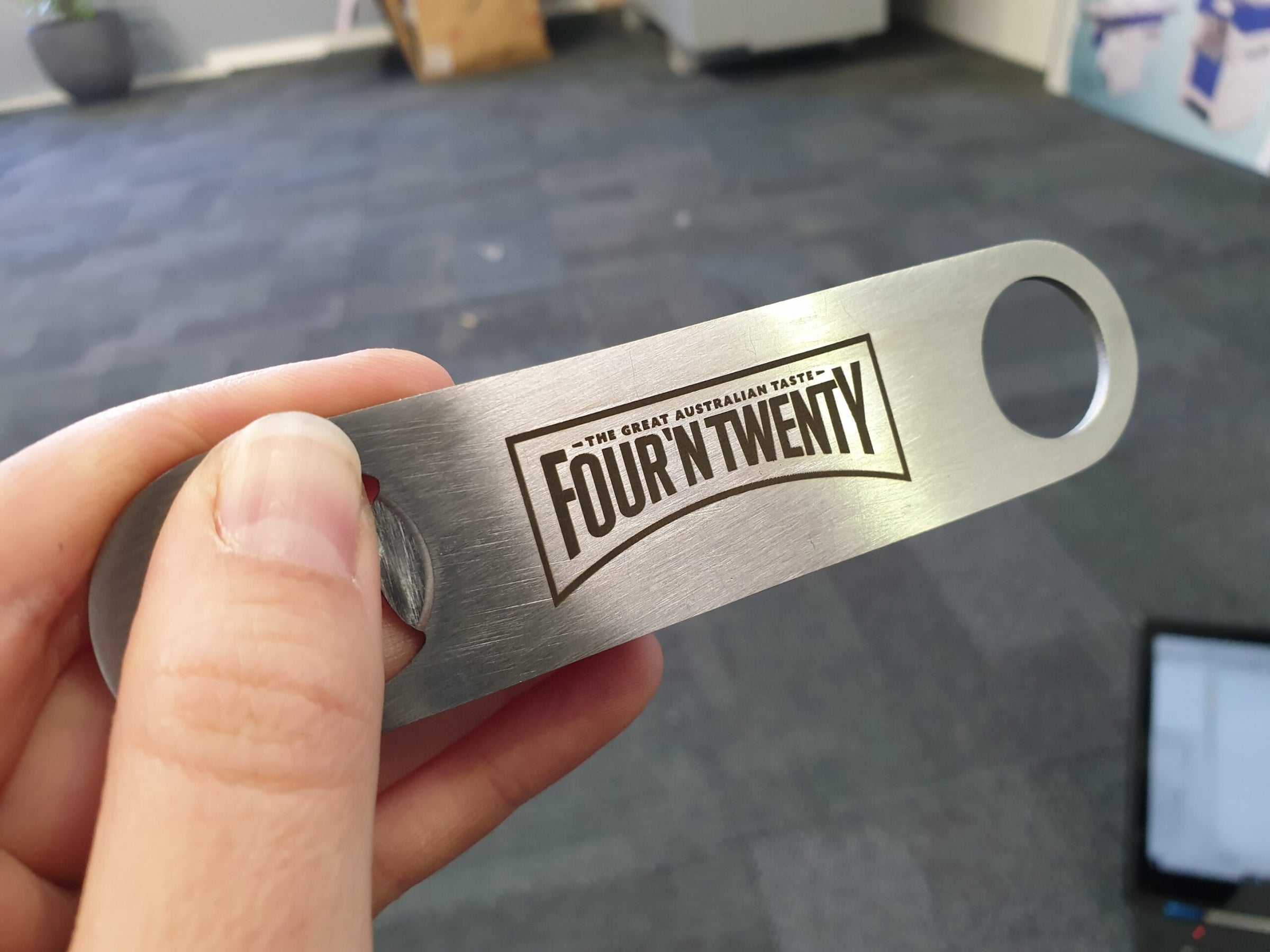

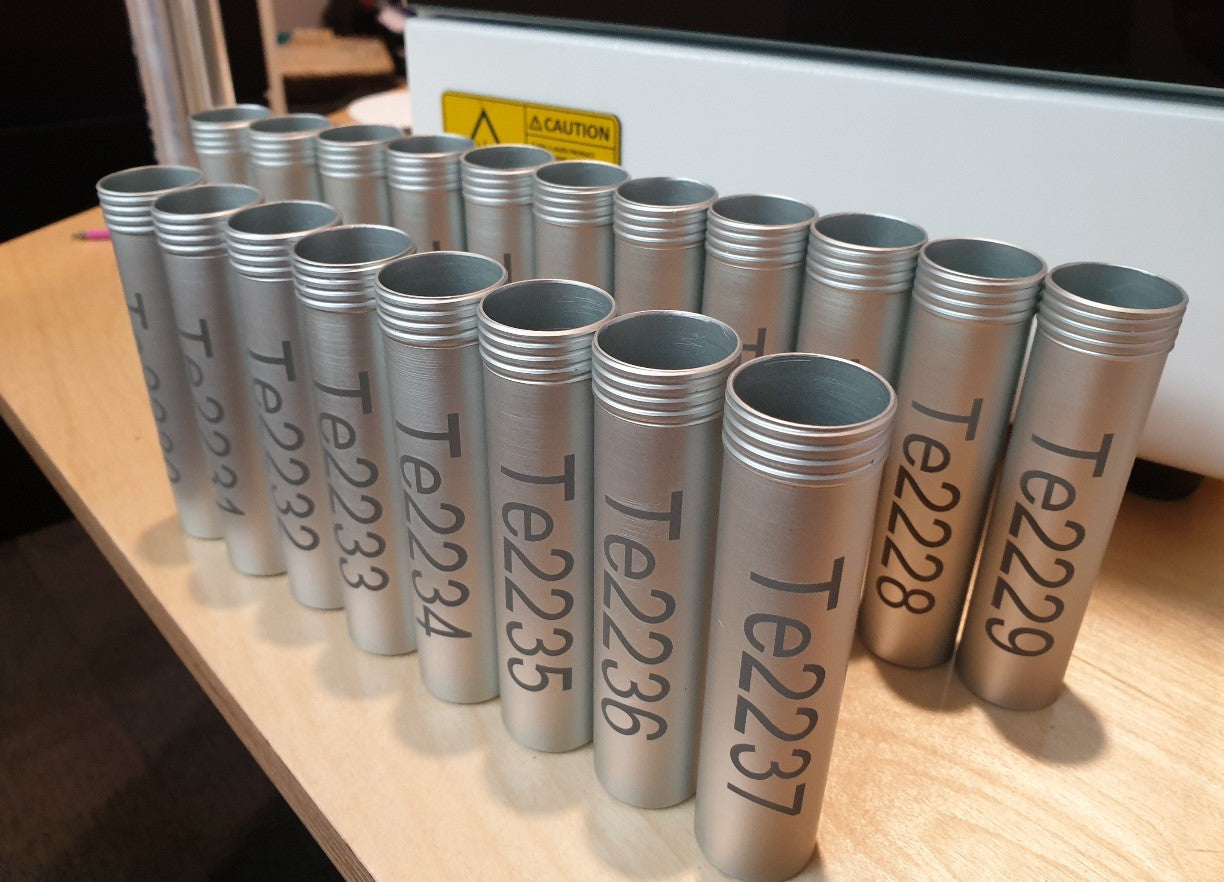

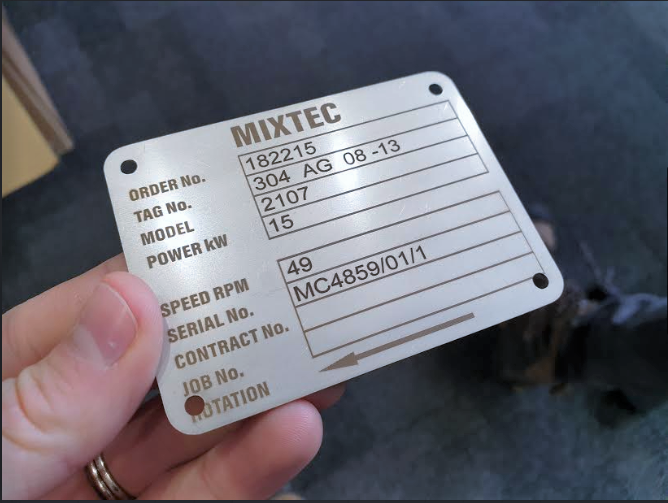

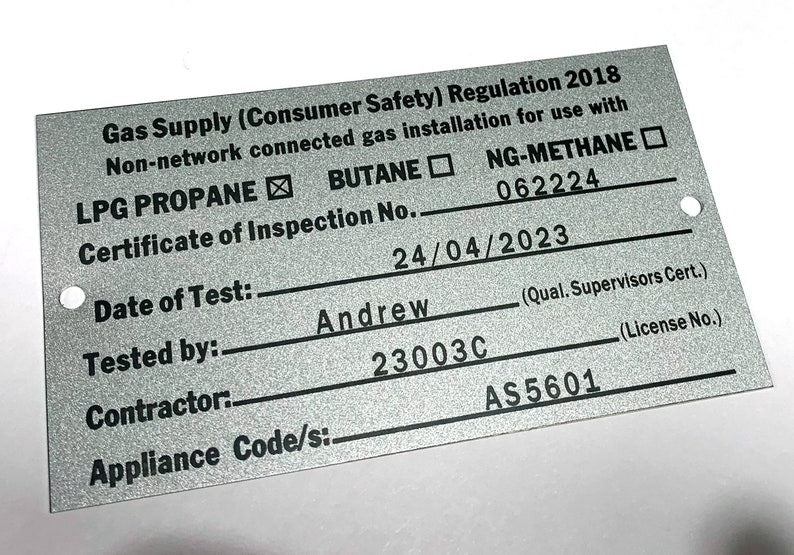

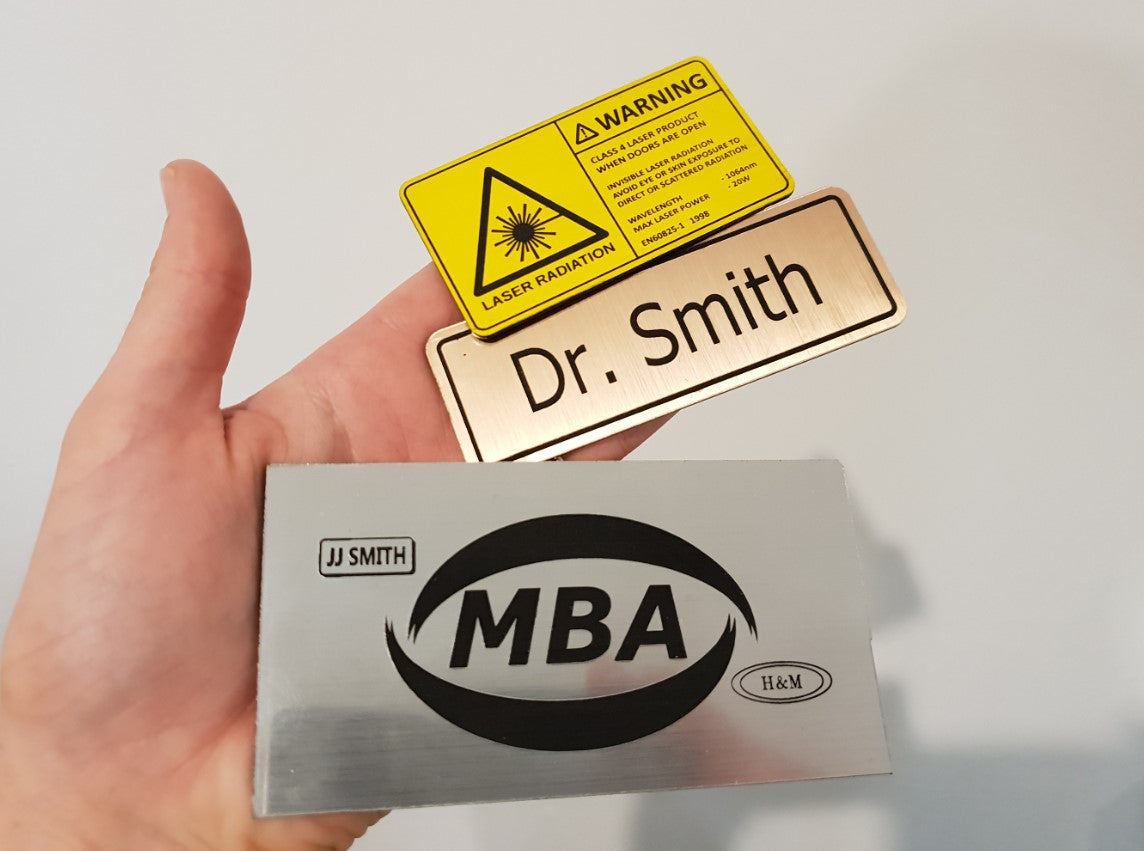

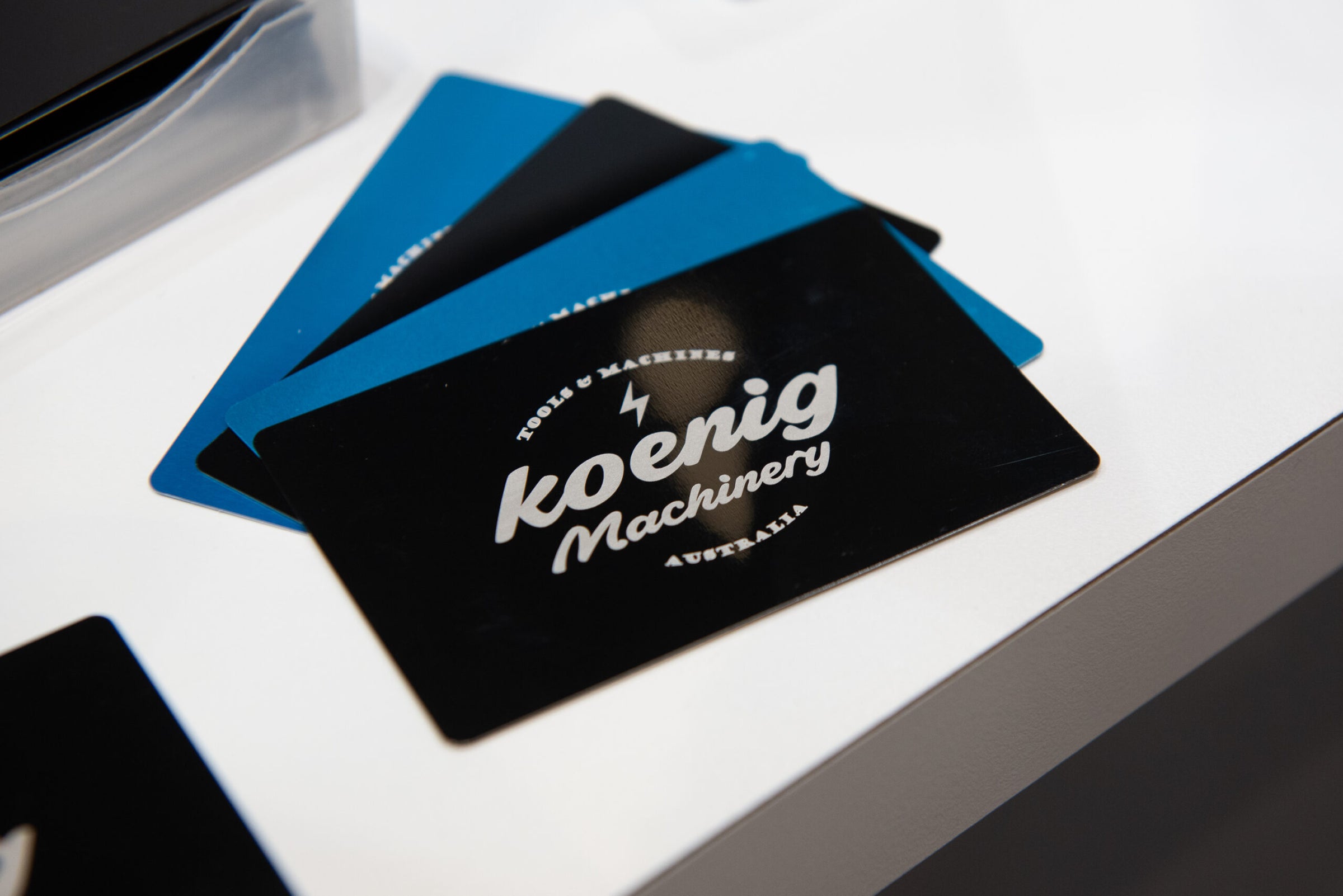

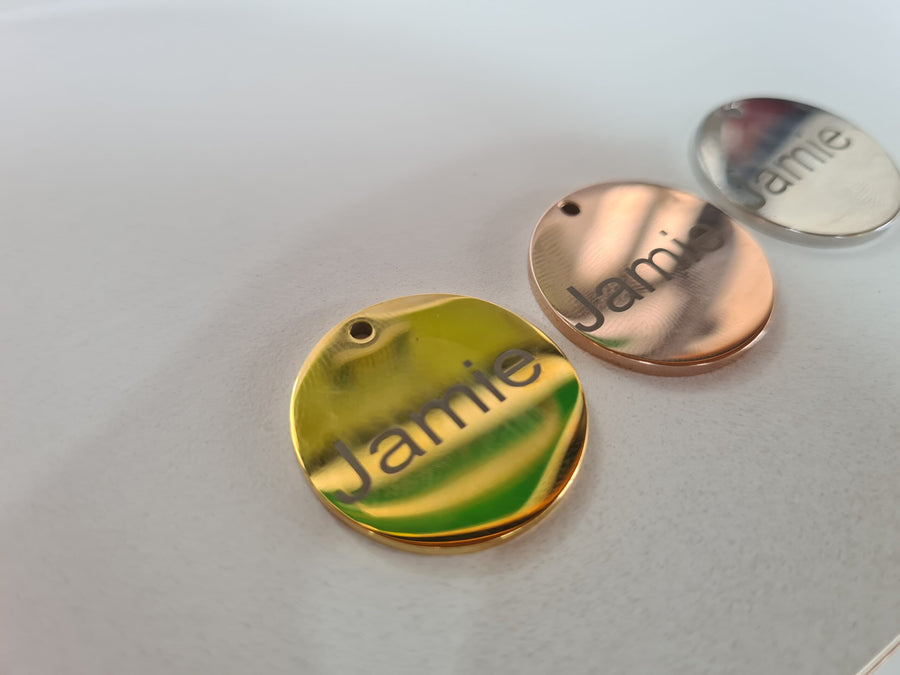

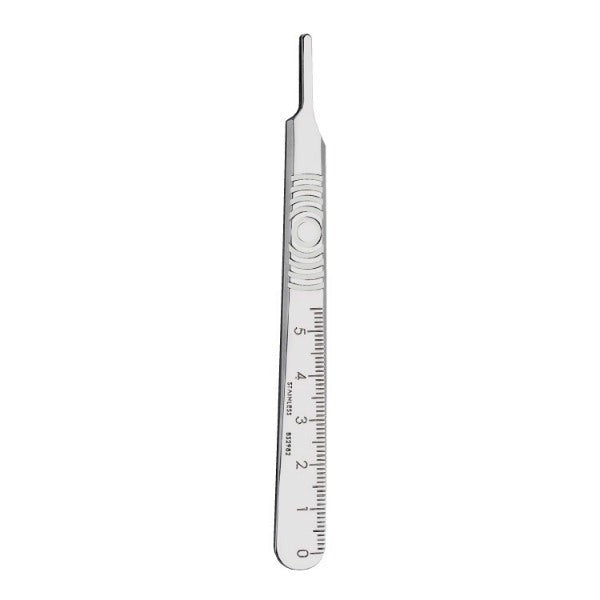

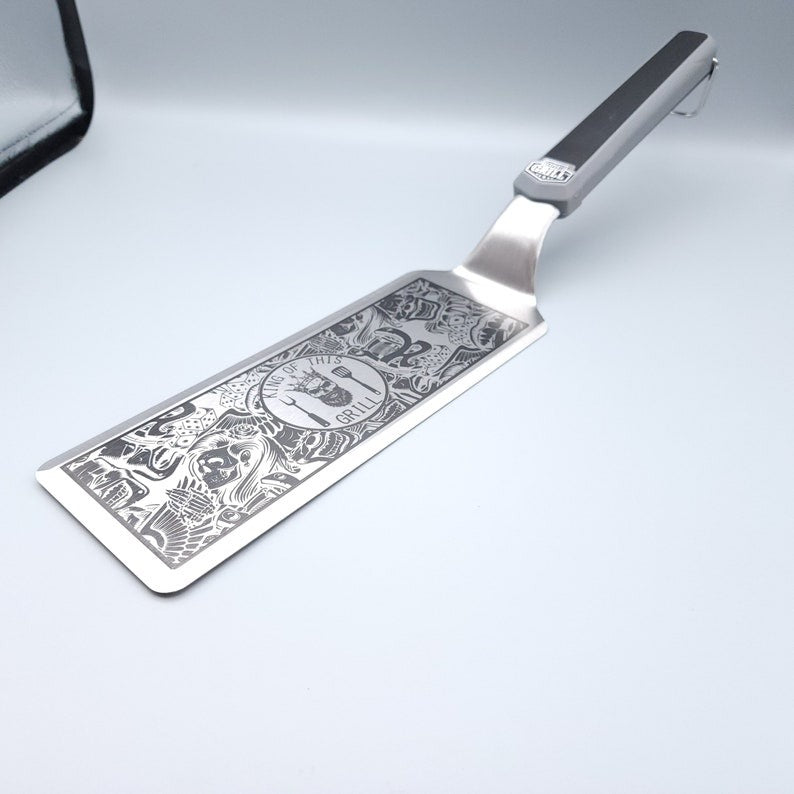

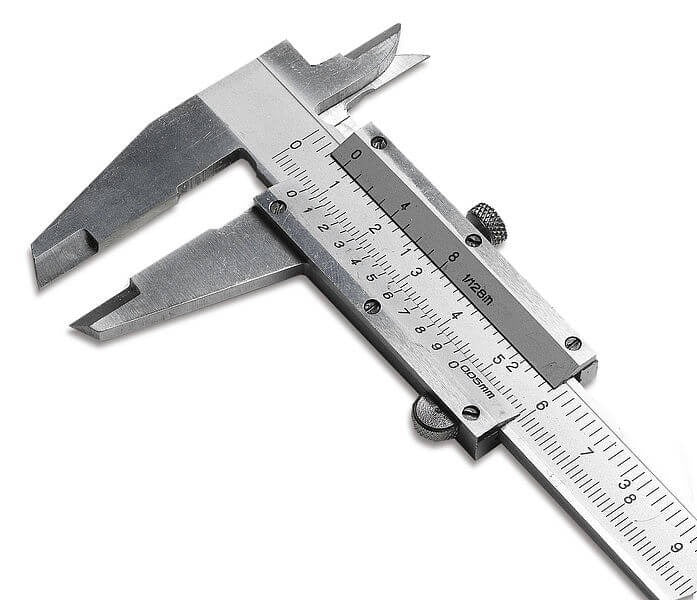

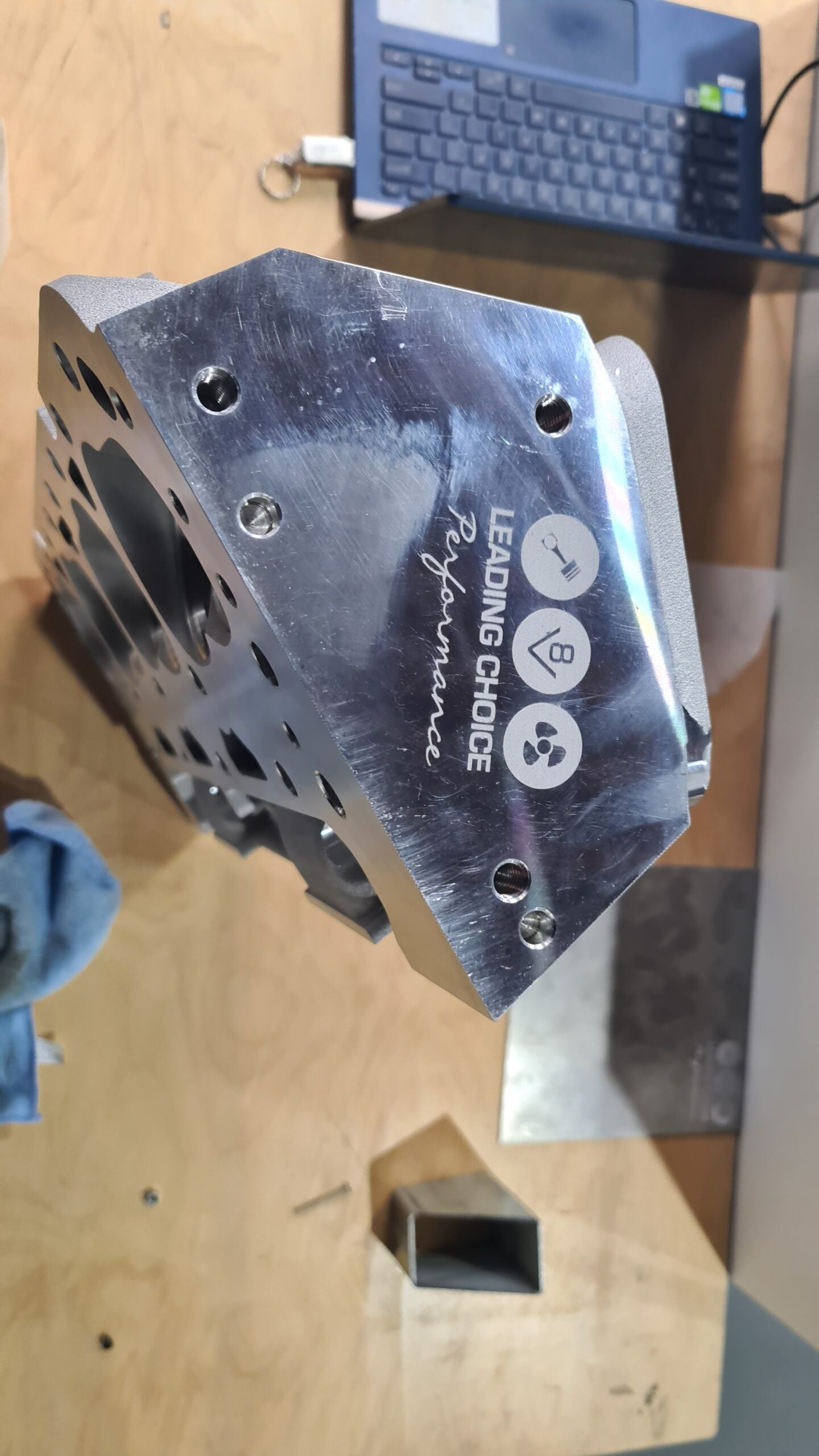

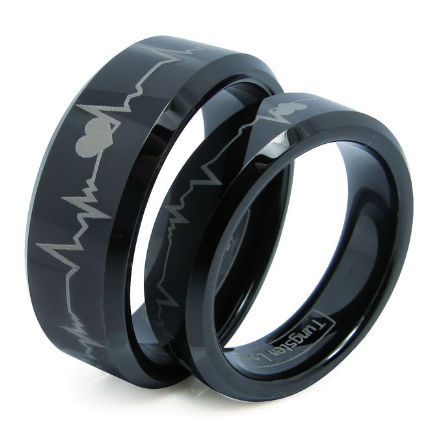

Suitable for marking metals and most plastics, the FMO range delivers consistent, high-speed results with exceptional precision.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 20W / 30W / 50W |
| Safety Class | Open Class 4 fiber marking machine, Class 1 enclosure optional |
| Marking Area | 200 × 200mm standard (300 × 300mm available) |
| Max Marking Height | 180mm (40mm with 300 × 300mm lens, 400mm with 100 × 100mm lens) |
| Max Bed Weight Limit | 50kg |
| Laser Wavelength | 1064nm |
| Minimum Line Width | 0.02mm |
| Minimum Character Size | 0.15 × 0.15mm |
| Max Engraving Speed | 7000mm/s |
| Repeatability Accuracy | ±0.01mm |
| Re-positioning Accuracy | 0.02mm |
| Control Software | EZcad included, LightBurn compatible (optional extra) |
| Machine Dimensions (No Enclosure) | 350 x 700 × 860mm |
| Machine Dimensions (With Enclosure) | 380 x 840 × 865mm |
| Package Dimensions / Weight | 410 × 900 × 910mm — Net weight: 40kg, Gross weight: 50kg |
Brochure
Brochure Koenig Machinery FiberMarker K20FMO
KOENIG K20FMO
$11,495.00
We are committed to delivering your products to your premises as safely as possible. Our service delivers Australia-wide and is dedicated to meeting a variety of shipping needs.
Shipping is calculated based on your location and the weight of the item/s you have chosen to purchase.
Shipping is calculated at checkout, machines are shipped by standard feight. In regards to larger Fiber lasers a member of the Koenig Machinery Service team will contact you to arrange shipping logistics.
Laser Materials
Standard Click and Collect:
We can have your orders processed for next day pick up.
Express Click and Collect:
If ordered before llam, we will have your materials ready that day for pickup.
Opt for click and collect at checkout.
Co2 Laser Machine Warranty
All Co2 Machines come with a standard 1 year warranty as required by our local Australian Consumer Protection Law.
Co2 Machine Warranty – 1 year – excluding consumables.
Co2 Laser Tube Warranty – 9 months.
*40watt tubes and below – 6 months
*Yongli Tubes – 1 year
Fiber Laser Machine Warranty
All Fiber Laser Machines come with a standard 1 year warranty as required by our local Australian Consumer
Protection Law.
Fiber Machine Warranty – 1 year – excluding consumables.
Fiber Power Source Warranty – 2 years
After sales warranty of Laser Machines
Call out service Co2 and fiber lasers – included for the first year given there is a machine fault.
Service fees will be charged at an hourly service rate if there is a user fault. Depending on location and
machine type, shipping back to the nearest Koenig office for service and repair might be used as it can be
more efficient and cost effective.
Phone and email technical support as deemed reasonable is free and included for the life of your machine.
NOTE: The warranty does not include consumable parts, such as mirrors, lenses belts, gas
fitting, nozzles and bearings.
Extended Warranties
Koenig as a policy does not offer extended warranties on machines, we see extended warranties such as on parts, excluding labour as exploitative to the end user and we prefer to be honest and fair in regards to service costs and service related parts. Extended warranties are profitable for companies but we see them as junk insurance to exploit the buyer ergo the customer.
If your is faulty or damaged upon arrival please contact us directly. We will either organise a refund or ship you a replacement.
If it’s determined that the material was damaged on your behalf, you will not qualify for a refund or replacement.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
We accept payments with:
Visa, MasterCard, American Express, Paypal, and more.
At Koenig machinery we pride ourselves on the quality of our after sales and service support. We offer ongoing free phone call and email support for the life of your machine.
Our aim is to arm you with as much information and support to ensure you feel comfortable in using your machine to its productive capacity. Leaving you only with creative, design and business required to ensure your own success.
We have several finance options that we can offer and we are happy to work with your existing financial brokers. Give us a call today for more information and pricing options. Finance on larger machines is a great option for tax and cash flow benefits. Speak to a finance broker or your accountant to see what terms you can achieve and what makes sense for your machine and business plan.
We at Koenig Machinery are hesitant to offer the buy now pay later finance options for materials due to the inherent debt trap it has the potential to create for small or start up businesses.
Set up and training does depend on your machine type and location. Depending on your own skill set and
ability to absorb our training material we have several options for you.
You can have one of our highly trained technicians to install your machine at your premises Australia wide.
However, if you’re rural and want to look at setting up the machine yourself, we have videos and guides to assist
you with the installation process.
