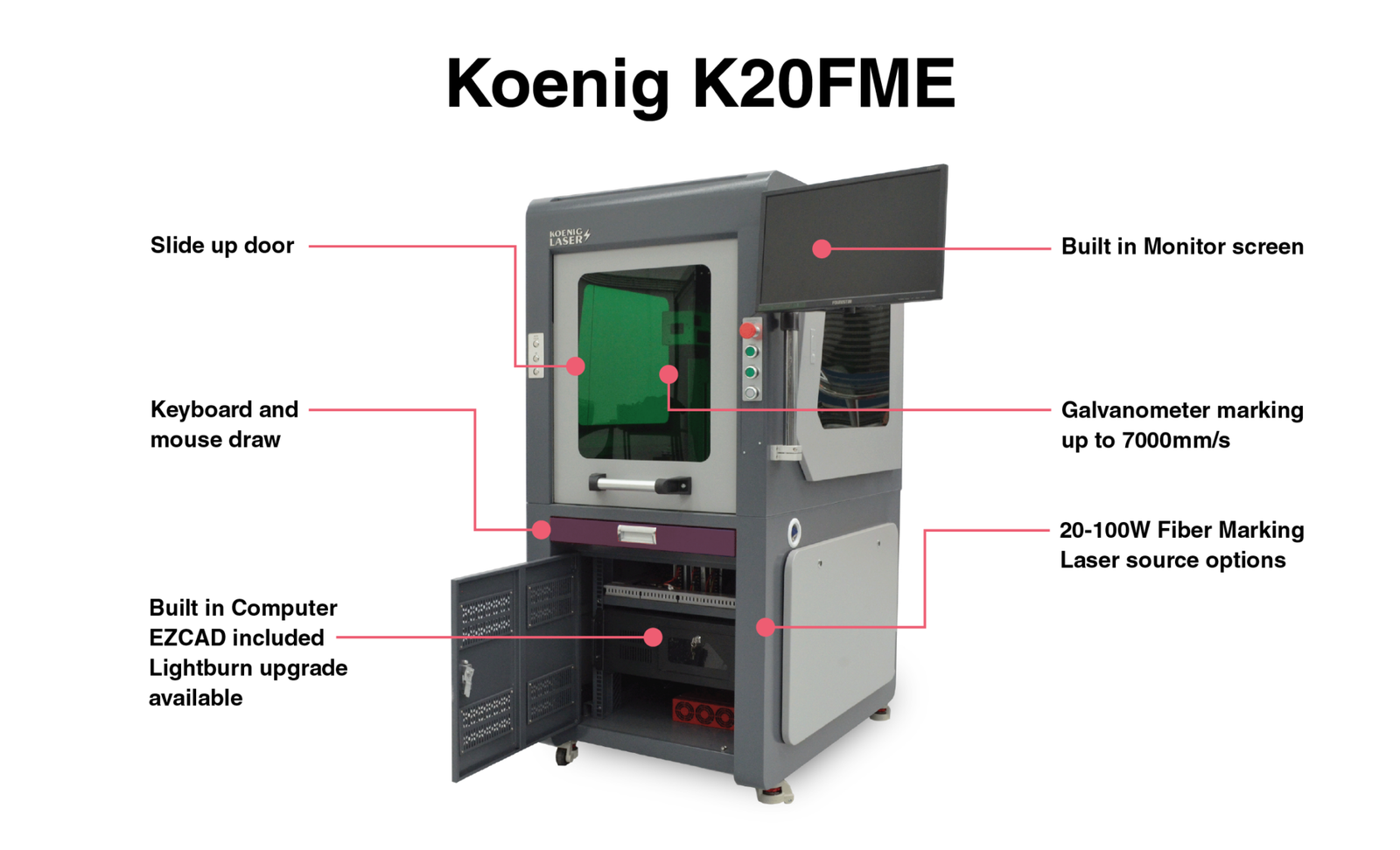

KOENIG K20FME
$14,500.00
*ex GSTThe Koenig FME fiber marking machine comes in a new heavy-duty frame, to withstand the busy and hectic factory floor. With 20-100W power options, Mark onto any metal surface at high speed with minute precision and no need for expensive marking agents. Adaptable and easy to use, quiet and convenient with little to no set-up required. With a CE safety enclosed huge 300x300mm marking area, this machine to be run safely in an office or factory environment, marking onto metals and most plastics with extreme precision and speed.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 20W / 30W / 50W / 80W / 100W |
| Safety Class | Class 1 enclosure |
| Marking area | 300 x 300mm marking area |
| Max Marking Height | 280mm |
| Max Bed Weight Limit | 100kg |
| Laser wavelength | 1064nm |
| Minimum line width | 0.02mm |
| Minimum character | 0.15 x 0.15mm |
| Max engraving line speed | 7000mm/s |
| Repeatability accuracy | ±0.01 mm |
| Re-positioning accuracy | 0.02mm |
| Controlling Software | EZcad software provided, Lightburn software compatible |
| Graphic Format Supported | Graphics files – Ai, DXF, PLT, Gerber, etc. G code – MaterCam, Type3, Wentai etc. |
| Compatible Software partners | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Auxiliary Equipment | Inbuilt PC, monitor, keyboard draw, keyboard and mouse included, Inbuilt electrical cooling system |
| Power Supply | AC 230V ~50Hz |
| Working Environment | Temperature:0-45C, Humidity 5-95%(No Condensate Water) |
| Options | Chuck rotary device, air filtration unit |
| Machine Footprint | 760(W)*1010(D)*1630(H)mm |
| Weight | 250kg |
| Package Dimensions | 1200(W)*1100(D)*1780(H)mm |
| Gross weight (in packaging) | 270kg |
Brochure
Brochure Koenig Machinery FiberMarkers K20FME
