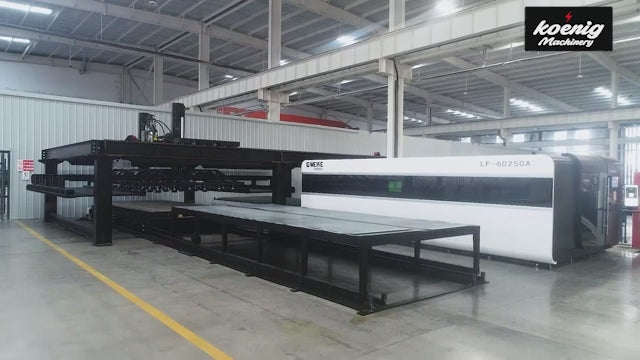

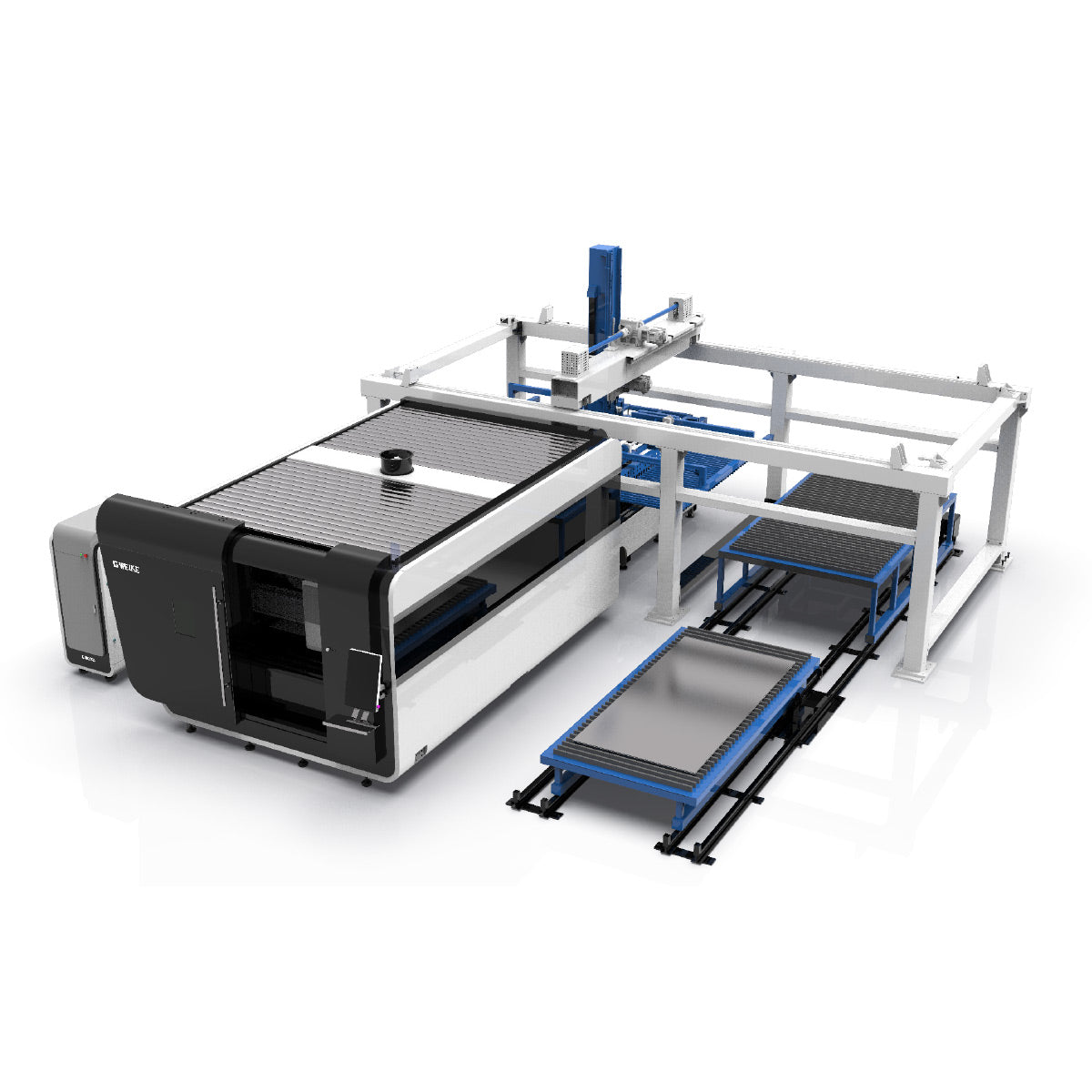

Automatic Loading & Unloading System for Fiber Laser Cutting Machines
Built for high-volume sheet metal processing, the GAS Automatic Loading & Unloading System adds intelligent automated sheet handling to Koenig fibre laser cutting machines. Whether you're investing in a complete new system or automating a compatible Koenig fiber laser previously purchased from us, our team can configure the right fibre laser and GAS automation solution around your sheet size, material, cutting requirements and production volume.

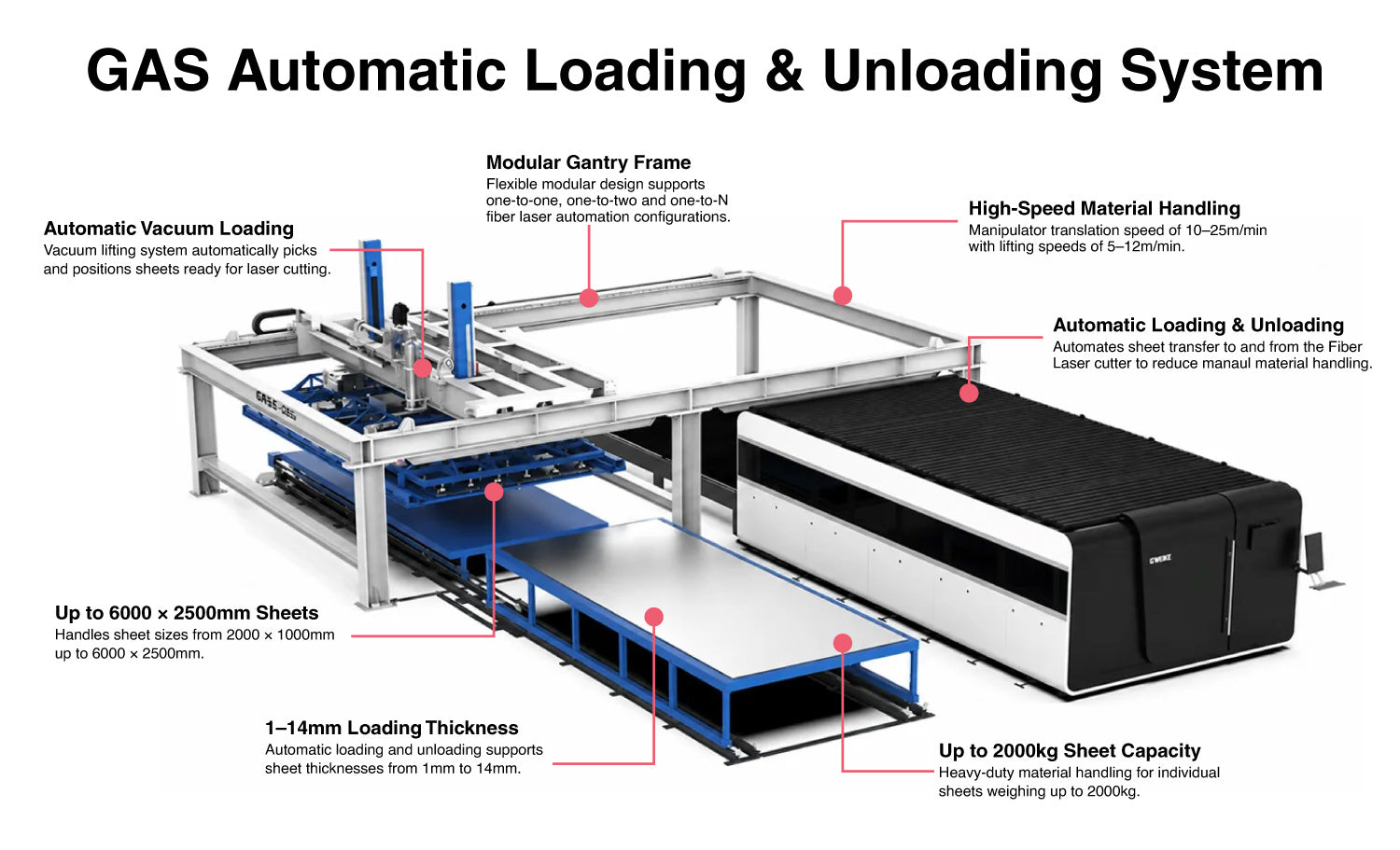

The GAS automatically loads sheet metal onto the cutting bed and unloads processed sheets, reducing manual handling and operator requirements while increasing production throughput. Vacuum loading, intelligent single-sheet detection and scratch-free material handling help provide reliable and efficient sheet movement throughout production.

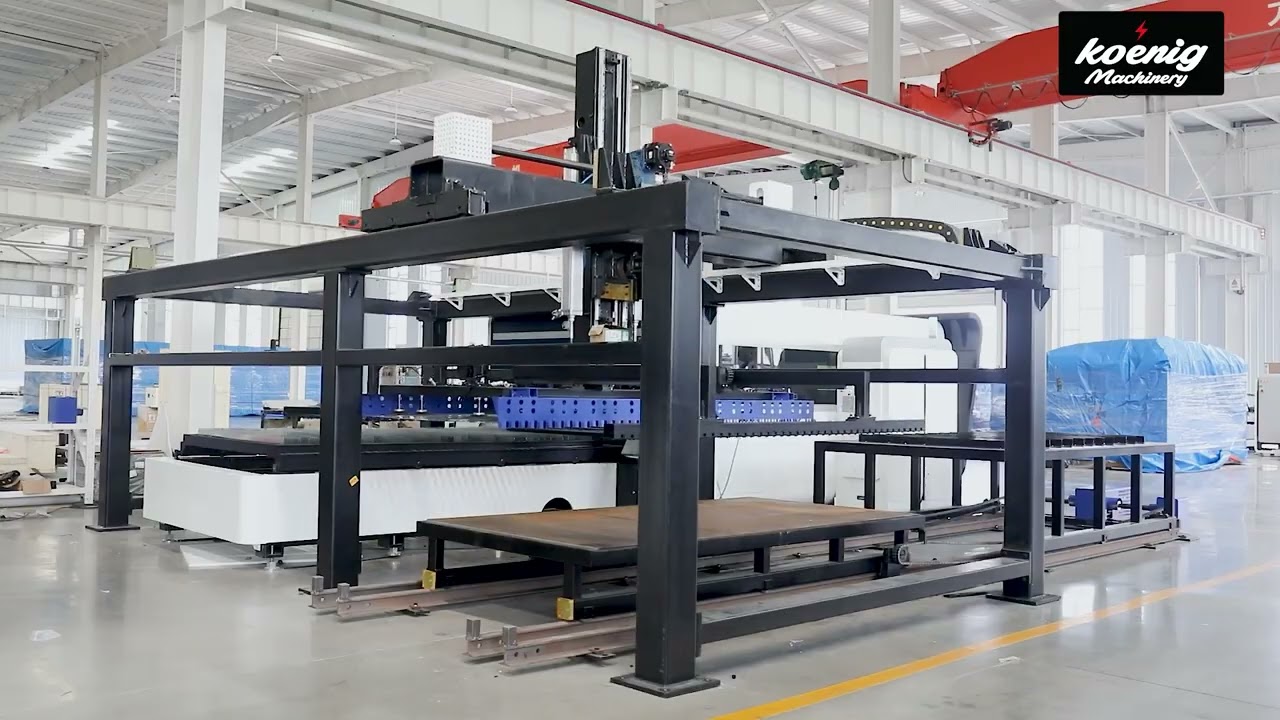

The modular gantry design can support single or multiple Koenig fiber laser cutting machines, providing a scalable automation solution that can grow with your production requirements.
Ideal for sheet metal fabrication, manufacturing and high-volume metal processing, the GAS provides a complete fibre laser loading and unloading automation solution for businesses looking to increase cutting capacity, reduce manual sheet handling and improve production efficiency.
Please note: The GAS is not a standalone fiber laser cutter. It can be supplied with a new Koenig fibre laser or integrated with compatible Koenig fiber laser machines previously purchased from us, subject to machine compatibility.
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Maximum loading plate size | 6000*2500mm |
| Minimum loading plate size | 2000*1000mm |
| Maximum loading and unloading plate thickness | 14mm |
| Minimum loading and unloading plate thickness | 1mm |
| Maximum loading and unloading plate weight | 2000kg |
| Single-layer loading weight of exchange trolley | 5T |
| Single-layer loading height of exchange trolley | 50mm |
| Manipulator translation speed | 10-25m/min |
| Manipulator lifting speed | 5-12m/min |
| Electric trolley exchange speed | 12m/min |
| Working cycle time | 280S |
| Equipment power | 43KW |
| Total system weight | 17000KG |
| Equipment air inlet pipe | 16mm |
| Equipment air source | 0.6-0.7Mpa |
| Power requirements | 380V / 50HZ |
Automatic Loading & Unloading System for Fiber Laser Cutting Machines
$500,000.00
