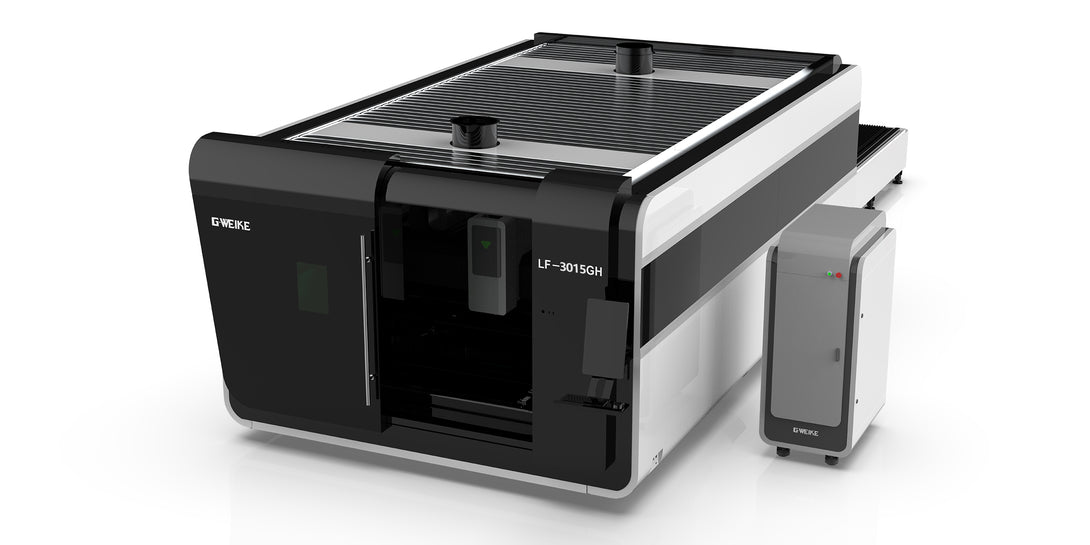

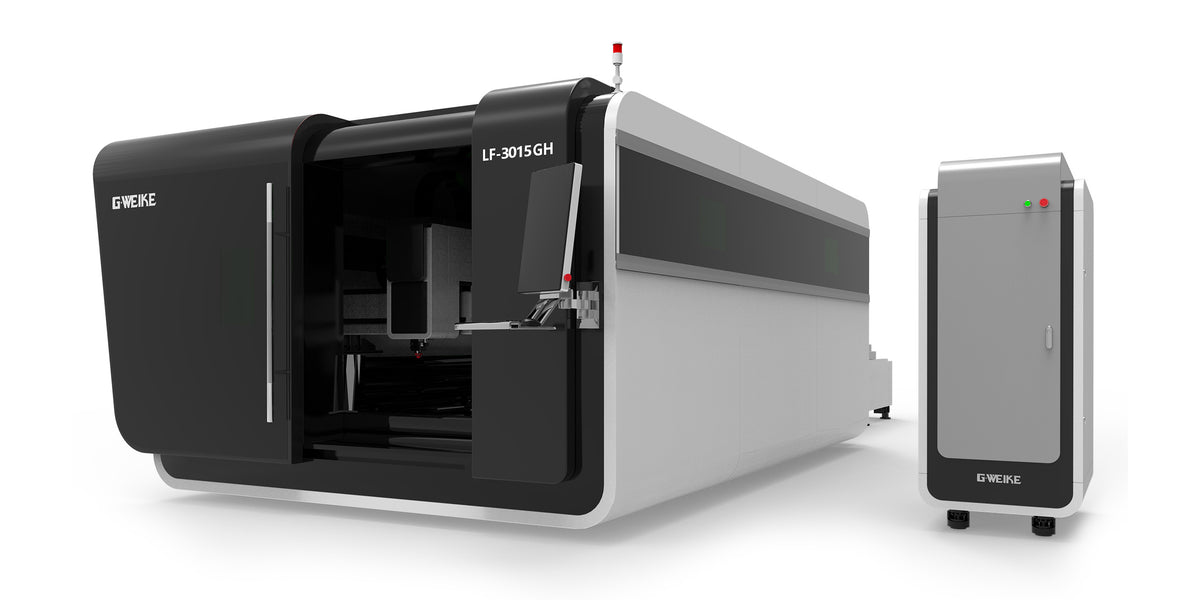

Gweike LF3015GH Heavy Industrial Fiber Laser
$153,500.00

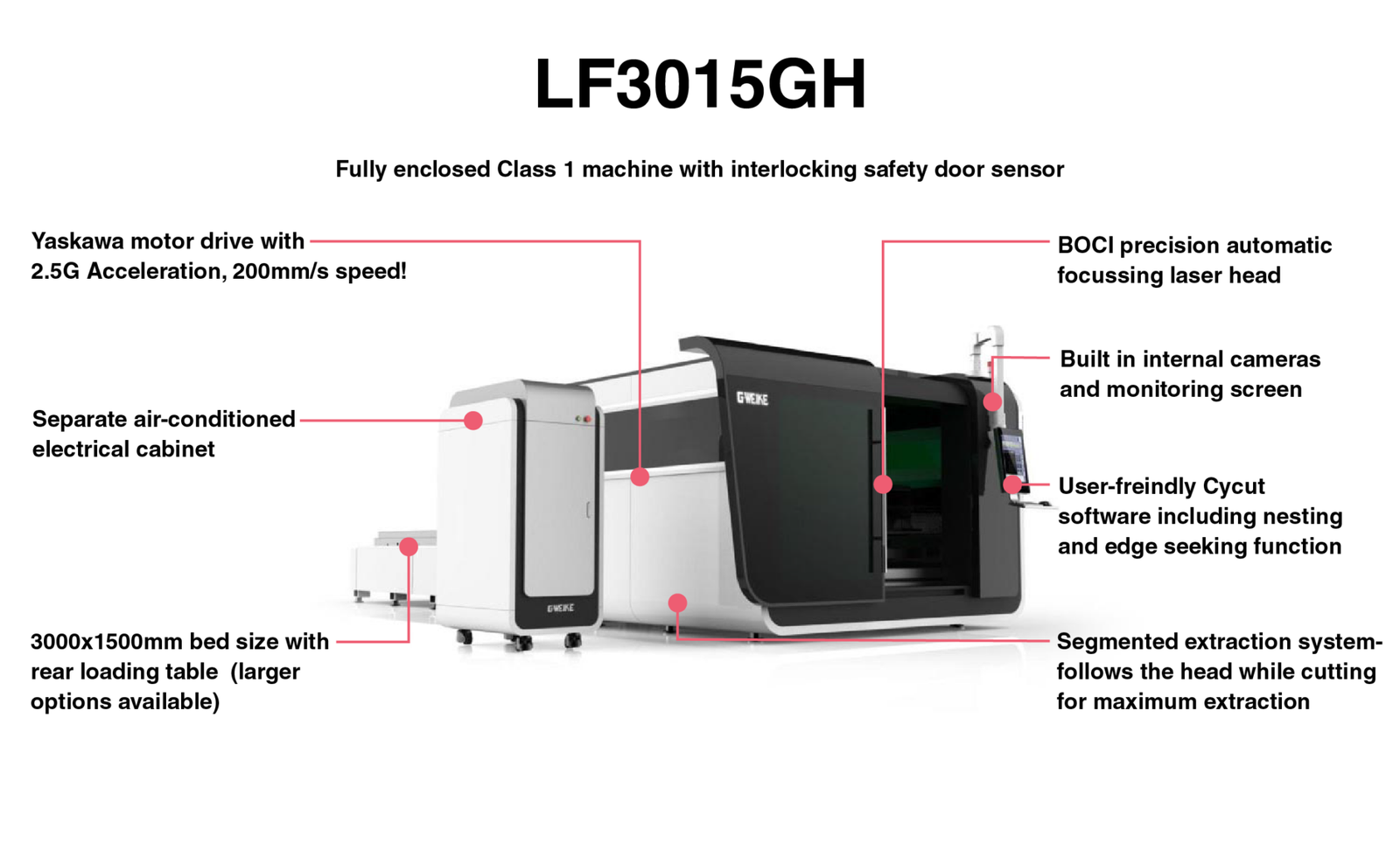

*ex GSTThe LF3015GH is our Heavy Manufacturing Fiber laser cutting machine, with solid plate welded chassis and our largest available motor set, for a huge 2.5G acceleration and 200m/min moving speed. Beat the competition on production time, shorten your customer lead times and cut thicker than you ever have before. Cut up to 25mm Mild Steel with 6kW, 40mm with 12kW or 90mm with 20kW power! See our options page for automatic loading and unloading solutions.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 6kW, 8kW, 12kW, 15kW, 20kW |
| Bed size | 3000 x 1500mm (6000x1500 or 6000x2000 and 6000x2500mm available) |
| Laser source type | MAX, Raycus or IPG |
| Machine Dimensions | 8937*2968*2298mm |
| Laser Head Type | Automatic focussing laser head 6kW = BOCI BLT441 8kW+ = BOCI BLT642H |
| Cooling Type | Industrial Water Cooling |
| Cutting Speed | 200m/min |
| Acceleration | 2.5G |
| Laser Output Control | 0-100% set by software |
| Drive method | YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive |
| Motor power | X axis = 1800W, Y axis = 4400W, Z axis =750W |
| Positioning Accuracy | 0.02 mm |
| Re-positioning accuracy | 0.02mm |
| Minimum line width | 0.1mm |
| Controlling Software | Hypcut 8000S, including production nesting, edge seeking, automatic crash protection, cloud control and live reporting |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |

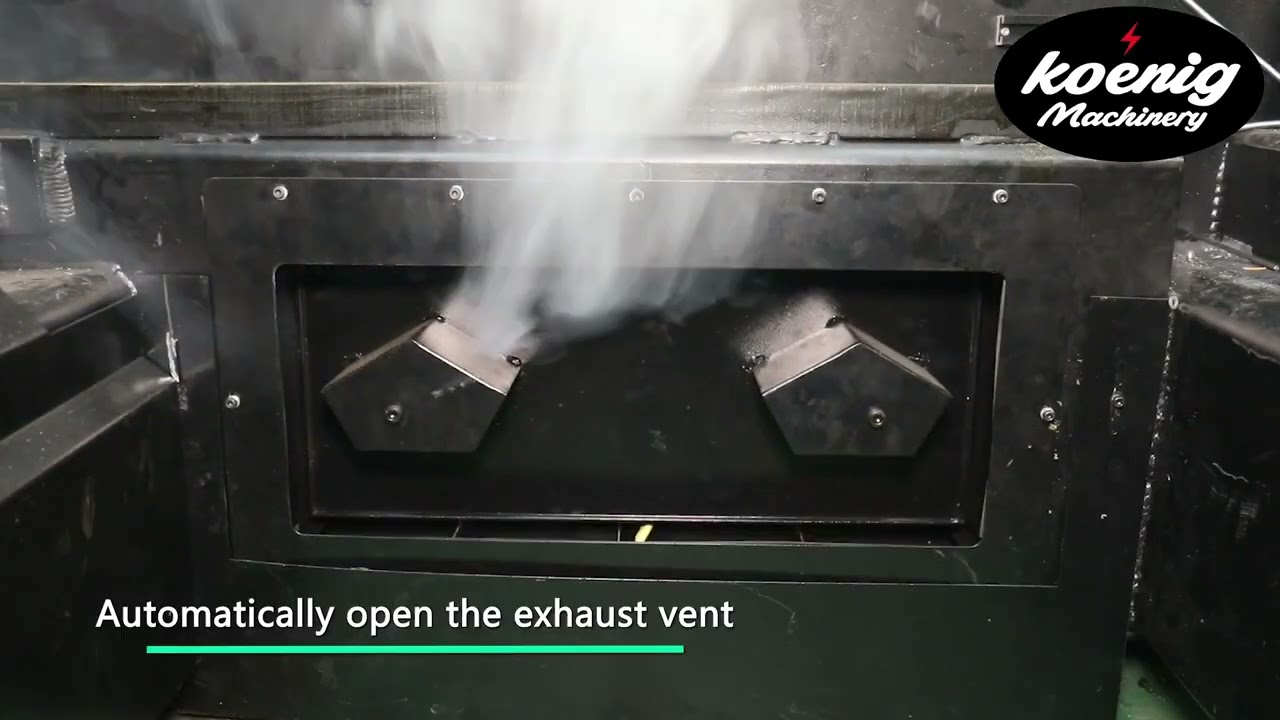

| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit |
| Power Supply | 6kW = 415V 50Hz 63amp 8kW = 415V 50Hz 80amp 12kW = 415V 50Hz 100amp 15kW = 415V 50Hz 120amp 20kW = 415V 50Hz 150amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
