LF3015GAR 3kW Fiber Laser – Sheet & Tube Combo Showroom Special
**Finance from $4,100/month over 48 months**

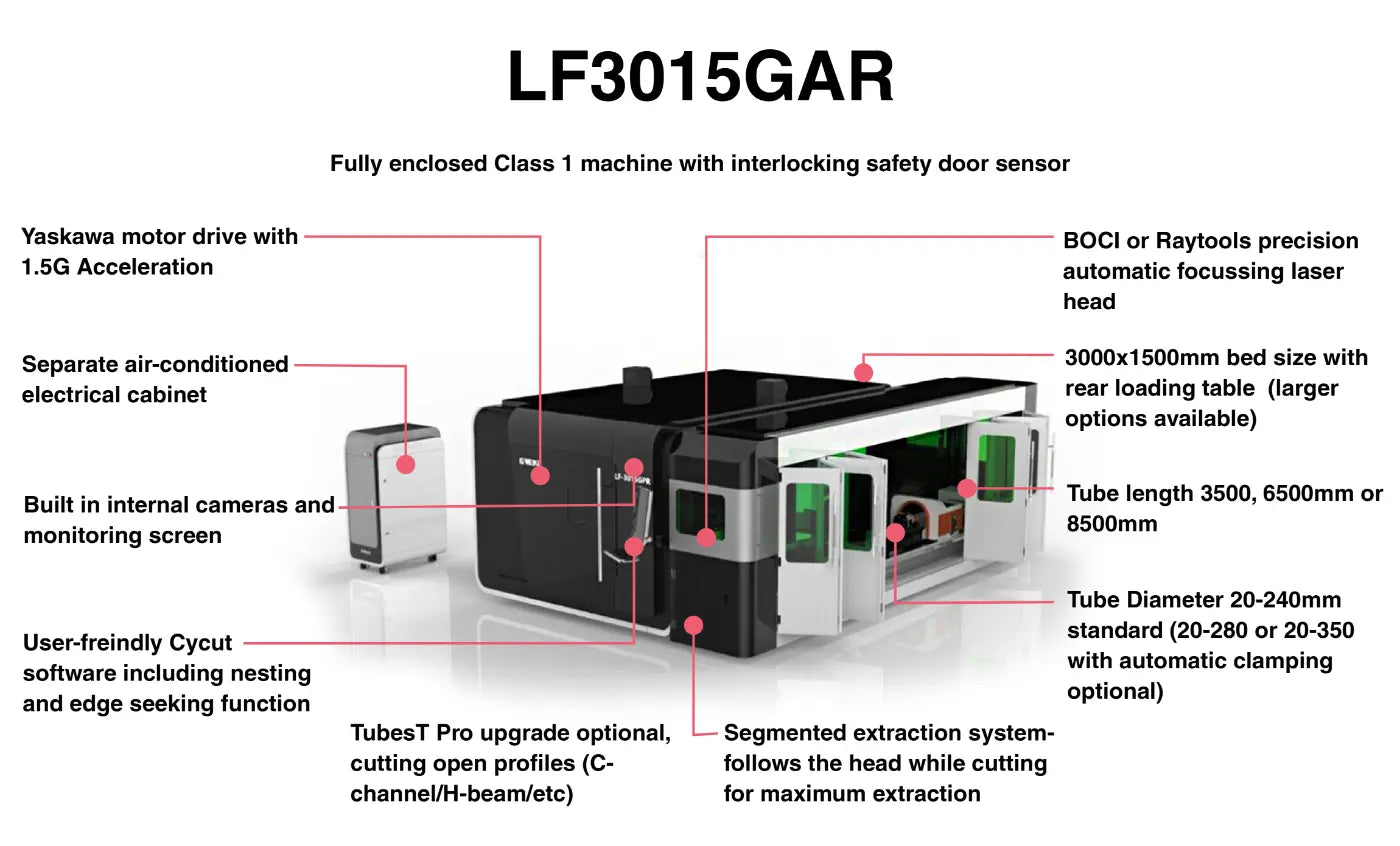

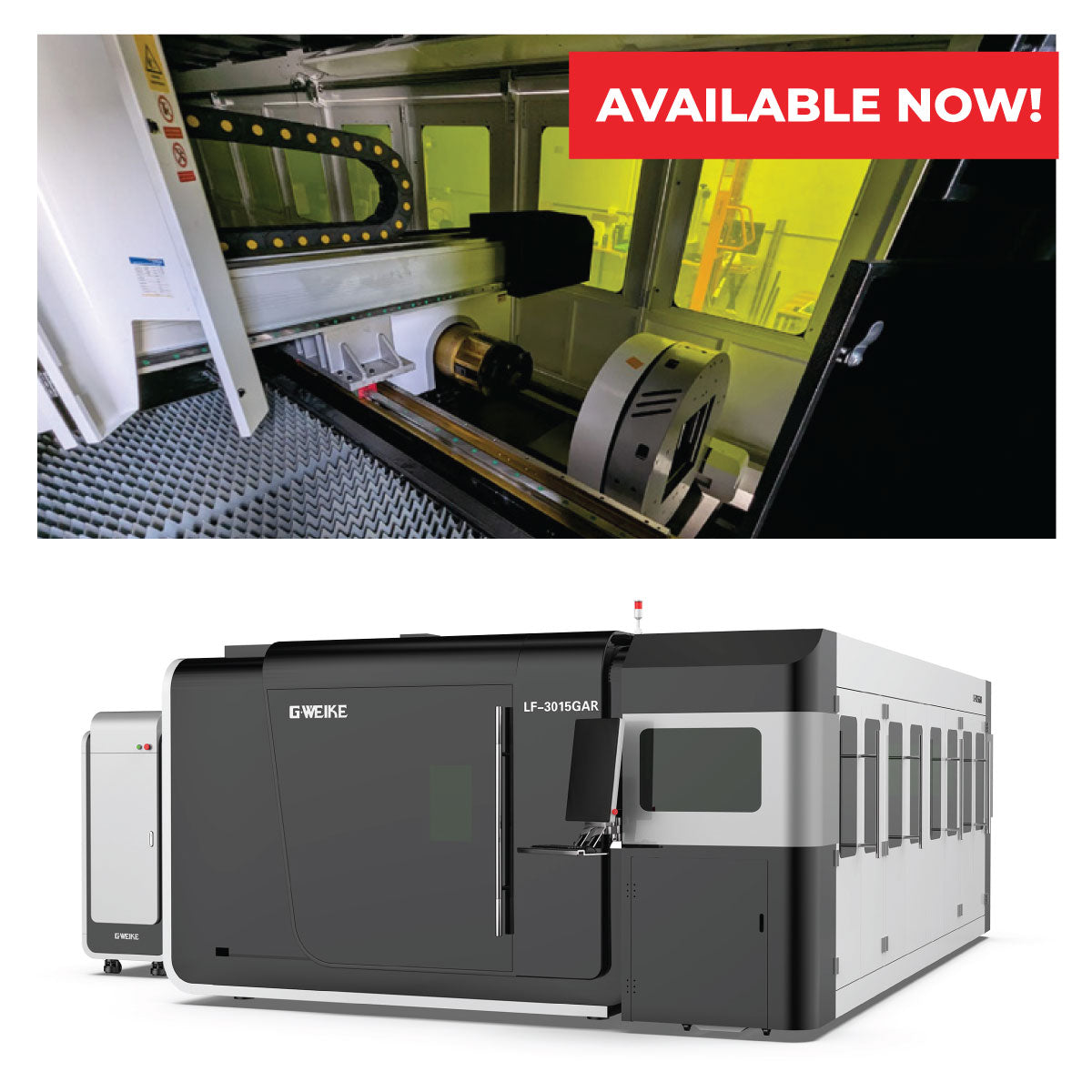

This fully enclosed 3kW Fiber Laser combines 3000mm × 1500mm sheet cutting with integrated tube cutting capability — giving you true fabrication flexibility in one machine.

Sheet Cutting
  • 3000 × 1500mm bed
  • Dual exchange tables
  • Cuts up to 20mm mild steel
  • Cuts up to 10mm aluminium

Tube Cutting
  • 20–350mm chuck options
  • Tube length up to 6.5m
  • Round, square & RHS profiles
  • Upgrade to TubesT Pro for C-channel, H-beam & custom profiles



Built for medium-scale manufacturers wanting to bring both plate and tube cutting in-house without running two machines.

Immediate delivery available.
Enquire today to secure this showroom unit.

*Finance subject to approval.



Choose your options → we'll email you a formal quote.
Talk to an expert(03) 9037 0826
See the machine running before you commit.
Have questions? Tell us what you need.
5.9% p.a. finance on this machine

On Koenig machines over $40,000 ex GST.

Offer ends in
See the offer

⚡ Get 10% Off Laser Materials… Forever!⚡

Automatically applied to your account with every Koenig Machine purchase. Explore our material range


LF3015GAR 3kW Fiber Laser – Sheet & Tube Combo Showroom Special Power 1.5kW / 3kW / 6kW Bed 3m x 1.5m / 4m x 1.5m / 4m x 2m / 4m x 2.5m
Call

Videos

Features

Machine specifications

SpecificationDetail
Laser Power1.5kW, 3kW, 6kW
Bed Size3000 x 1500mm with loading table (4000x1500, 4000x2000, 4000x2500mm available )
Tube Length3m Standard (6m or 8m available)
Clamp Diameter20-240mm standard (20-280mm Chuck or 20-350mm chuck upgrade available)
Tube Weight Capacity240mm chuck = 300kg, 280mm chuck = 400kg, 350mm chuck = 400kg
Machines Size8120*3867*2310mm
Laser Source TypeMAX, Raycus or IPG
Laser Head TypeAutomatic focussing laser head
1.5kW = Raytools BM111
3kW = BOCI BLT 4 Series
6kW = BOCI BLT4 Series
Cooling TypeIndustrial Water Cooling – S&A water chiller
Moving Speed120m/min
Acceleration1.5G
Laser Output Control0-100% set by software
Drive MethodYYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive
Positioning Accuracy0.03mm
Re-positioning Accuracy0.02mm
Minimum Line Width0.1mm
Controlling SoftwareCypcut Control System 2000E – sheet cutting, TubesT lite (standard) or TubesT Pro upgrade - tube
Graphic Format SupportedGraphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc.
Compatible SoftwareIllustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc.
Colour SeparationYes (imports colours to control cutting layers)
Auxiliary EquipmentExhaust Fan, Industrial water-cooling unit
Power SupplyMachine:
1.5kW = 415V 50Hz 32amp
3kW = 415V 50Hz 50amp
6kW = 415V 50Hz 63amp
Gas RegulationSoftware controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure)
And high pressure N2 and Compressed air electronic regulator (high pressure cutting)
Gas ConnectionO2 (mild steel and copper cutting) – 4 pack min
Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure
N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min
Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure
Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting)
SEE OUR 20DHY-20Bar COMPRESSOR OPTIONS
Working EnvironmentTemperature:0-45C, Humidity 5-95% (No Condensate Water)
