Gweike LF1309 Small Enclosed Fiber
$59,900.00

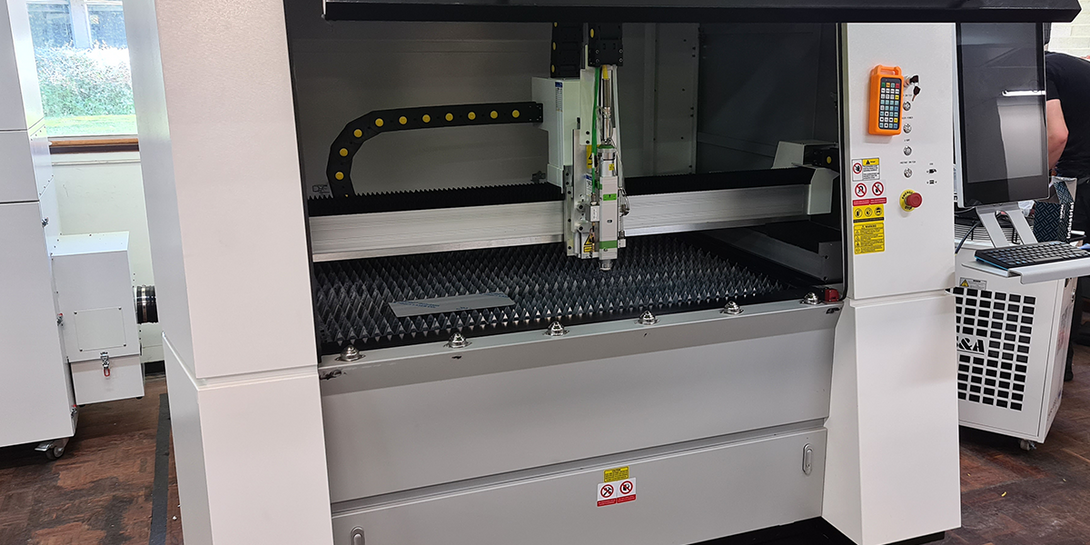

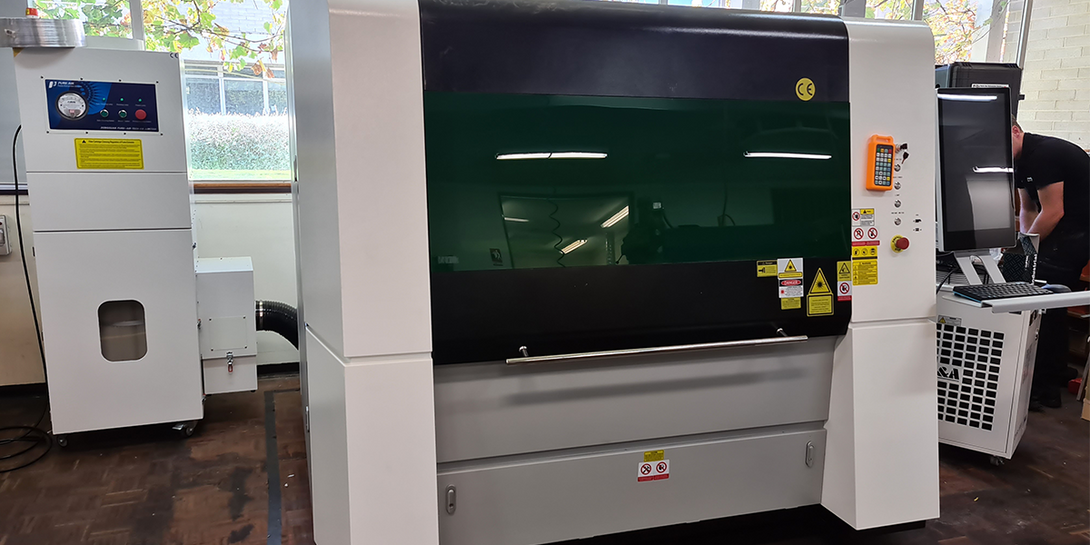

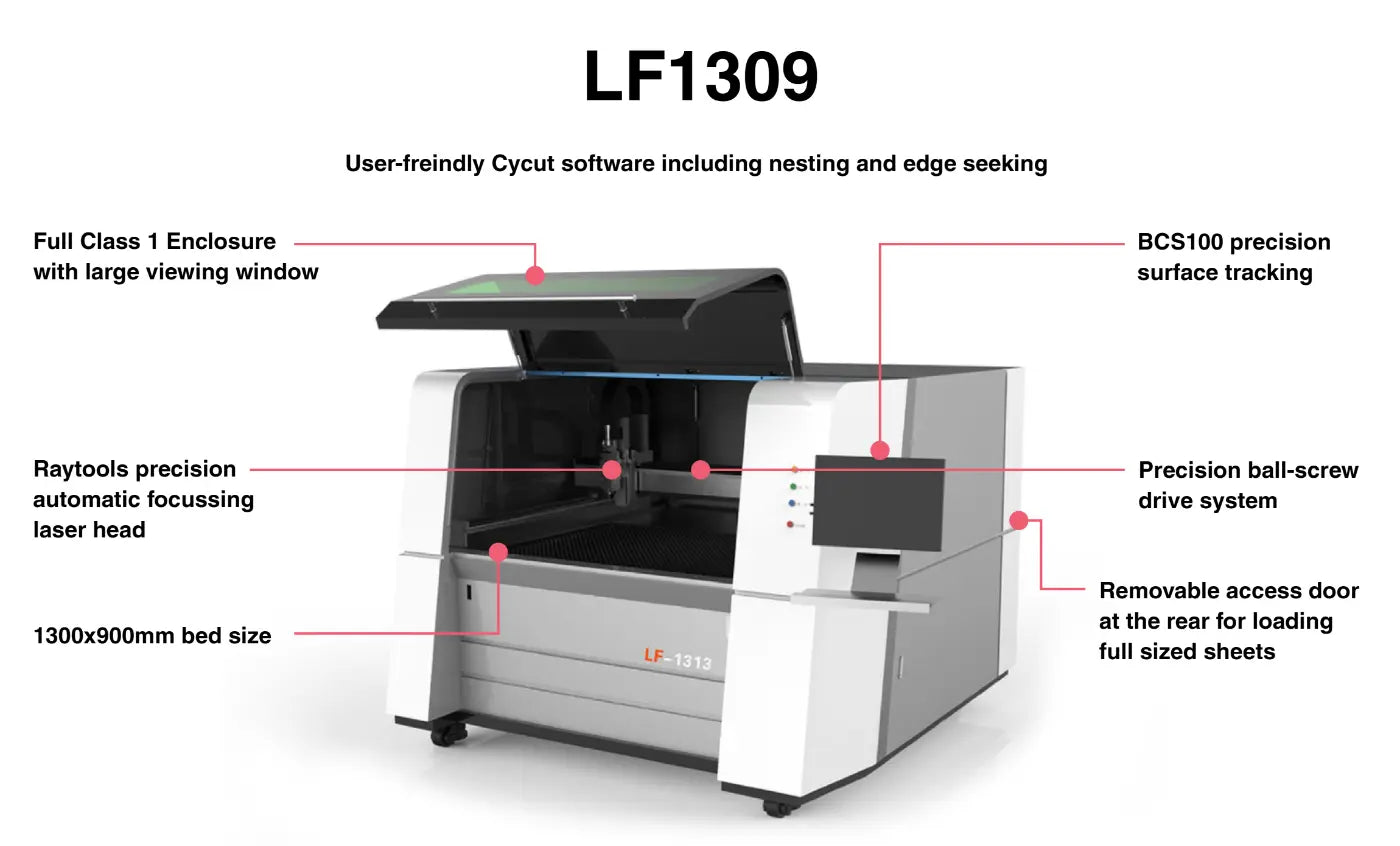

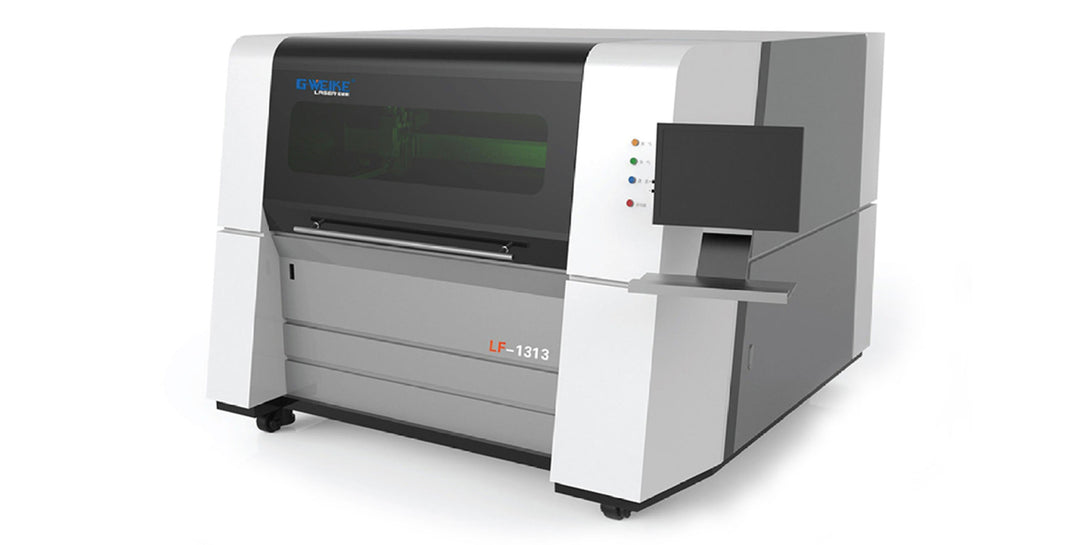

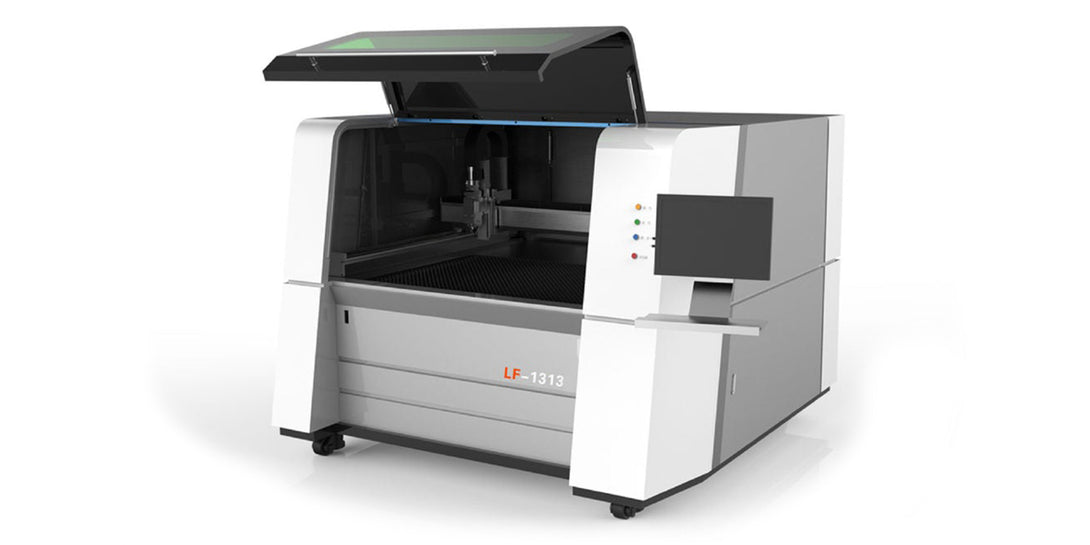

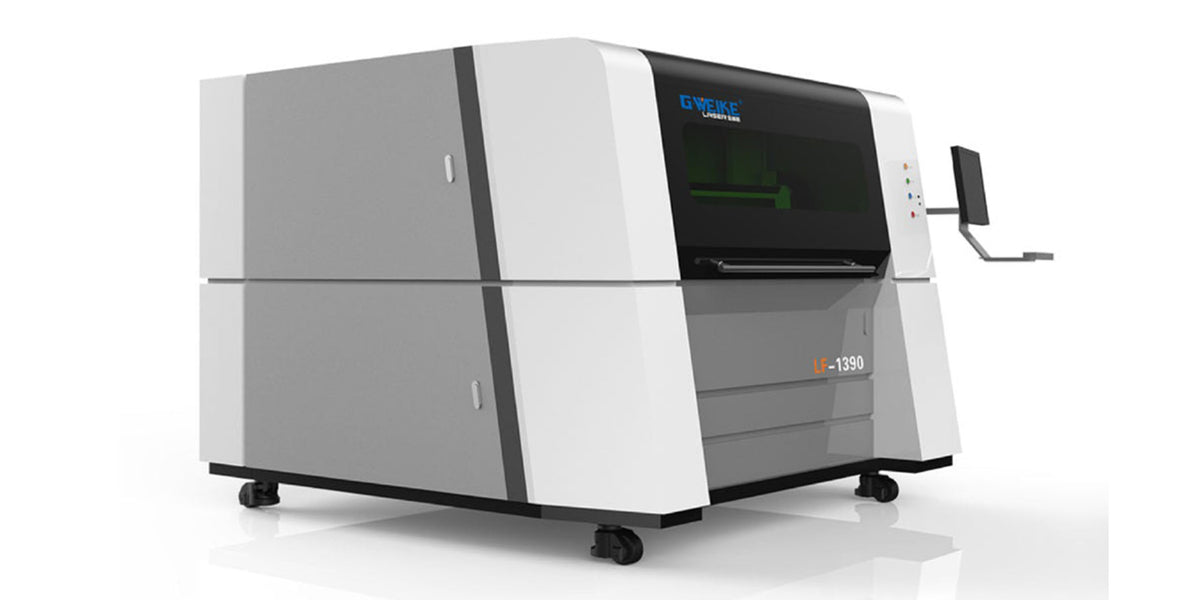

*ex GSTThe LF1309 is a fully enclosed fiber laser machine with a 1300x900mm bed. Perfect for education and business use, it is suitable for cutting thin sheet metals such as carbon, stainless steel, galvanised steel, aluminium, brass, etc. The LF1313 is the bigger brother with 1300x1300mm bed size (half sheet), open up your options and allow for larger signage lettering etc, while still providing a small overall footprint. Designed for precision cutting this machine has a full enclosure with CE certified protection safety glass.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 1.5kW / 2kW / 3kW |
| Bed size | LF1309 – 1300* 900mm |
| Machine Size | LF1309 – 2110(W)*2160(D)*1900(H)mm |
| Laser source type | MAX, Raycus or IPG |

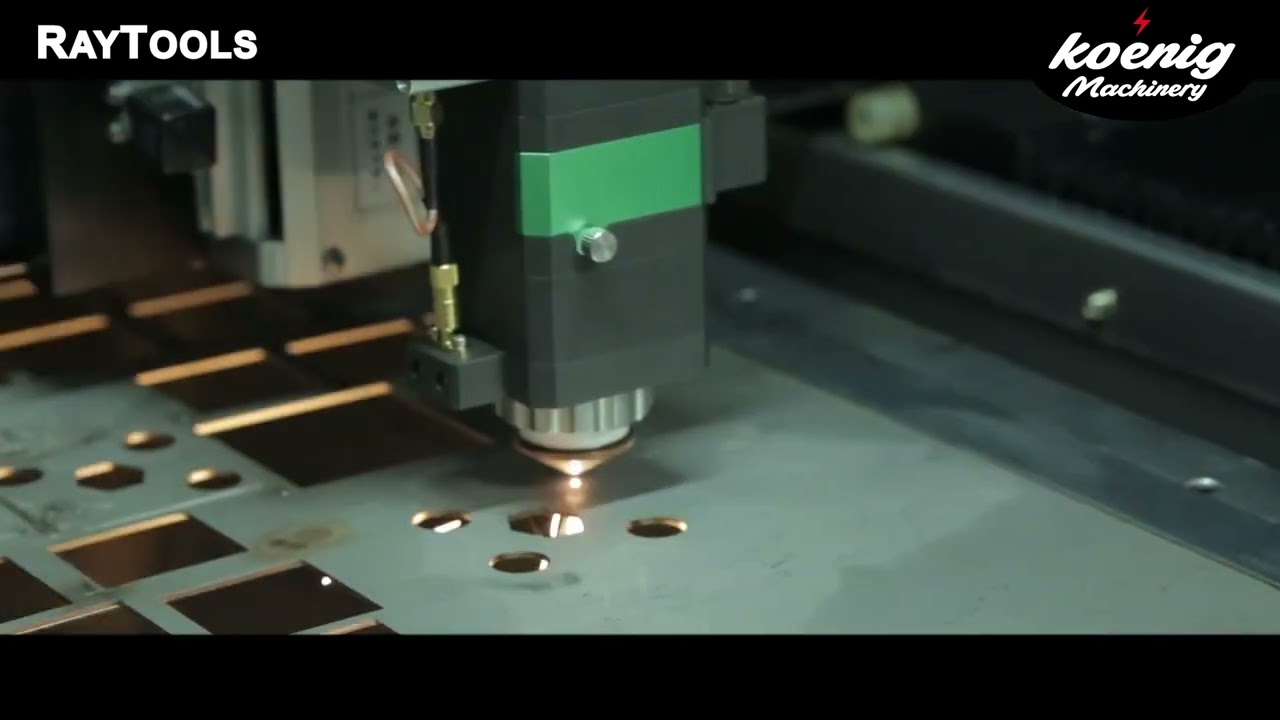

| Laser Head Type | Raytools automatic focussing laser head BM110/BM111 |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Moving Speed | 40m/min |
| Acceleration | 0.5G |
| Laser Output Control | 0-100% set by software |

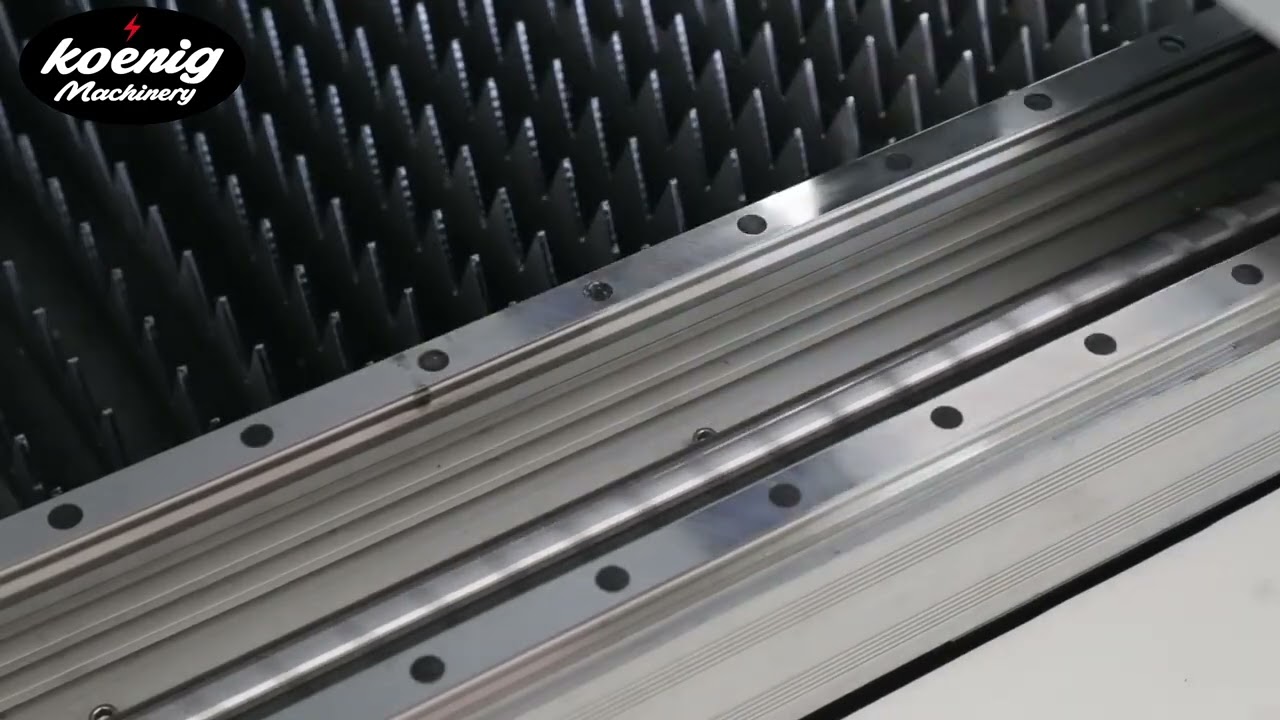

| Drive method | Japanese Panasonic servo motor and ball screw drive system |
| Positioning Accuracy | 0.008 mm |
| Re-positioning accuracy | 0.02 mm |
| Minimum line width | 0.1mm |

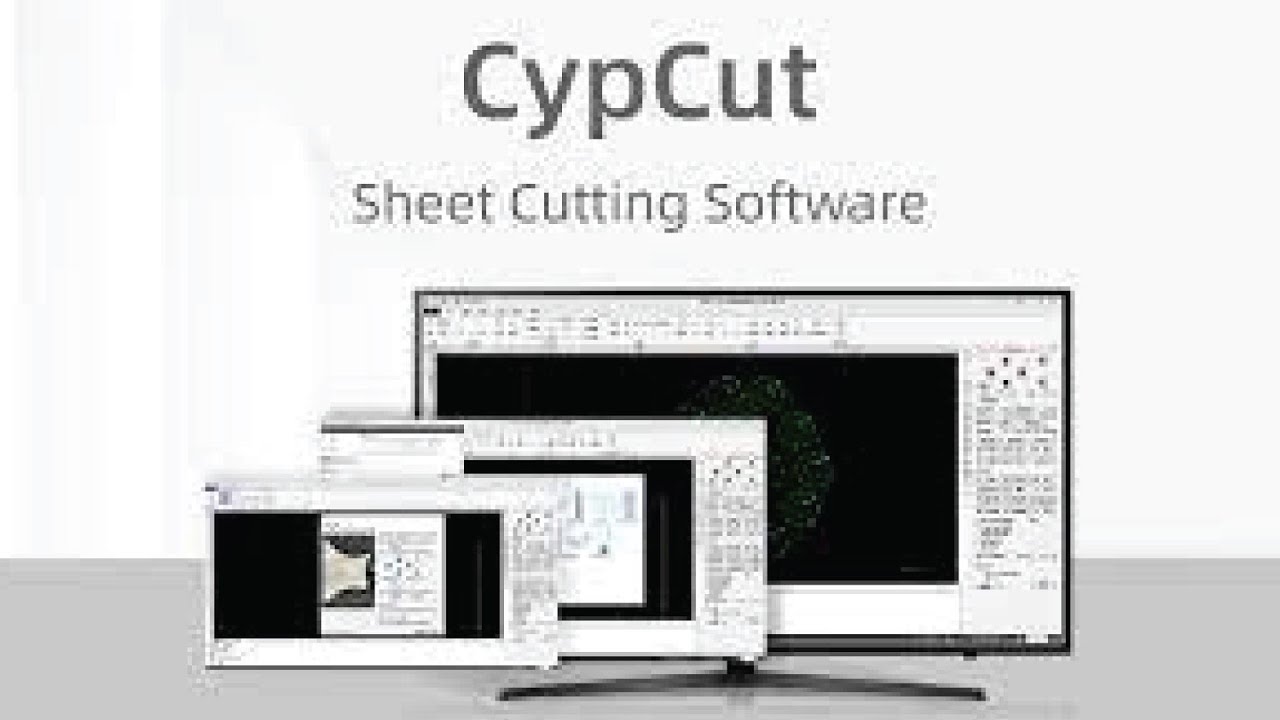

| Controlling Software | Cypcut Control System 2000E, including nesting, edge seeking and automatic crash protection |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software (for outputting supported formats) | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water cooling unit |
| Power Supply | Machine: 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 40amp 3kW = 415V 50Hz 50amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
[table id=31 convert_line_breaks=false /]
Brochure

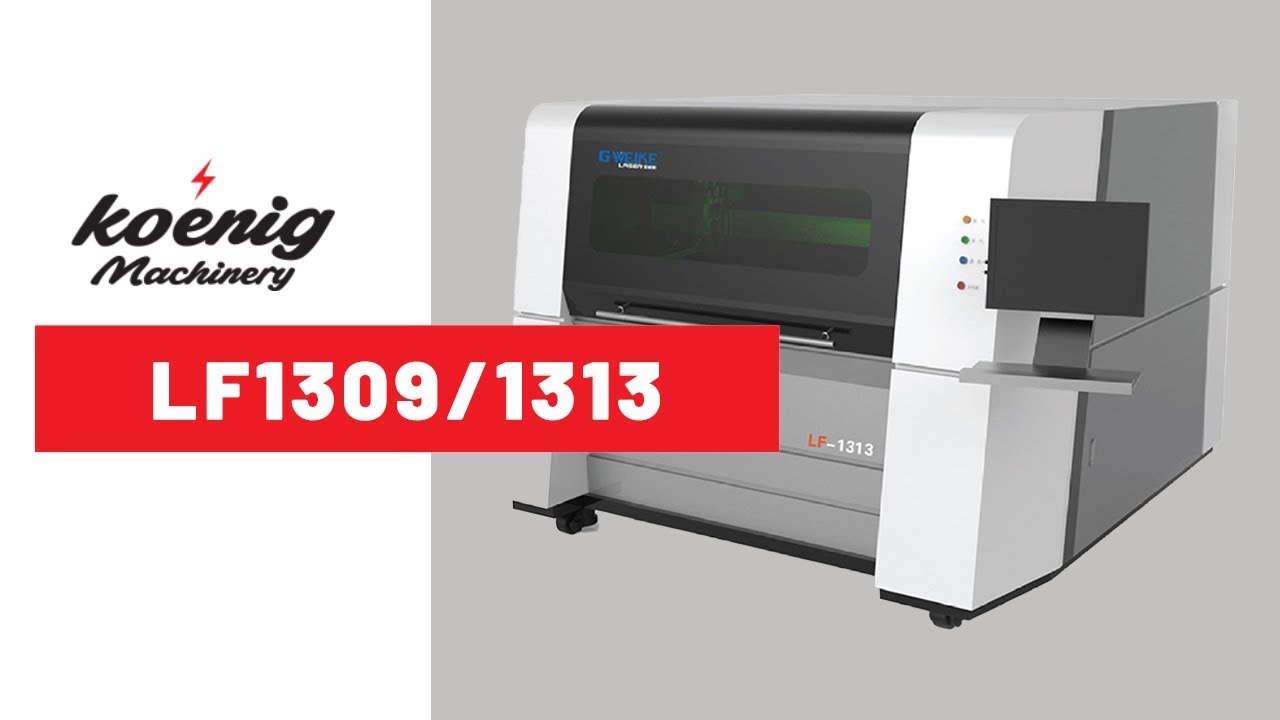

Brochure Koenig Machinery Fiber LF1309 LF1313
