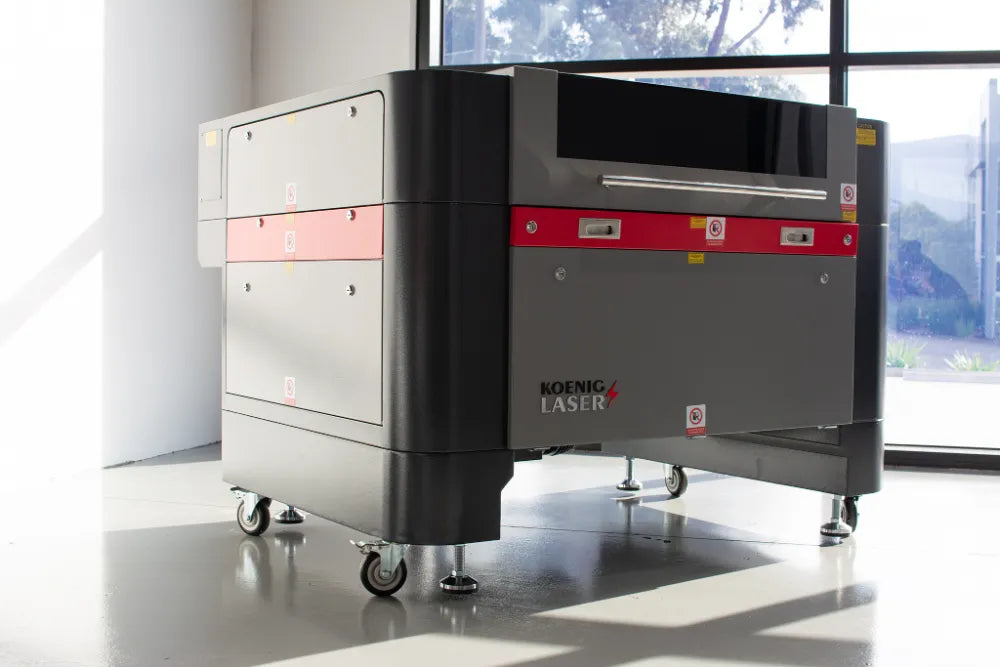

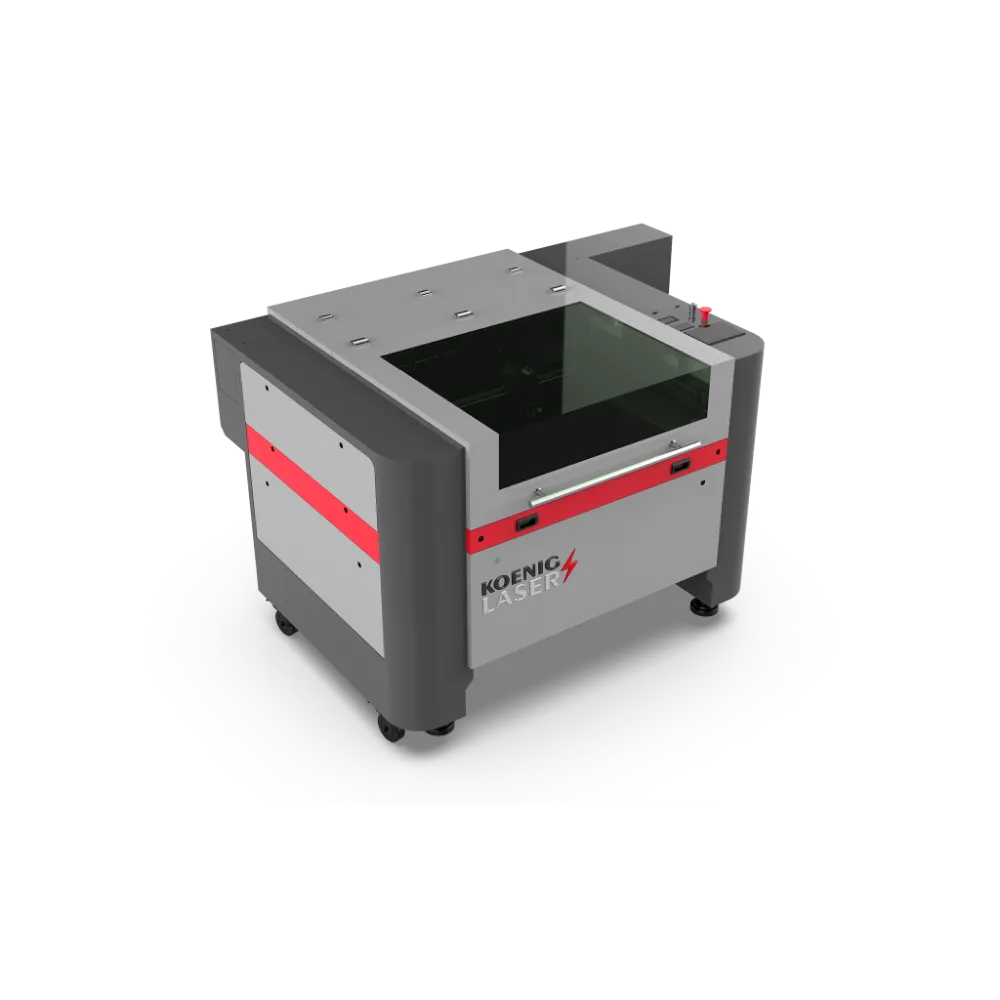

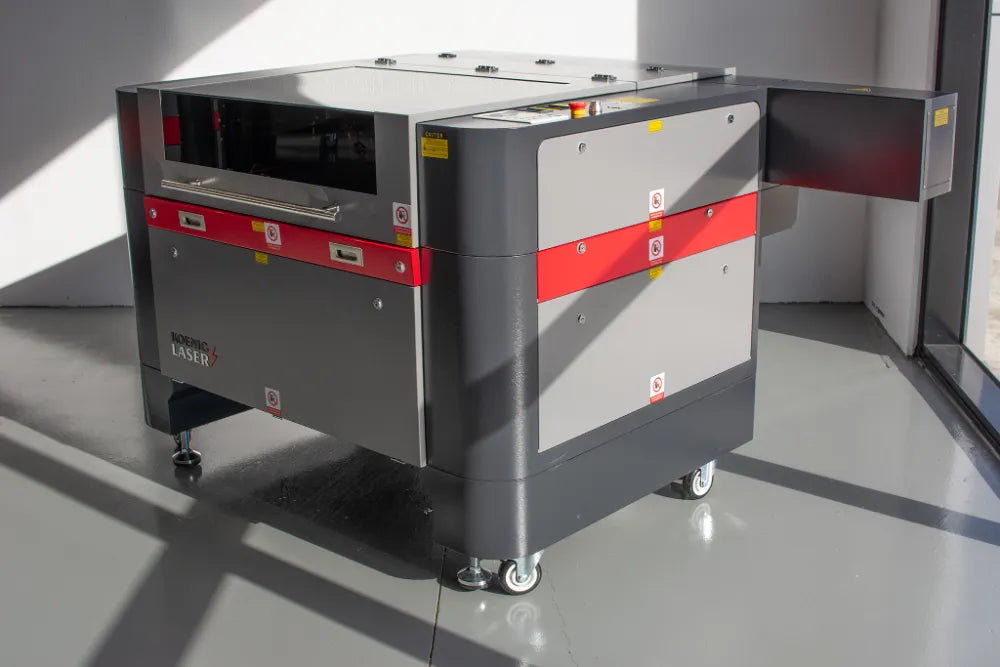

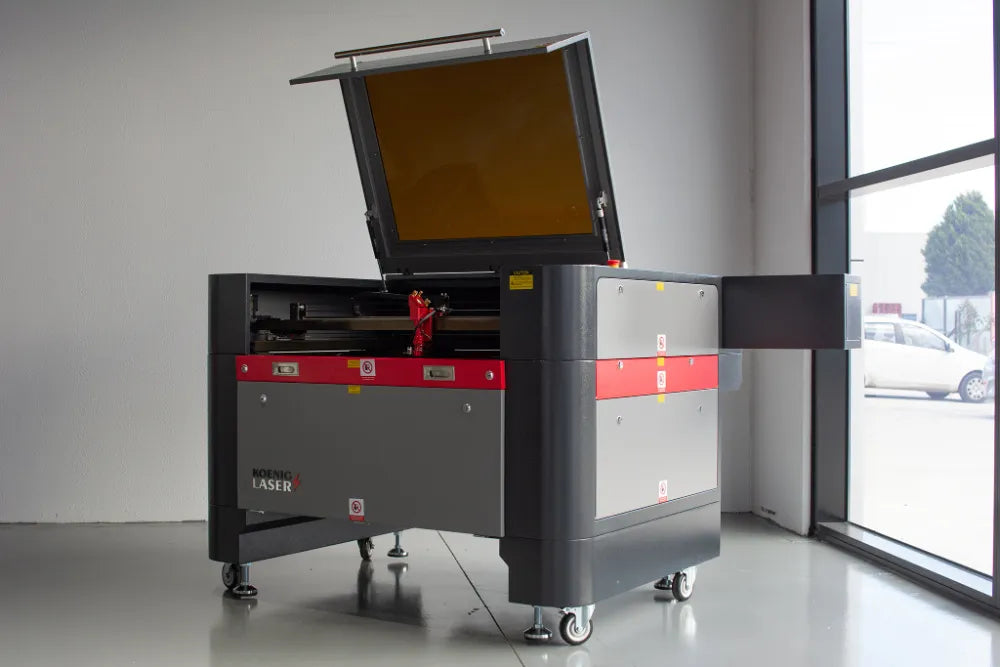

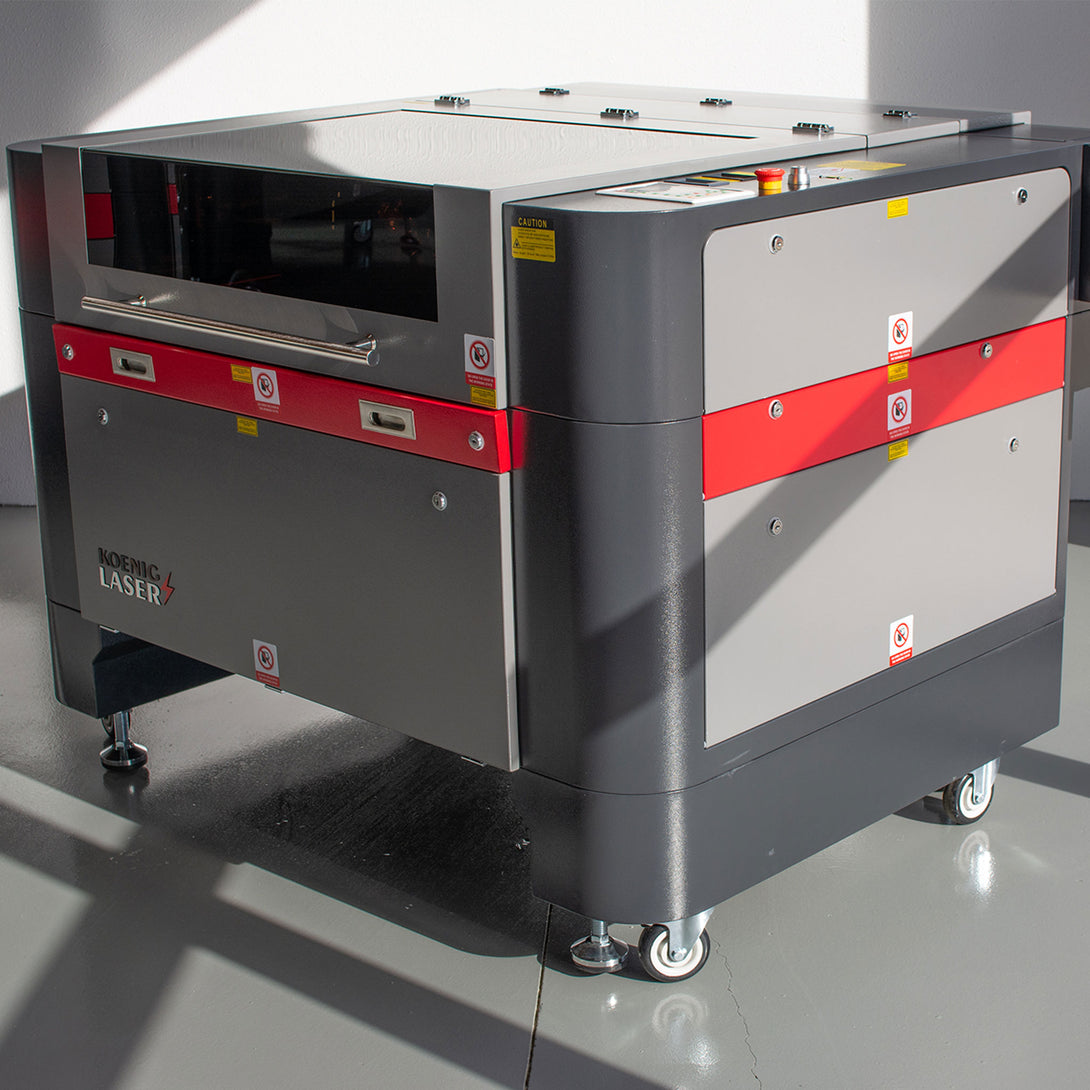

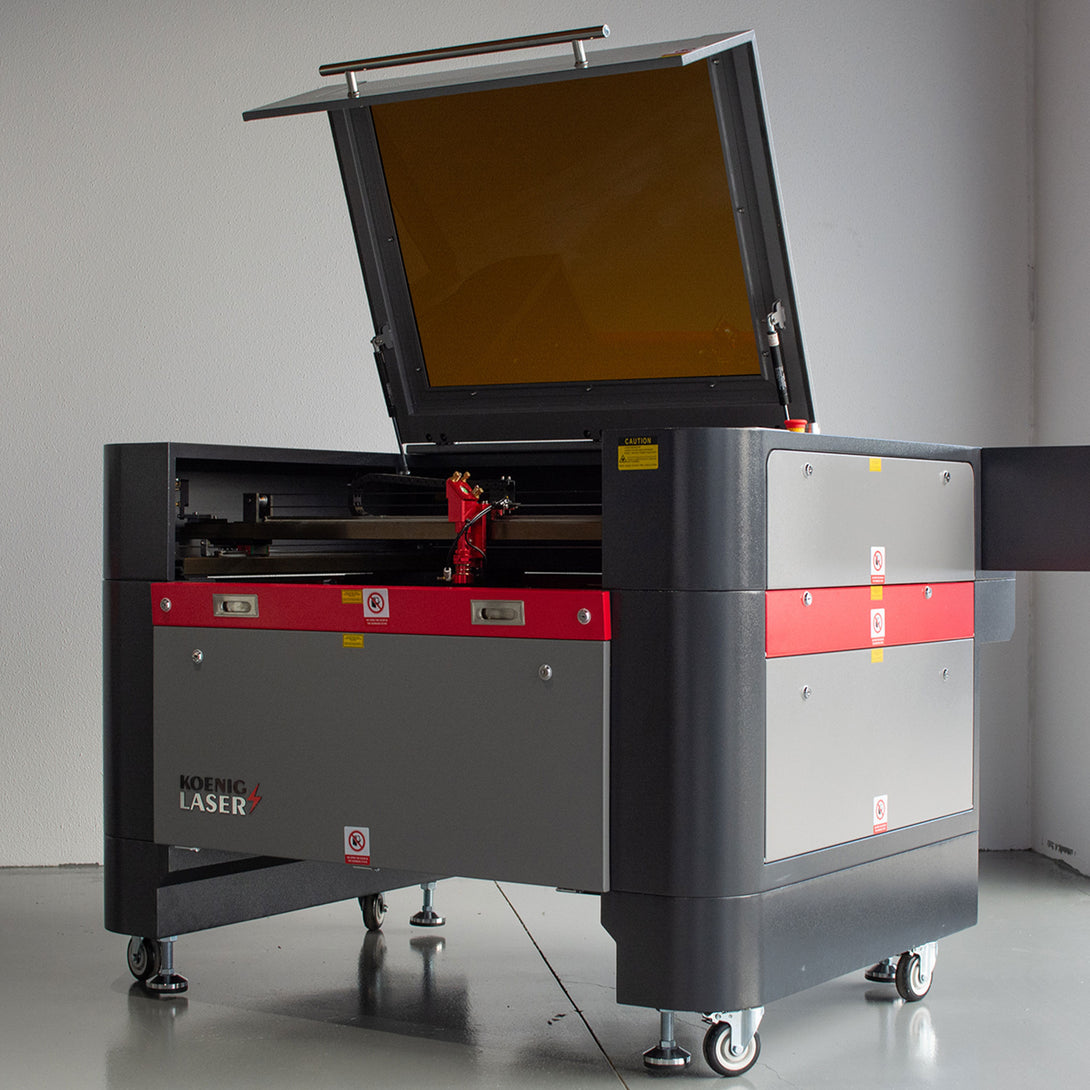

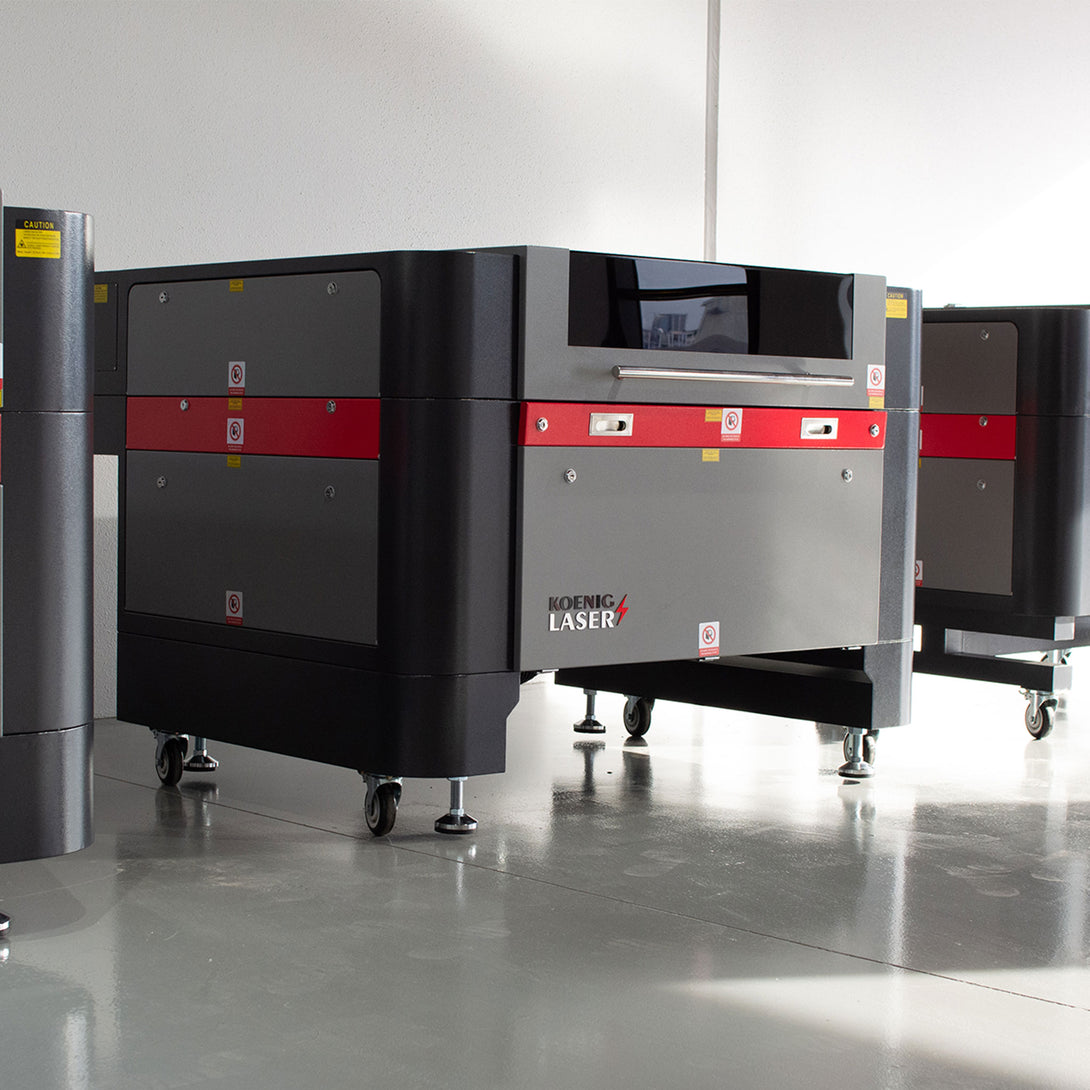

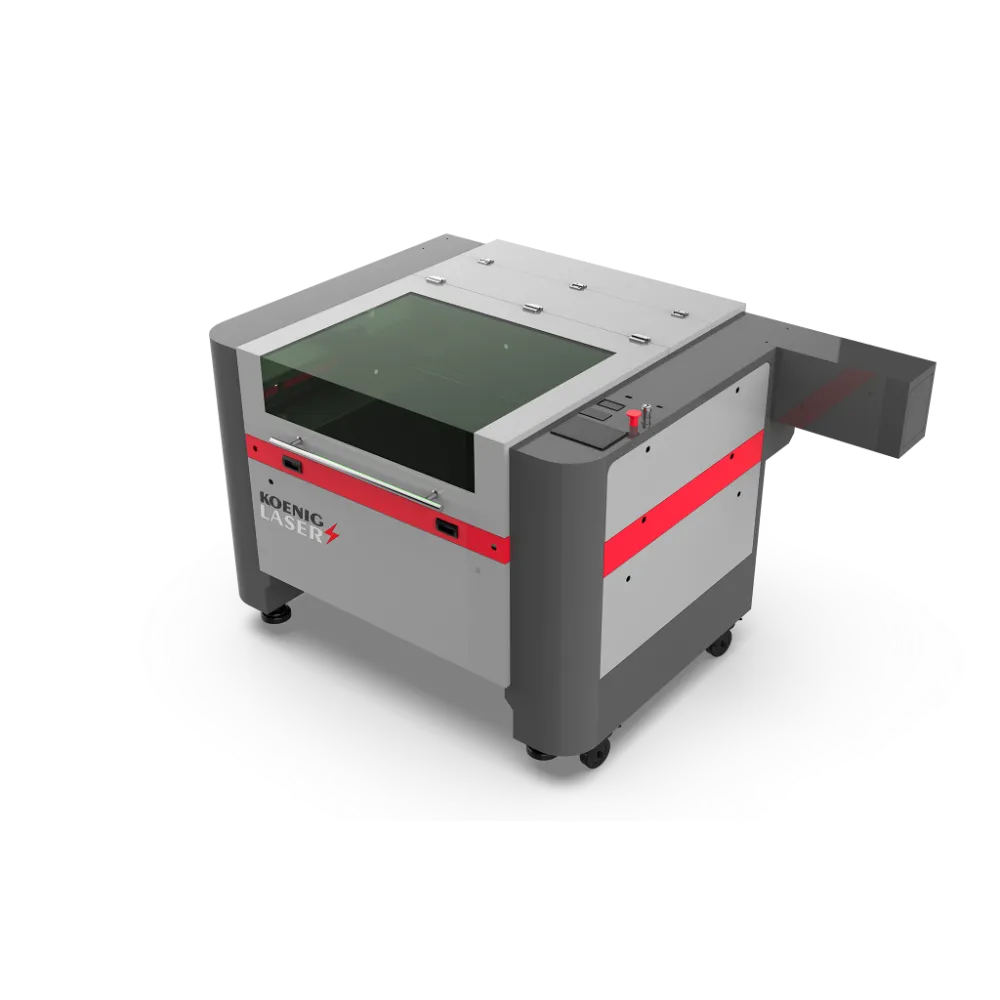

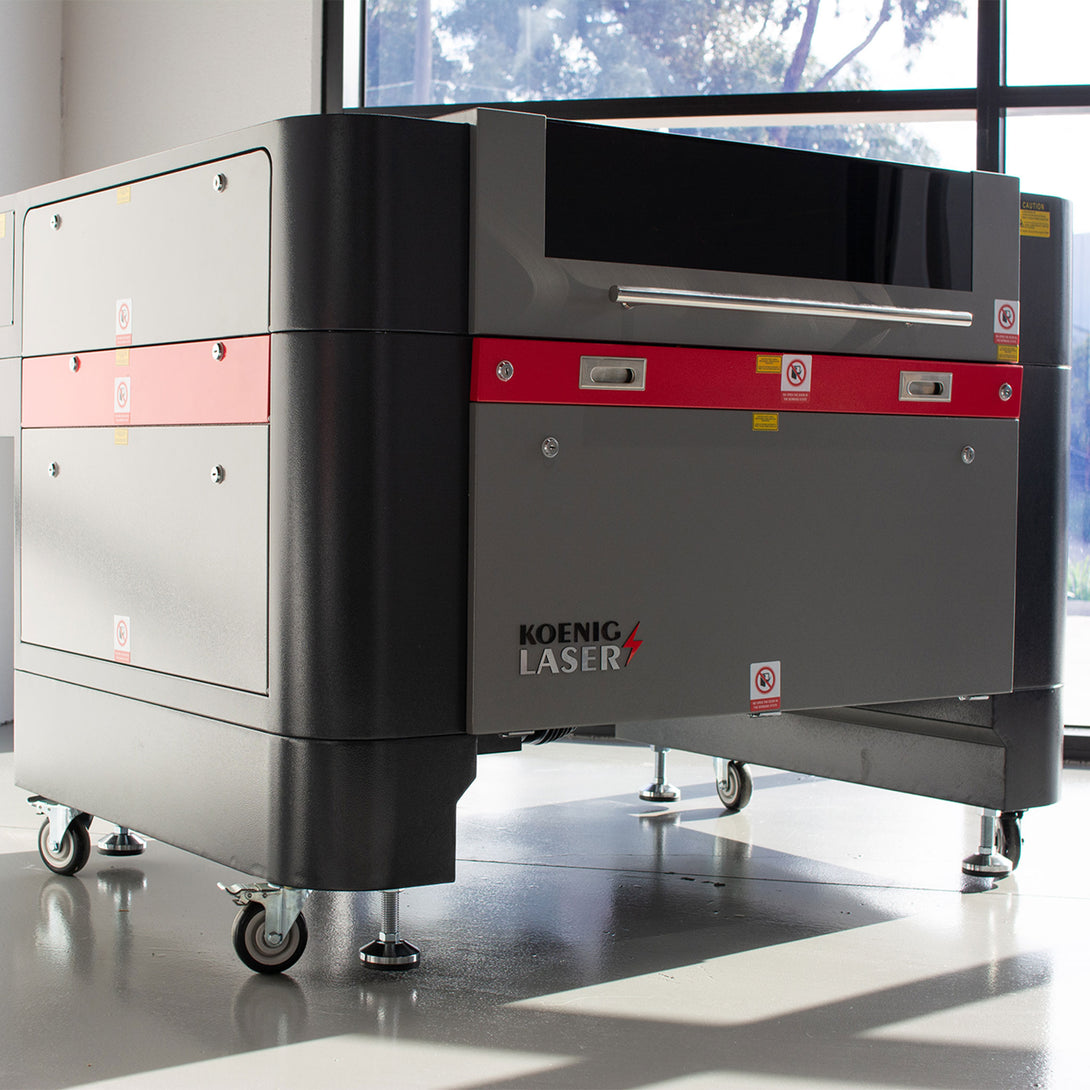

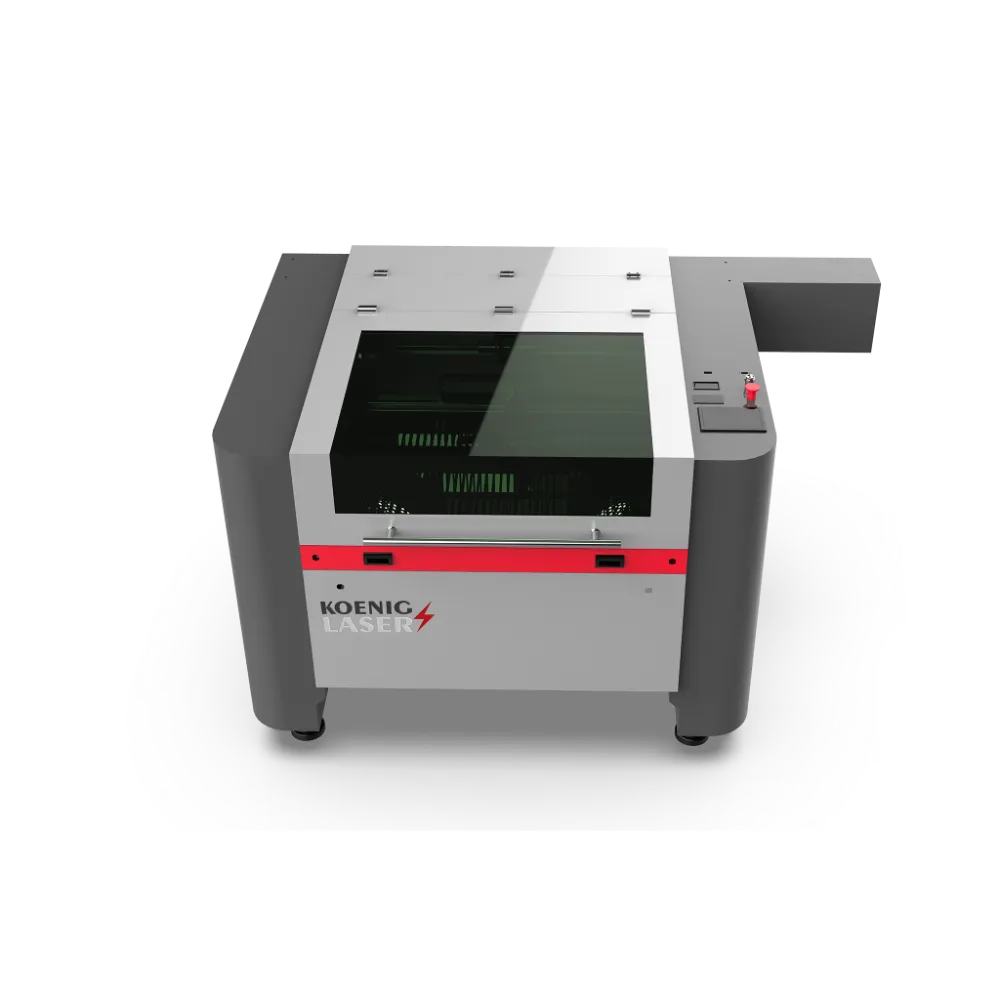

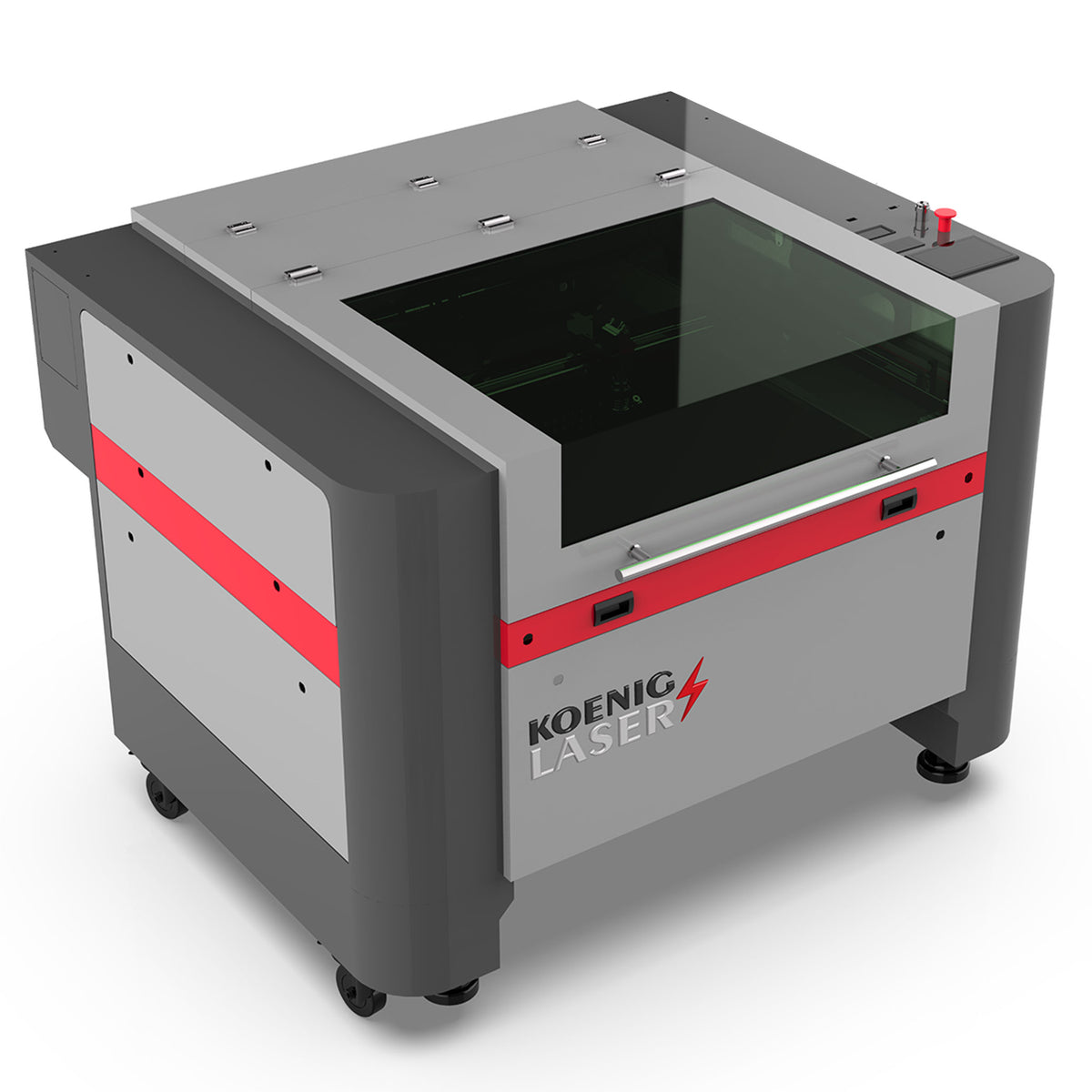

KOENIG K0906C
$12,450.00

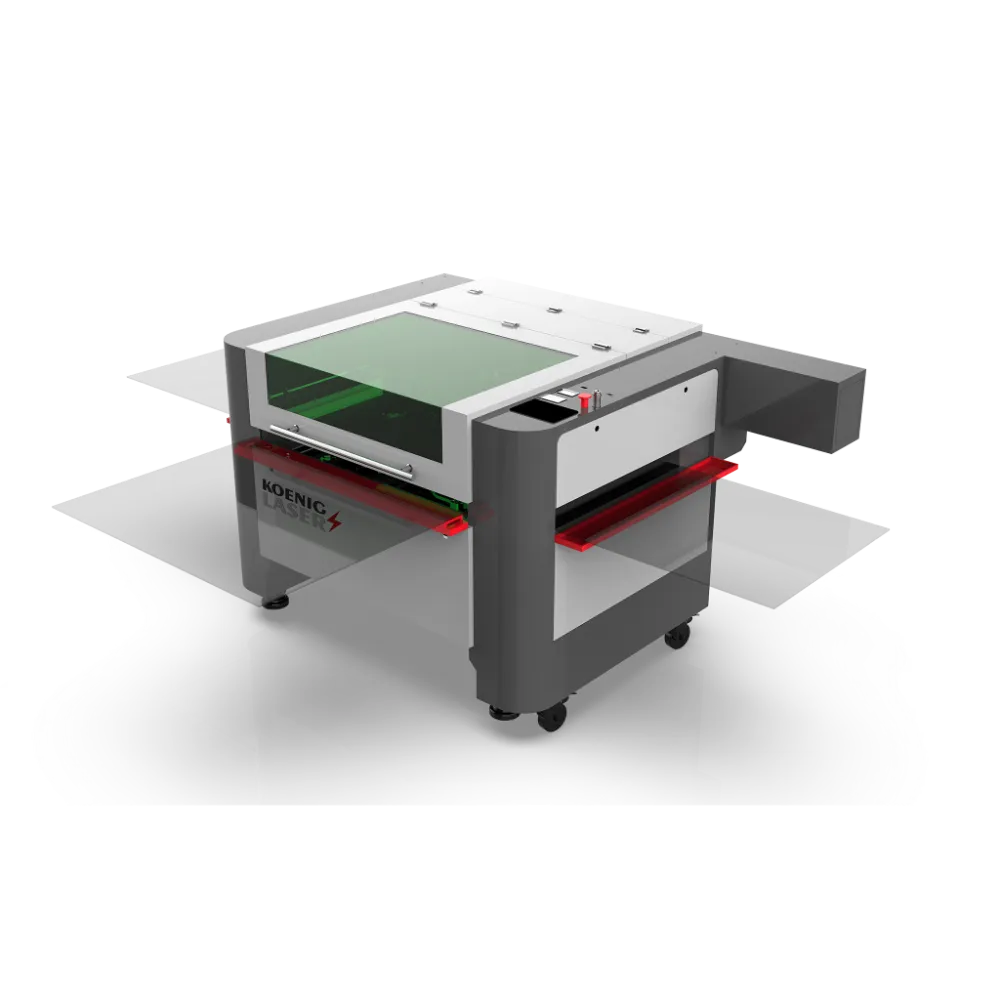

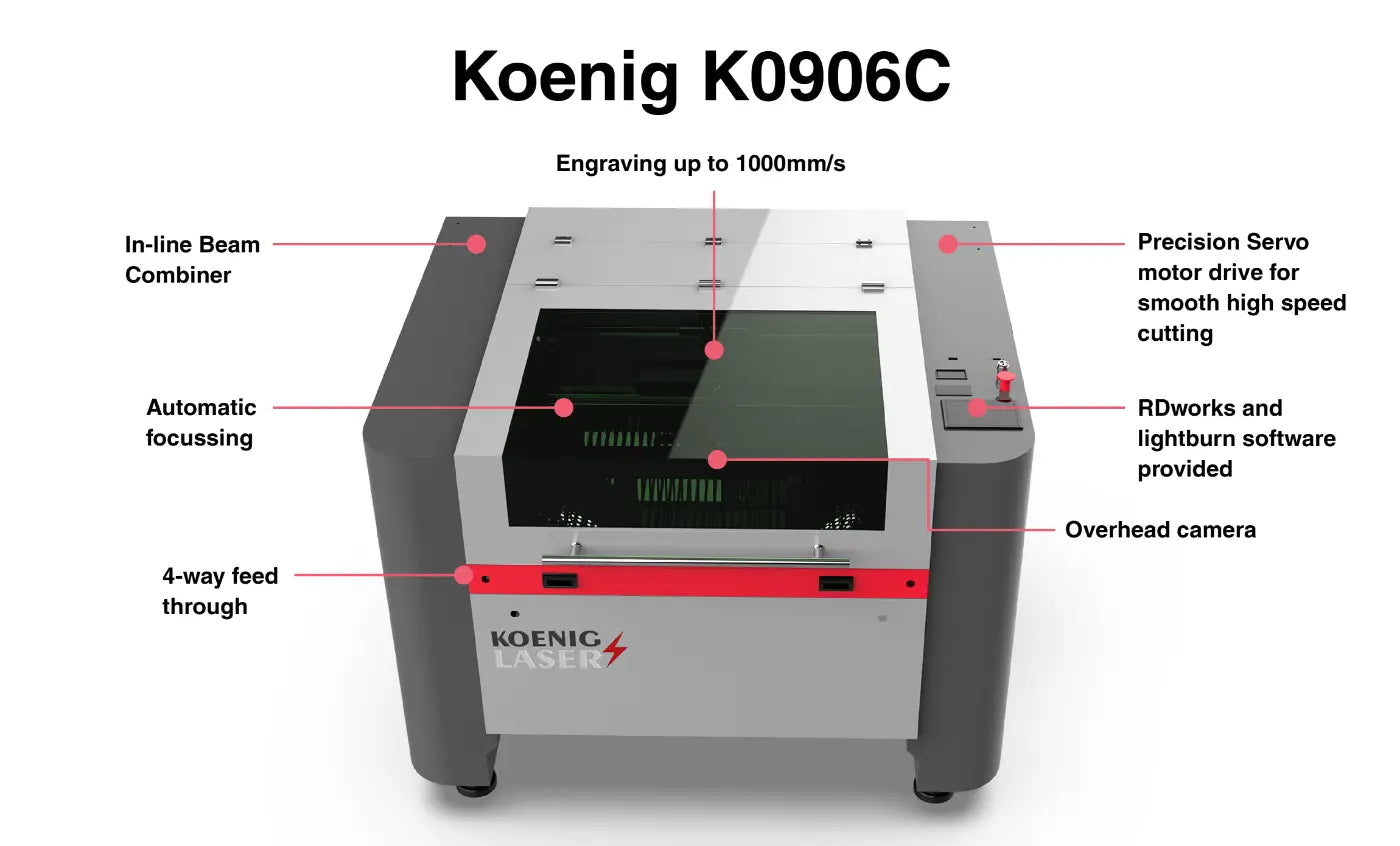

*ex GSTThe Koenig K0906C is part of our Koenig K-series range of enclosed machines, feature the servo motor drive system, providing the best quality cut every time at real speed. Engrave at up to 1000mm/s, with overhead camera preview, 4 way feed through. The K0906C is available in 80-150W power options and will grow your small business and take you to the next production level!
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Specification | Detail |
|---|---|
| Laser Power | 100 or 150W |

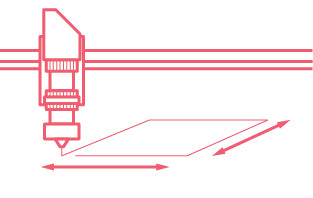

| Cutting Area | 900*600mm |
| Z Axis | 200mm travel - motorised up-down table |
| Laser Type | RECI CO2 Glass Tube 10.6μm – up to 10,000 hour life |
| Table Type | Knife bed table included (optional honeycomb table available) |
| Motor Type | Leadshine Precision Servo Motor |

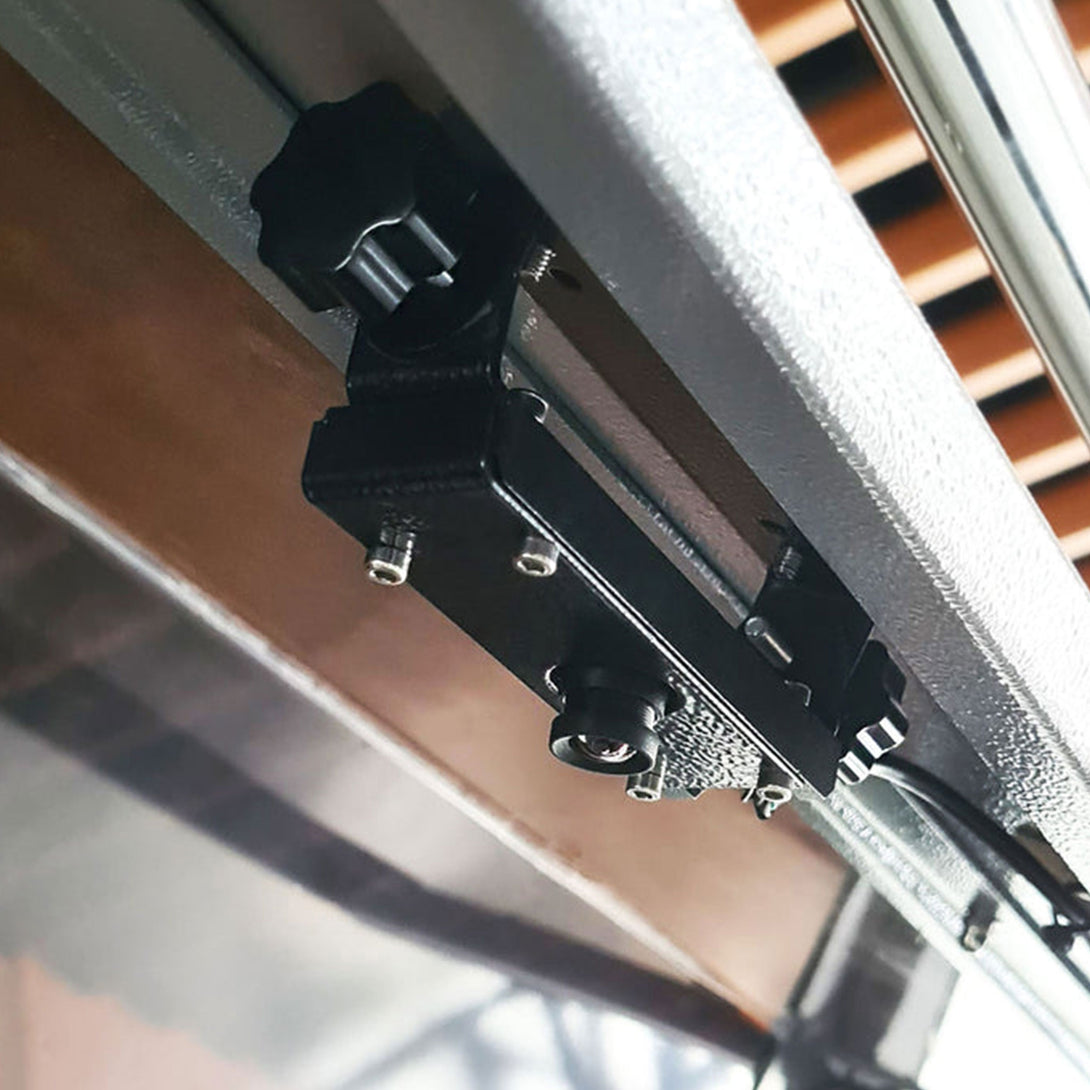

| Camera | 120degree overhead camera – 8Mb |
| Camera Alignment | +/- 0.5mm (calibratable by user) |
| Ventilation | Fan and extraction hosing provided (4 stage air filters optional) |
| Cooling Type | S&A CW5200 refrigerating water chiller included |
| Engraving Speed | Up to 1000mm/s |
| Cutting Speed | Up to 300mm/s |
| Min. Engraving Size | 1.0mm*1.0mm |
| Locating Accuracy | ≤+0.01mm |
| Controlling Software | DSP Control System |
| Software | RDworks and Lightburn – licence included (including print registration mark alignment using “print and cut” feature) |
| Computer Compatibility | Windows, Mac OS, or Linux (32 or 64-bit) |
| Graphic Format Supported | DXF DWG AI PDF DST PLT BMP JPG PNG etc |
| Machine File Memory | 128MB internal memory (up to 100 files) |
| Power Supply | 230V 50Hz 10amp – Standard single phase |
| Options | Honeycomb table, Wheel or Cchuck Rrotary, Aair filter, High Powered compressor |
| Machine Footprint | 1440(W)*1220(D)*1090(H)mm (+440mm tube extension(W) for 150W) |
| Machine Weight | 350kg |
| Package Dimensions | 1980(W)*1370(D)*1280mm |
| Gross Weight (in Packaging) | 400kg |
