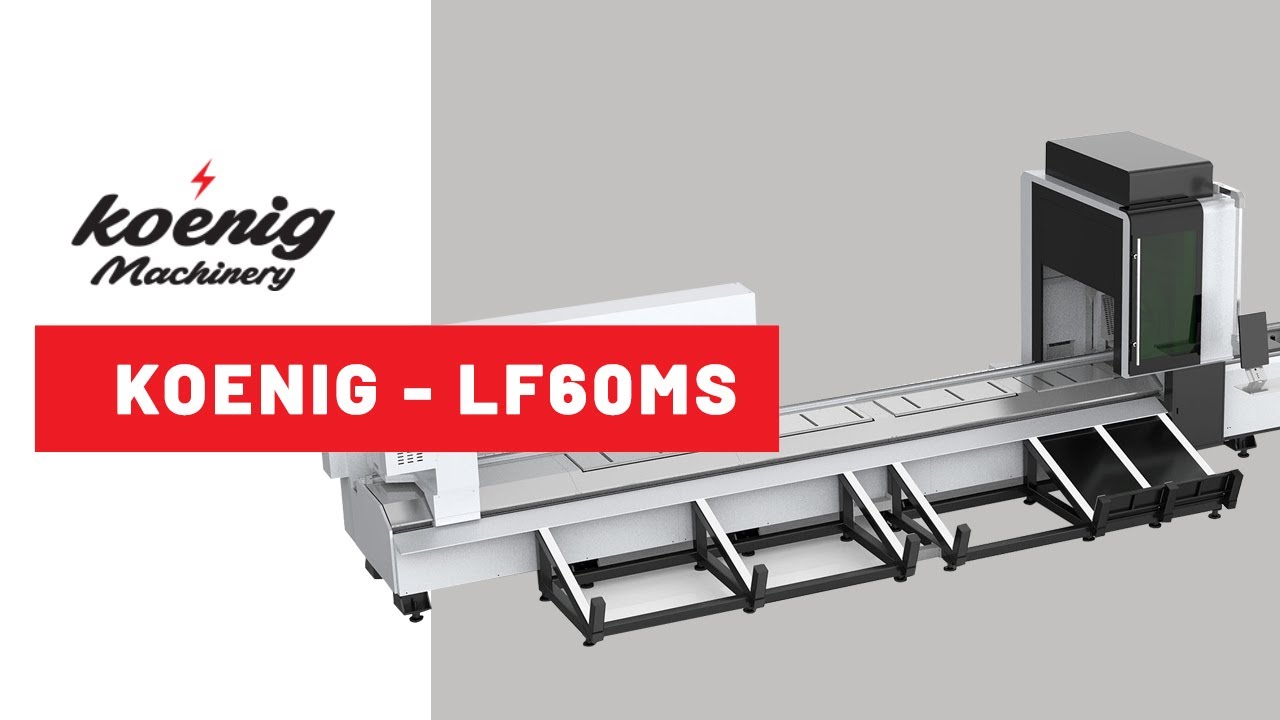

Gweike LF60MS Tube - 3 Chuck Fiber Laser
$269,000.00

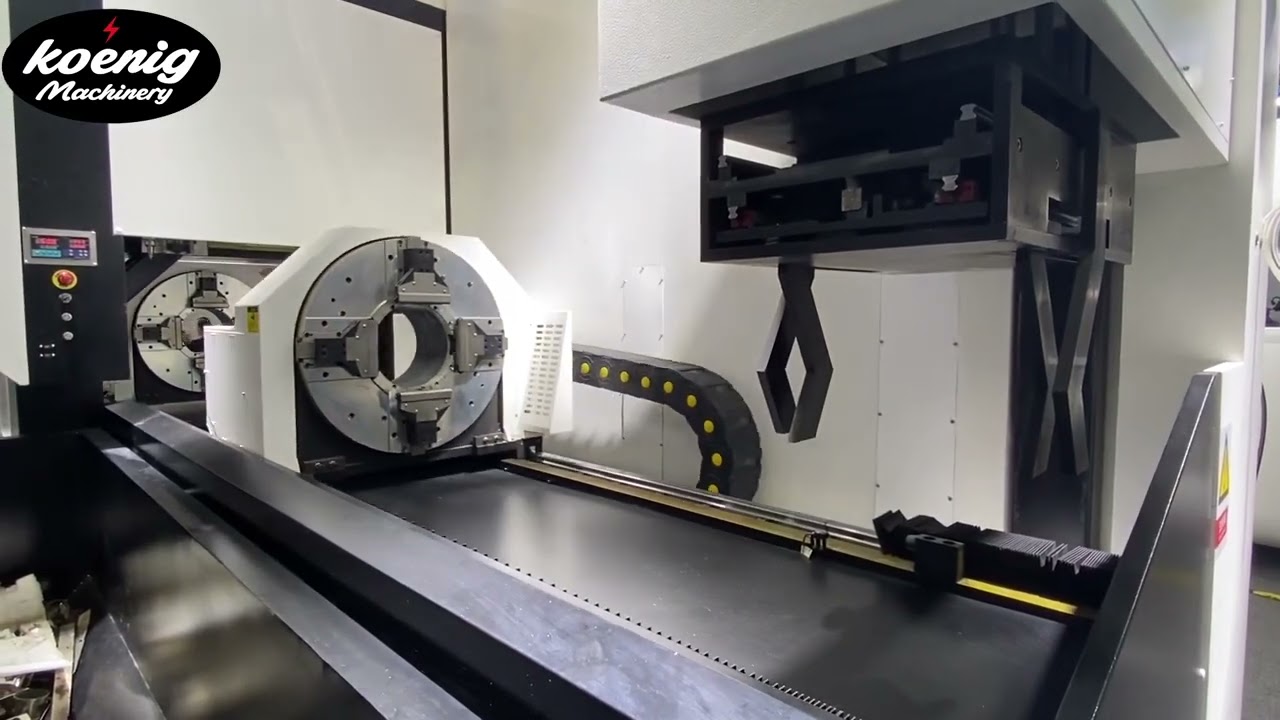

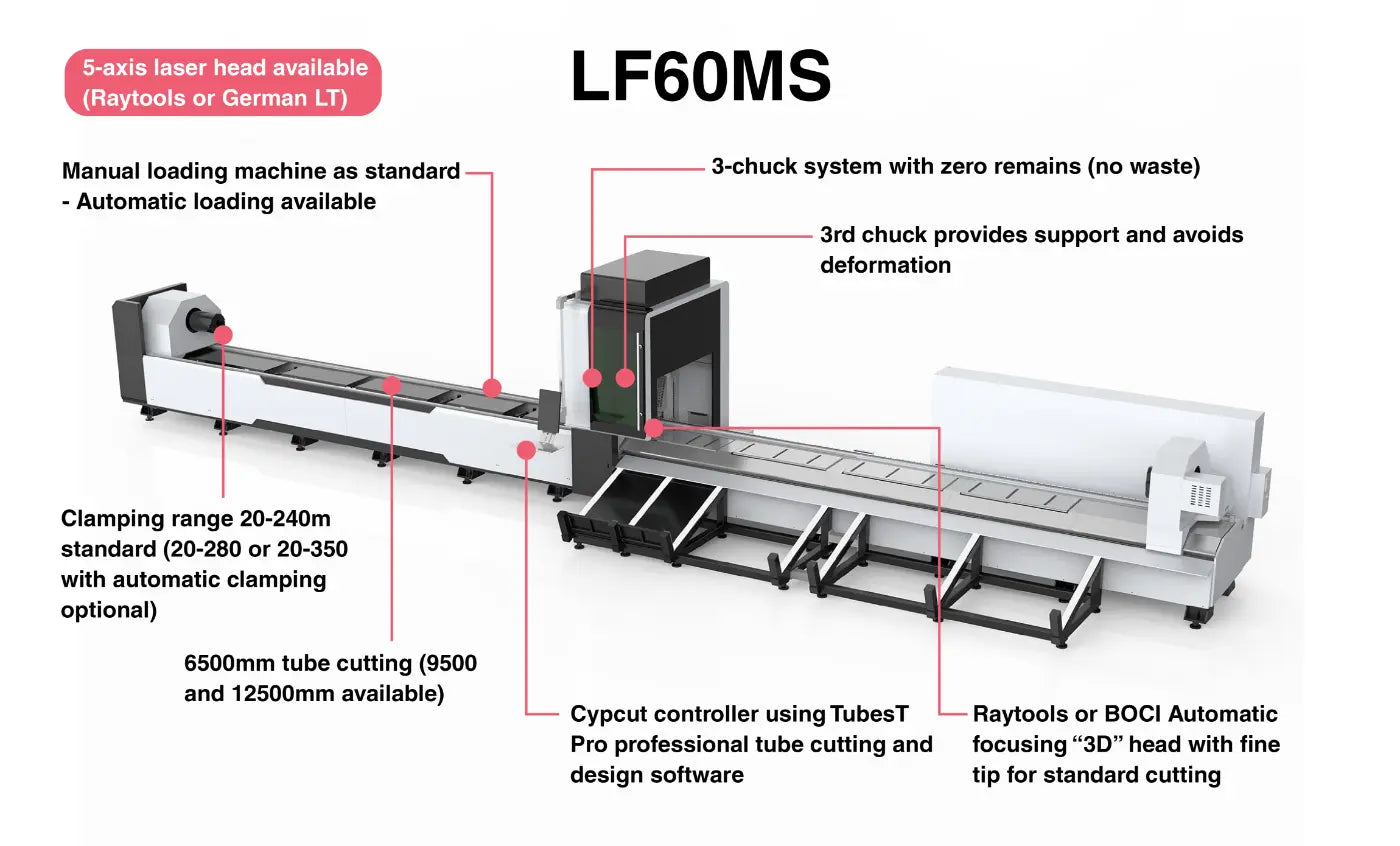

*ex GSTThe LF60MS is our 3-chuck tube cutting machine. The 3-chuck system allows for faster movement of the tube, better support over the length of the tube when working with heavier sections, allowing for zero-remains, meaning there is no piece wasted in the cutting process, no waste piece at the end. The LF60MS version can also be combined with the LF60MA to create the LFF60MAS model, with both 3-chuck assembly and automatic loading/unloading system.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 1.5kW / 2kW / 3kW / 6kW |
| Tube Length | LF60MS - 6m Standard model – up to 7m tube length (100mm min end piece) LF90MS - 9m model – up to 10mmm tube length (100mm min end piece) LF120MS - 12m model – up to 12.5mmm tube length (100mm min end piece) |
| Clamp Diameter | 20-240mm diameter (20-280, 20-360 upgrade available) |
| Tube weight capacity | 240mm chuck = 500kg, 280mm chuck = 400kg, 360mm chuck = 500kg |
| Maximum pack load weight | 2500kg |
| Machine Size | LF60MS - 11900mm*1880mm*2260m LF90MS - 14900mm*1880mm*2260m LF120MS - 17900mm*1880mm*2260m |
| Laser source type | MAX, Raycus or IPG |

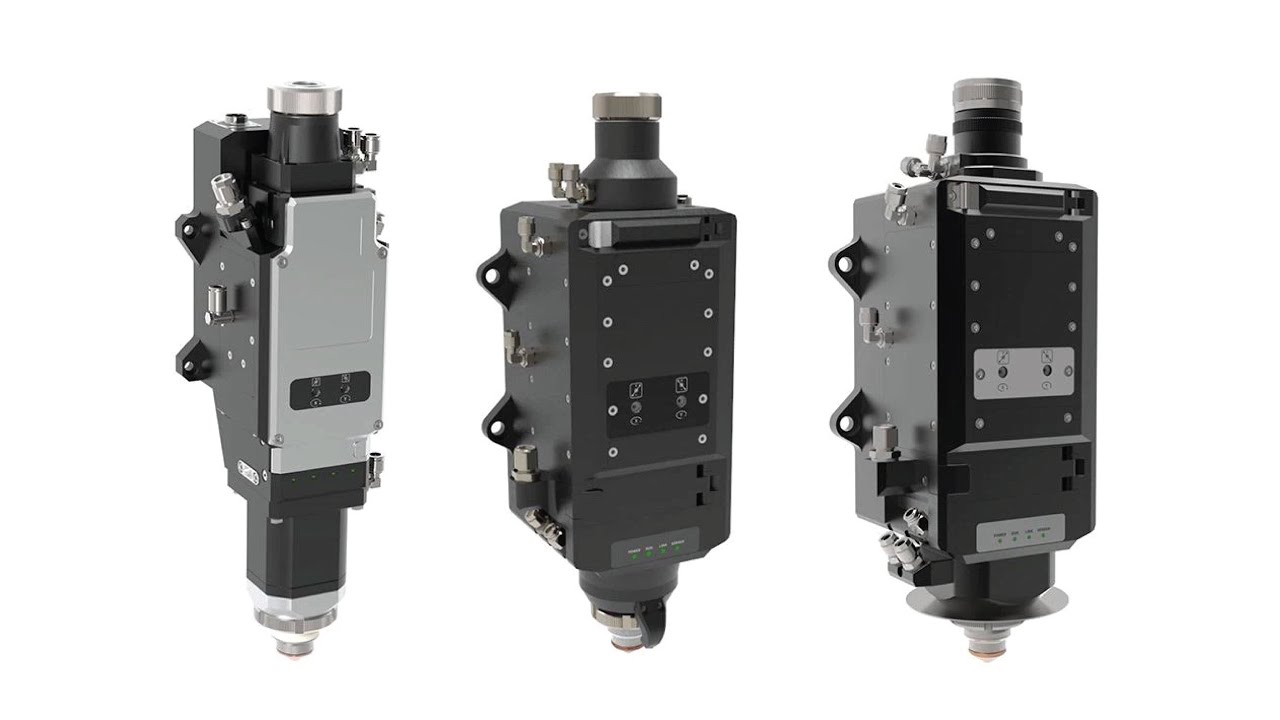

| Laser Head Type | Automatic focussing laser head with “3D” fine tip 1.5-2kW = Raytools BM111 3kW = BOCI BLT421 6kW = BOCI BLT441 (5 axis head options available – Raytools/BOCI or German LT) |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Moving Speed | 30m/min |
| Acceleration | 1.5G |
| Laser Output Control | 0-100% set by software |
| Drive method | TBI ball screen drive, Panasonic servo motor control with Hiwin guide rails |
| Positioning Accuracy | 0.03 mm |
| Re-positioning accuracy | 0.02mm |
| Minimum line width | 0.1mm |

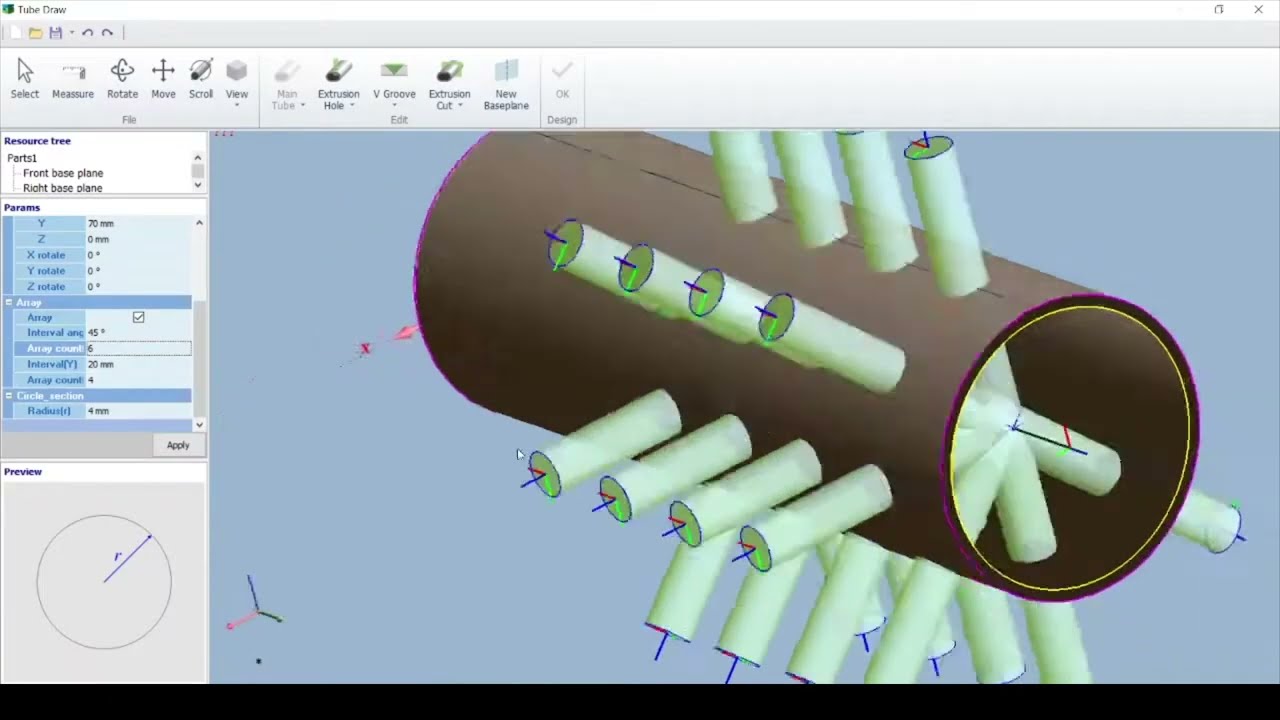

| Controlling Software | Cypcut Control System 5000 – sheet cutting, TubesT lite (standard) or TubesT Pro upgrade - tube |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit |
| Power Supply | Machine: 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 63amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
[table id=66 convert_line_breaks=false /]
Brochure
Brochure Koenig Machinery Fiber LF60MS
Gweike LF60MS Tube - 3 Chuck Fiber Laser
$295,900.00
