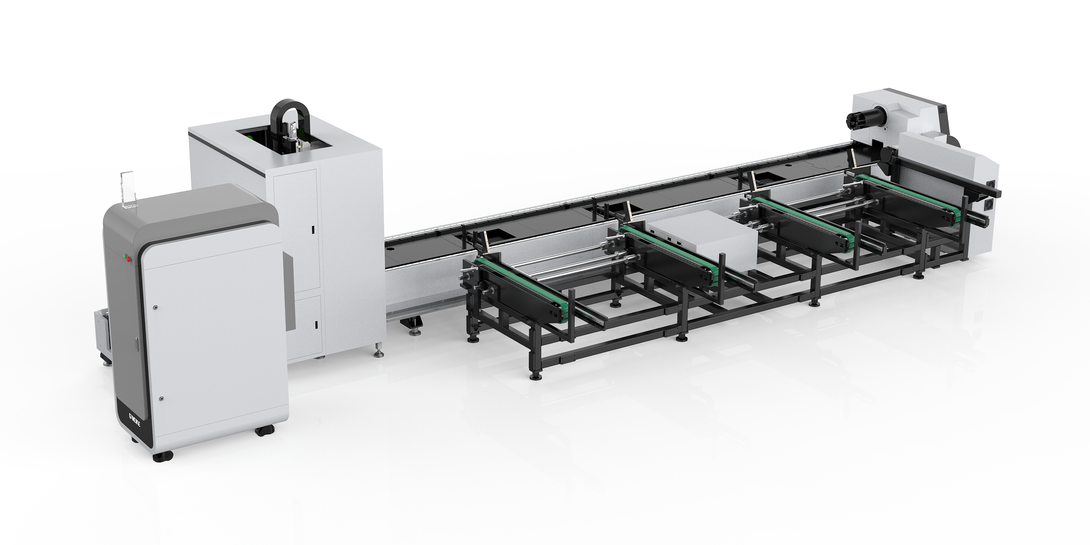

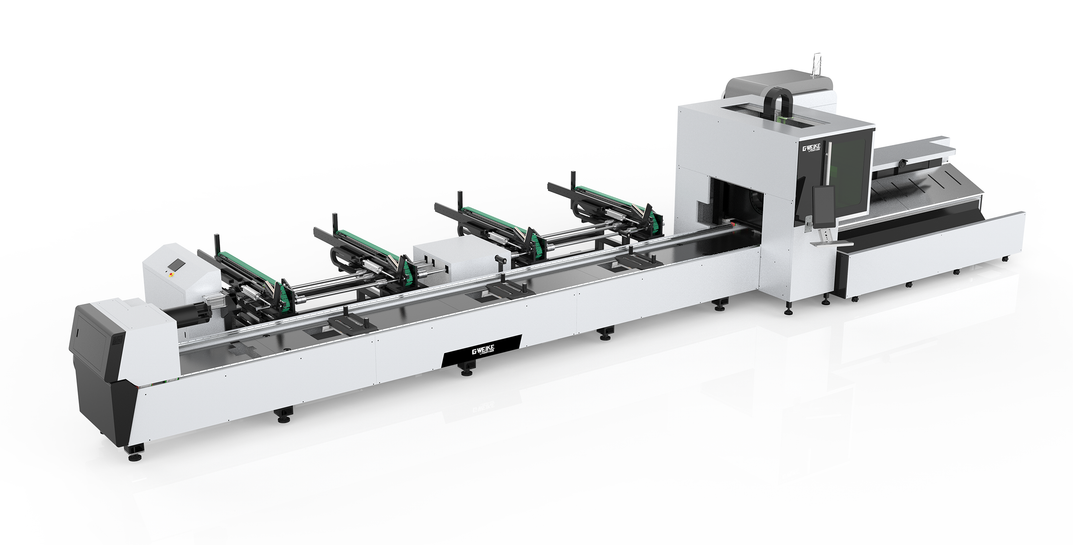

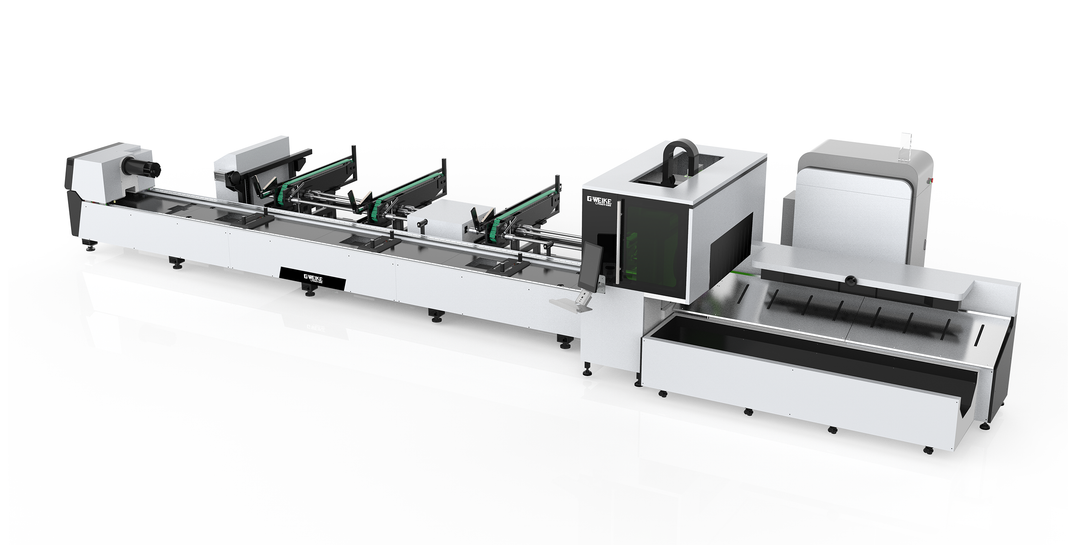

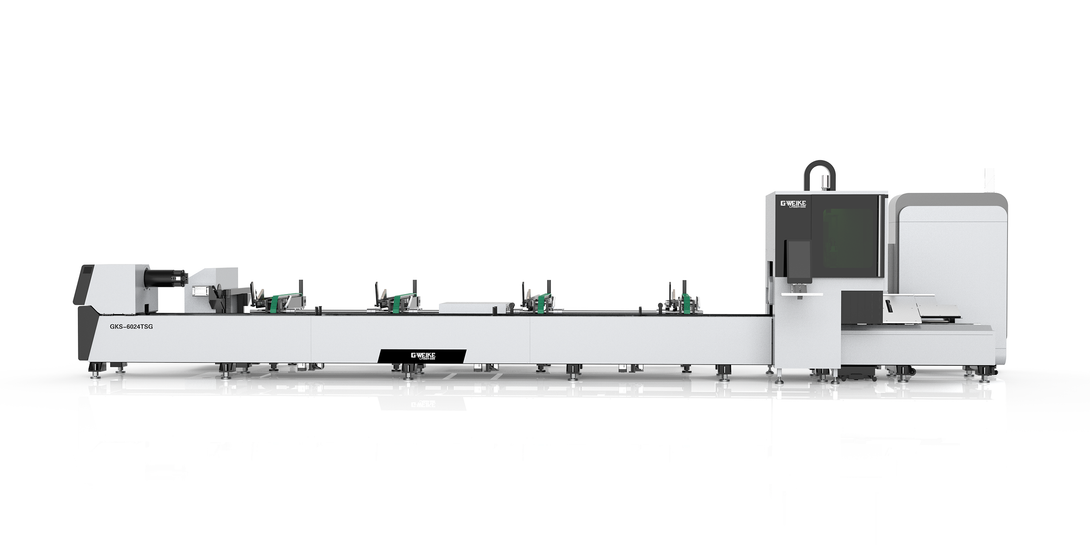

Gweike LF60ML Tube - Semi Automatic Loading
$175,000.00

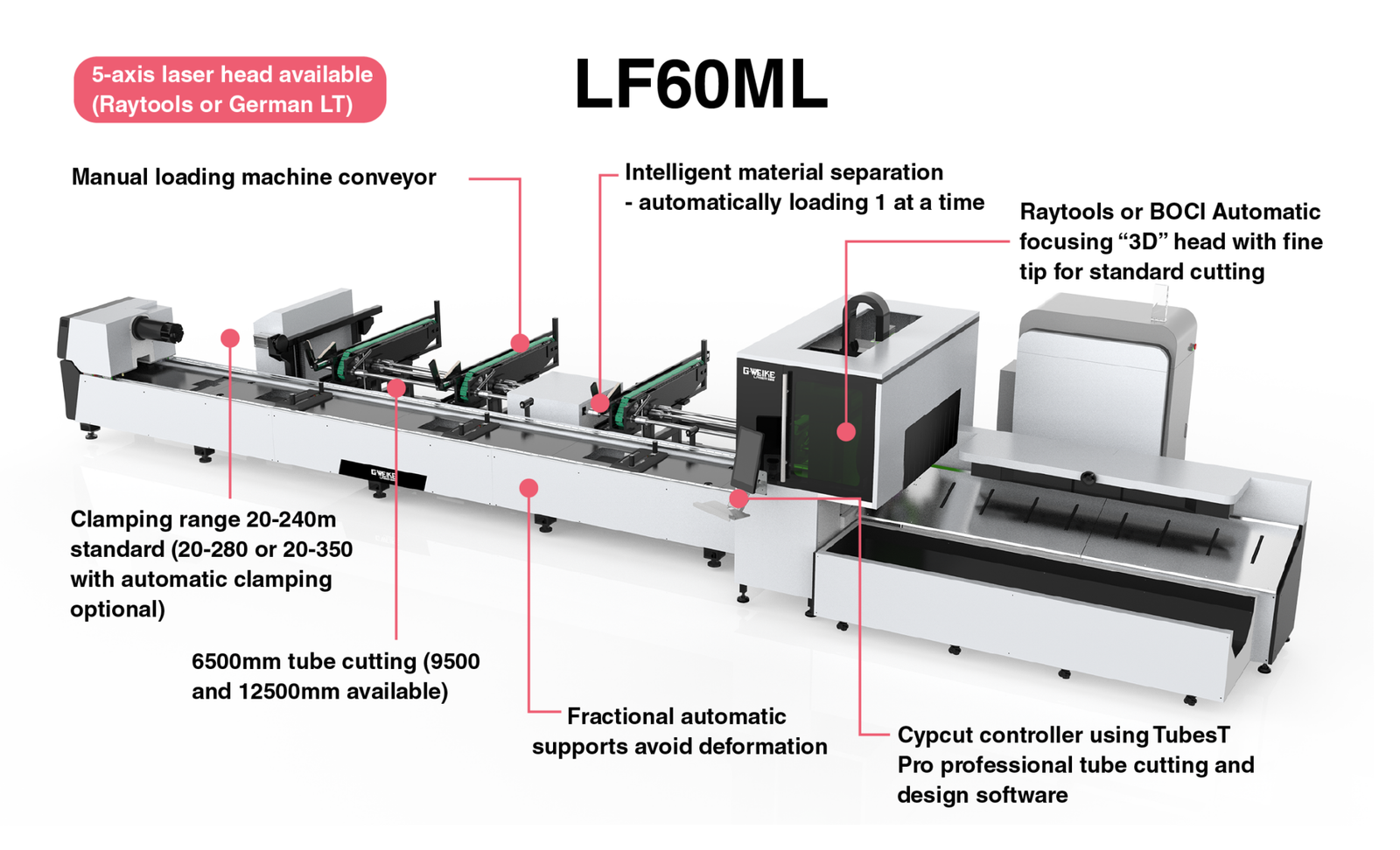

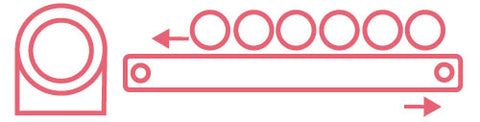

*ex GSTThe LF60ML is semi-automatic loading tube cutting machine, with conveyor platform the operator loads tube manually in a row, then the intelligent automation system will select one tube at a time, docking the tube into the clamping chuck. The finished product is automatically dropped to the storage bin. This loading solution will save greatly on set-up and production time, heavily decreasing the manpower required for production. Recommended for heavy and open profile tube (such as C-channel, I-beam etc)
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 1.5kW / 2kW / 3kW / 6kW |
| Tube Length | LF60MS - 6m Standard model – up to 7m tube length (100mm min end piece) LF90MS - 9m model – up to 10mmm tube length (100mm min end piece) LF120MS - 12m model – up to 12.5mmm tube length (100mm min end piece) |
| Clamp Diameter | 20-240mm diameter (20-280, 20-360 upgrade available) |
| Tube weight capacity | 240mm chuck = 500kg, 280mm chuck = 400kg, 360mm chuck = 500kg |
| Outfeed Table | 3m as standard (extendable options in 1.5m and 3m lengths) |
| Machine Size | LF60MS - 11900mm*1880mm*2260m LF90MS - 14900mm*1880mm*2260m LF120MS - 17900mm*1880mm*2260m |
| Laser source type | MAX, Raycus or IPG |
| Laser Head Type | Automatic focussing laser head with “3D” fine tip 1-2kW = Raytools BM111 3kW = BOCI BLT421 4-6kW = BOCI BLT441 (5 axis head options available – Raytools/BOCI or German LT) |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Moving Speed | 30m/min |
| Acceleration | 1.5G |
| Laser Output Control | 0-100% set by software |
| Drive method | TBI ball screen drive, Panasonic servo motor control with Hiwin guide rails |
| Positioning Accuracy | 0.03 mm |
| Re-positioning accuracy | 0.02mm |
| Minimum line width | 0.1mm |
| Controlling Software | Cypcut Control System 5000 – sheet cutting, TubesT lite (standard) or TubesT Pro upgrade - tube |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit |
| Power Supply | Machine: 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 63amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
