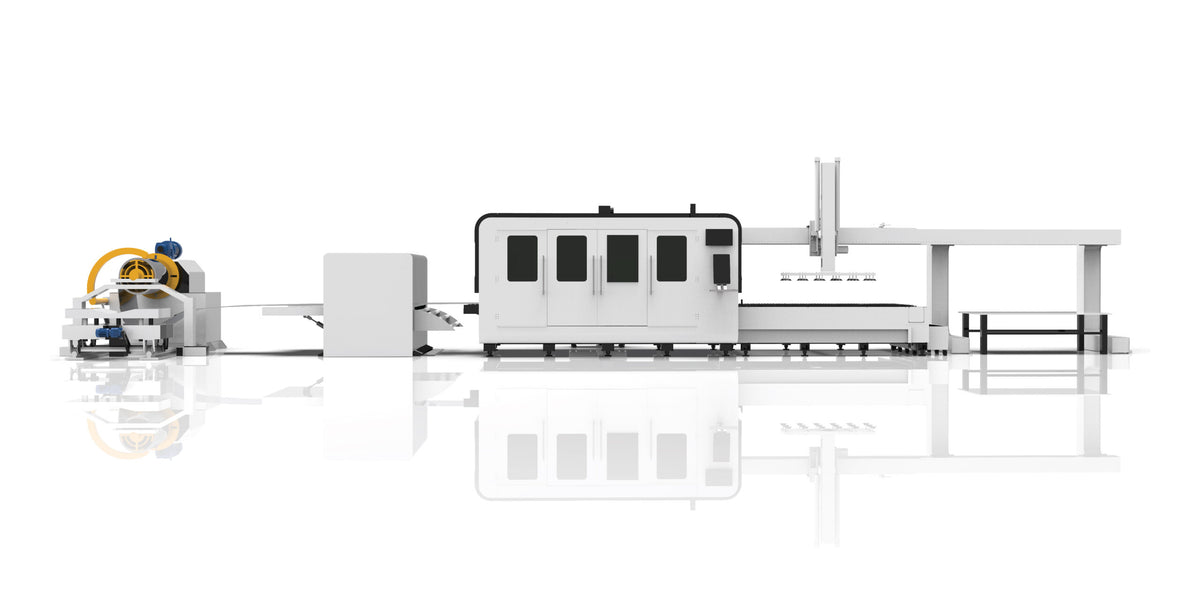

Gweike LF3015MB Coil Fiber Laser
$199,900.00

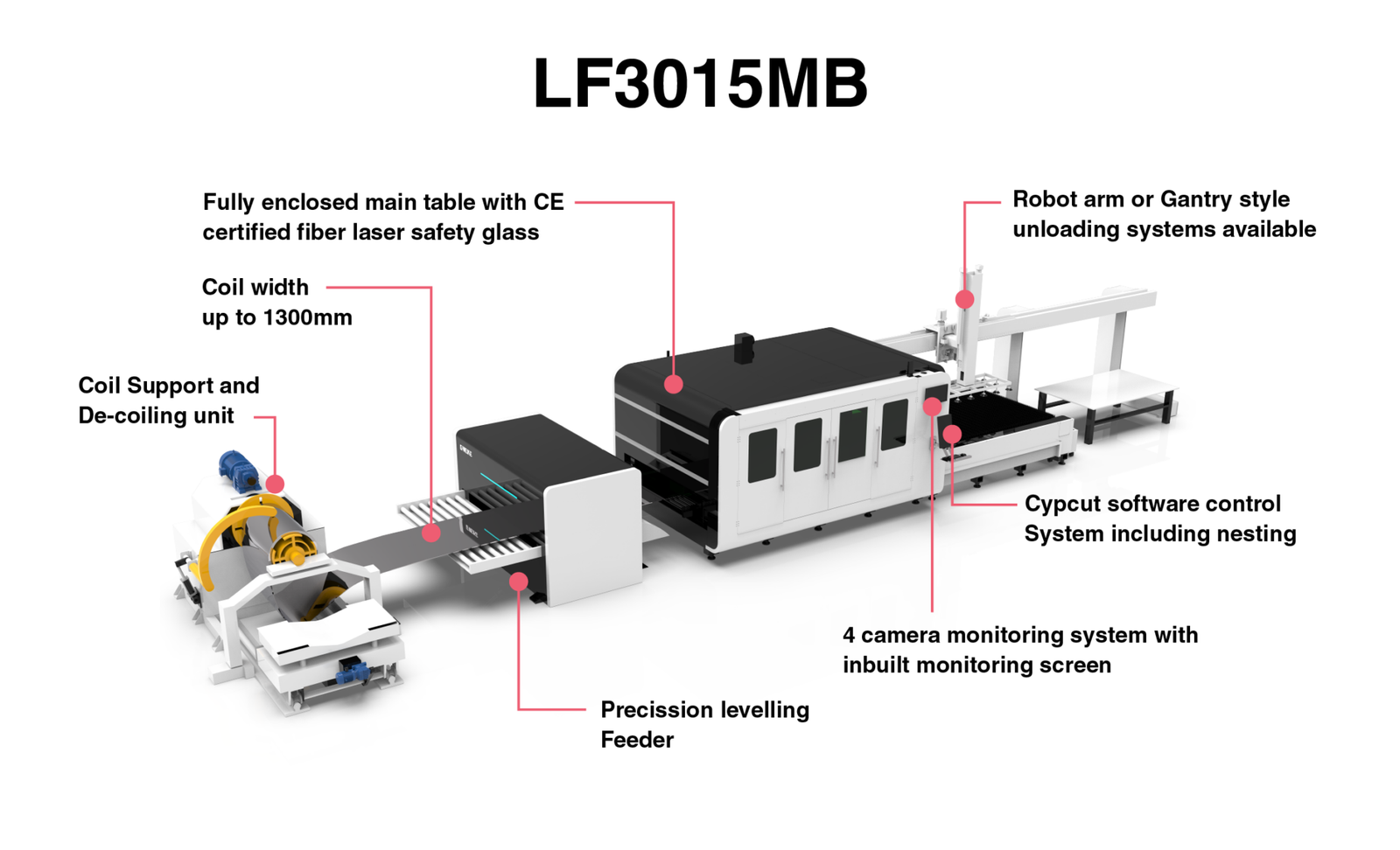

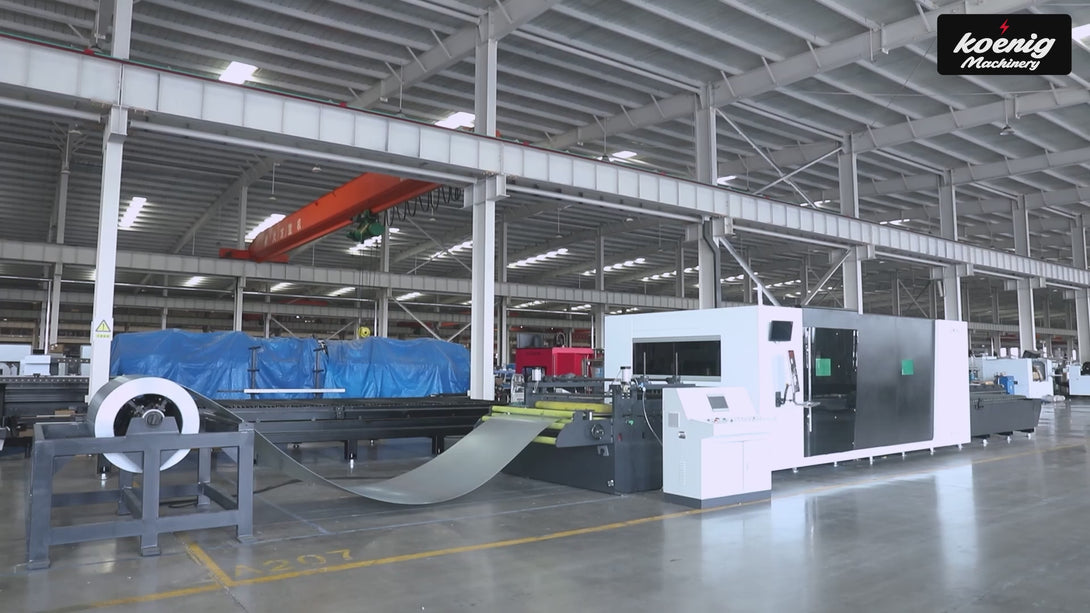

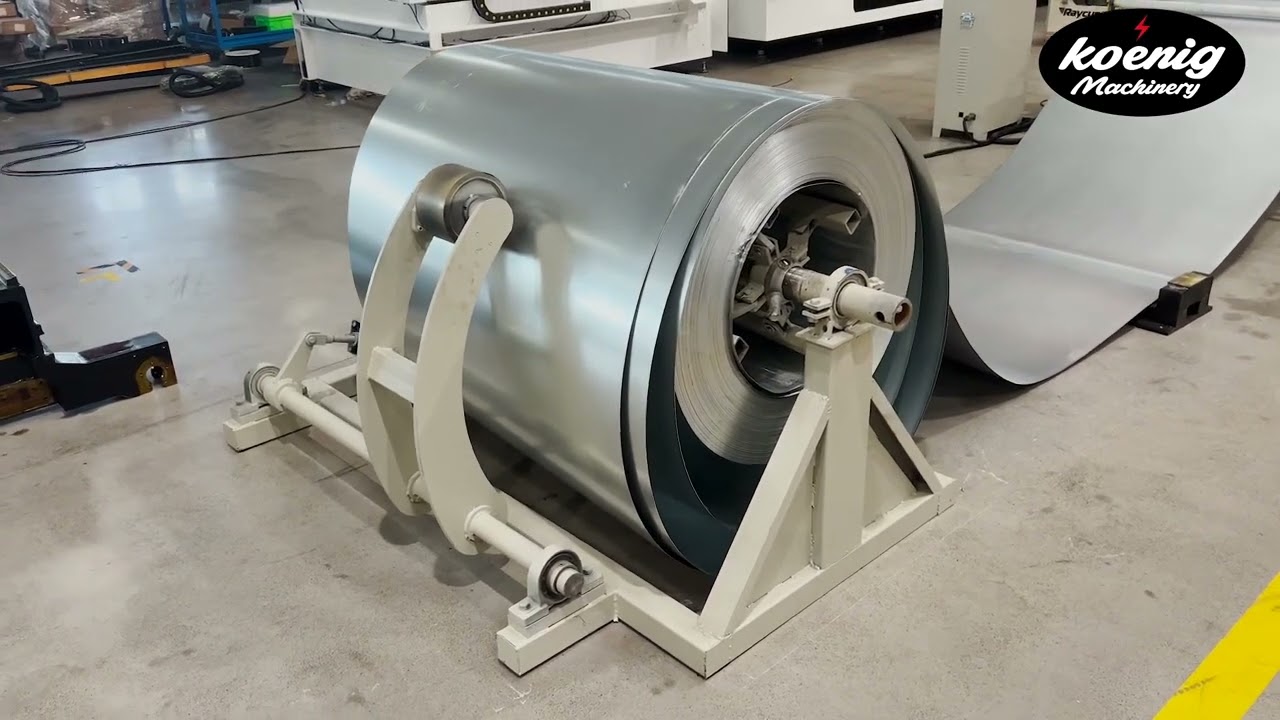

*ex GSTThe LF3015MB is our industrial coil cutting machine, the perfect machine for companies producing repetative products in thin sheet stock. Experience fast production, little to no loading time and cheaper material cost when buying your steel in coil form. With the lowest competative input cost,this machine will pay for itself in not time. Paired with a compressor for air cutting, you have now bottomed out your input costs! System includes a Coil unloader, high tolerance de-coiling unit, with optional gantry or robot style offloading system available
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 1.5kW / 2kW / 3kW / 6kW |
| Coil width | 1000-1300mm |
| Machine Size | LF3015MB = 23500 x 5500 x 2650(H)mm LF4015MB = 24500 x 5500 x 2650(H)mm LF6015MB = 26500 x 5500 x 2650(H)mm |
| Approximate working area | LF3015MB = 25 x 6.5 x 2.7m LF4015MB = 26 x 6.5 x 2.7m LF6015MB = 28 x 6.5 x 2.7m |
| Side door access | 3000mm |
| Laser source type | MAX, Raycus or IPG |
| Laser Head Type | Automatic focussing laser head 1.6-2kW = Raytools BM111 3kW = BOCI BLT421 3kW = BOCI BLT441 |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Moving Speed | 120m/min |
| Acceleration | 1.5G |
| Laser Output Control | 0-100% set by software |
| Drive method | YYC Rack and pinion system, Moto Reducer gear reducer, with Yaskawa motor drive |
| Positioning Accuracy | 0.02 mm |
| Re-positioning accuracy | 0.02mm |
| Minimum line width | 0.1mm |
| Controlling Software | Cypcut Control System 2000E, including nesting, edge seeking and automatic crash protection |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water-cooling unit |
| Power Supply | Machine: 1kW = 415V 50Hz 20amp 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 50amp 3kW = 415V 50Hz 50amp 6kW = 415V 50Hz 80amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
