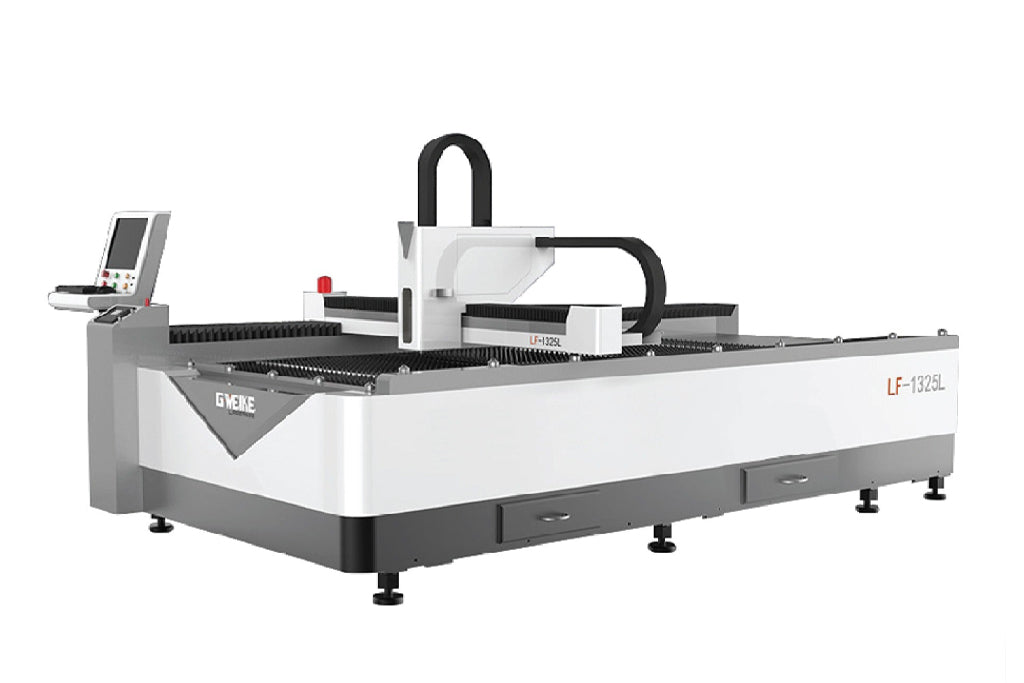

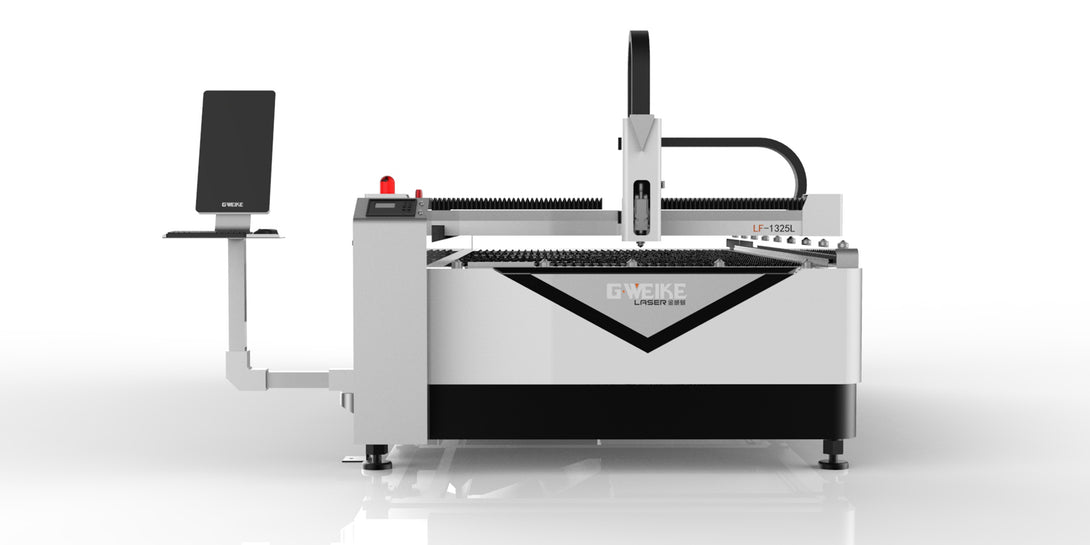

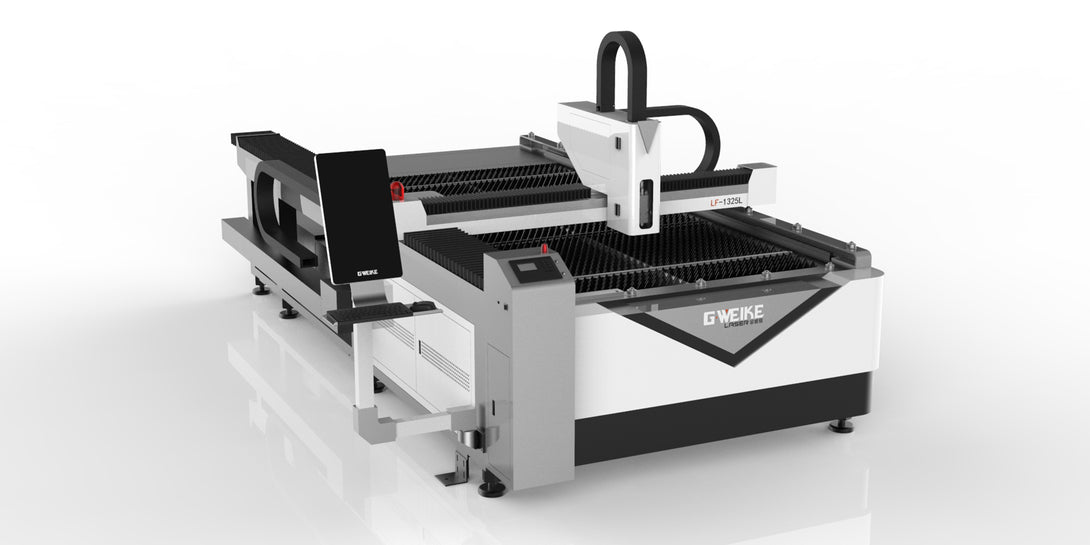

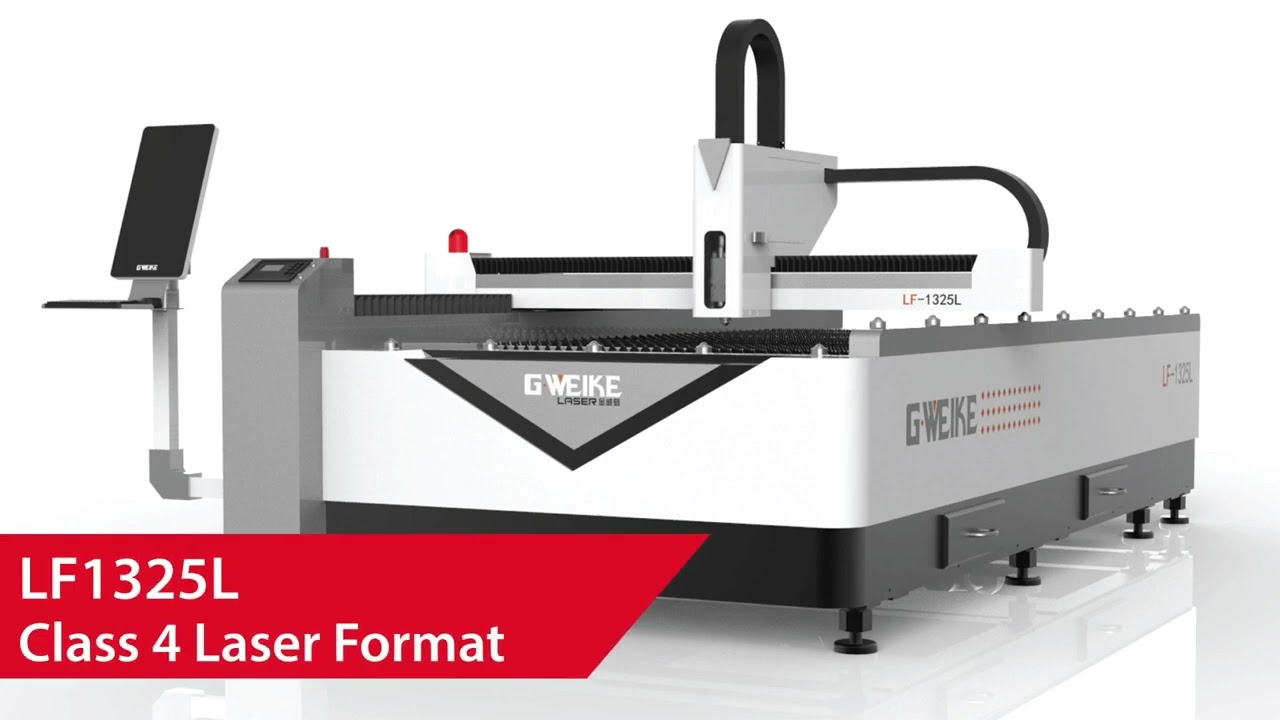

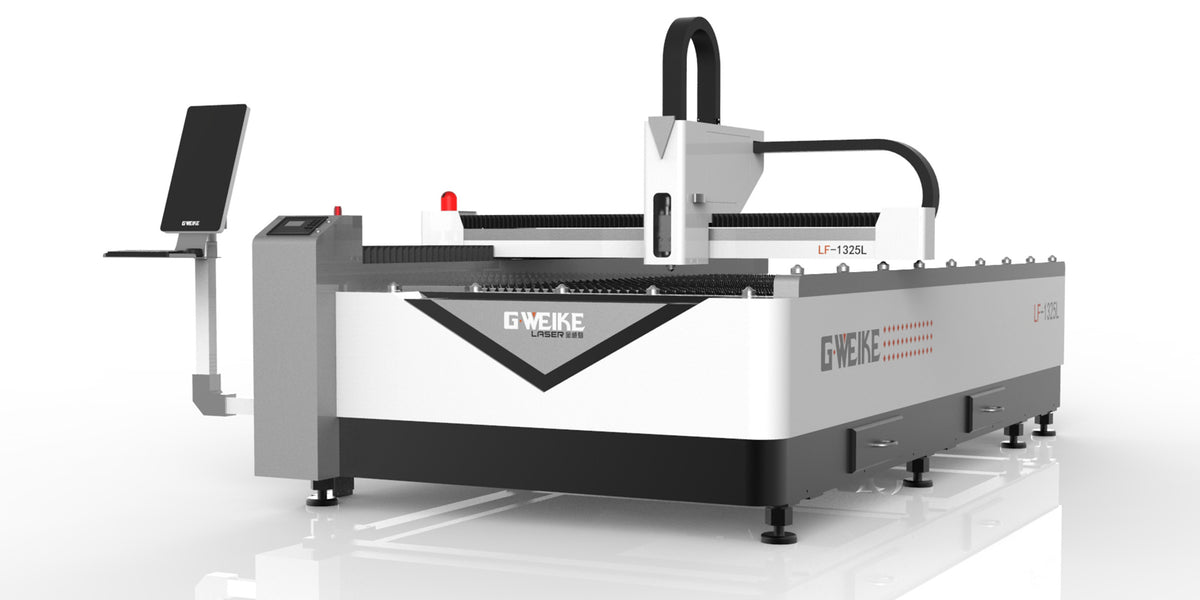

Gweike LF1325L FIBER LASER
$57,900.00

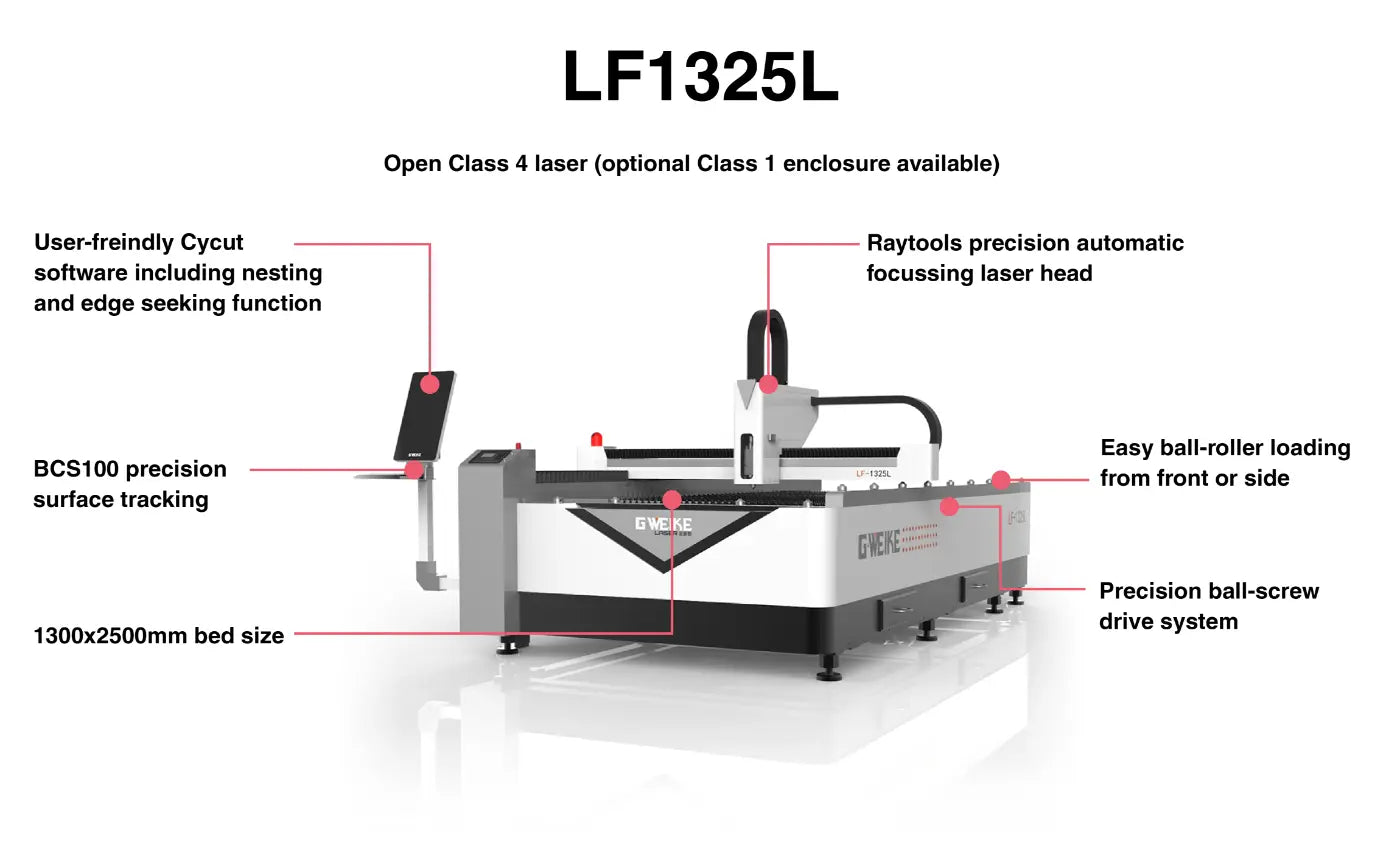

*ex GSTThe LF1325L machine is the perfect entry level Fiber Laser machine for you small to medium business. The machine utilises a TBI ground ball screw drive system, for extremely high-precision and high reliability. With easy-to-use Cypcut software, precision BCS100 tracking system robust Raytool laser head, this machine is an affordable and reliable small manufacturing asset.
⚡ Get 10% Off Laser Materials… Forever!⚡
Automatically applied to your account with every Koenig Machine purchase. Explore our material range
Australian Based Local Support for Life
Setup & Training by Expert Local Technicians
10% Off Laser Materials for life on all Machines
10+ Years as the Aussie Laser Specialists
Specifications
| Technical Parameters | Specification |
| Laser Power | 1.5kW / 2kW |
| Cutting area | 1300 x 2500mm |
| Machine Size | 3800*1850*1300mm |
| Laser source type | MAX / Raycus / IPG |

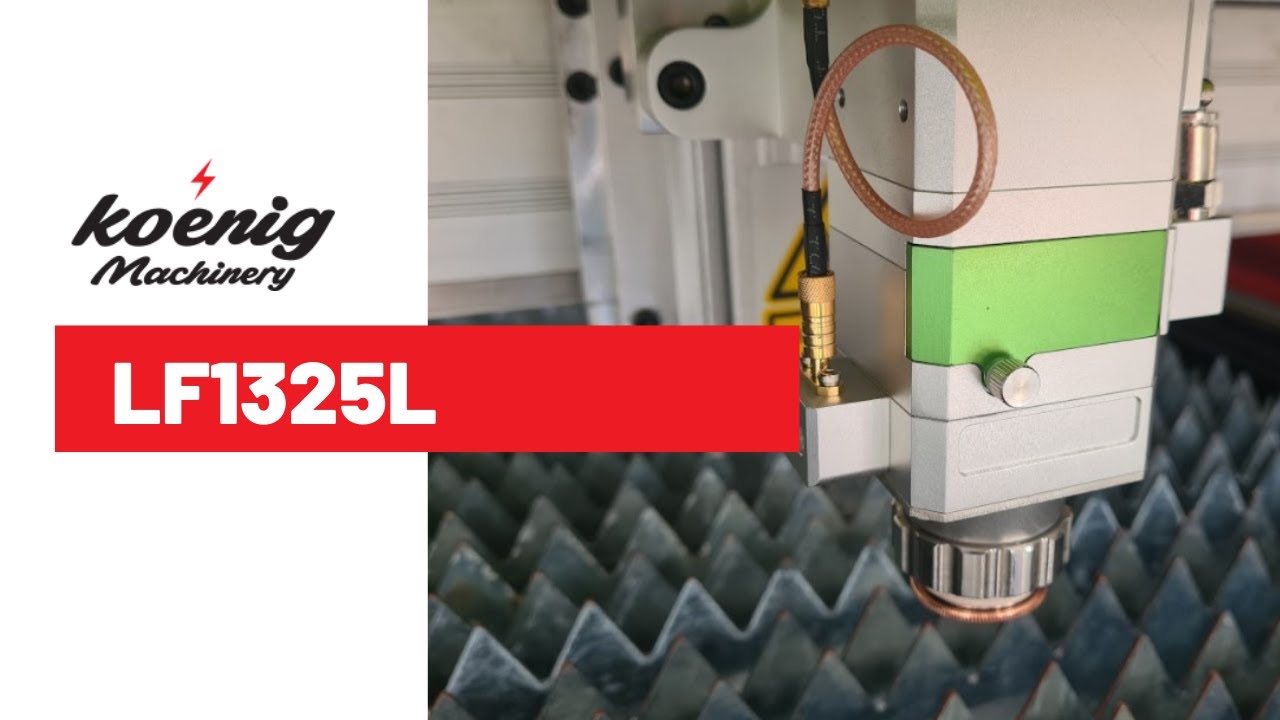

| Laser Head Type | Raytools automatic focussing laser head BM110 |
| Cooling Type | Industrial Water Cooling – S&A water chiller |
| Moving Speed | 40m/min |
| Acceleration | 0.5G |
| Laser Output Control | 0-100% set by software |
| Drive method | Delta servo motor and ball screw drive system |
| Positioning Accuracy | 0.03 mm |
| Re-positioning accuracy | 0.03 mm |
| Minimum line width | 0.1mm |
| Controlling Software | Cypcut Control System 2000E, including nesting, edge seeking and automatic crash protection |
| Graphic Format Supported | Graphics files - Ai, DXF, PLT, Gerber, G code – MaterCam, Type3, Wentai etc. |
| Compatible Software (for outputting supported formats) | Illustrator, photoshop, CorelDraw, Autocad, Solidworks, MaterCam, Type3, Wentai etc. |
| Colour Separation | Yes (imports colours to control cutting layers) |
| Auxiliary Equipment | Exhaust Fan, Industrial water cooling unit |
| Power Supply | Machine: 1.5kW = 415V 50Hz 32amp 2kW = 415V 50Hz 40amp |
| Gas Regulation | Software controlled electronic low- pressure O2 regulator (for fine adjustment at low pressure) And high pressure N2 and Compressed air electronic regulator (high pressure cutting) |
| Gas connection | O2 (mild steel and copper cutting) – 4 pack min Min 99.7% purity – 10m3/h maximum flow rate – 10bar max pressure N2 (Stainless, Aluminium, Brass and thin Mild steel cutting) – 9 pack min Min 99.9% purity – 40m3/h maximum flow rate – 24bar max pressure Compressed air (Stainless, Aluminium, Brass and thin Mild steel cutting) SEE OUR 18DHY-18Bar or 20DHY-20Bar COMPRESSOR OPTIONS |
| Working Environment | Temperature:0-45C, Humidity 5-95% (No Condensate Water) |
[table id=33 convert_line_breaks=false /]
